Multi functional metal shear hydraulic shearing and expanding equipment for disaster relief

hydraulic shearing and expanding equipment

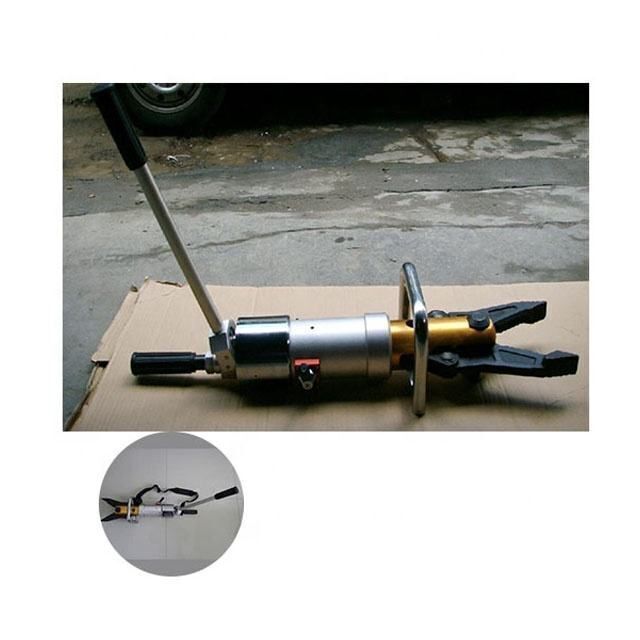

The portable universal hydraulic shearing and expanding tool is integrated with the manual pump, the high and low pressure can be automatically converted, the shearing knife and the manual pump can rotate 360 degrees each other, suitable for different occasions and directions.

Application:

1, traffic accident rescue earthquake disaster rescue accident rescue

2, can work underwater

3, suitable for the upper end of the ladder and hillside operations, pry the door and make the metal structure deformation

4. Cut off metal structure, vehicle parts, pipes and metal plates

Features of portable hydraulic shears and expanders:

1, the tool and pump, no external power source, high and low pressure automatic conversion

2. The cutter and the manual pump can rotate 360 degrees each other to adapt to different occasions and directions

3. The cutter is made of tool steel that can be re-grinded, which can be sheared, expanded and clamped

4, light weight, easy to carry, can be placed on a motorcycle to implement rapid maneuver rescue

5, can be used in the area, very safe

Main technical parameters

Rated working pressure: 63Mpa

Maximum opening distance of scissors end: 360mm

Maximum shear capacity: 10mm(steel plate);(Q235 material) : diameter 28mm

Rated expansion tension: 25-40 KN

No load open pressure times: 9 times

No - load closing times: 11 times

Handle force: 300N

Quality: 15.5kg

Size: 760 * 210 * 170

 Wooden cased

 Carton case

 As custom's require

 Qingdao Port Transport
