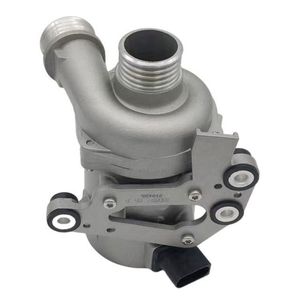

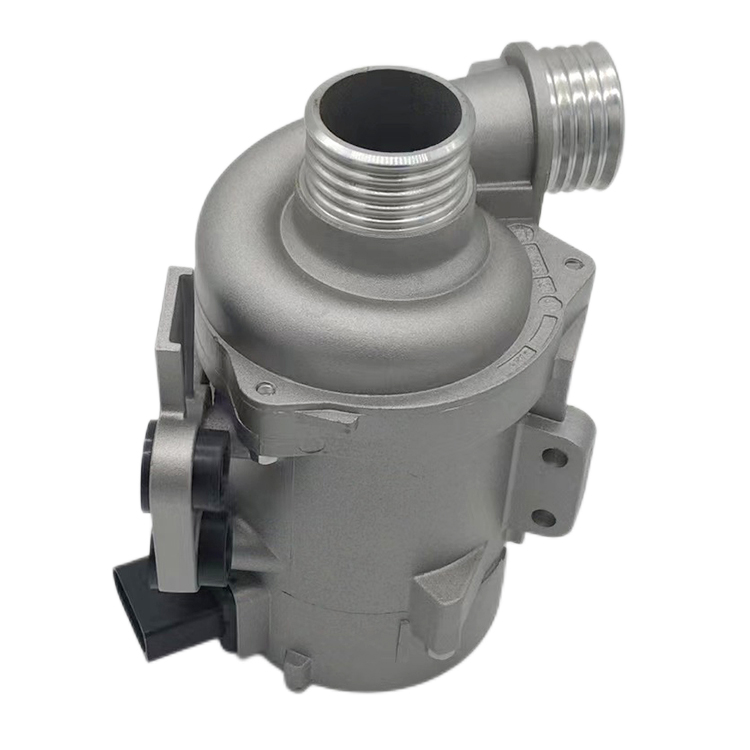

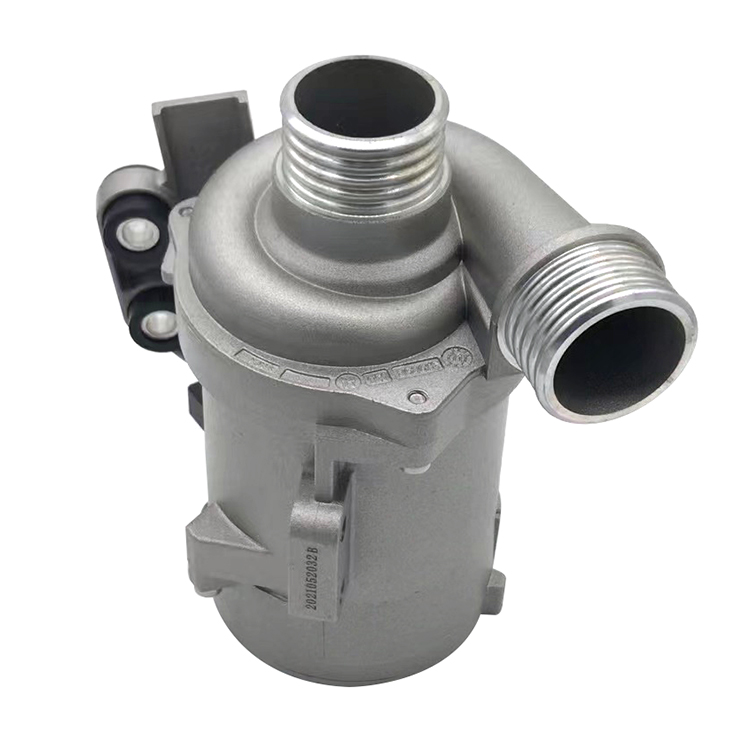

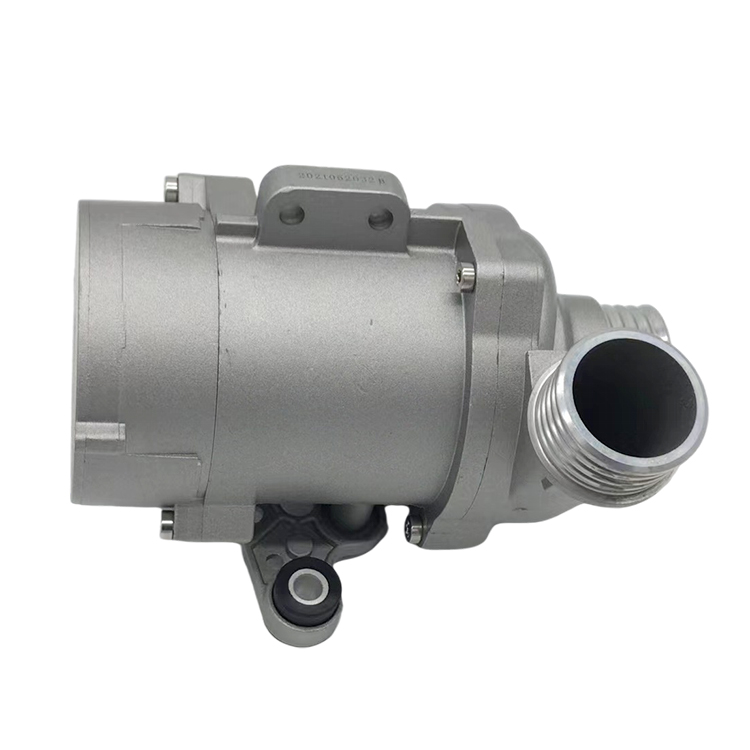

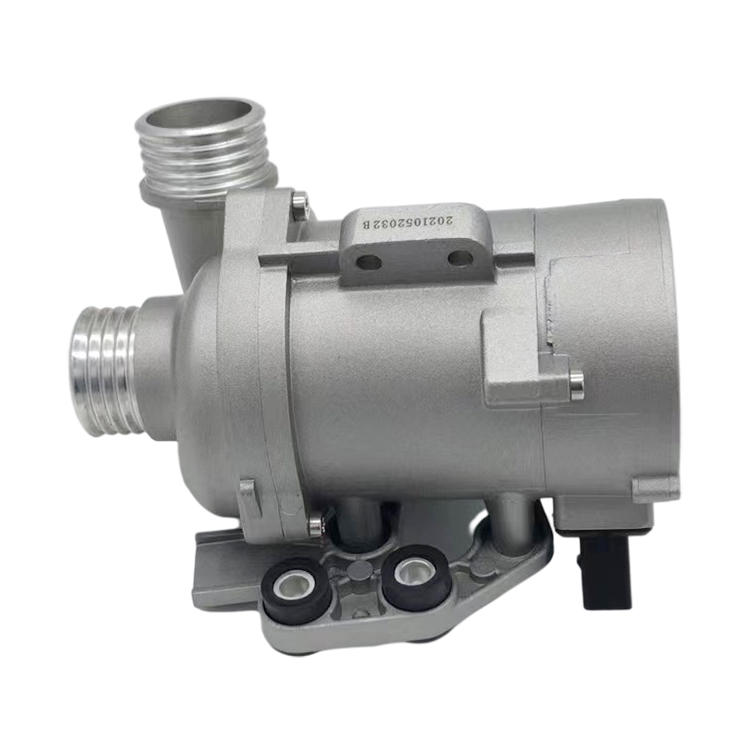

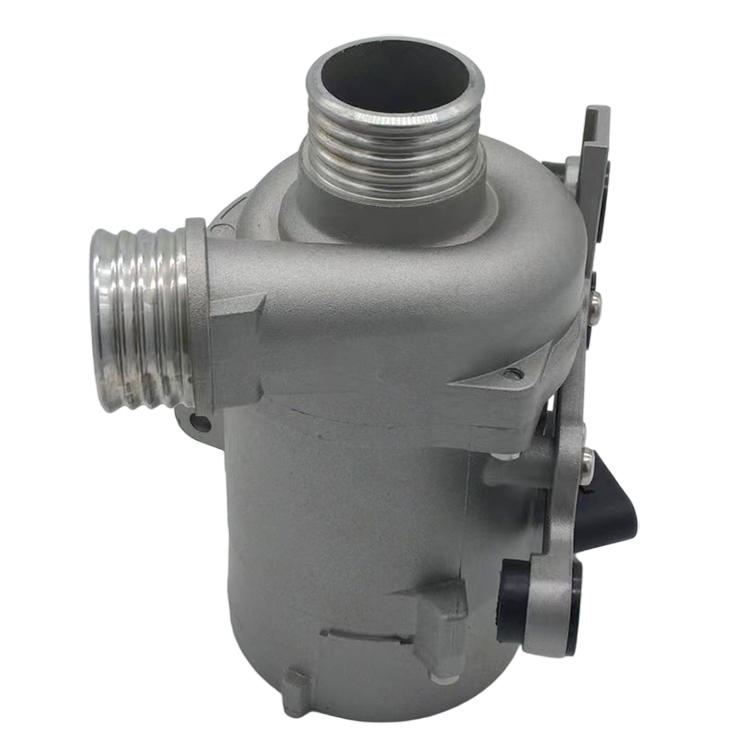

N52B30A, 3.0L 11517583836 11518635092 BMW electric engine water pump
- $95.00 / 1 - 9 pieces
$90.00 / 10 - 99 pieces
$85.00 / >=100 pieces - 1 piece
- Chengdu Century Tiancheng Automobile Service Co., Ltd.
- Sichuan, China
- Mr Zhou Chris
PRODUCT DETAIL
| color: | Black | application: | BMW F18 F11 F10 F02 F25 X3 |
| Year: | 2009-2016 | Package weight: | 2.5 kg |
| Original Equipment Number: | 11517583836 | Origin: | Sichuan, China |
| engine: | 528 me | reference number. : | BWP3015, 20 94 7160, 702478400, FWP3015 |
| size: | small | product name: | electric water pump |
| Original serial number: | 11518635092 | Model: | 5 (F10) |
| Warranty: | 12 months | Material: | alloy |
| car model: | Suitable for BMW F18 F11 F10 F02 F25 X3 | Car equipment: | bmw, bmw |
| Original serial number: | 11517583836, 11518635092 | Voltage: | 12V |
| payment terms: | L/C, Western Union, D/P, D/A, T/T |
Product Description
Name | N52B30A, 3.0L 11517583836 11518635092 BMW electric engine water pump |
thing | electric water pump |
application | For BMW For N52B30A,3.0L For 14/02,N52B30AF,3.0L F18 F11 F10 F02 F25 X3 |
OEM number | 11517583836 11518635092 |
Installation Notes
1 Precautions for installation of electric coolant pump
1 When replacing the electric coolant pump, exhaust the cooling system first, and then fill the coolant. Prevents liquid scaling and
Impurities clog the electric coolant pump.
2 After installing a new electric coolant pump. Bleed the cooling system and check for water tightness
3 Please use the coolant specified by BMW original factory
4 Keep the vehicle battery capacity sufficient
5 When the coolant temperature is high, do not open the sealing cover or water valve of the coolant expansion tank
2. Exhaust check watertight warning!
Exhaust cooling pump system (source: BMW original factory installation guide):
1 Connect the battery charger.
2 Turn on the ignition.
3 Turn the heating unit to the highest temperature and return the operation to the lowest setting.
4 Depress the accelerator pedal to the limit position for 10 seconds. Do not start the engine.
5 The gas pedal has been pressed to start the exhaust process, which lasts for l2 minutes (the electric coolant pump is started, and it will automatically shut down after about 12 minutes)
6 Then fill up the coolant expansion tank so that the liquid level exceeds the highest valve of 100mI
7 Check the water tightness of the cooling system
8 If it is necessary to vent again (eg if the cooling system is not sealed), switch the DME off completely (approximately 3 minutes with the ignition key removed). Then repeat from point 3
3. How to judge whether the electric coolant pump is working normally?
1 When replacing the electric coolant pump, exhaust the cooling system first, and then fill the coolant. Prevents liquid scaling and
Impurities clog the electric coolant pump.
2 After installing a new electric coolant pump. Bleed the cooling system and check for water tightness
3 Please use the coolant specified by BMW original factory
4 Keep the vehicle battery capacity sufficient
5 When the coolant temperature is high, do not open the sealing cover or water valve of the coolant expansion tank
2. Exhaust check watertight warning!
Exhaust cooling pump system (source: BMW original factory installation guide):
1 Connect the battery charger.
2 Turn on the ignition.
3 Turn the heating unit to the highest temperature and return the operation to the lowest setting.
4 Depress the accelerator pedal to the limit position for 10 seconds. Do not start the engine.
5 The gas pedal has been pressed to start the exhaust process, which lasts for l2 minutes (the electric coolant pump is started, and it will automatically shut down after about 12 minutes)
6 Then fill up the coolant expansion tank so that the liquid level exceeds the highest valve of 100mI
7 Check the water tightness of the cooling system
8 If it is necessary to vent again (eg if the cooling system is not sealed), switch the DME off completely (approximately 3 minutes with the ignition key removed). Then repeat from point 3
3. How to judge whether the electric coolant pump is working normally?
method one:
The speed of the electric coolant pump is manually controlled by the diagnostic computer If the electric coolant pump can
Run according to the set requirements, and the diagnostic computer has speed information feedback display, which can determine that the electric coolant pump is working normally
Method Two:
After the vehicle is turned off, put the car key in the ACC position, turn on the air conditioner, unscrew the seal cover of the coolant expansion tank, and observe whether the coolant flows in the expansion tank. If there is a sign of coolant flow, you can confirm that the electric coolant pump is working normally
4. Analysis of electric coolant pump fault codes
Fault code 002E83 DME electric coolant pump speed deviation (speed out of tolerance)
Fault code 002E84 DME electric coolant pump missing
The diagnostic computer enters the DME system to check the above fault codes. It is recommended to check whether the coolant pump is damaged. For the specific inspection method, see item 3
The speed of the electric coolant pump is manually controlled by the diagnostic computer If the electric coolant pump can
Run according to the set requirements, and the diagnostic computer has speed information feedback display, which can determine that the electric coolant pump is working normally
Method Two:
After the vehicle is turned off, put the car key in the ACC position, turn on the air conditioner, unscrew the seal cover of the coolant expansion tank, and observe whether the coolant flows in the expansion tank. If there is a sign of coolant flow, you can confirm that the electric coolant pump is working normally
4. Analysis of electric coolant pump fault codes
Fault code 002E83 DME electric coolant pump speed deviation (speed out of tolerance)
Fault code 002E84 DME electric coolant pump missing
The diagnostic computer enters the DME system to check the above fault codes. It is recommended to check whether the coolant pump is damaged. For the specific inspection method, see item 3
Precautions for using electronic coolant pumps
1. If the air is not purified, the high water temperature will cause the vehicle to alarm. Need to empty again, clear the fault code and test drive
2 Please use BMW original antifreeze. If the quality of antifreeze is not good, long-term use will cause damage to the water pump
3 For vehicles with long kilometers, when replacing the electronic coolant pump, please check the scale and dirt in the water tank. Impurities circulating through the coolant can cause damage to the water pump if the tank is too dirty
4 If you need to replace the water pump plug on the original car, you must pay attention to the wiring. If the communication line is connected to the ACC line, the pump will always run
5 Under normal circumstances, after the vehicle is turned off, the ECU will decide whether to continue running for a period of time according to the water temperature. After the water temperature is normal, it will stop. So if the water pump is still working after the vehicle is turned off, this is a normal phenomenon. Generally, the vehicle will run for about 15 -20 minutes after the engine is turned off.
6 It is recommended to replace the thermostat with the coolant pump at the same time, otherwise damage to the thermostat will also affect the normal operation of the water pump
cutting edge
Please read carefully before installing this product, and strictly follow the above installation instructions!
If you violate the above installation instructions and the original factory installation guide, it will cause problems with the product. Not within the scope of product quality after-sales service
2 Please use BMW original antifreeze. If the quality of antifreeze is not good, long-term use will cause damage to the water pump
3 For vehicles with long kilometers, when replacing the electronic coolant pump, please check the scale and dirt in the water tank. Impurities circulating through the coolant can cause damage to the water pump if the tank is too dirty
4 If you need to replace the water pump plug on the original car, you must pay attention to the wiring. If the communication line is connected to the ACC line, the pump will always run
5 Under normal circumstances, after the vehicle is turned off, the ECU will decide whether to continue running for a period of time according to the water temperature. After the water temperature is normal, it will stop. So if the water pump is still working after the vehicle is turned off, this is a normal phenomenon. Generally, the vehicle will run for about 15 -20 minutes after the engine is turned off.
6 It is recommended to replace the thermostat with the coolant pump at the same time, otherwise damage to the thermostat will also affect the normal operation of the water pump
cutting edge
Please read carefully before installing this product, and strictly follow the above installation instructions!
If you violate the above installation instructions and the original factory installation guide, it will cause problems with the product. Not within the scope of product quality after-sales service
