NETZSCH Spare Parts Guide

Screw pump guide sleeve action

The function is to support the shaft, avoid direct transmission shaft and coupling grinding, reduce damage to the transmission shaft and coupling device, play a protective role, and make the shaft perform compound rotary motion in the shaft sleeve.

The bushing can not only reduce the wear, vibration and noise of the equipment, but also has the function of anti-corrosion. It can also facilitate the maintenance of mechanical equipment, simplify the structure and manufacturing process of equipment

Screw pump guide sleeve material

Commonly used materials include No. 45 steel, 40Cr alloy steel, medium carbon steel, bearing steel GCr15 and spring steel 65Mn, as well as 20CrMoTi, 20Mn2B, 20Cr, etc.

Our company's commonly used guide sleeve materials:

SUS304; stainless steel 316L.

Design and application of screw pump bushing

Screw pump bushings are used to connect rod ends and are an important part of the universal joint assembly that connects the rotor and drive shaft

In these moving parts, due to the friction caused by long-term friction, the parts need to be replaced when the axial clearance and holes of the parts are worn to a certain extent, so we must choose the material bushing with better wear resistance, which can reduce the shaft wear on the shaft. We must choose a material with better wear resistance for the bushing, which can reduce the wear between the shaft and the shaft. When the bush is worn to a certain extent, it can be replaced, which can save the high cost of replacing the shaft. When the bushing wears to a certain extent, replace it, which can save the high cost of replacing the shaft. Generally, the bushing and shaft are installed with a clearance fit. This installation method cannot avoid wear and tear, and only lengthening parts can be selected. Life, bushing parts are relatively easy to produce, and the cost is relatively low.

Standard Factory Availability

1) ST D's factory has a variety of accessories, we offer quick turnaround to help reduce equipment downtime, you don't need to have a lot of inventory.

2) For spare parts, fast shipment is possible, ensuring that production is uninterrupted or reduced to a minimum of downtime. With good service and very competitive price, customers can earn time profit from cooperating with us.

very competitive price

As customers pay more and more attention to operation and maintenance costs, we need to prioritize the price and availability of spare parts when evaluating plant savings and efficiency.

Using their engineering knowledge and production capabilities, STD companies are able to produce spare parts of good quality and competitive prices (spare parts for NETZSCH, SPEEDEX, MONO, VISCOTEC, STD, etc.)

quality assurance

STD is a professional R & D and manufacturer of single screw pumps and spare parts. The product quality has been tested and recognized by customers in the professional market, and has won the recognition and praise of customers.

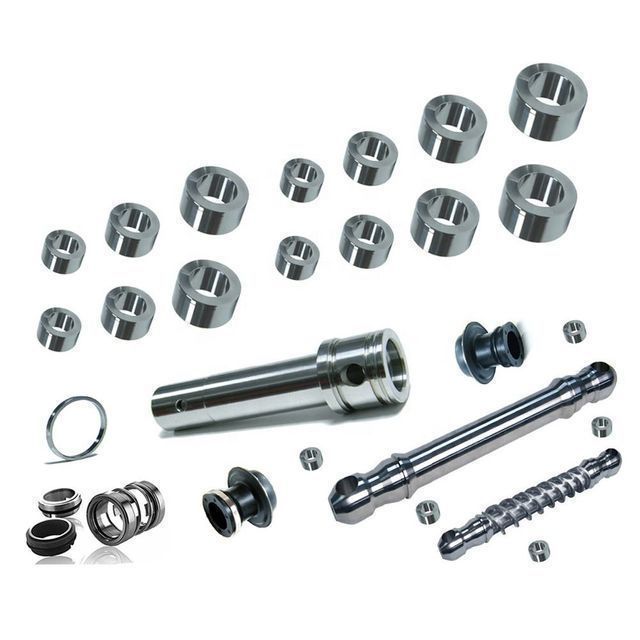

STD Common Parts Overview

STD has a solid reputation for the quality of its equipment and parts. In recent years it has been our mission to use our manufacturing and engineering expertise to expand our product offering to include a range of high quality STD common parts for many other brands of Progressive Cavity (PC) pumps.

We offer STD universal parts that can be used with other brands of single screw pumps in the following series. For others not listed, please contact STD

1) NETZSCH™ 2) SEEPEX™ 3) MONO™

International excellent brand screw pump accessories supply

STD uses its own professional knowledge, manufacturing capabilities and channels to provide a full range of screw pump accessories for major global brands (Germany Netzsch, Seepex, Mono, etc.), these accessories are excellent in performance and durable, including: stators, rotors, drive shafts, Coupling, PIN, PIN or complete set of rotating parts, etc.

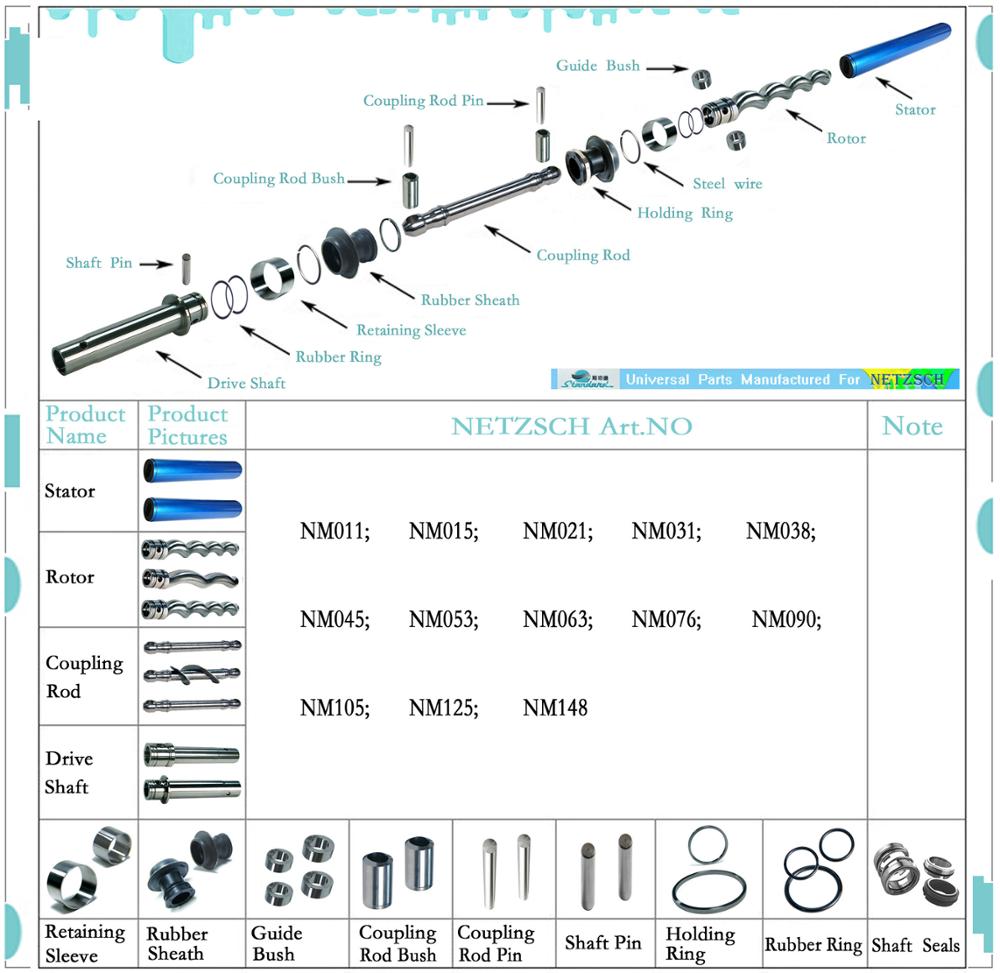

We can provide universal spare parts of NETZSCH brand

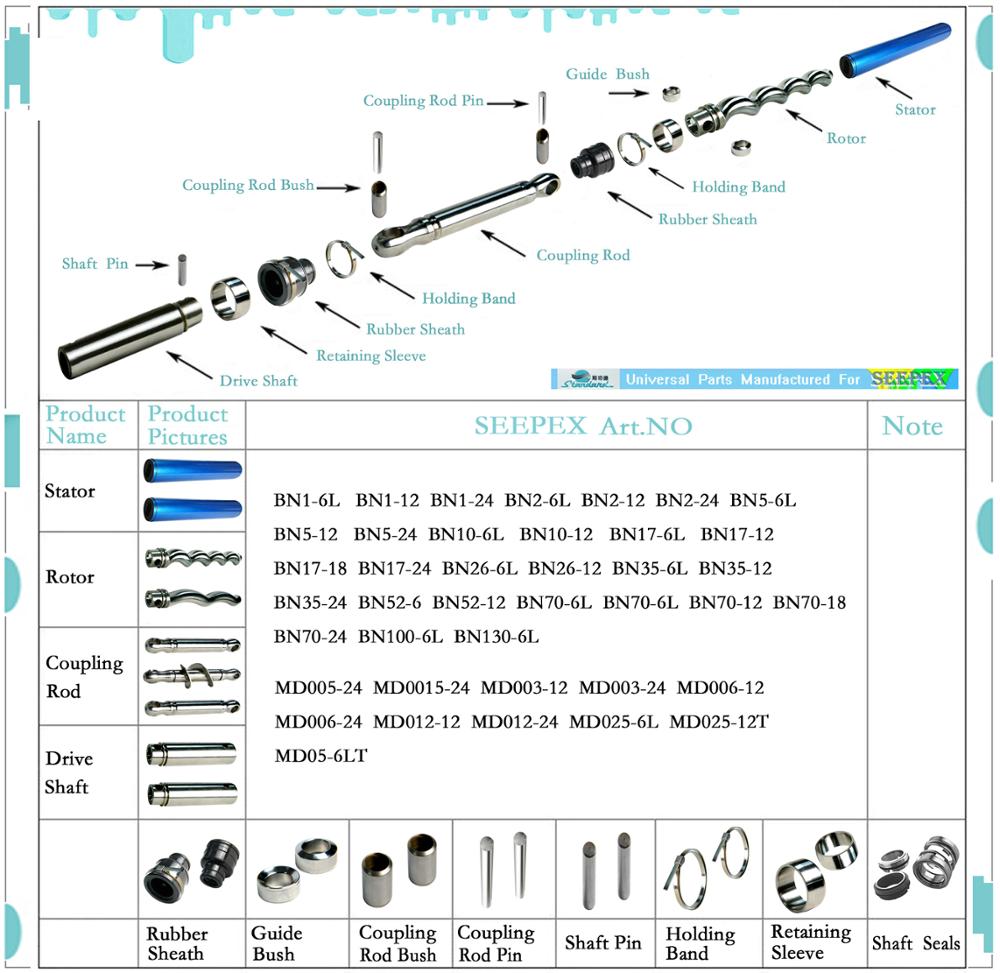

We can provide universal spare parts of SEEPEX brand

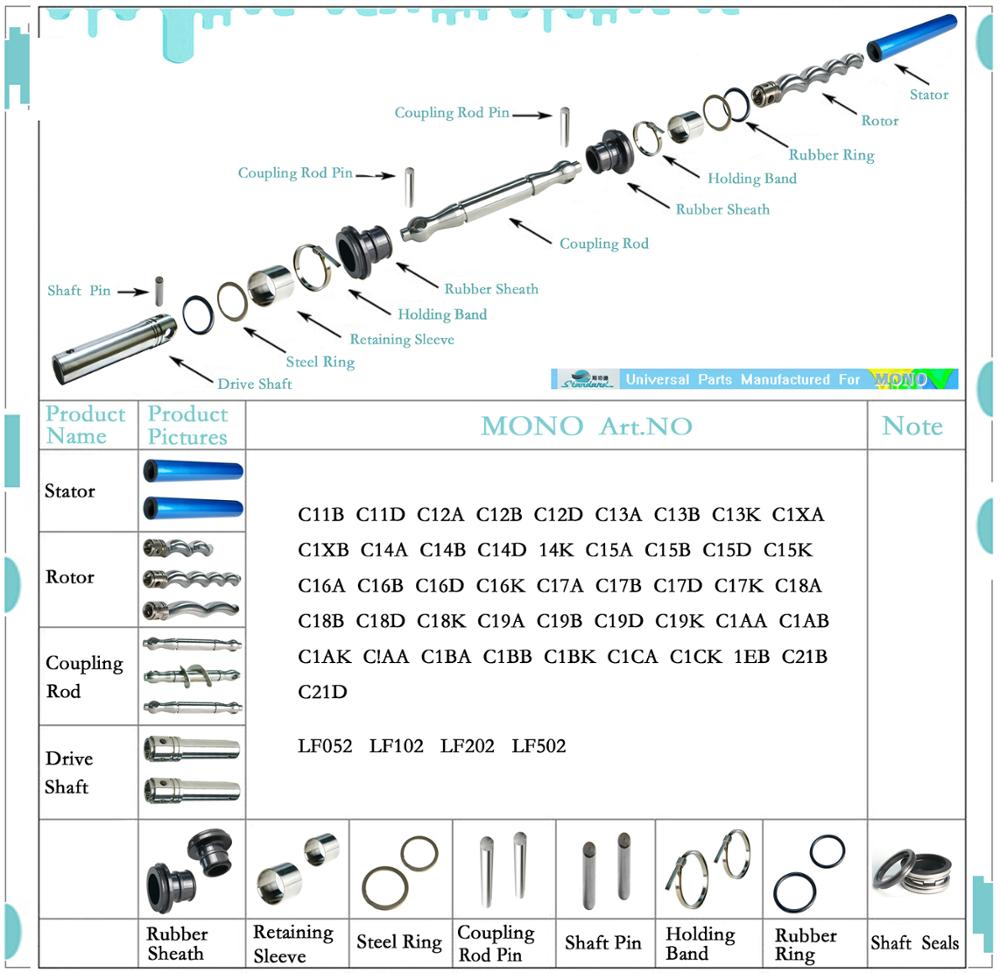

We can supply MONO brand general spare parts

certified

1) What products does STD provide?
STD provides global solutions for screw pumps, screw pump accessories, and fluid system products.

Product range overview of STD

Progressive cavity pumps for conveying and metering low to high viscosity media with or without solids

Macerators are used to macerate solid and fibrous components in media

Control systems for monitoring, regulating and controlling processes

Services: consulting, commissioning, maintenance, NETZSCH,SEEPEX, andmononucleosisGeneral spare parts, repairs and various service contracts

2) Does STD offer custom pumps?

Yes, this is our specialty, we customize our modular systems with different designs and material combinations for each application. This means we develop the best technical and most economical solution for your needs.

3) Can STD spare parts be ordered online?
Yes, it is possible to order STD Progressive Cavity Pumps and spare parts online as well as general accessories for other brands (NETZSCH, SEEPEX.MONO). To order, please contact us.

4) How soon can my STD pump be delivered?

Typically, standard pumps are delivered within 4 to 6 weeks. In urgent cases, the delivery time may be between 2 and 5 days. Please contact us. Tel: 0086 -189 4242 4342

5) Packaging; Transportation

1) Standard export packing: We pack the pumps and accessories in wooden cases and put them in containers. Shipping by sea and air. .

2) The marking on the packing box is carried out according to the international standard

3) Please check the packaging and integrity of the goods when receiving the goods, and report to the carrier immediately if there is any damage.

4) If you have special packaging requirements, please inform us.

6) Product quality assurance

According to international standards, the whole pump is guaranteed for 1 year,

6 months warranty on spare parts

Buyer Note:

1) Can the screw pump run dry?

No, the conveying elements are always in contact with each other, which means that dry running must be avoided in progressive cavity pumps. STD dry running protection device provides reliable protection.

2) What temperature is suitable for using STD pump?
STD Progressive Cavity Pumps can be used in temperatures ranging from -20 °C to 150° C (-4 to 302° F).

Company Profile

Guangdong Star Fluid System Co., Ltd. is the largest professional manufacturer of screw pumps, screw valves, and exhaust system screw products in South China

Screw pumps, screw valves, and exhaust system screw products have advanced technology, perfect structure, various forms, complete specifications, and durability, and are widely used in sewage treatment, chemical industry, papermaking, food processing, pharmaceuticals, energy, environmental protection, 3D printing and other industries .

The company has a team of engineers with rich experience, mature technology, high quality and trustworthy design, manufacture, testing and after-sales service of screw pumps. Provide customers with high-quality products, excellent solutions and efficient services in the field of fluid systems.

While producing and developing screw pump products, it also provides global screw product general accessories (including German Netzsch, Seepex, Viscotec, British mono and other brand accessories) and maintenance customization services, and provides free technical consulting services and improved optimized designs. Our excellent processing ability, rich practical experience and mature technical advantages provide a stable guarantee for our products.

our service

1 Our company's screw pump series products have reasonable prices, high-quality services, and quality inspections. OEM is welcome.

2 We have a dedicated quality supervision department to ensure the quality of mass production.

3 If there is a quality problem with the product, we will deal with it as soon as possible, find out the reason, and take responsibility.

4 If you are interested in our products and company, please leave us a message or email us, we will reply you within 24 hours

Why choose us?

1 Factory direct sales, no intermediate links, competitive price

2 Our machines are all original machines imported from Europe, the quality of the products produced is stable, and no inferior equipment is used.

3 Make sure delivery on time, purchasing, we can provide the best service quality control, shipping, documents, etc.

4 We provide samples and OEM service.

5 We will reply your inquiry within 24 hours.

6 More than 20 years of experience in the industry, as well as a professional team, make our customers feel at ease in cooperating with us

7 Please contact us by email, we will send you more pictures for you to choose our products.

How to order STD screw pump?

1) Sample approval

2) Customers arrange 30% deposit after receiving our PI (Proforma Invoice),

3) We start the mass production and finish the production within the agreed delivery time

4) We send the shipping documents to the customer

5) The customer arranges the balance payment

6) We arrange the shipment and send the original documents or telex the goods
