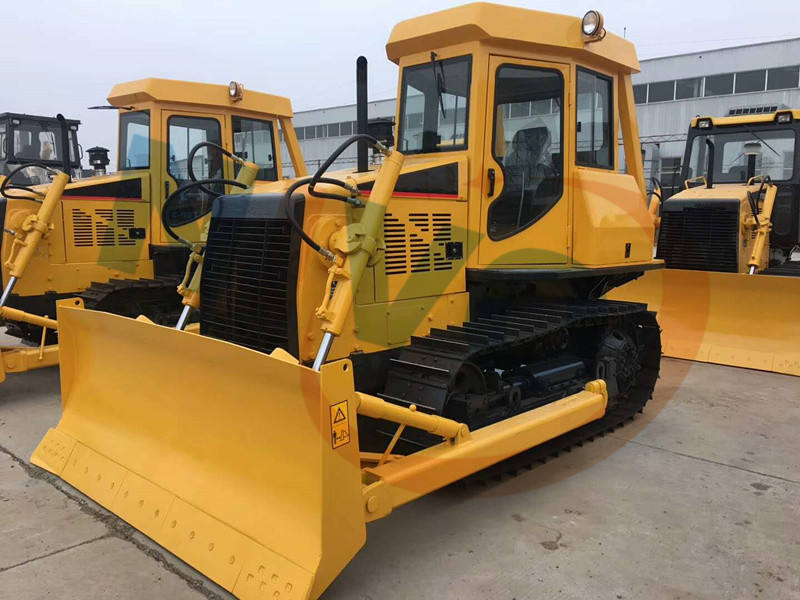

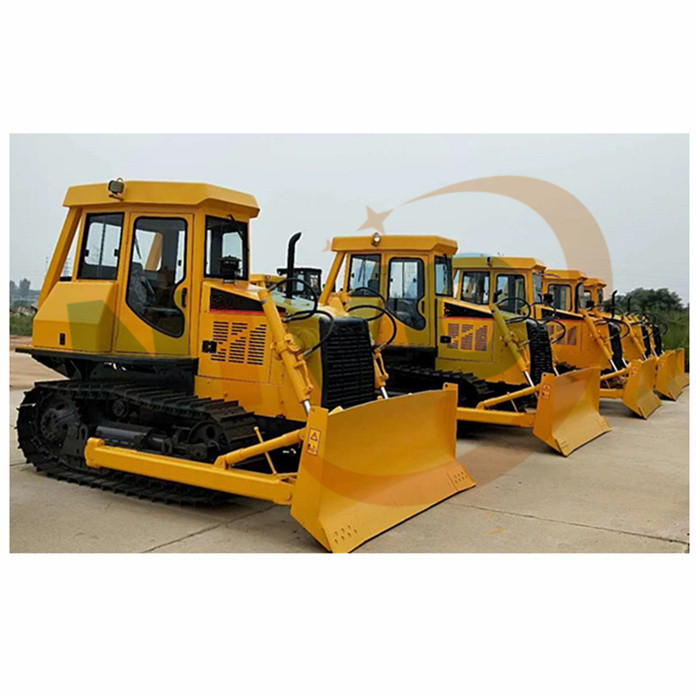

NIVO Mini Dozer 80hp TN80 Crawler Dozer 11 Ton Specially Designed Dozer or Tractor Dozer Dozer Blades or Parts
- $2000.00 /unit
- 1 unit
- Nivo Machinery (jingjiang) Co., Ltd.
- Jiangsu, China
- Ms May Huang
PRODUCT DETAIL
Packaging Details: | nude | Hydraulic valve brand: | mentioned |
The maximum digging depth of the blade: | 370mm | Warranty: | 1 year |
Hydraulic pump brand: | mentioned | Track plate width: | 400mm |
Video external inspection: | if | port: | Shanghai, Tianjin, Lianyungang, Ningbo |
Core Components Warranty: | 1 year | Bulldozer (W*H): | 2480*922mm |
Machine weight: | 8700kg | Unique Selling Points: | High operating efficiency |
Hydraulic cylinder brand: | mentioned | brand: | Niwo |
Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | Showroom location: | not any |
Engine rated power/speed: | 70/2200kw/r/min | Marketing Type: | New Products 2020 |
Engine maximum torque: | 313 Nm | Forward 1-4 gears: | 2.4~10.4km/h |
Supply capacity: | 200 units per month | payment terms: | L/C,Western Union,T/T,MoneyGram |
Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies | Dimensions (L*W*H): | 4860*2544*2740mm |
Bulldozing Ability: | 4m³ | place of origin; place of origin: | Jiangsu, China |
Health status: | new | Mechanical test report: | if |
engine model: | LR4A3Z-22 | Reverse 1-2 gears: | 4.9~8.9km/h |
Maximum lift height of blade: | 736.5mm | Type of move: | Crawler Bulldozer |
Product Description
Specification
Model | TN80 | |
gross weight | Kilogram | 8700 |
Largest traction | kN | 82 |
engine model | LR4A3Z-22 | |
Engine rated power/speed | kW/rev/min | 70/2200 |
engine fuel consumption | g/kWh | ≤246 |
engine maximum torque | New Zealand rice | 313 |
1-4 gears forward | km/h | 2.4~10.4 |
Reverse 1-2 gears | km/h | 4.9~8.9 |
track plate with | mm | 400 |
land pressure | kPa | 51 |
Dimensions (L×W×H) | mm | 4860*2544*2740 |
Bulldozer (W×H) | mm | 2480×922 |
Maximum lift height of blade | mm | 736.5 |
Maximum digging depth of the blade | mm | 370 |
Cutting angle (adjustable) | ° | 55 |
Twisting equipment / scarifier (optional) | Fixed/Three Teeth |
