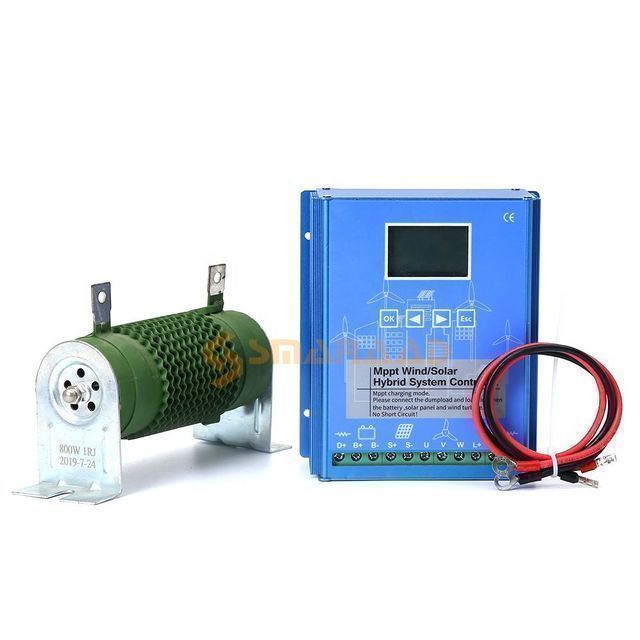

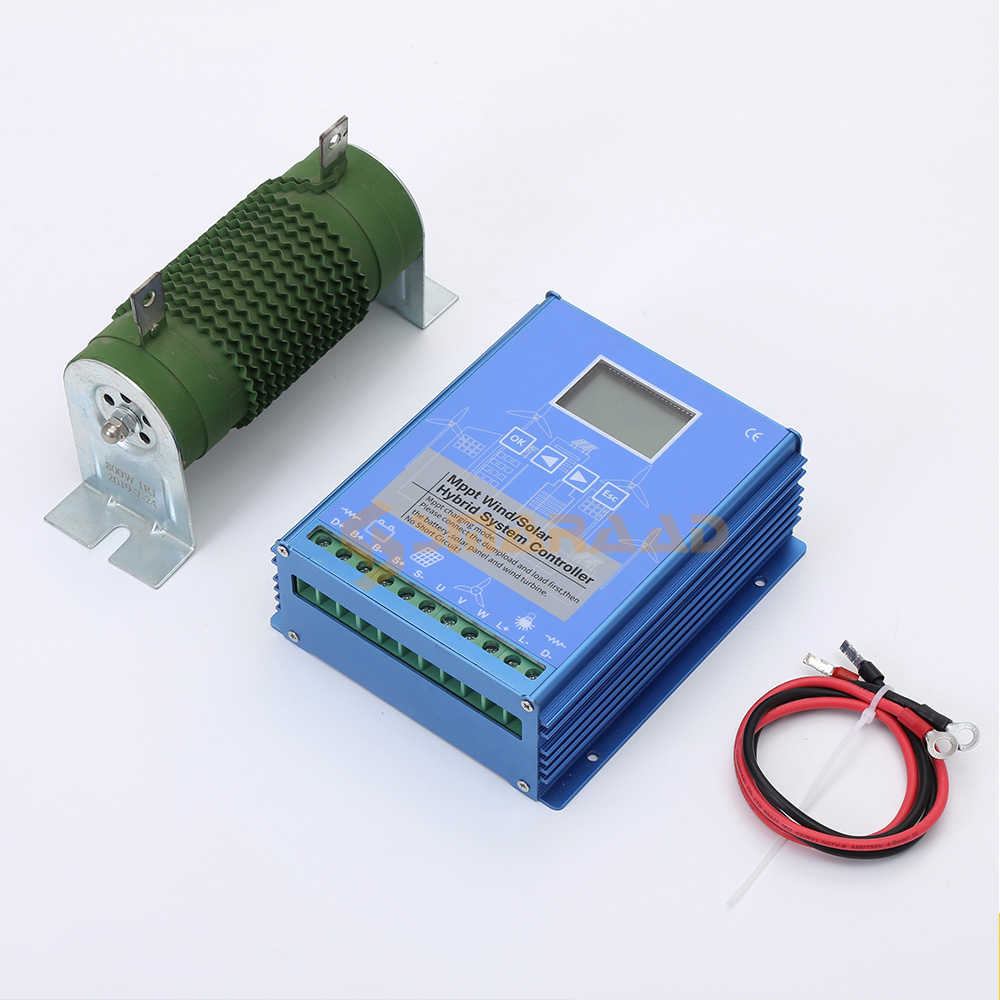

New Arrival 100W-800W Wind and Solar 12V 24V Automotive MPPT Hybrid Regulator for Solar Panel and Wind Turbine

PRODUCT DETAIL
Rated wind force:100W-800Wcolor:blue
Operating temperature:-25℃~+80℃ /0~90%custom made:Yes
Rated voltage:12V 24V carCertificate:CE certification
Package preview:port:Shanghai/Ningbo/Shenzhen/Lianyungang
Controller power mode:battery or solarSupply capacity:100 pieces per day
charging method:MPPT Maximum Power Point TrackingNo-load current (DC):≤0.05A
Packaging Details:Carton/wooden boxWarranty:1 year
payment terms:L/C, D/P, D/P, T/TRated solar power:100W-800W
model:SM-HECRplace of origin; place of origin:Jiangsu, China
Folded size:Do notefficiency:>85%
Battery:Do notbrand:Smarade
Wind Energy Solar Hybrid System MPPT Charge Controller Solar Controller 100w-800w Wind Energy 100w-800W 12V 24V Automatic Regulator Home Wind Turbine Generator
Wind energy solar hybrid system MPPT charge controller solar controller 100w-800w wind energy100w-800w12V 24V Automatic Regulator Household Wind Turbine Generator
Rated system voltage
12V, 24V, 12/24 automatic
Rated wind
100W-800W
Rated photovoltaic power
100W-800W
The above three parameters must meet the conditions on the right.
(wind power rated power + photovoltaic rated power) / system voltage ≤ 40A
Wind rated power/system rated voltage≤25A
Photovoltaic rated power/system rated power≤25A
No-load current (DC)
≤0.05A
Controller Power Mode
battery or solar
control method
Wind turbine MPPT boost charging, PWM unloading, PWM over-current limiting function
Output working mode (Mode)
Mode 1: light control is on. Light control off (3 modes adjustable)
Display content
LCD display, voltage, battery percentage, current, load working mode, etc.

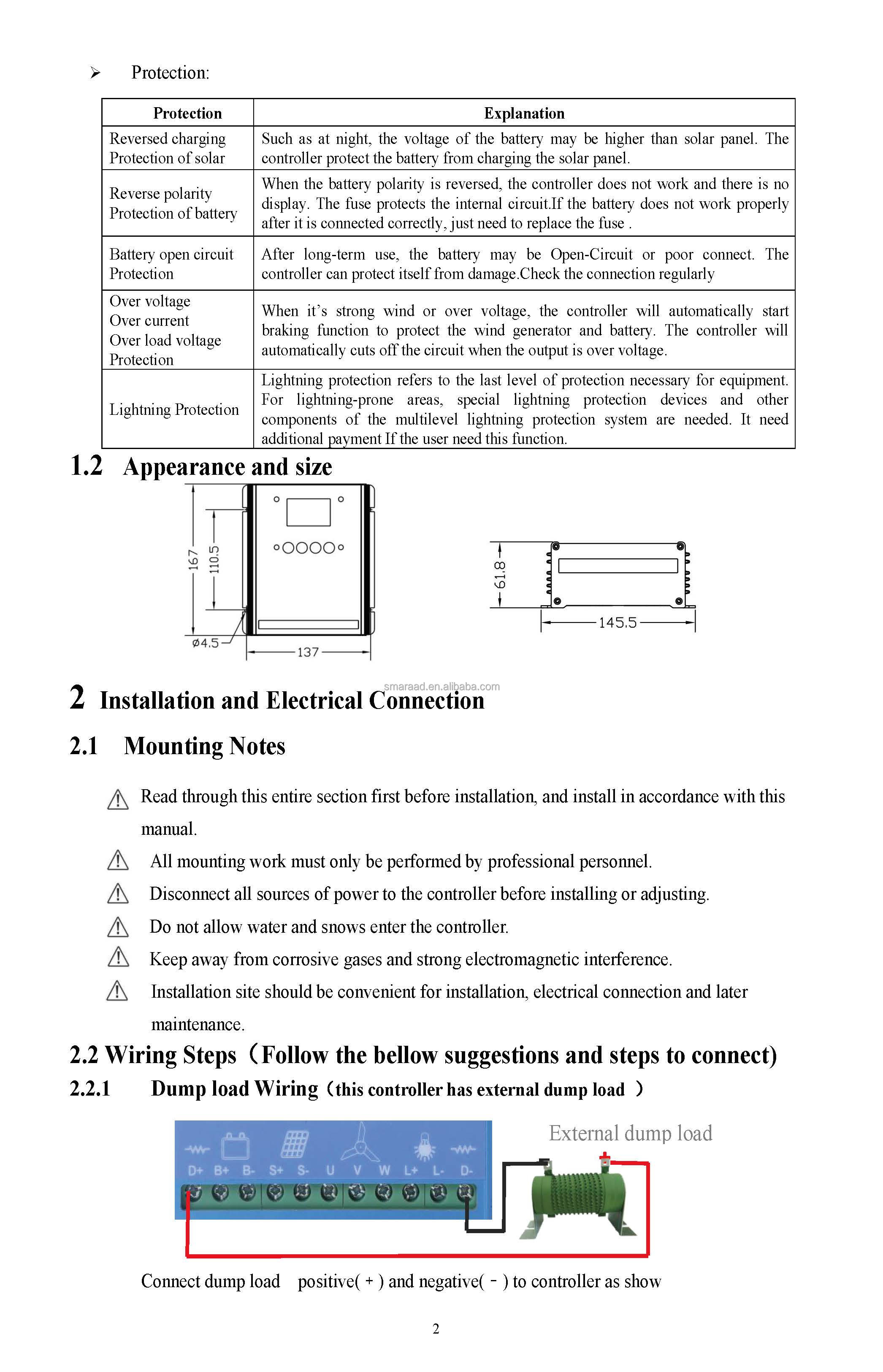

protection type
Solar reverse charging protection, battery open circuit protection, battery anti-reverse connection protection, Over
Overcurrent and overvoltage automatic brake protection, overload protection, etc.
cooling method
Aluminum profile heat dissipation and self-cooling
Operating Temperature/Relative Humidity
-25℃~+80℃ /0~90%, non-condensing
Net weight Gross weight
2.35/2.85kg
Controller Size/Package Size
167mm*145.5mm*61.8mm/360mm*250mm*120mm
* Functions and features
*Wind turbine MPPT boost charging function.
* Wind PWM unloading, external unloading resistor, solar charging intelligent disconnection.
* Dual power supply function: battery + solar power supply.

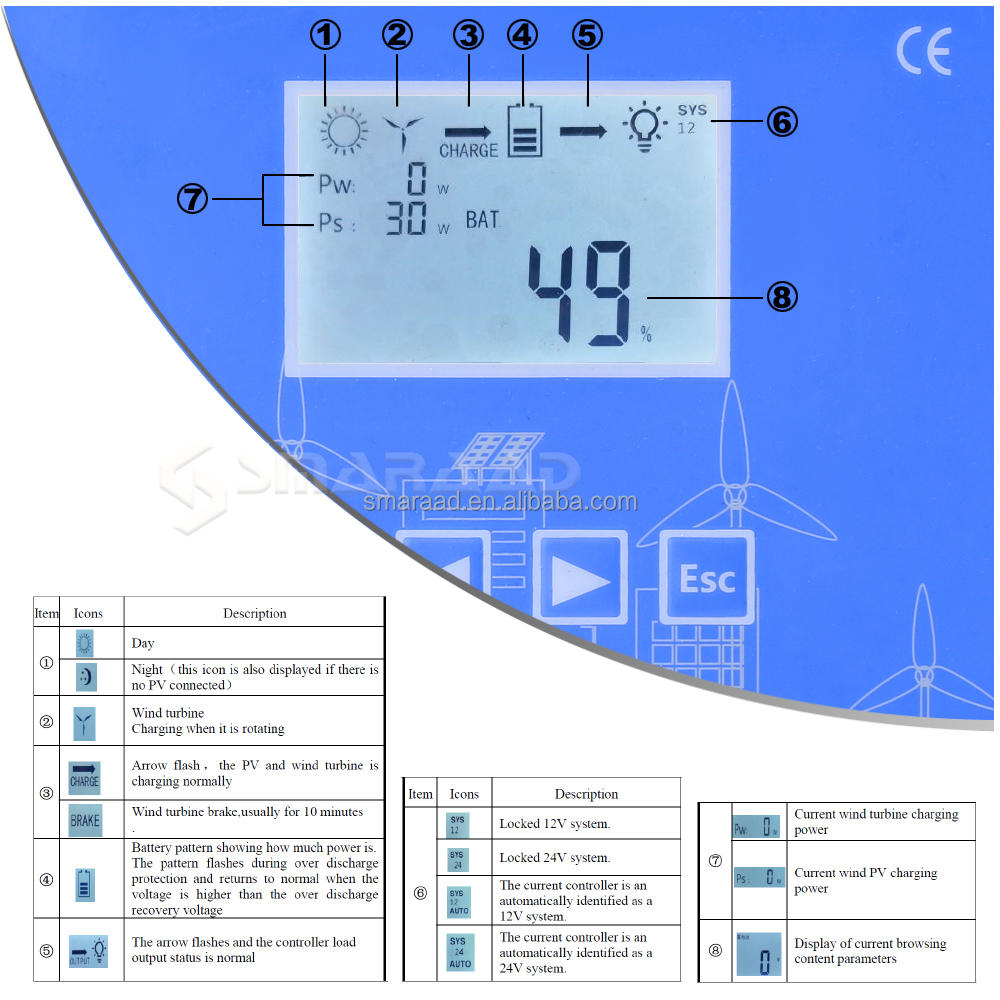

* LCD displays parameters such as wind energy, solar energy, load voltage and current, and some parameters can be set by the user.
* DC output with 3 output modes.
* The internal circuit board of the controller is sprayed with three anti-paints to prevent dust, moisture and static electricity.
General Safety Information
* Please check carefully before receiving the product. Make sure the product is not damaged during transportation. if damaged,
Contact the shipping company or our company immediately.
* All installation and electrical work should only be carried out by professionals.
* Do not disassemble or attempt to repair the controller by yourself without any professional guidance.
* Do not use the controller without batteries.
* When the controller is working normally, please do not disconnect the controller from the battery.
*Keep children away from the controller.
* Do not allow water to enter the controller.
* Make sure the power connection is tight to avoid overheating due to loose connections. Make sure the cable fits
for the system.
