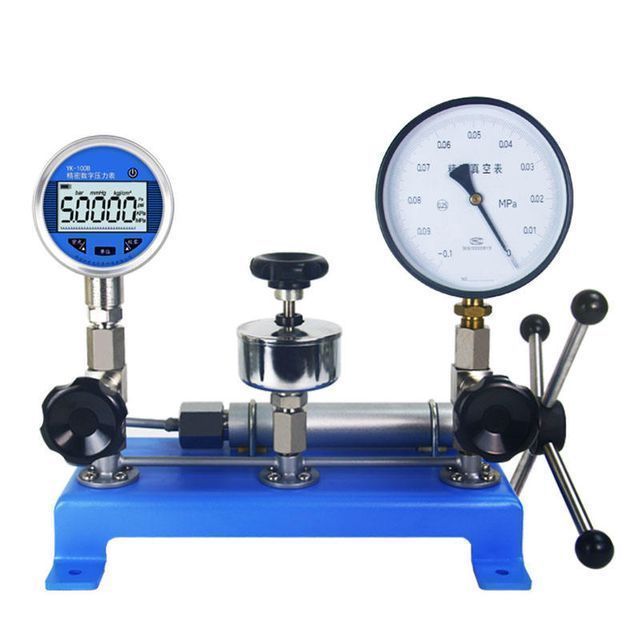

New Arrival Calibrated Hand Pump 100 Bar Popular Pneumatic Calibrator Pressure Gauge Calibration Machine

PRODUCT DETAIL
brand:sherlockSupply capacity:1000 pieces per month
place of origin; place of origin:Shaanxi, Chinamodel:SLK-XY-6/SLK-XY-60
Customization support:OEM productionModel: XY-60 Range:0-60mpa
Working medium:Transformer oilModel: XY-6 Range:0-6mpa
Packaging Details:Standard Hand Pump Pneumatic Calibrator Pressure Gauge Calibrationport:all ports
Warranty:1 yearpayment terms:Western Union, T/T
weight:15.6 kgName:Pneumatic Pneumatic Calibrator Pressure gauge calibration machine
Vacuum range:-0.08~0mpa

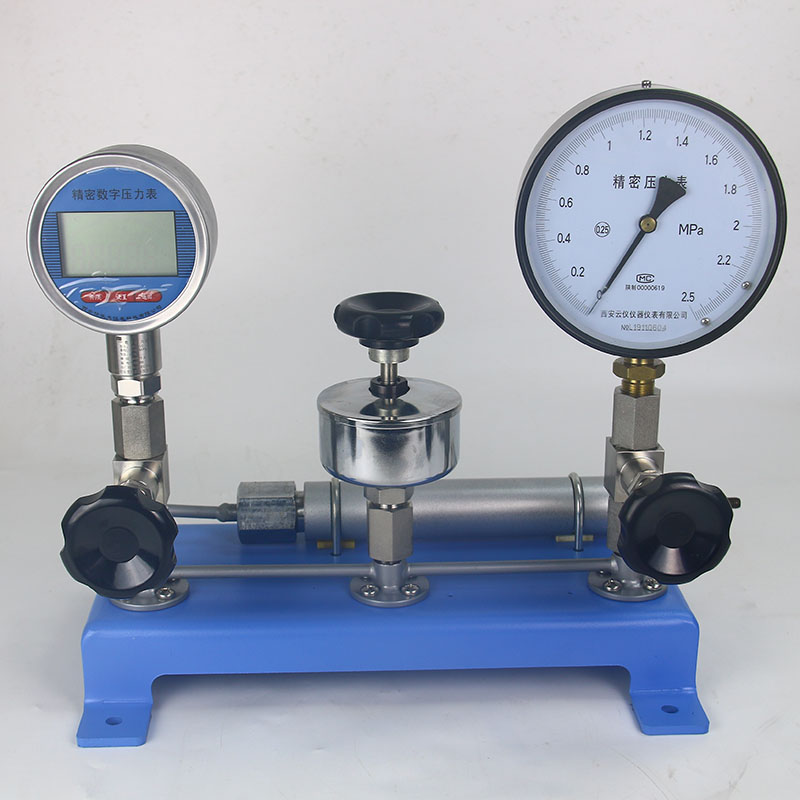

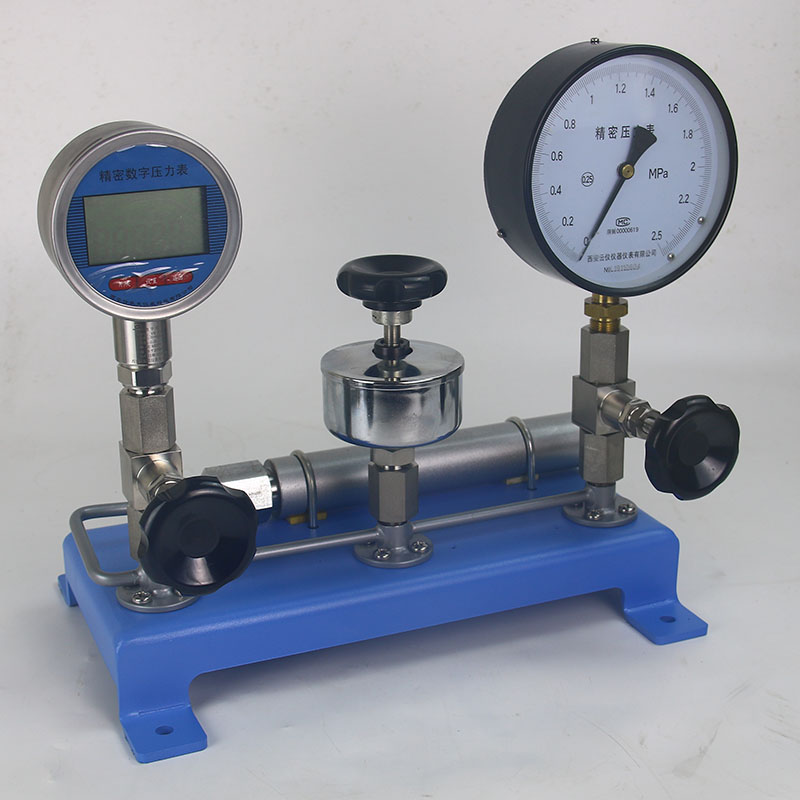

Instructions Hand Pump Pneumatic Calibrator Pressure Gauge Calibration

Pressure gauge calibrator is also called pressure gauge calibrator or pressure gauge calibrator pump. The pressure gauge calibrator is a pressure source used to test general pressure gauges, the test pressure can reach 60MPA, and the test vacuum degree can reach -0.08MPA. In the laboratory or measurement room, it is generally tested with a precision pressure gauge (with a higher accuracy of 0.25) to detect an ordinary pressure gauge (with an accuracy of 1.6 or 2.5). The pressure gauge interface is generally M20×1.5 external thread, and the pressure gauge calibrator interface is M20×1.5 (with M14×1.5)

Features Manual Pump Pneumatic Calibrator Pressure Gauge Calibration

Model: XY-6 Range: 0-6mpa
Model: XY-60 Range: 0-60mpa
Vacuum range: -0.08~0mpa
Working medium: transformer oil
Weight: 15.6kg
Volume: 350*230*180mm

detail





size 350*230*180mm
weight 15Kg



company information

Shelok sees itself not just as a manufacturer, but more generally as a solutions provider for customers in specific industries. Our deep understanding of product applications and strong technical background ensure you get the best product solutions and achieve greater success.
Xi'an Sherlock Instrument Technology Co., Ltd. is a professional R&D and manufacturing enterprise of measuring instruments. There are a variety of products for you to choose from: pressure transmitters, temperature transmitters, flow transmitters, weighing instruments, etc. Our products have passed advanced technology, high quality and fast delivery time, which have attracted many domestic and foreign customers.
