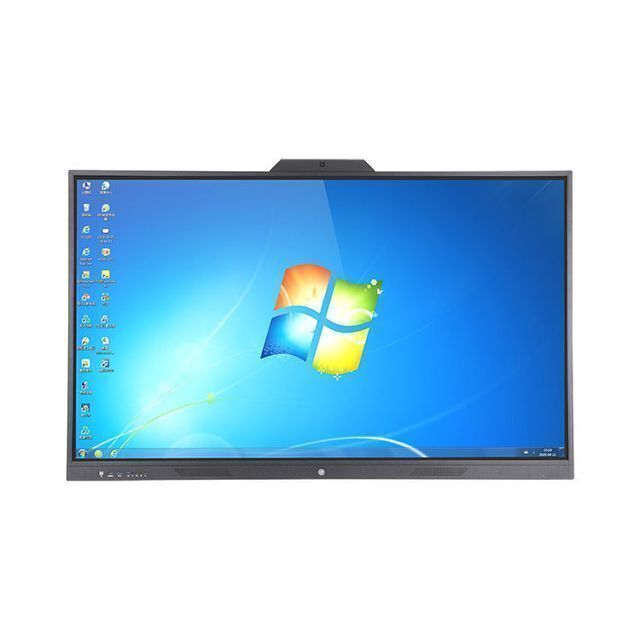

OEM Custom 65 75 85 86 98 100 110 Inch Ir Touch Screen Digital Interactive Smart Board With Projector

PRODUCT DETAIL
Folded:NO;Supply Ability:100000 Piece/Pieces per Month;
Language:English, Chinese and other languages;Ops:WIN7/WIN10(Optional);
Resolution:3840*2160;GPU:Mali-G51/Mali-G31/Mail-G52 (Optional);
Whiteboard Type:Interactive Whiteboard;Panel Size:65 75 85 86 98 100 110 inch;
Model Number:R65QL-R110QL;Place of Origin:Guangdong China;
Accessory:wall mount/floor stand(optional);Services:OEM;
Aspect Ratio:‘16:9;Port:Guangzhou;
Android system:Android 8.0 4+32G(Optional);Payment Terms:L/C,D/P,D/A,T/T;
Panel Type:LED;Application:conference;
Warranty:1 Year;Packing Dimension:2115x 1325 x 225 MM;
Color:Black;writing method:pen/finger touch;
Brand Name:Dazs;Type:Whiteboard,Whiteboard;
Weight:45kg-115kg;Product Dimension:1965 x 1180 x 99 MM;

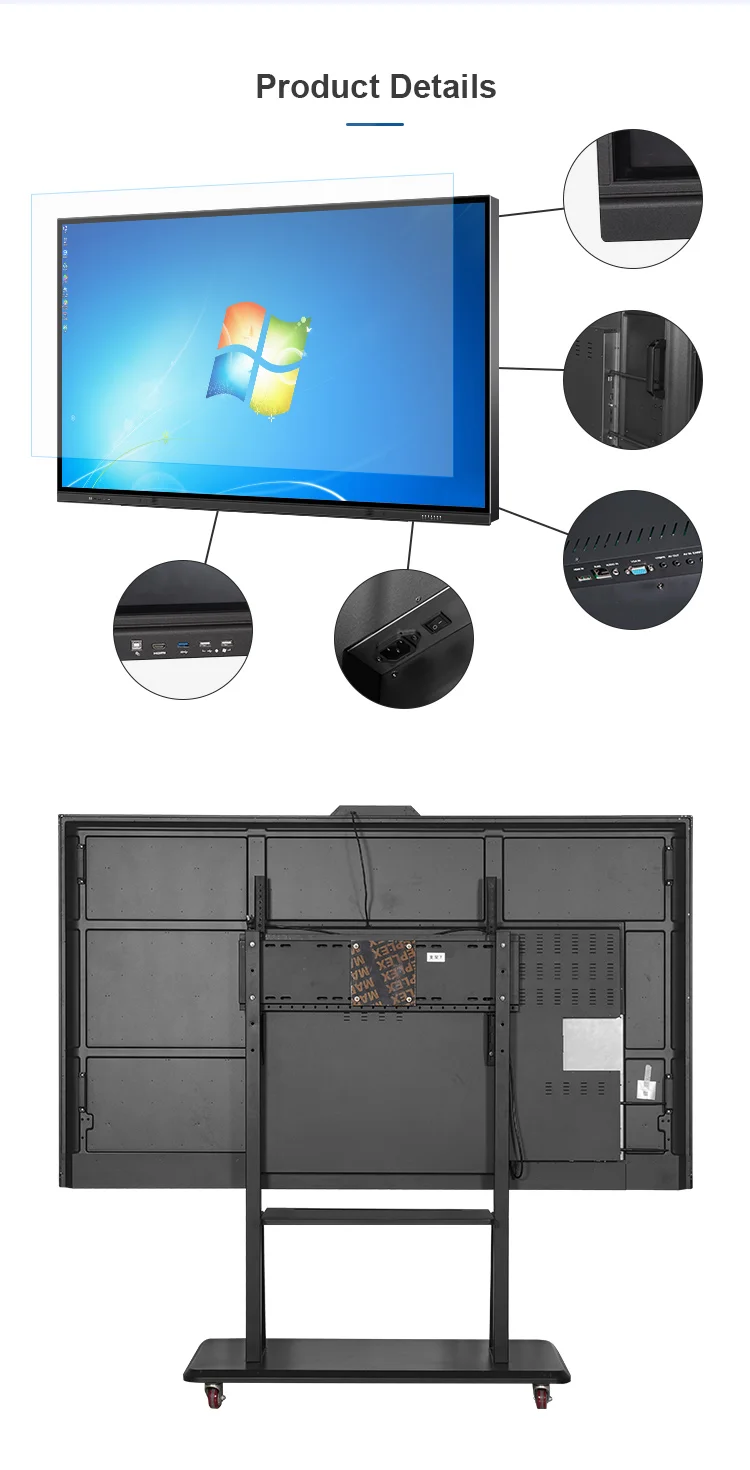

Product Details
All in One Interactive Display Whiteboard (QL)

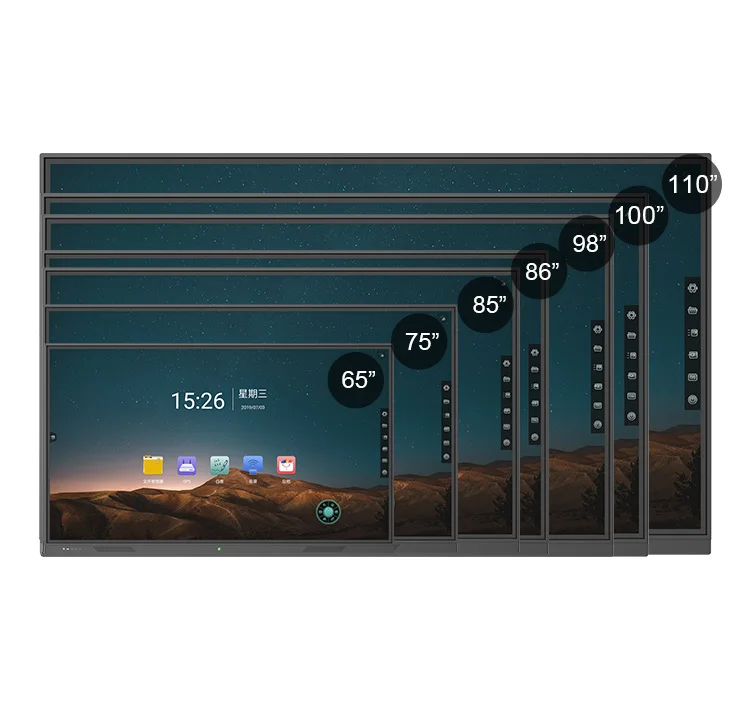

Screen Size
65"/75"/85"/86"/98"/100"/110"
Display
Frame
Frame
Aluminum Alloy Frame + Metal Back cover





Display
Screen
DLED Backlight Display
Resolution
3840*2160
Lifespan
>30000H
Ratio
16:9
Color Gamut
75%
Viewing Angle
178°
Glass
Mohs 7 Explosion-proof Tempered Glass
Brightness
350 cd/㎡



Touch
Touch Technology
Infrared Touch
Touch Point
10 Points Touch
Object Recognition(Min)
2mm
Response Time
1ms
Accuracy
±2mm (above 90% touch area)



Android OS
CPU
ARM A55 + ARM A73 Quad Core
GPU
Mali-G31
RAM
4 GB
Memory
32 GB
Operation System
Android 8.0
Front
Button
1 Front POWER Button
Language
OSD
Chinese, English and other language

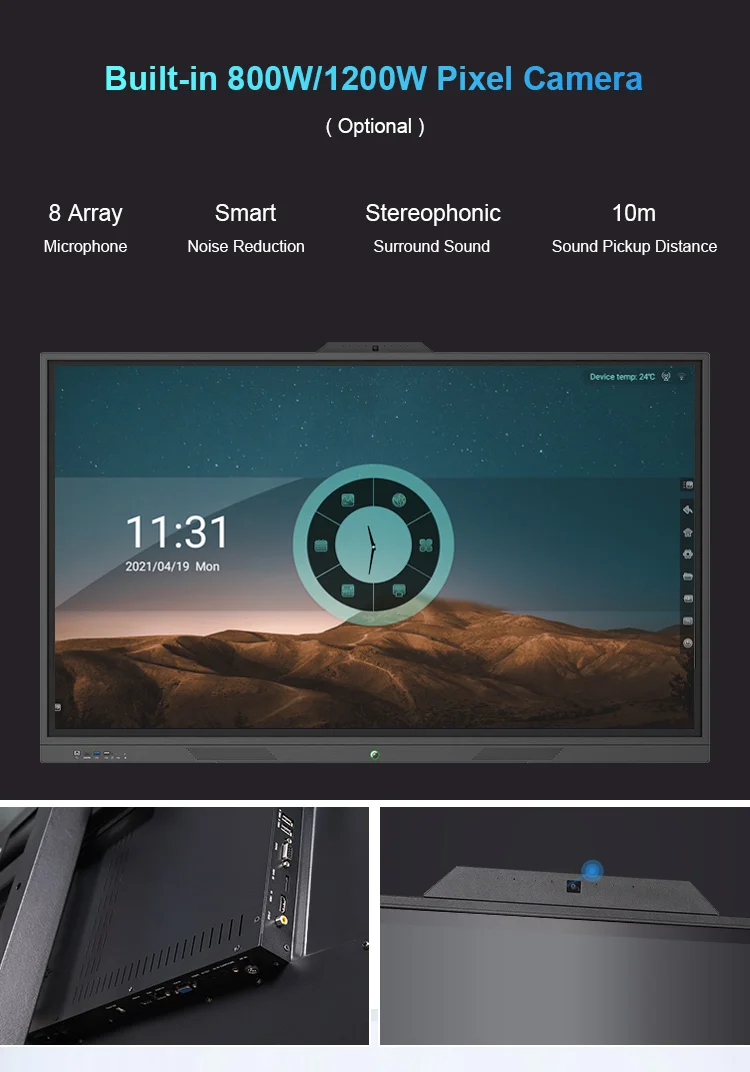

Camera & Microphone


Camera & Microphone
Camera
Top 8 Million Pixel / Field of View 73°

Microphone
4 Element Array High Sensitive Microphone
10m pickup pick-up distance
Dual Track Stereo Speaker System
Input & Output











Input & Output
LAN Input
1 Rear
LAN Output
1 Rear
HDMI Input
3(2 Rear / 1 Front)
USB3.0
2(1 Rear / 1 Front)
USB TOUCH
4(3 Rear / 1 Front)
VGA Input
1 Rear
Audio Input
1 Rear
RS232
1 Rear
SPDIF
1 Rear
Headphone Output
1 Rear
YPBPR
1 Rear
HDMI OUT
1 Rear
AV
1 Rear
MIC Input
1 Rear
USB 2.0 Type-A
2(1 Rear / 1 Front)
USB 2.0 Type-C
1 Rear

Wireless
Wi-Fi
Dual 5GHz
Bluetooth
Bluetooth BT5.0
OPS

OPS 80pin
(option)

CPU/RAM/ROM
(option)
Intel I3/4G/128GB
Intel I5/8G/128GB
Intel I7/8G/128GB
WIN 7 /WIN 10
Speaker
Speaker
Front Built-in Speaker 2*10W
Power
Power Consumption
240W ~ 700 W
Power Supply
AC 180-240V 50/60Hz
Size Info
Dimension & Weight
Inch
Dimension (net)
L * H * W (mm)
Dimension (box)
L * H * W (mm)
Weight
(net)(kg)
Weight
 (box)(Kg)
65"
1498 x 918 x 96
1660 x 1065 x 225
45
59
75"
1723 x 1044 x 99
1875 x 1185 x 225
58.5
73.5
85"
1965 x 1180 x 99
2115 x 1325 x 225
77
95
86"
1965 x 1180 x 99
2115 x 1325 x 225
77
95
98"
2212 x 1305 x 106
2435 x 1490 x 275
92
125
100"
2275 x 1363 x 120
2435 x 1490 x 275
107
141
110"
2503 x 1470 x 100
2695 x 1700 x 290
115
170
Application scenarios
Product Features
Company Profile
Packing & Delivery

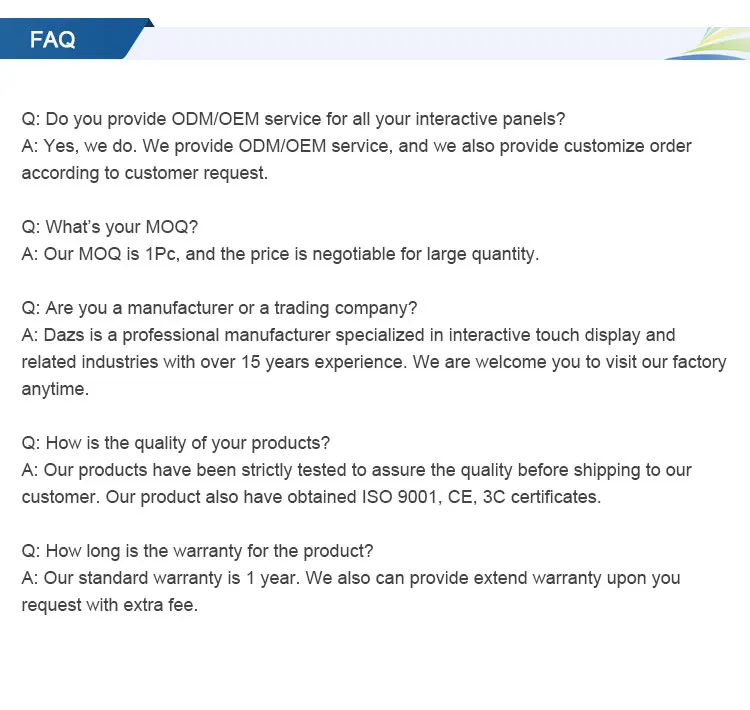

FAQ
