OEM Italy Top Quality Flat Rectangular Aluminum Air Bearing HPR2.0 30x68x15 For Grinding Industry Customized Service
- $208.00 / >=5 pieces
- 5 pieces
- MAGER SRL
- TORINO, China
- Mr MANG
PRODUCT DETAIL
| Package preview: | Core components: | bearing | |
| Warranty: | unavailable | Video shipment inspection: | not available |
| Origin: | Italy | port: | Genoa, Trieste, Livorno |
| Applicable industries: | Other, Metrology, Semiconductor, Optical Test, Wafer Handling | aluminum: | High-quality materials |
| Core component warranty: | 1 year | model: | HPR2.0 30x68x15 WF10100P04000 |
| Showroom location: | Italy | Packaging Details: | Our usual packing depends on the quantity and type of products shipped, it can be: cardboard box or wooden box or wooden pallet. Each part is properly protected by a layer of foam so as not to damage the part. Availability of parts is subject to inventory verification in the warehouse and prior sales. |
| Health status: | new | Mechanical test report: | if |
| payment terms: | L/C, T/T | Weight (kg): | 0.078 |
| brand: | mag gmbh | Marketing Type: | normal product |
Product Description

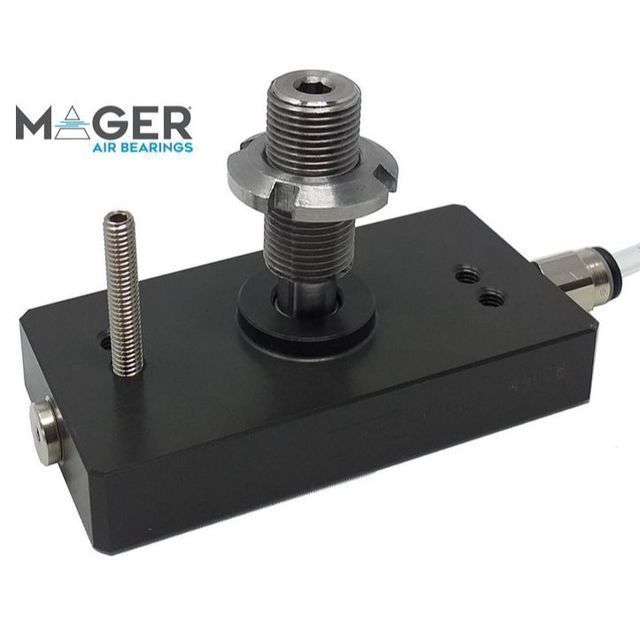

HPR - High Precision Rectangular Air Bearings are available for precision motion system applications. Their versatility can solve even the most complex problems. Thanks to air bearing technology, Mager air bearings overcome the limitations of sliding and rolling bearings. A thin, hard layer of air is distributed over the air bearing functional surface through nozzles and microgrooves, and is forced between the two surfaces. The slightest air gap layer formed between them is only a few thousandths of a millimeter thick, which acts as a lubricant with an extremely low coefficient of friction. By eliminating the limitations of oil-based lubrication, Mager planar air bearings can achieve high speeds and accelerations with the utmost precision and operating efficiency. Mager Air Bearings are available in Flat Rectangular and Round styles and are made of hard anodized aluminum with adjustable screw pins, locking ring nuts and anti-rotation pins (P -KIT fittings). The air gap between the air bearing and the main surface can be adjusted by an adjustable screw pin, and the locking ring nut fixes its position, avoiding dangerous movement. |

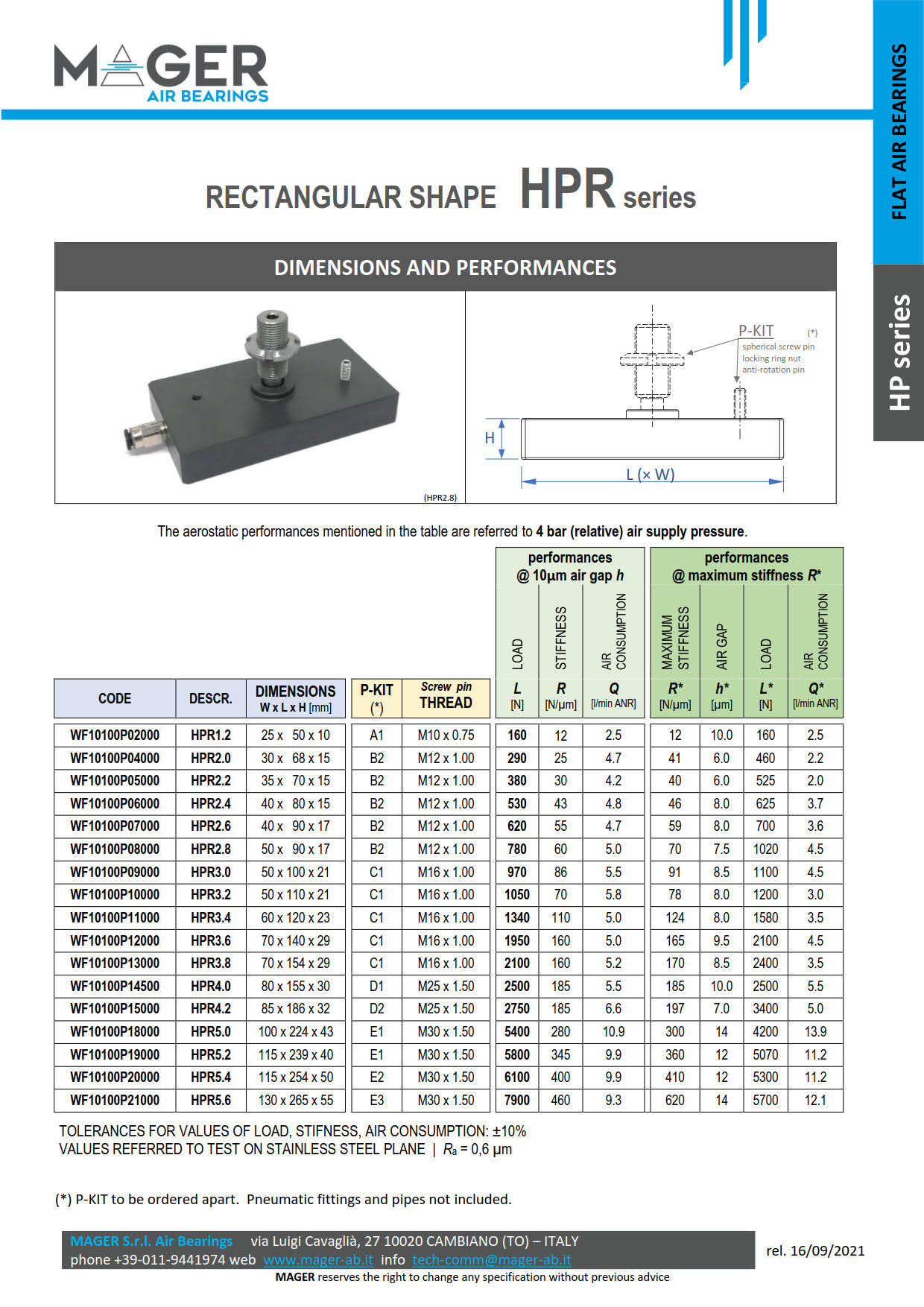

detailed drawing
