ONWA K-6124L MKII 27 MHz Marine CB Transceiver Marine CB Radio 6 Bands 240 Channels, Transmit Power 4W
- $115.00 / 1 - 4 sets
$110.50 / >=5 sets - 1 set
- Changzhou Oman Electronic Technology Co., Ltd.
- Jiangsu, China
- Ms Z Joy
PRODUCT DETAIL
| payment terms: | L/C, Western Union, D/P, D/A, T/T | Place of origin: | Jiangsu, China |

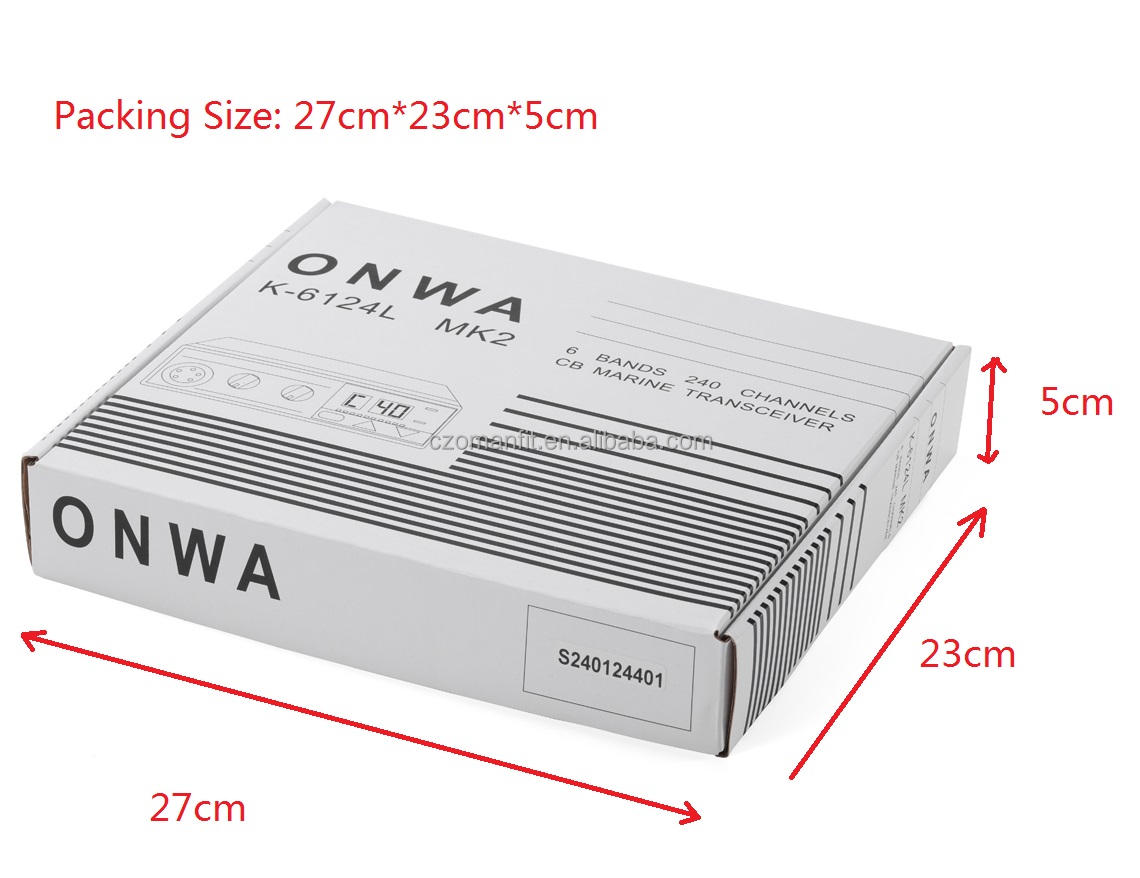

| Packaging details: | brown box | port: | Ningbo, Shanghai, Shenzhen, etc. |
| brand: | amanfit | type: | Marine CB transceiver |
| Supply capacity: | 10,000 sets per month |
ONWA K-6124L MKII 27 MHz Marine CB Transceiver Marine CB Radio 6 Bands 240 Channels, Transmit Power 4W
ONWA K-6124L MK2
27MHZ CB radio, model: K-6124L MK2
Now there are 240 channels in 6 bands!
Light weight, slim, transmitting power 4W, maximum 5W. economy
General
1. Frequency covers all 240 CB channels
26.065 to 28.755 MHz
2. Modulation method AM modulation (A3)
3. Antenna impedance 50 ohms
4. Power supply requirement 12-16VDC

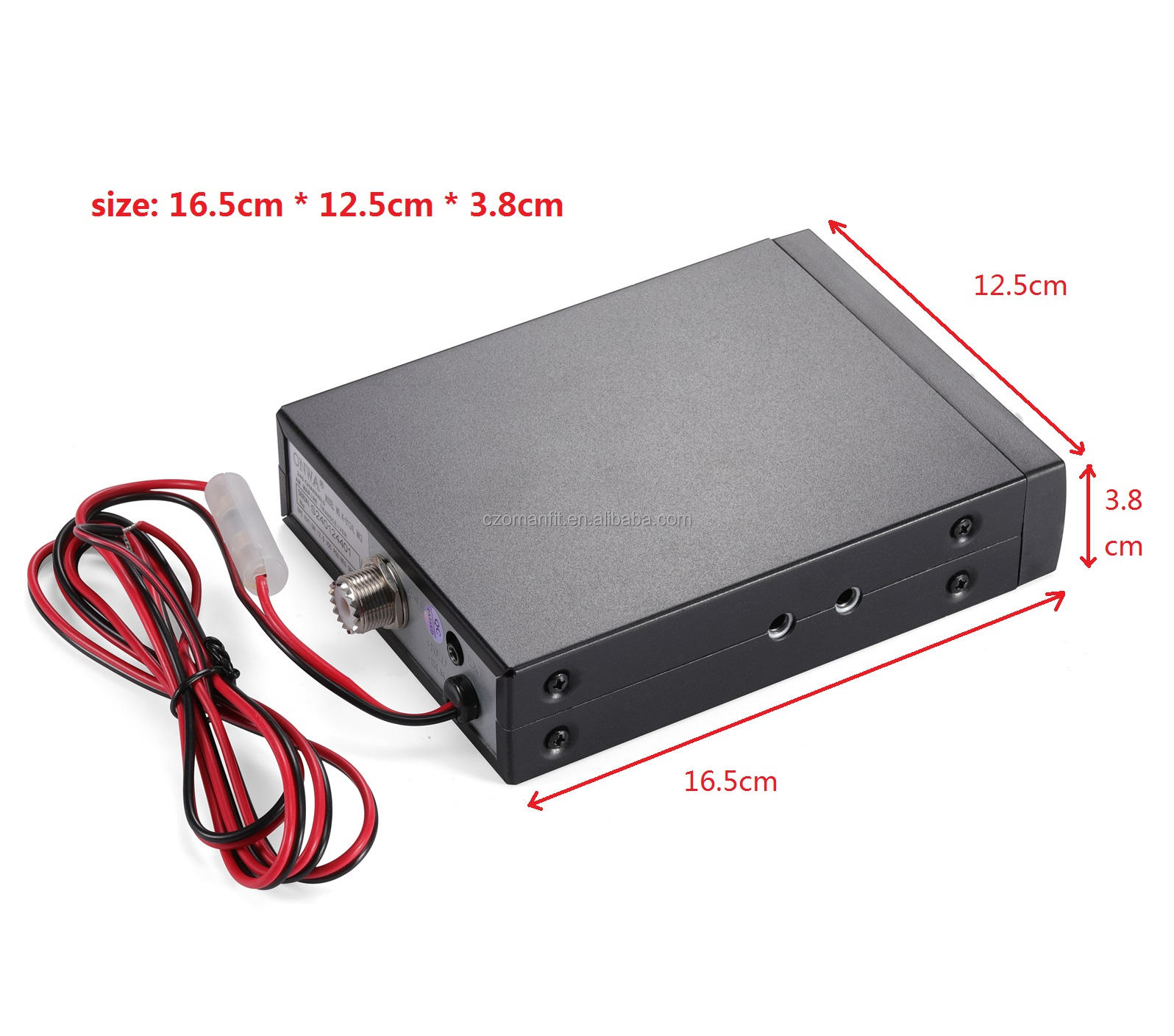

5. Dimensions - (width and height) 124mm×38mm×190mm
6. Weight 1.2 kg
receiver
1. Sensitivity is 1.0mV or higher at 10dB S+N/N
2. Adjacent channel suppression 60dB (at 10KHz) is greater than 70dB (at 20KHz)
3. IF First IF = 10.695MHz
Second IF = 455KHz
4. Audio output maximum 4.5 watts.
5. Frequency response 450-2500Hz
6. Cross modulation 45dB or better
7. Squelch adjustable range: 1.2mV to 1mV
transmitter
1. The output power is nominally 4 watts and the maximum is 5 watts.
2. Modulation ability 80-90%
3. Stray radiation 62dB or better
4. Frequency error is better than 0.002%
5. Current consumption (13.8V power supply) 1.3 amps (no modulation)
2.0 amps (fully modulated)
27MHZ CB radio, model: K-6124L MK2
Now there are 240 channels in 6 bands!
Light weight, slim, transmitting power 4W, maximum 5W. economy
General
1. Frequency covers all 240 CB channels
26.065 to 28.755 MHz
2. Modulation method AM modulation (A3)
3. Antenna impedance 50 ohms
4. Power supply requirement 12-16VDC
5. Dimensions - (width and height) 124mm×38mm×190mm
6. Weight 1.2 kg
receiver
1. Sensitivity is 1.0mV or higher at 10dB S+N/N
2. Adjacent channel suppression 60dB (at 10KHz) is greater than 70dB (at 20KHz)
3. IF First IF = 10.695MHz
Second IF = 455KHz
4. Audio output maximum 4.5 watts.
5. Frequency response 450-2500Hz
6. Cross modulation 45dB or better
7. Squelch adjustable range: 1.2mV to 1mV
transmitter
1. The output power is nominally 4 watts and the maximum is 5 watts.
2. Modulation ability 80-90%
3. Stray radiation 62dB or better
4. Frequency error is better than 0.002%
5. Current consumption (13.8V power supply) 1.3 amps (no modulation)
2.0 amps (fully modulated)
Product Description
Specification
thing | value |
type | Marine CB transceiver |
birthplace | China |
Jiangsu | |
brand | amanfit |
