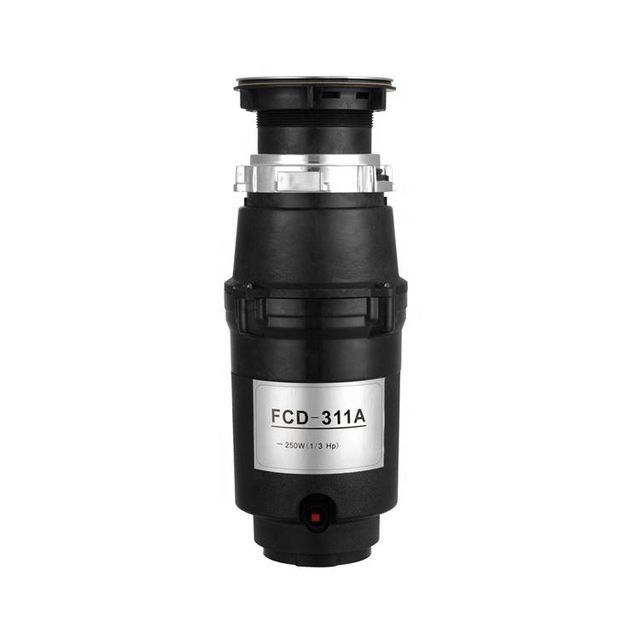

Oem Odm Wasteclean 1 Stage 3 Stage Grinder 1/3Hp 250w 110V Trash Sink Grinder Food Waste Disposer
- $39.70 / 2 - 49 pieces
$37.80 / 50 - 499 pieces
$36.00 / >=500 pieces - 2 pieces
- Foshan ZAL Intelligent Home Appliance Co., Ltd.
- Guangdong, China
- Mr Alex Wu
PRODUCT DETAIL
| Length (inches): | 5.91 | Sink flange: | EZ installation |
| Rated value (rev/min): | 3600 | Supply capacity: | 100000 pieces per month |
| payment terms: | wire transfer | Certification: | ETL |
| Package preview: | model: | FCD-311A | |
| Motor power (Hp): | 250 | Protection System: | Manual Reset: Overload and Overtemperature |
| Grinding capacity: | 900ml | Function: | Multi-Grind Technology |
| Grinding chamber material: | Stainless steel | Origin: | Guangdong, China |
| shell: | ABS | type: | household food waste disposer |
| Height (inches): | 13.78 | Motor type: | commutator motor |
| Application Control: | No | Energy source: | electrical |
| Width (inches): | 13.78 | After-sales service provided: | free spare parts |
| Voltage (V): | 120 | Frequency (Hz): | 60 |
| application: | hotel, home | Warranty: | 1 year |
| Packaging Details: | The garbage disposer will be protected by pearl cotton and should be packed in a five-layer carton or a five-layer gift box | Feed type: | continuously |
| feature: | Dishwasher-connectable, overload protector, soundproofing, stainless steel grinding elements | Material: | Stainless steel |
| Grinding system: | primary grinding |

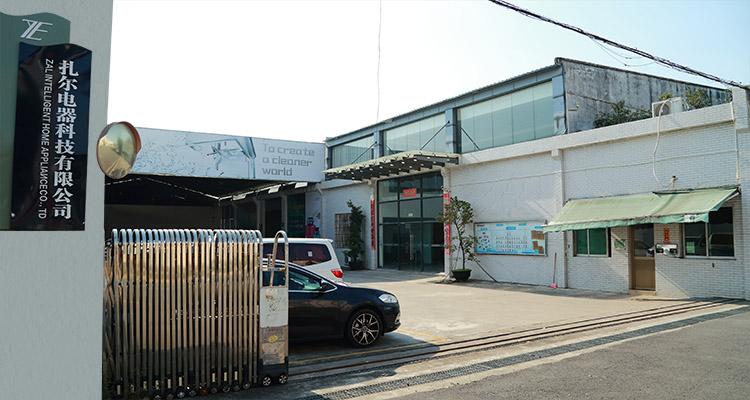

our company
AVIC Smart Home Appliances Co., Ltd.
● 16 years of professional research and development
●Covering an area of 5000+ square meters, with 3 professional assembly lines
●Have OEM/ODM business experience
● Annual output of 200,000 units
●More than 50 patents
● oneapprovedISO9001,CE, CB, ETL, CQC
＞＞＞ Infrastructure - Factory

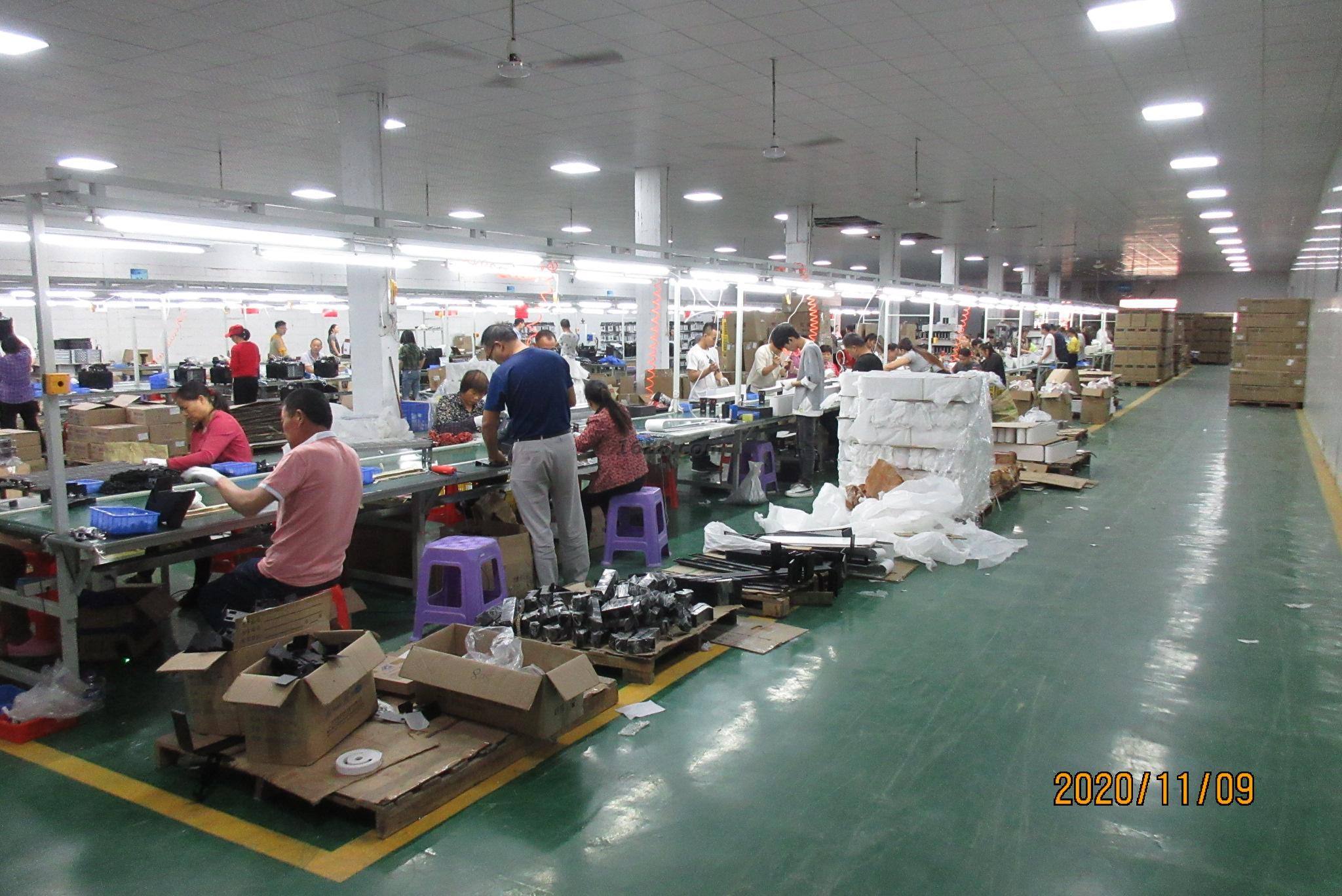

manufacturing
Production line: 200K/year

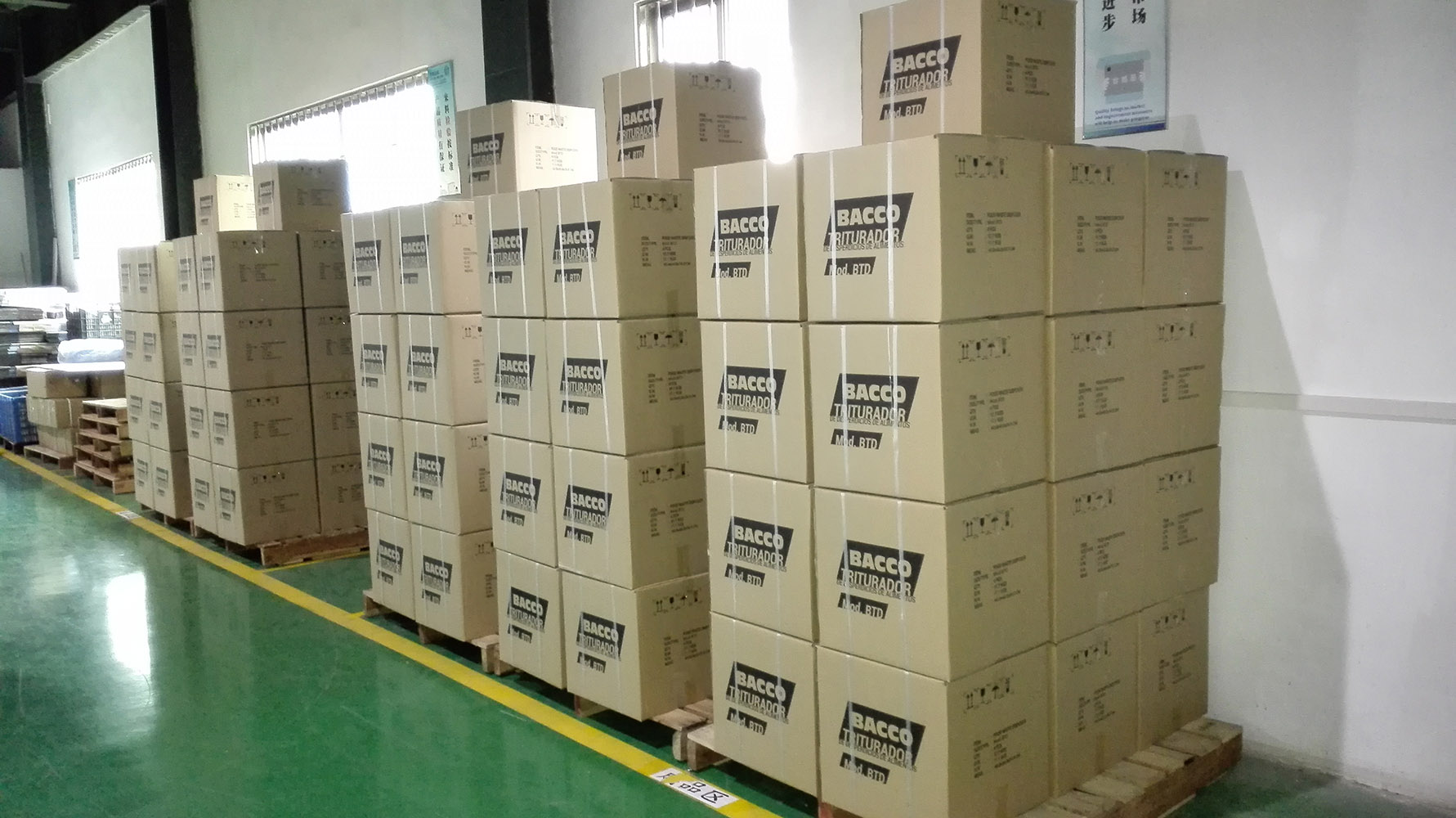

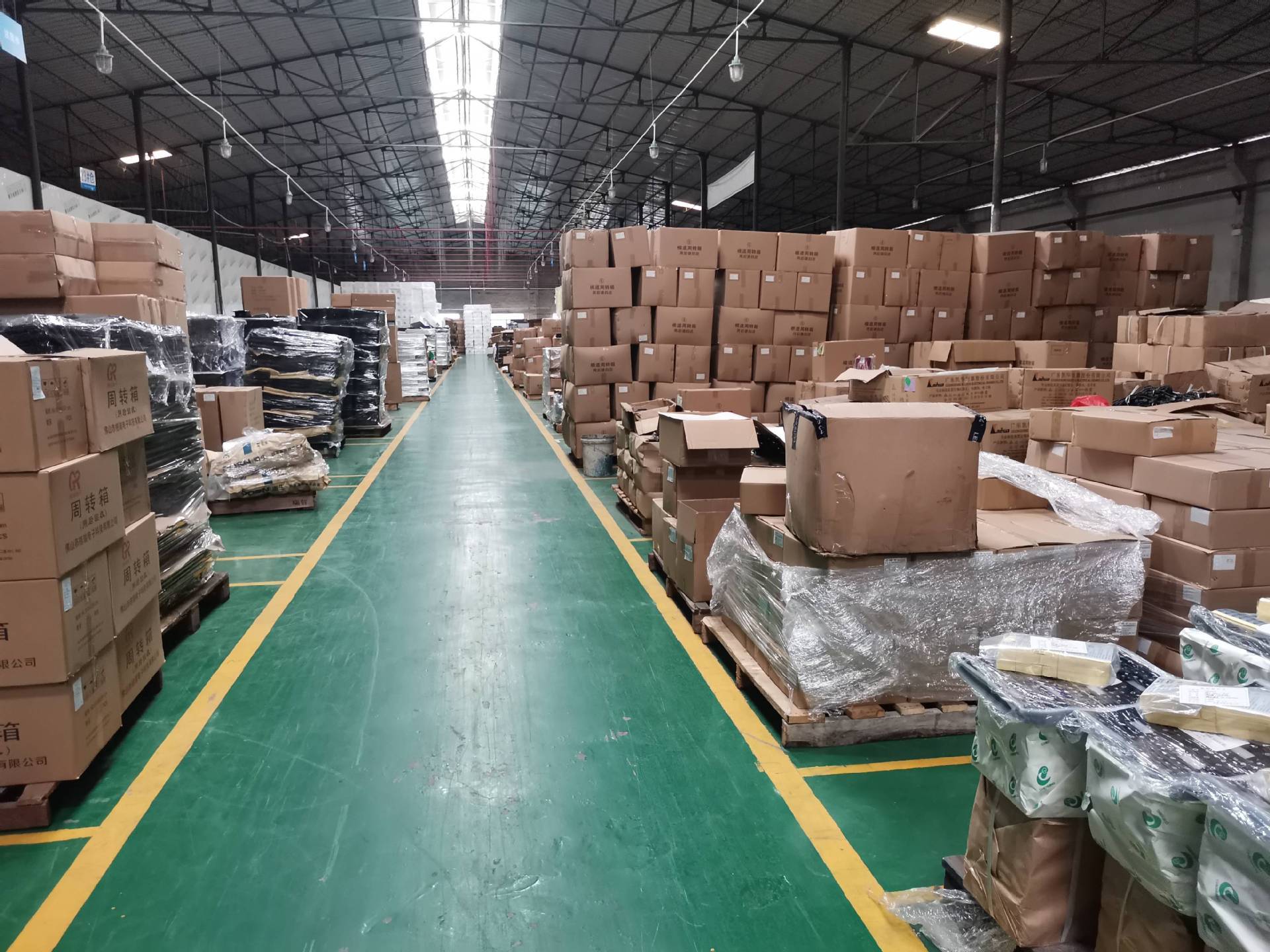

storehouse

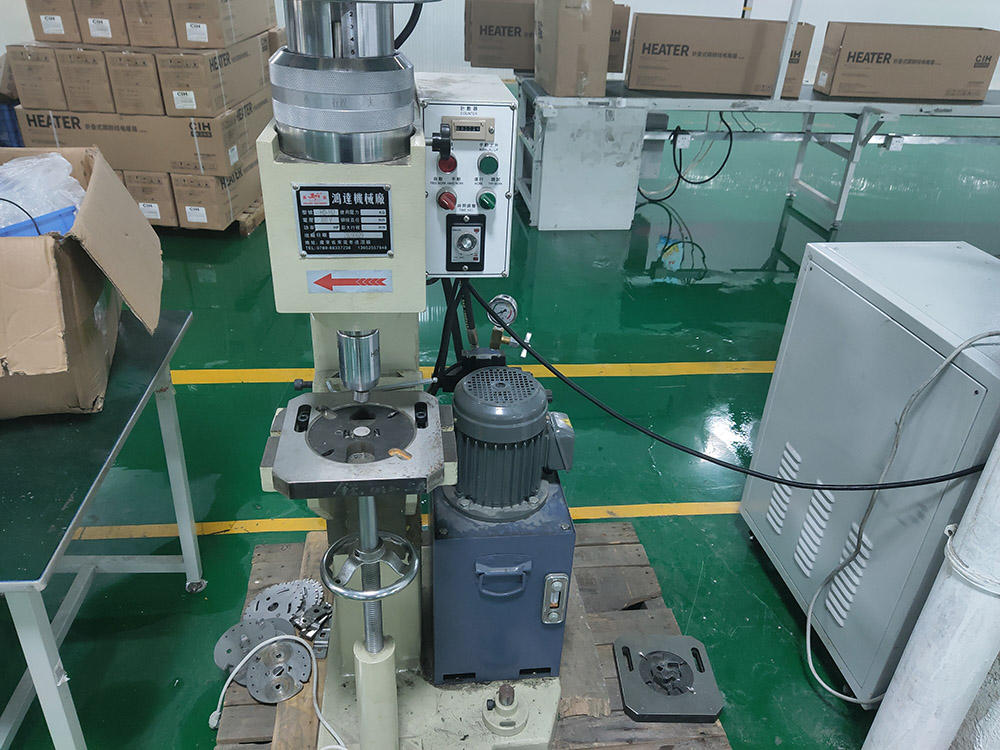

Riveting machine: riveting turntable ASM
Dynamic balancing machine: turntable ASM
＞＞＞ Infrastructure - Factory
online inspection

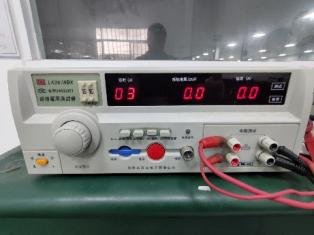

6 in 1 safety tester
Vacuum air tightness tester
Overload protector test
Electrical parameter detector
GND-resistance tester
Pressure tester

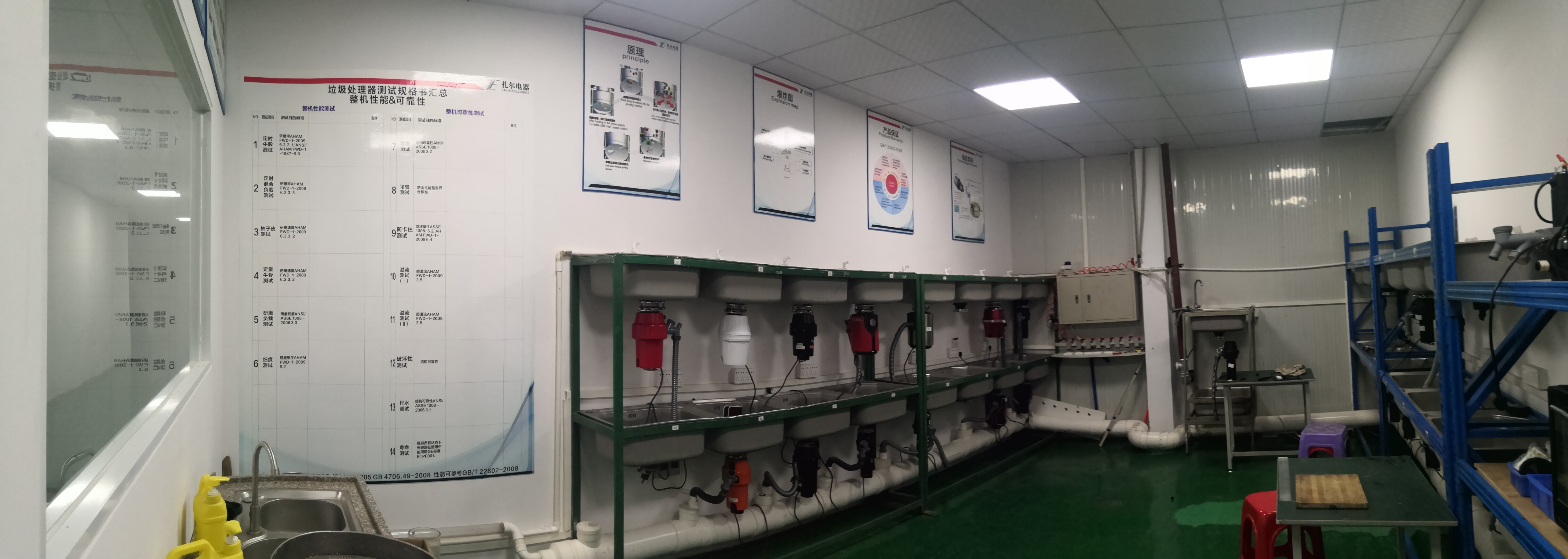

＞＞＞ Infrastructure-Laboratory

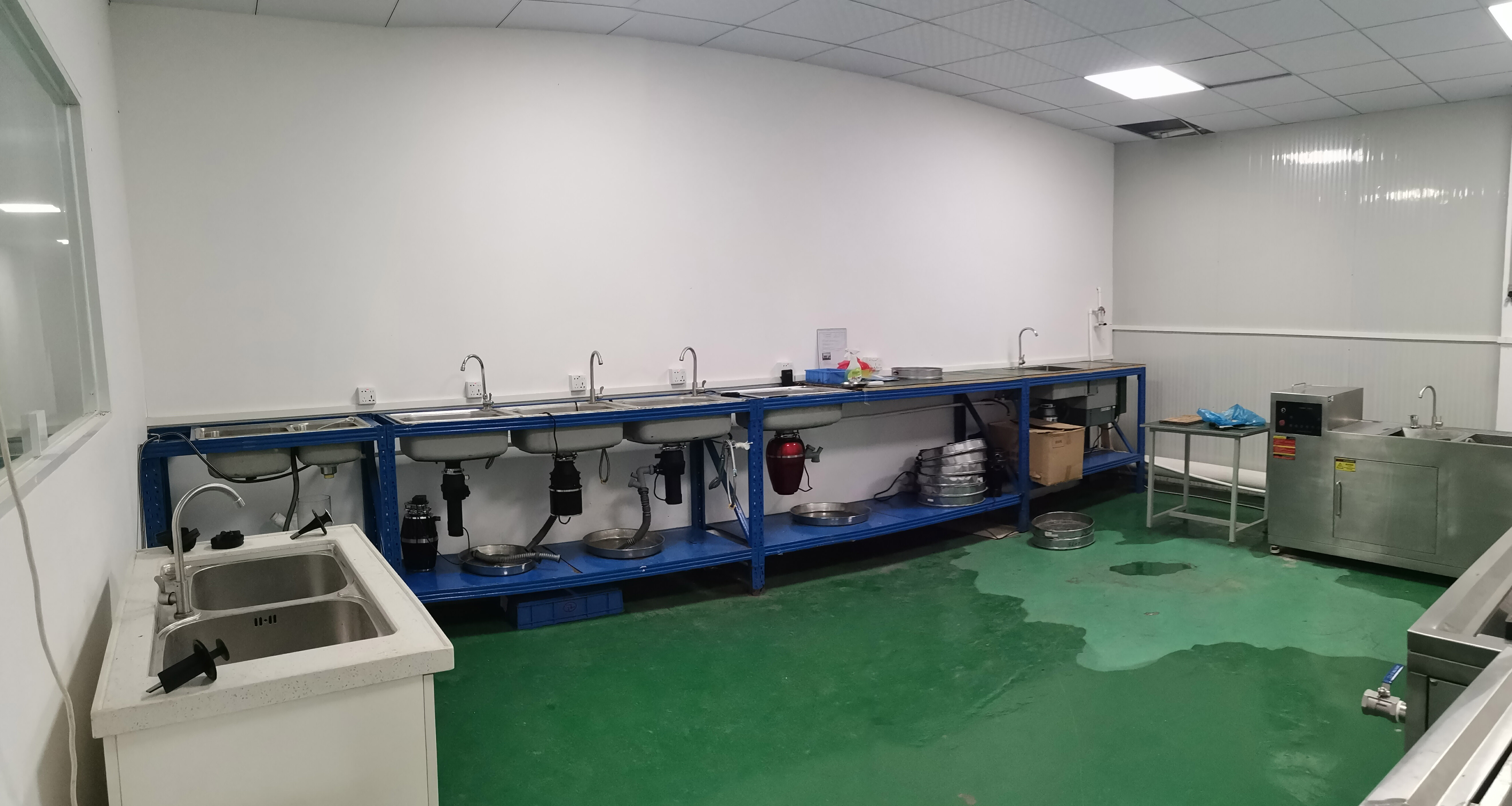

Performance
▪ Grinding rate test (AHAM FWD-1-2009 6.3.1)
▪ bone grindingTest (AHAM FWD-1-2009 6.3.2.1)
▪ Mixed load test (AHAM FWD-1-2009 6.3.3.3)
▪ Citrus peel test (AHAM FWD-1-2009 6.3.3.2)
▪ Fineness test (AHAM FWD-1-2009 6.3.2)
＞＞＞ Infrastructure-Laboratory
electrical test
＞＞＞ Infrastructure-Laboratory
Lifetime Test - 10 Year (250 "ON" Hours) Reliability Test
＞＞＞ Infrastructure-Laboratory
environmental test
humidity chamber
Glow Wire Tester

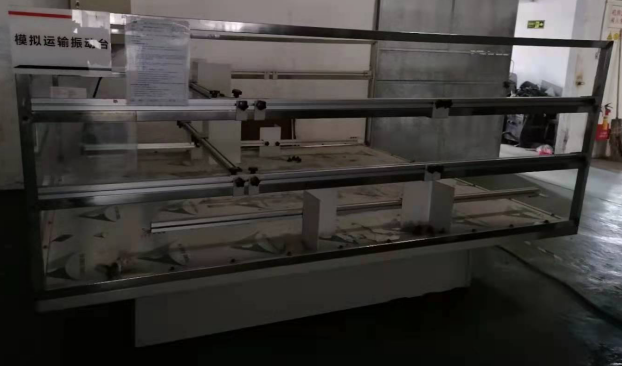

shaker

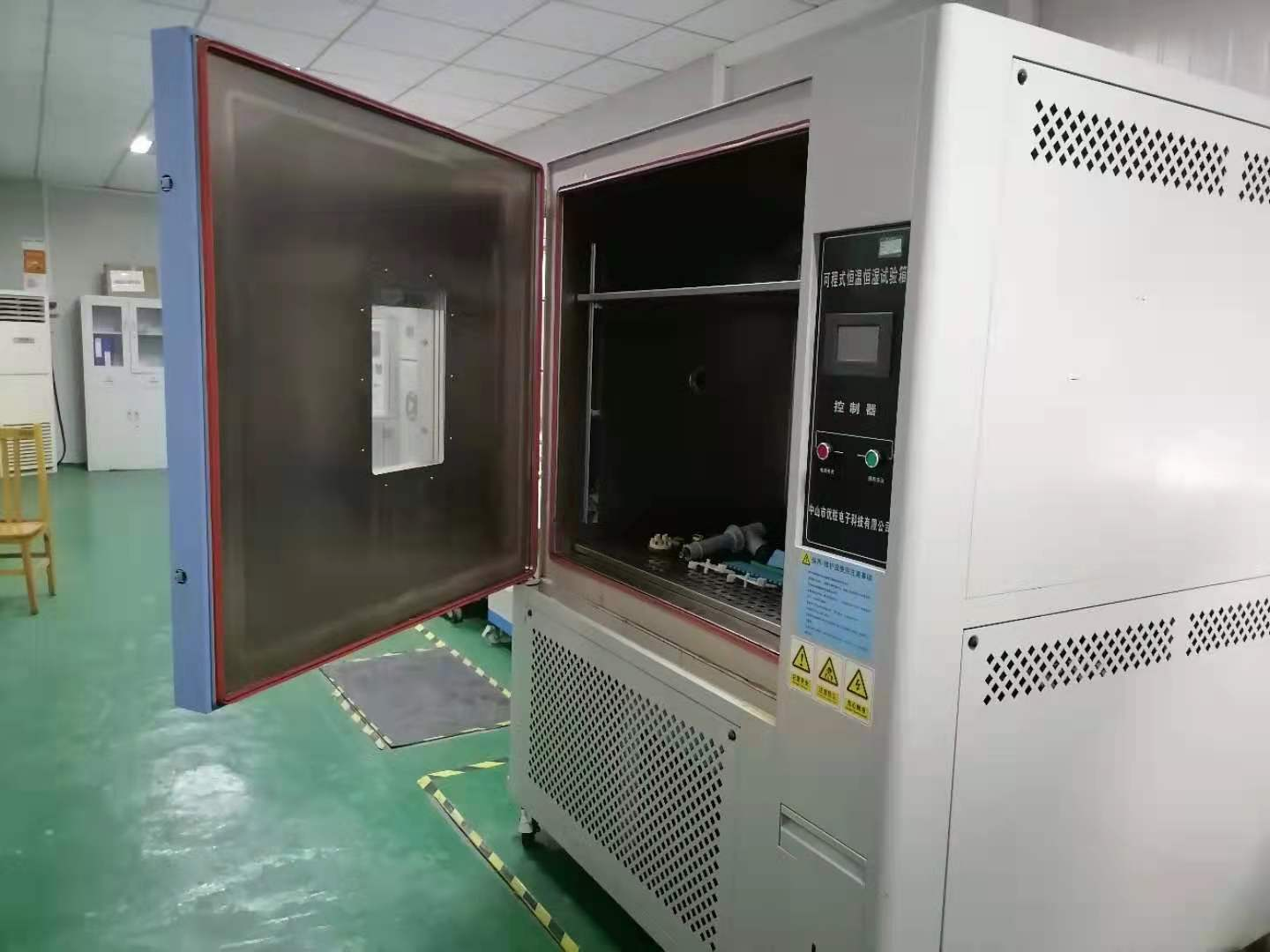

High temperature test chamber
Product parameters
technical specifications | ||||||||||

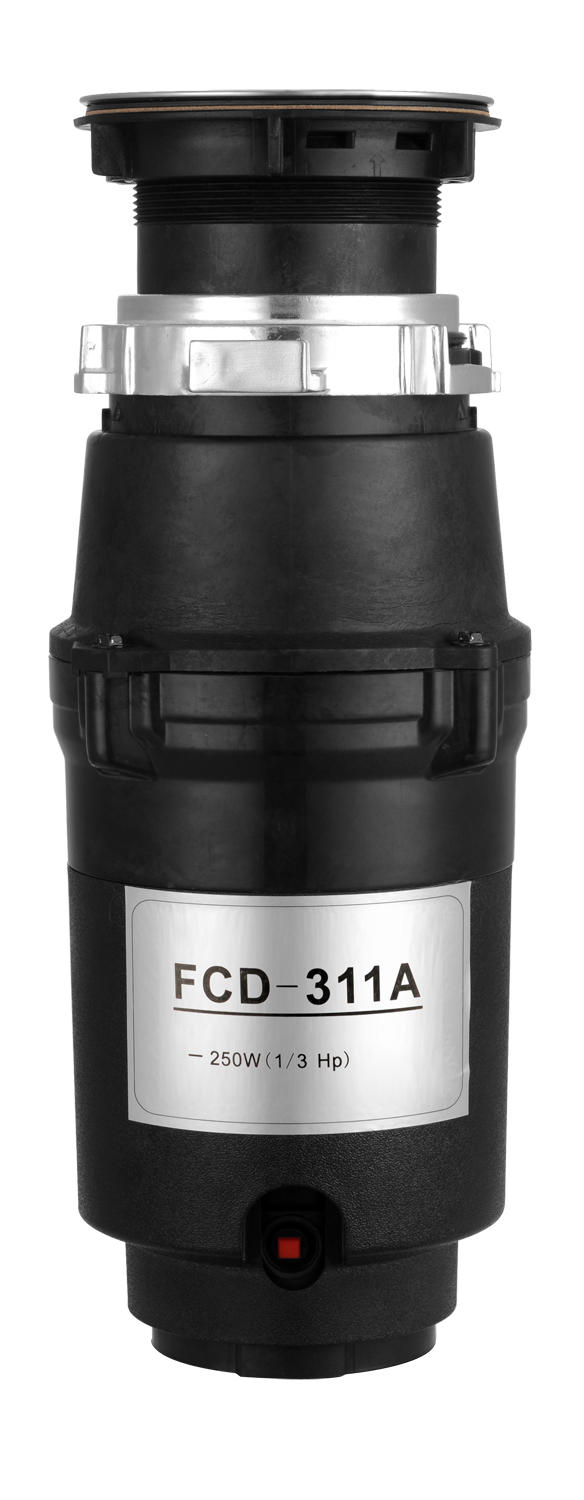

Model | FCD-311A | Flange material | Stainless steel + POM | change | No | |||||
processor feed | continuous feed | hopper | PA66+GF30% | Power cord length | 1 meter | |||||
Motor horsepower (HP) | 1/3Hp 250w | grinding chamber | BMC | noise | 63 decibels | |||||
Voltage (Volts) | 120V/60Hz | grinding system | 1-Stage 3 | shell | ABS | |||||
Grinding capacity | 900ml | Grinding System Material | SS | Natural gas (kg) | 3.4 | |||||
No-load speed | 3600 | Protection System | overload and overheating | Gross weight (kg) | 4.1 | |||||
load speed | 1900 | Dishwasher Connection Dimensions | 7/8 inch (25mm) | Product size(mm) | 150*150*350 | |||||
Flange system | EZ installation | Drain size | 1-1/2" | Package size (mm) | 229*229*440 | |||||

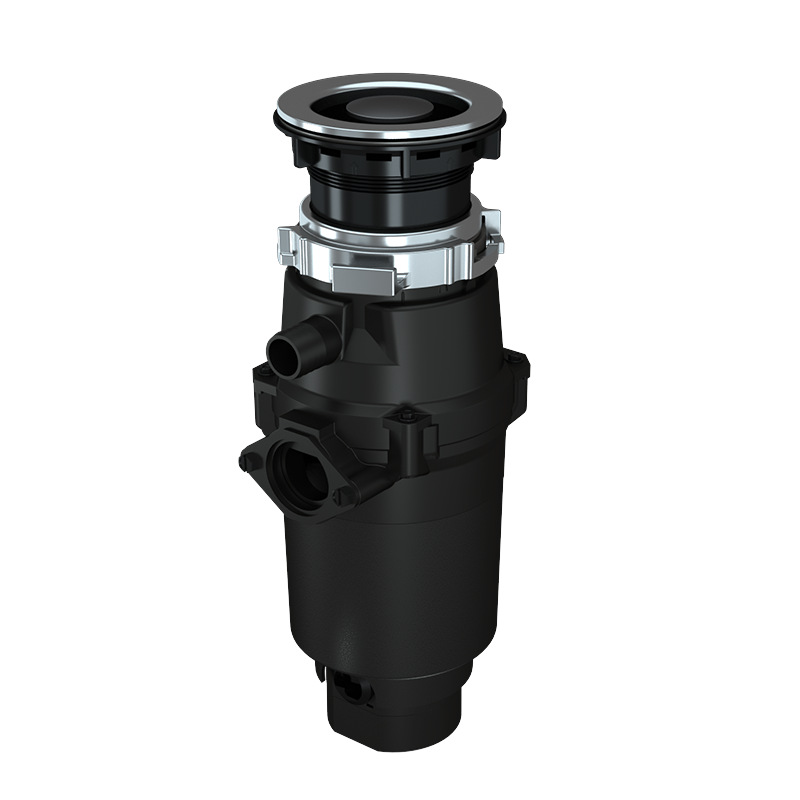

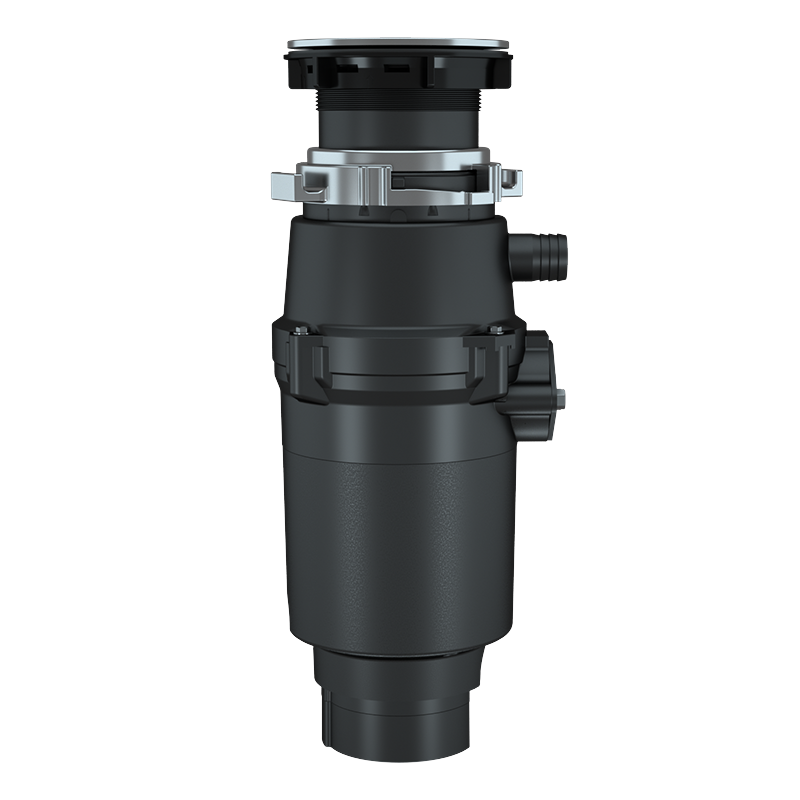

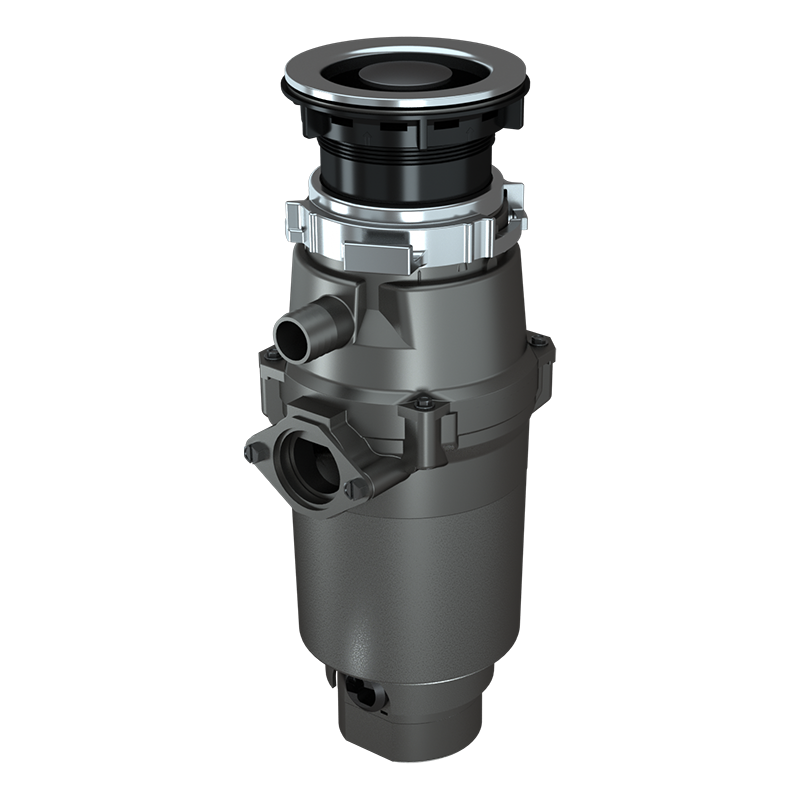

detailed drawing
Patented soundproof splash guard
dishwasher interface
overload and overtemperature

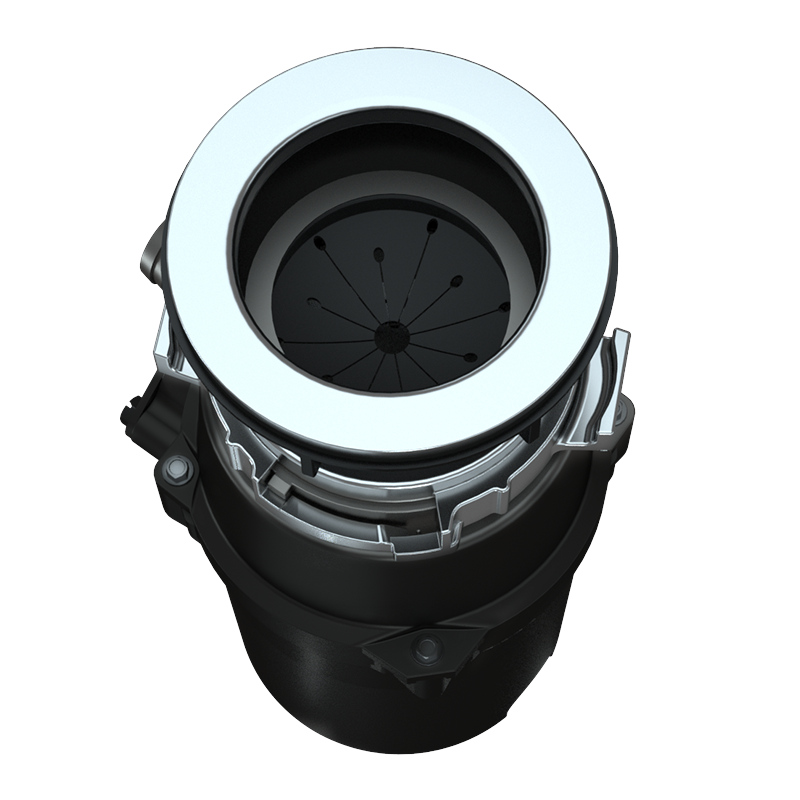

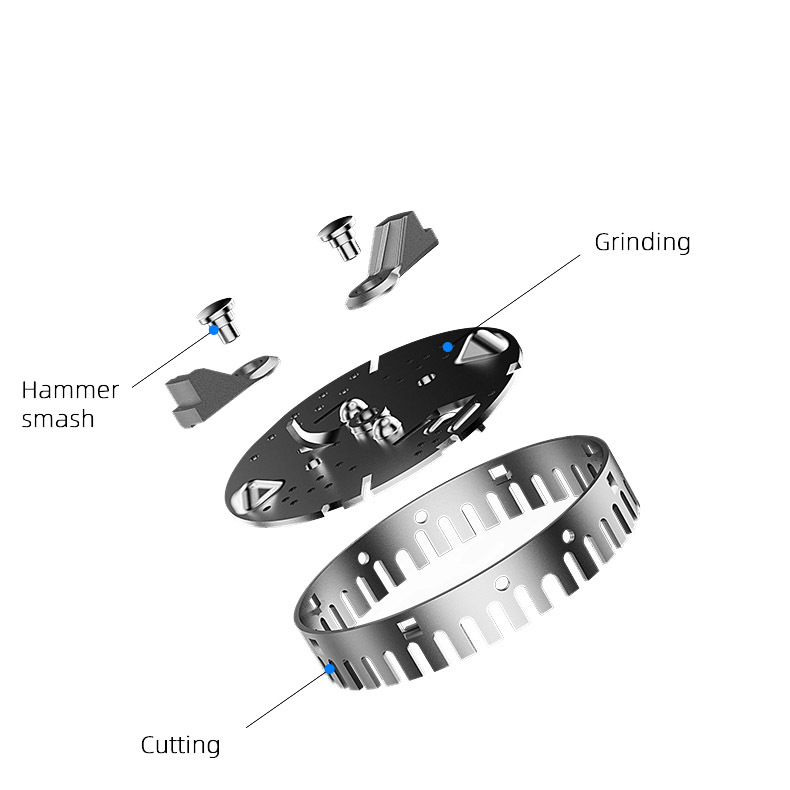

Single layer grinding (level 3)

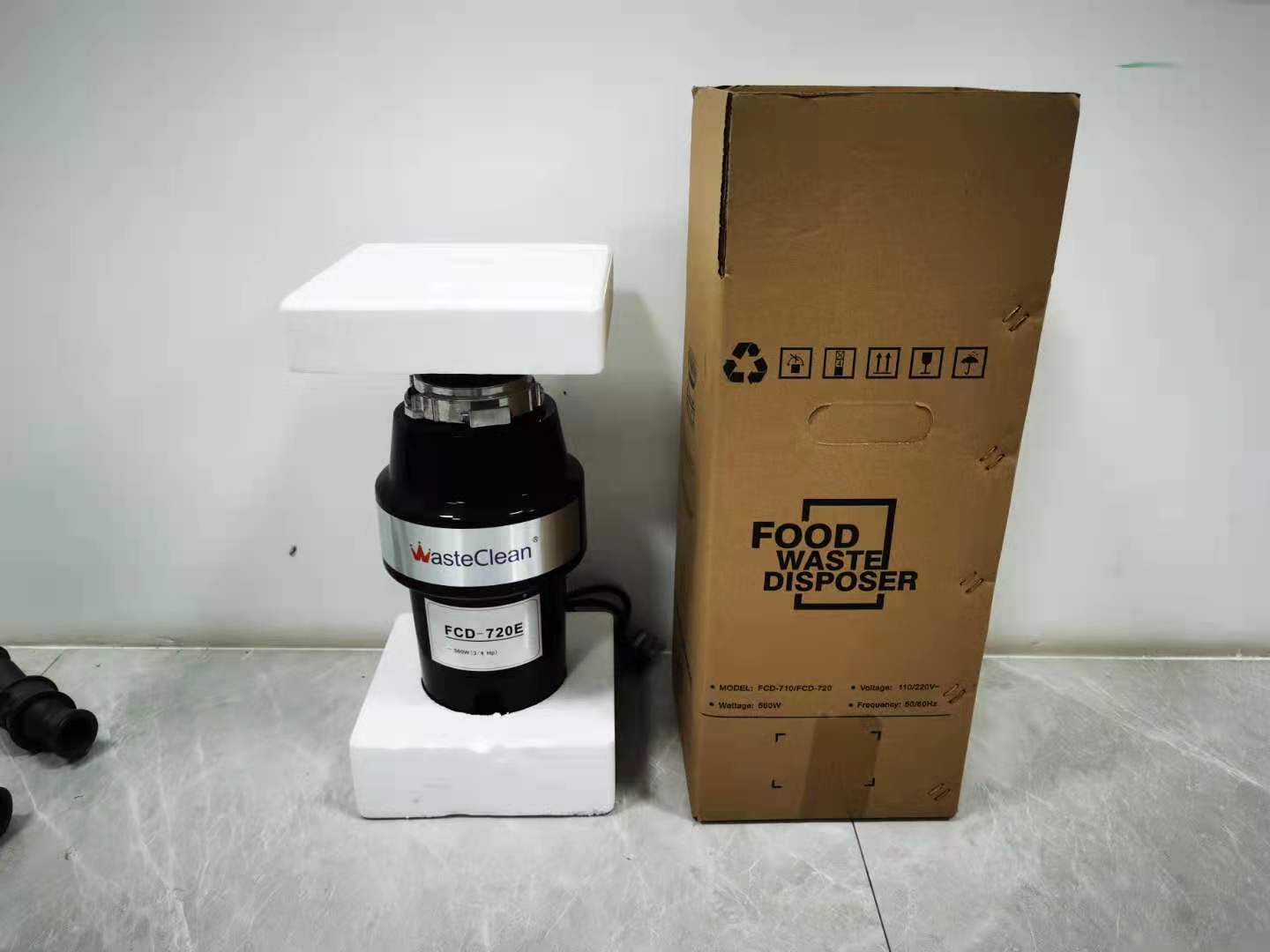

Packaging and Shipping
