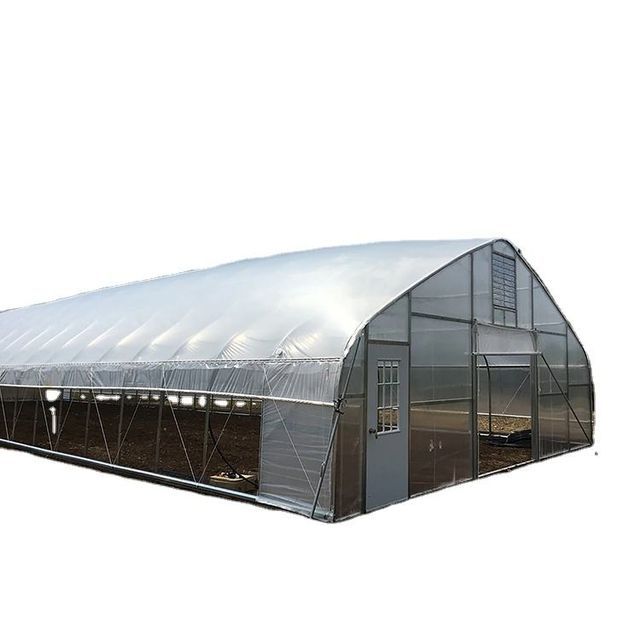

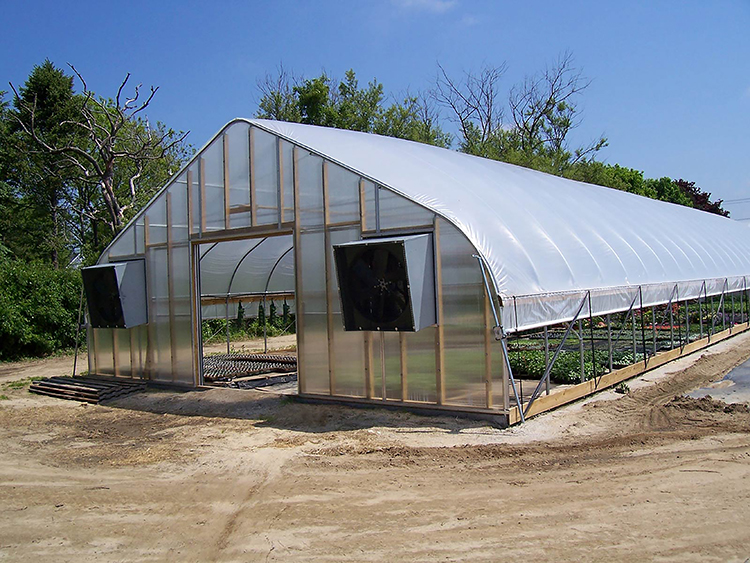

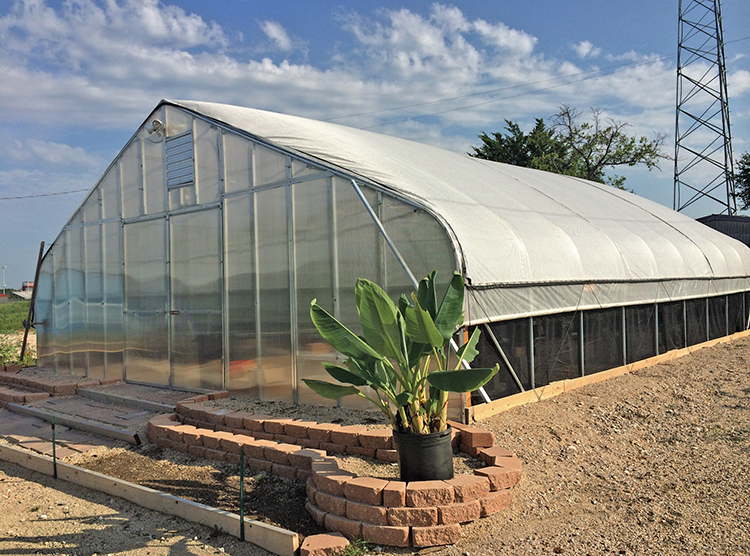

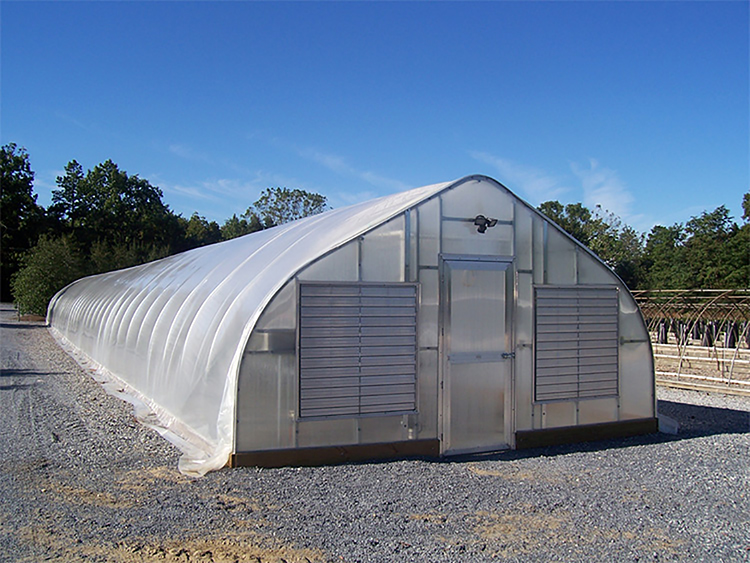

One by one easy to handle cheap metal frame for outdoor greenhouse garden foil tunnel poly house agriculture greenhouse
- $5.00 / >=10 square meters
- 10 square meters
- Jiangsu Oone International Trading Co., Ltd.
- Jiangsu, China
- Mr Jarvis Zhao
| Snow load: | 0.35kn/m2 | Material: | polyethylene |
| Customs code: | 940690009 | Cover material: | Movie |
| manufacturer: | Orne | Movie: | 150 microns/200 microns |
| brand: | Skyplant Tunnel Greenhouse | Supply capacity: | 5000 square meters per month |
| span: | 8m/9.6m/10m/12m | Packaging Details: | Seaworthy packaging |
| Origin: | Jiangsu, China | Wind load: | 0.45kn/m2 |
| Package preview: | type: | Single span agricultural greenhouse | |
| port: | Shanghai | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Paypal |
| model: | OE-TG-500 | Maximum rainfall: | 140mm/hour |
| size: | small | cooling system: | Cooling pad and fan system |
| Hanging load: | 20kg/square meter | length: | 10-100m can be customized size |
| layer: | double | ventilation system: | Roof and side ventilation systems |
1. Product introduction

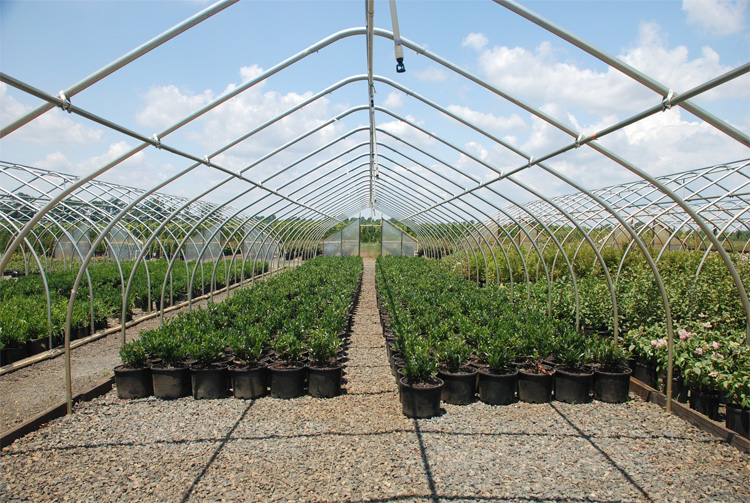

• Hot-dip galvanized frame
This specially treated steel has good anti-corrosion and anti-rust effects, which prolongs the service life of the greenhouse. The specially designed structure and accessories ensure the excellent performance of the greenhouse.
• High quality cover material
PE has a light transmittance of more than 80% and low cost, and is one of the best materials widely used in greenhouses at present.
2. Product parameters
| Greenhouse Specifications | |
| production name | Single span plastic tunnel greenhouse |
| length | 60-200m, customized |
| width | 6m, 7m, 8m, 9m, 10m, can be customized |
| roof height | 3-6m, can be customized |
| greenhouse farm | Hot-dip galvanized steel pipe, diameter 25mm, 32mm, 40mm, 42mm, 50mm, 60mm |
| lamination | PE/PO 0.12/0.15/0.2mm, customized |
| ventilation | Ventilation on both sides of manual/electric winder |
| wind load | 80-130km/h |
| snow load | 0.5KN/M2 |
| Plant hanging: | 0.15KN/m2 |
| rainwater drainage | 140mm3/hour |
| options | Cooling fans, cooling pads, shade nets, heaters, lights, irrigation systems |
Greenhouse shading system:
A. External shading system
The main function of this system is to cool down the sun in summer, diffuse the sunlight in the greenhouse, and prevent the crops from being burned by strong light. Since a large amount of light is blocked, the heat accumulation inside the greenhouse is effectively reduced. Generally, it can reduce the temperature of the greenhouse by 4-6ºC. It is anti-ultraviolet, anti-hail, and reduces damage. Top curtains with different shading ratios. Crops with different shading ratios need a variety of shading: closing the curtains in summer can effectively reflect part of the sunlight and reduce the temperature of the greenhouse by four. to six degrees Celsius.
B. Internal shading system
Anti-fog and anti-drip water: When the internal sunshade system is closed, two independent spaces are formed to prevent the formation of fog and water droplets inside.
Energy saving and environmental protection: effective internal heat can be spilled through heat transfer or heat exchange, thereby reducing energy costs
Water saving: Glass greenhouses can effectively reduce crop and soil evaporation and maintain air humidity. Therefore, irrigation water can be saved.
(2). Greenhouse cooling system
Cooling is achieved using the principle of evaporative cooling of water. There are specially made hydrophobic wet pad walls. When the air passes through the wet curtain medium, it exchanges heat with the water vapor on the surface of the wet medium, so as to realize the humidification and cooling of the air.
A. wet pad
It consists of wet pad, aluminum alloy frame and wet pad water system.
B. Fan
Size: 1380*1380 or 1250*1250

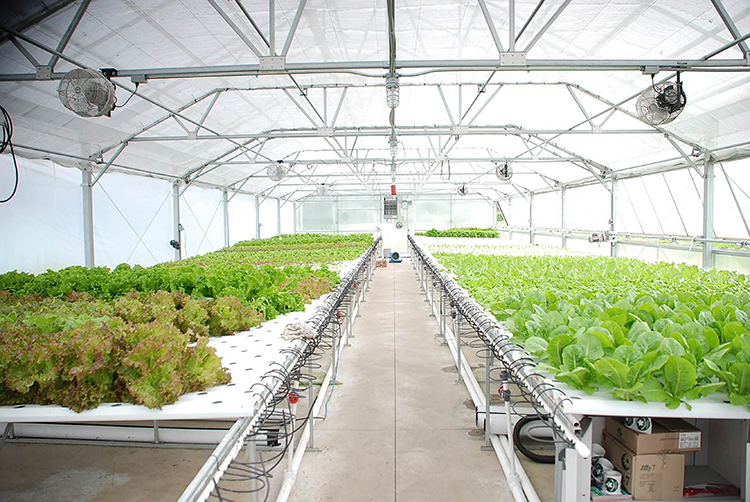

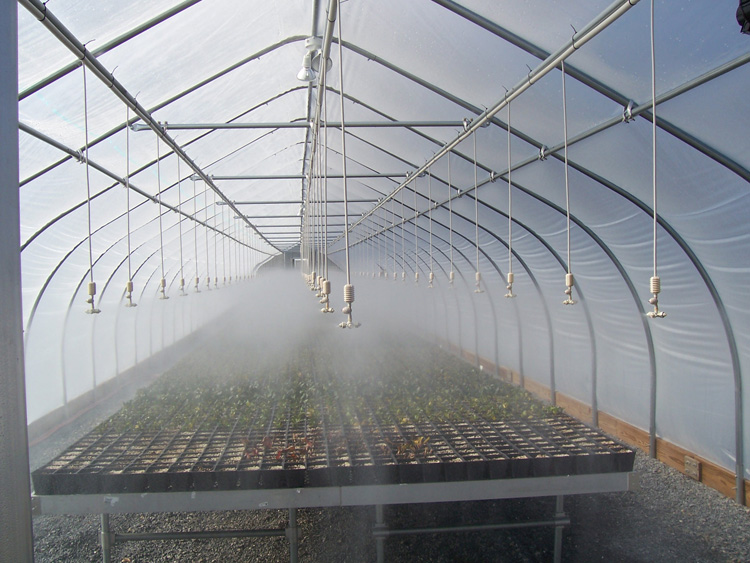

(3).Irrigation and fertilization system;
A. Reasonably designed irrigation and fertilization water treatment system can improve the absorption of fertilizer by crops and improve crop quality at the same time
Second. Especially suitable for areas with poor water quality and crop greenhouses that require high water quality
C. The advanced treatment process is effectively combined with the greenhouse production process.
(4).Greenhouse ventilation system:
Greenhouse ventilation systems can be divided into two types of ventilation systems. one iscontinuous ventilation systemthe other iscross ventilation system. These two ventilation systems are now widely used in agricultural planting, sightseeing and entertainment and other fields.
(5). Automatic control system, etc.
