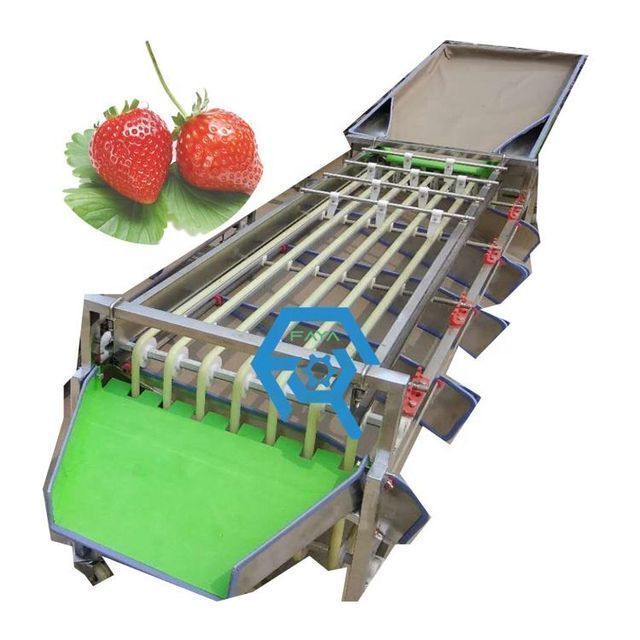

Orbital Fruit Automatic Sorting Machine Blueberry Strawberry Raspberry Size Grading Machine Harmless to Peel

PRODUCT DETAIL
Name:Fruit sorting and grading machineVideo shipment inspection:if
model:Fengyun-FJ9Key words:Orange Sorting Line
Core component warranty:2 yearsPackaging Details:Special wooden box for export without fumigation
place of origin; place of origin:Henan, Chinastrength:1.5KW
style:Avocado Onion Size Grading Sorterthing:Apple jujube potato blueberry fruit sorting and grading machine
Voltage:220/380VApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food & Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy & Mining, Food & Beverage Stores, Other, Advertising company
Raw materials:Plums, dates, olives, apples and other fruits, vegetables, nutstype:Fruit and vegetable screening and grading machine
Core components:motorapplication:Jujube grading machine
Mechanical test report:ifHealth status:new
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramWarranty:2 years
Advantage:Grape Grape Grading Machinebrand:Fa Ya
Marketing Type:2019 Hot Productsweight:200 kg
Main selling points:multifunctionalOutput product name:Assortment of fruits and vegetables
Showroom location:not anyDimensions (L*W*H):2100*600*1000mm
port:Qingdao port; Shanghai port; Ningbo port; Tianjin port; Yiwu port; any port in Chinaproduct name:fruit grader
Supply capacity:500 sets per monthFunction:classification
Application fields:Snack food factory, flour mill, dairy factory, fruit processing factory, edible oil factory, commercial catering, meat processing factory, bakery, winery, vegetable processing factory, beverage factory, condiment factory, canning factory, frozen food factory
Product Description
Commercial passion fruit vegetable sorting and grading machine olive longan sorting machineMini Fruit Size Sorting Machine Hawthorn Cherry Sorting Machine Olive Bayberry Sorting MachineSmall Tomato Sorting Machine
feature: Can be used for jujube, sand fruit, green plum, cactus, plum, loquat, flower red, jujube, hawthorn, apricot, begonia
Fruit, etc. (can be customized according to the fruit), high degree of automation; just pour the fruit into the feeding port
and keep working. About 500KG fruit per hour (slightly different due to different fruits)
This machine is made of high-quality 304 stainless steel, with beautiful appearance and convenient installation and operation. safe,
Reliable and efficient. It is the preferred sorting device.
working principleThe fruit size sorting machine uses the principle of diameter control to sort fruits by size. The silicone conveyor belts that run uniformly in the same direction gradually move away from each other during walking, and the distance between the conveyor belts gradually expands as the potatoes are graded from small to large and is leaked out, which has the advantages of large output and no damage to the product.
Specification
small fruit
big fruit
Model
Fengyun-FJ9
FY-FJ11
FY-FJ15
FY-FJ-B6
FY-FJB11
capacity
0.5-1 ton/hour
1-1.5 tons/hour
1.5-3 tons/hour
2 tons/hour
3-5 hours
number of paths
9
11
15
6
11
grade
3-6
3-6
3-6
3-6
3-6
Fruit diameter
5-45mm
5-45mm
5-45mm
50-90mm
50-90mm
Voltage
220v/380v
220v-380v
220v-380v
220v/380v
220v/380v
strength
0.75kw
0.75kw
0.75kw
0.75kw
0.75kw
aspect
2200*700*900mm
2200*700*1100mm
2200*1300*1100mm
2200*700*1100mm
2200*1300*1100mm
weight
100 kg
110kw
260 kg
100 kg
200 kg
