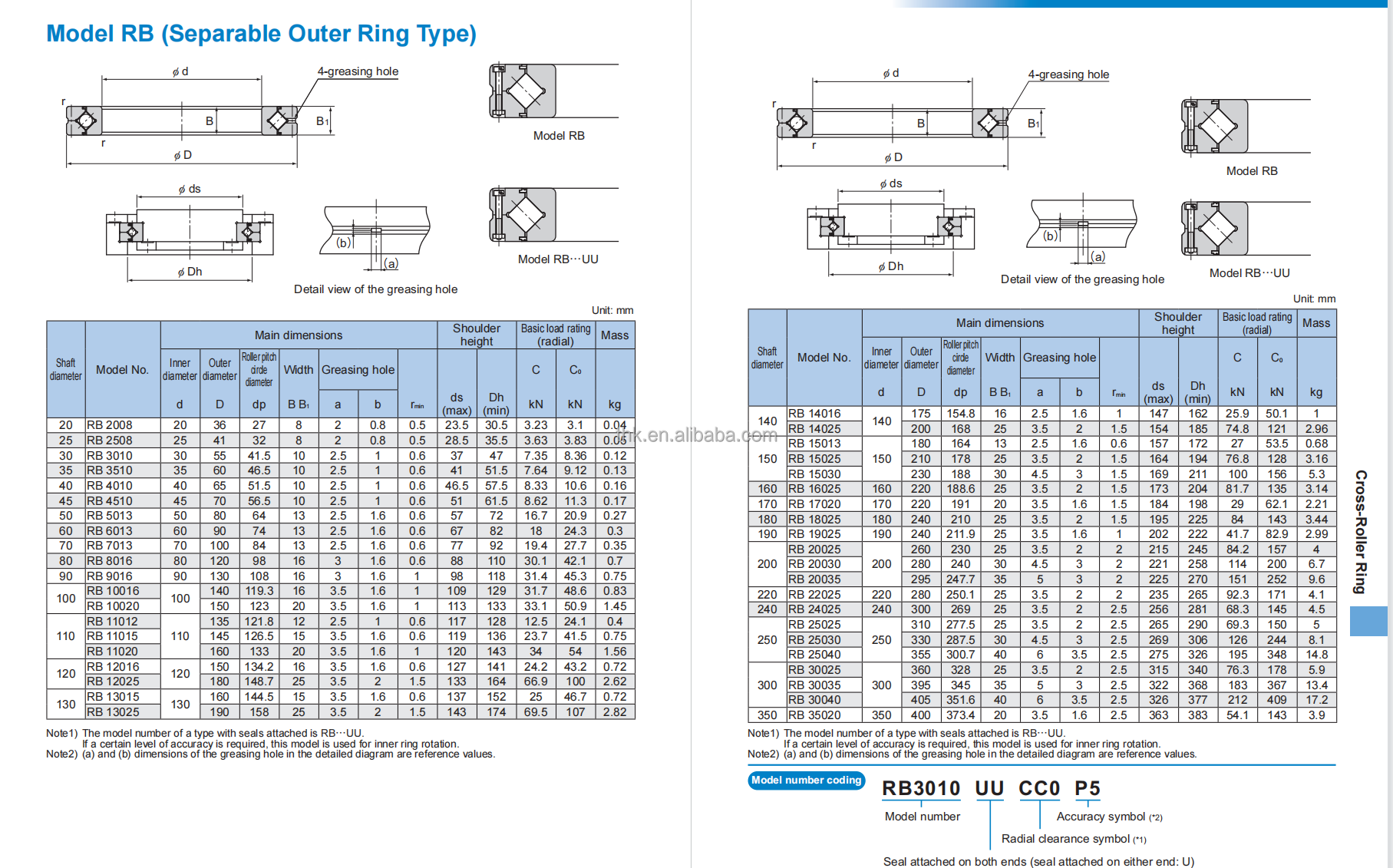

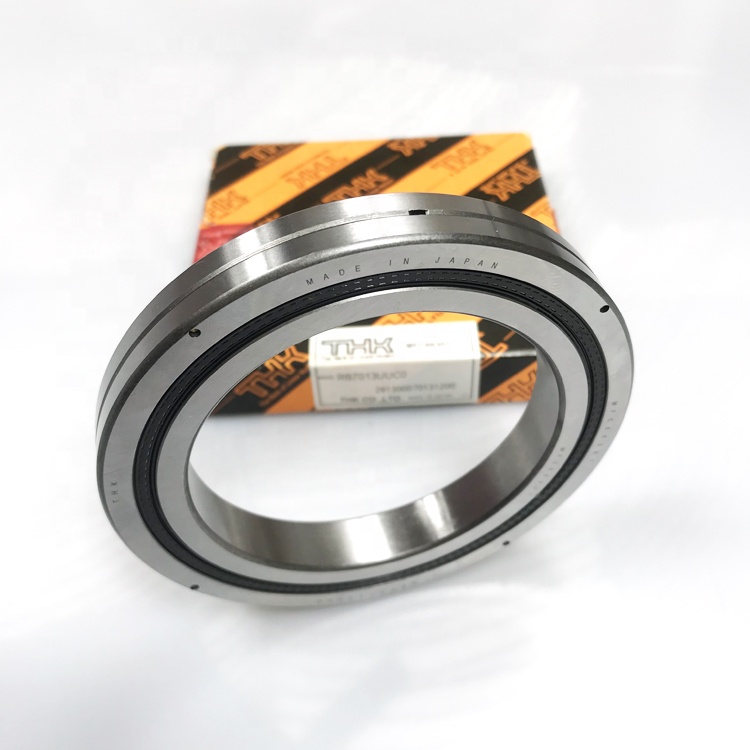

Original Japanese crossed roller ring model RB (separable outer ring type) RB12016

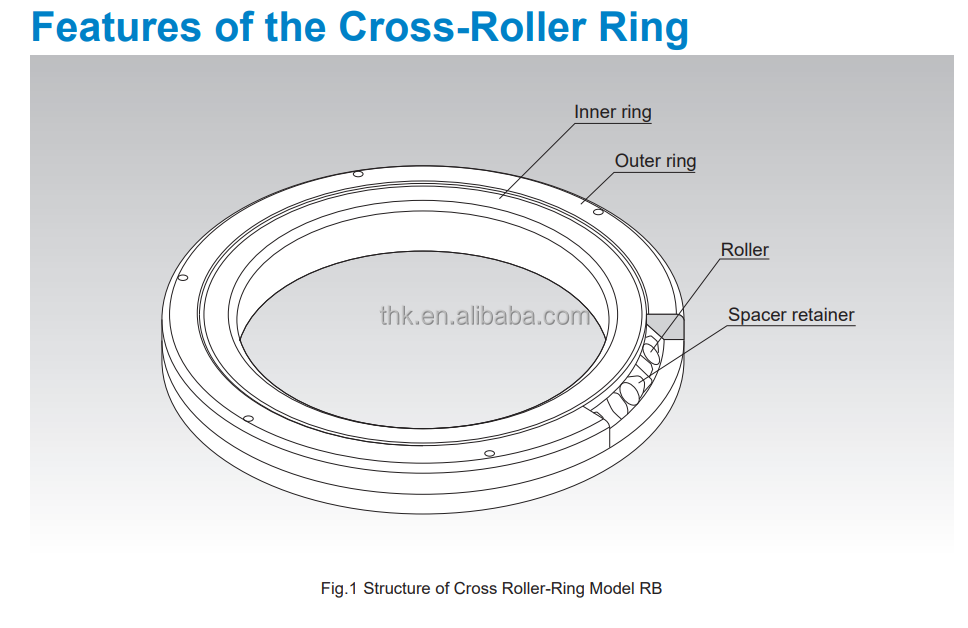

For crossed roller rings, the cylindrical rollers are arranged in a 90° V-groove, with each roller perpendicular to the adjacent roller and separated from each other by spacers. This design allows only one bearing to carry loads in all directions, including radial, axial and moment loads. Crossed roller rings achieve high rigidity despite the smallest possible dimensions of the inner and outer rings, making them ideal for joints and rotating units of industrial robots, rotary tables of machining centers, rotating units of robots, precision rotating work Taiwan and other applications, medical equipment, measuring instruments and IC manufacturing machines.

High rotational accuracy

Spacers installed between cross-arranged rollers prevent roller skew and an increase in rotational torque due to friction between rollers. Unlike conventional types that use steel plate cages, crossed roller collars do not cause one-sided contact or binding of the rollers. Therefore, the crossed roller rings provide stable rotation even under preload. Since the inner and outer rings are designed to be separable, the preload can be adjusted, and this feature allows for precise rotation.
