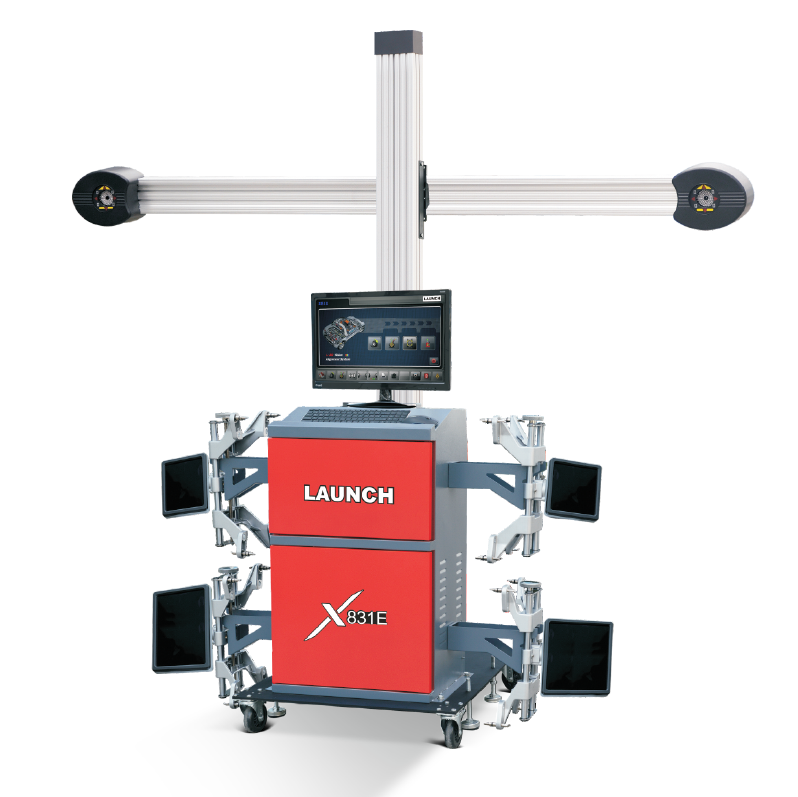

Original Yuanzheng X831E 3D four-wheel aligner

PRODUCT DETAIL
brand:Ottomodel:Zhengzhou 300m
name:X831E Hunter Wheel AlignerWarranty:12 months
power supply:standardplace of origin; place of origin:Guangdong, China
strength:standardport:Shenzhen
Display accuracy:1/0.01/0.1mmPackaging Details:3d four-wheel aligner carton original packaging
product name:Launched the X831E 3d four-wheel alignerAutomatic tracking:Introduced the X831E
Supply capacity:100 pcs 3d wheel alignment machine price per weekmaximum. Wheel Weight:Kilogram
Features:3D Four Wheel Aligner Support 2 Post Car Liftfeature:Professional 3D four-wheel alignment research and development
payment terms:Western Union, T/T, MoneyGram, 3d Wheel AlignerItem Type:3d four wheel alignment machine
3D wheel alignment:More Better than Launch x-631+ Wheel AlignerKey words:3d wheel alignment machine price; Hunter wheel aligner
Launched X831E four-wheel alignment:ambient temperature

Original Yuanzheng X831E 3D four-wheel aligner





feature

1. The 3D four-wheel alignment software with completely independent intellectual property rights simplifies the operation page, and at the same time can obtain continuous upgrades of functions, interfaces and data;



2. Measuring system: two 3D industrial digital cameras, four targets constitute the measuring system;



3. Imported high-definition wide-angle lens: meet the detection of ultra-long and ultra-wide vehicles, and adapt to various lighting conditions;



4. Ultra-short installation distance: the installation site requirements are low, and the distance from the camera to the front wheel can be as short as 1.6 meters;



5. All-weather high-performance imported 3D industrial camera: automatic adjustment of light intensity and temperature compensation to ensure high-precision detection in high temperature and severe cold climates;



6. LED optical indication system: According to the intelligent LED indication on the camera, the positioning operation can be completed accurately;



7. Maintenance-free passive target: no electronic components, no battery, no data transmission on the target, completely eliminate the source of failure, reduce the cost of use and maintenance;



8. Dynamic measurement: Rolling the wheels, the body is in a natural state, real-time detection of "vehicle positioning reference plane", and automatically eliminating the deviation caused by uneven lifting and clamping;



9. The operation is simple and fast: install four targets on the rim, just push the car to roll the wheel to complete the traditional positioning measurement except the angle of the kingpin, and the whole process takes less than 1 minute;



10. Calibration-free: It has been calibrated before leaving the factory, and it can be used after on-site installation;



11. On-site maintenance: If the equipment needs to be corrected, it can be completed on site without returning to the factory;



12. One-key recovery: After the software is infected with a virus or misoperated, the positioning system can be recovered with one key.



technical parameter

Test items technical parameter Measuring range
display accuracy 1′/0.01′/0.1mm /
toe angle ±2′ ±20º
Camber ±2' ±10°
caster angle ±5′ ±20º
Kingpin inclination ±5′ ±20°
back angle ±2' ±5°
thrust line angle ±2' ±5°
axle track ±2mm 2000mm
wheelbase ±2mm 4000mm
