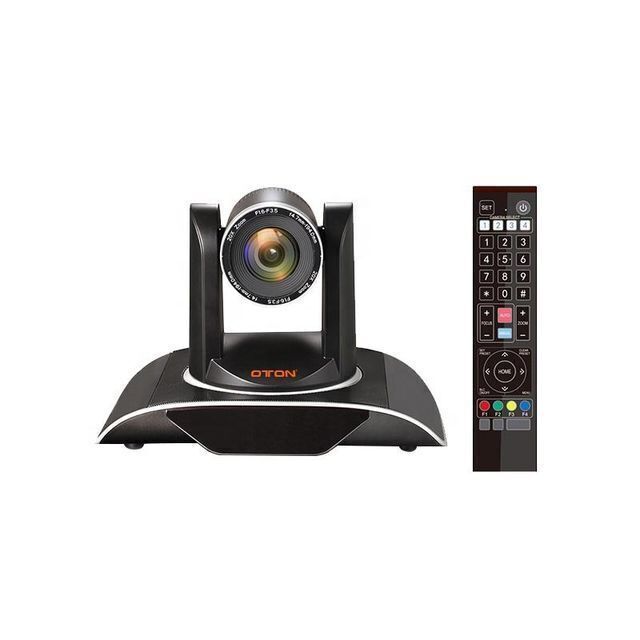

Oton Hyper C950 digital 1080p USB PTZ Video Camera
- $699.00 /piece
- 1 piece
- Shenzhen Oton Technology Co., Ltd.
- Guangdong, China
- Ms Mia Wong
PRODUCT DETAIL
Supply Ability: | 500 Pieces per Day; | Sensor: | HD 1/2.8 CMOS; |
Optical Zoom: | 10x - 20x; | Protocol: | UVC/UVA; |
High Definition Support: | 1080p (Full-HD); | Wideangle: | 3.3°-54.7°; |
Focal Length: | 5.5-110 mm; | Media Type: | MicroSD; |
Maximum Aperture: | F1.6-F3.5; | Audio: | Built-in pick up; |
Resolution: | 1080p @ 30Hz; | Place of Origin: | Guangdong, China; |
Port: | shenzhen; | Imaging Sensor: | CMOS; |
Effective MegaPixel: | About 2MP; | Payment Terms: | T/T; |
Brand Name: | Oton/OEM; | Focus/Aperture/Shutter: | Auto/Manual; |
Additional Function: | Camera Function; | Certification: | RoHS,FCC,ce; |
Interface: | USB 2.0, USB3.0, HD-MI, Microphone; | Packaging Detail: | brown box; |
Effective Pixels: | 2.07 Megapixels 16:9; | Color Correction: | Yes; |
Model Number: | Hyper C950-20-U2U3; |
Products Description












Technical Specification
Model | C950-20-U2U3 | C950-30-U2U3 | |||||
Image Sensor | HD 1/2.8 CMOS | ||||||
Resolution | 1920x1080 | ||||||
Effective Pixels | 2.07 Megapixels, 16:9 | ||||||

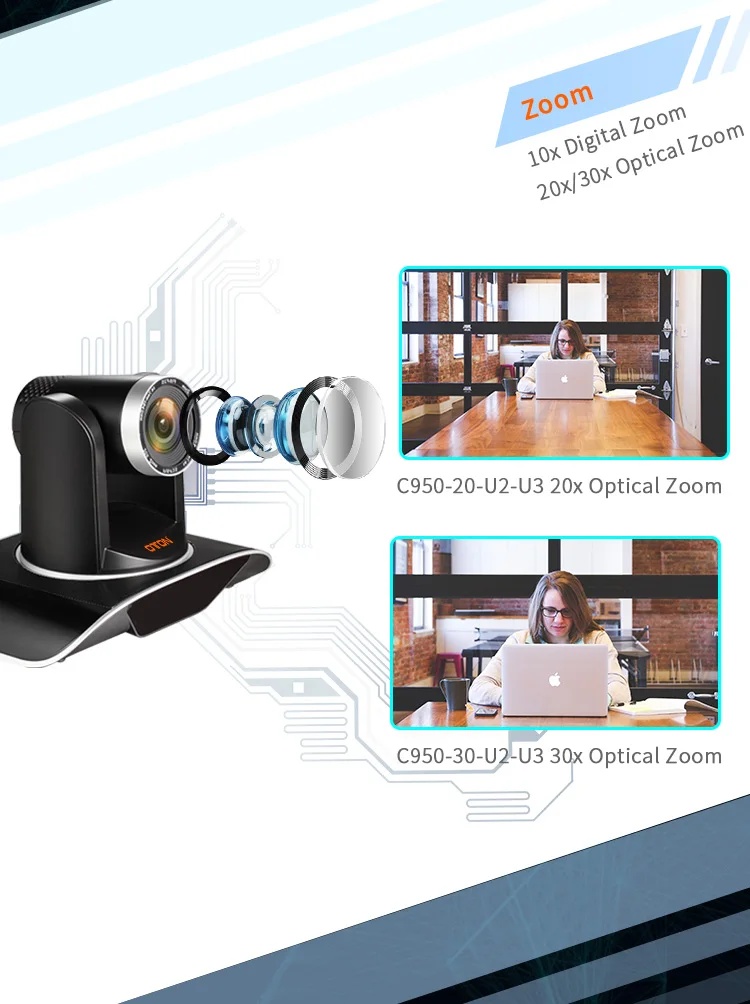

Digital Zoom | 10X | ||||||
Optical Zoom | 20X | 30X | |||||
FOV | 3.3° -54.7 ° | 2.34° -65.1 ° | |||||
Focal Length | 5.5-110 mm | 4.3-129mm | |||||
SNR | > 50dB | ||||||
Video Format | 960x540/320x180/432x240/640x360/800x448/800x600/864x480/960x720/1024x576/1280x720/1600x896/1920x1080/272x144/368x208/384x216/480x272/624x352/912x512/424x240/640x480/320x240/160x120/P30 | ||||||
Video Compression Format | H.264、H.265 | ||||||
Audio Compression Format | AAC, MP3, G.711A | ||||||
Video frame rate | 25/30/50/60 FPS | ||||||
Electronic shutter | Auto/Manual | ||||||
Focus/Aperture | Manual/Auto | ||||||
Backlight contrast | On/Off | ||||||
Minimum illumination | 0.5 Lux (F1.8, AGC ON) | ||||||
Exposure | Auto Exposure / Manual Exposure | ||||||
Video Adjustment | Brightness, Color, Saturation, Contrast, White balance mode, Gain, Anti-flicker, Low brightness compensation etc. | ||||||

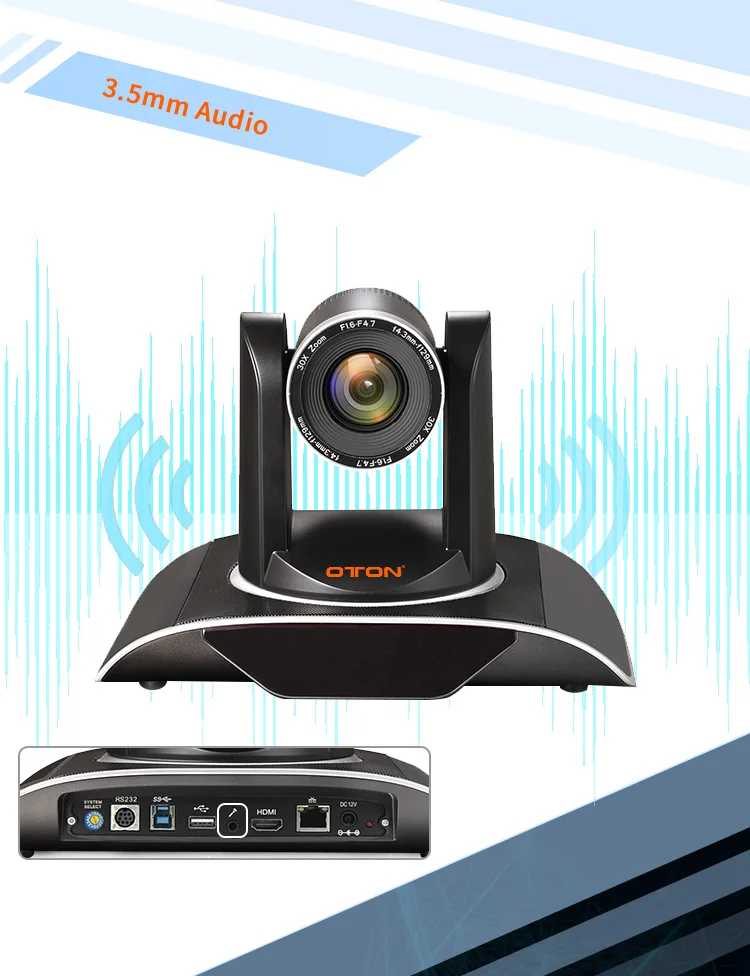

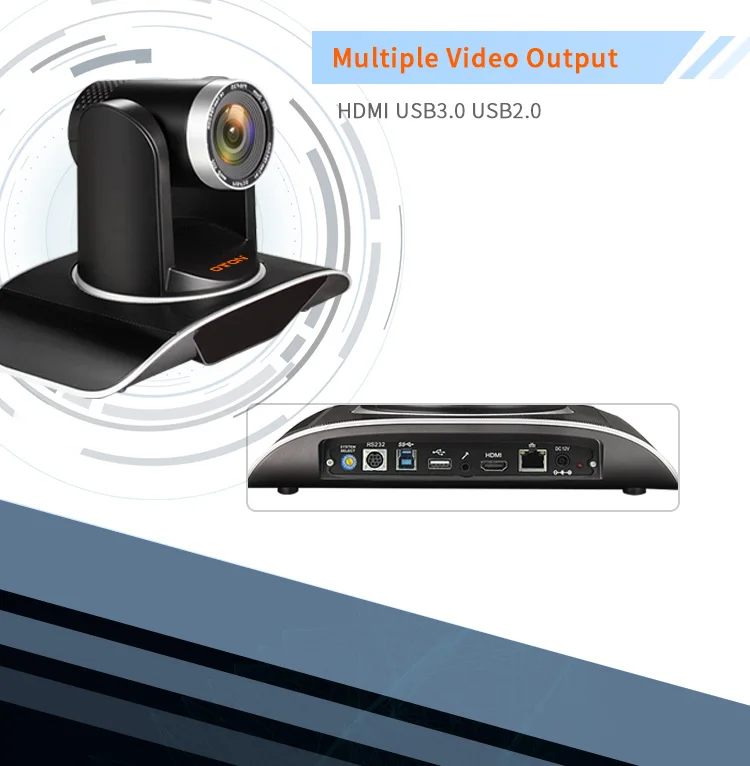

Video Interface | USB2.0, USB3.0, HDMI | ||||||
Audio Interface | Microphone | ||||||
Network Interface | Ethernet 10/100Mb/s, Wi-Fi (optional) | ||||||
Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA, remote restart, remote reset | ||||||
Control Interface | RS232, RS485 | ||||||

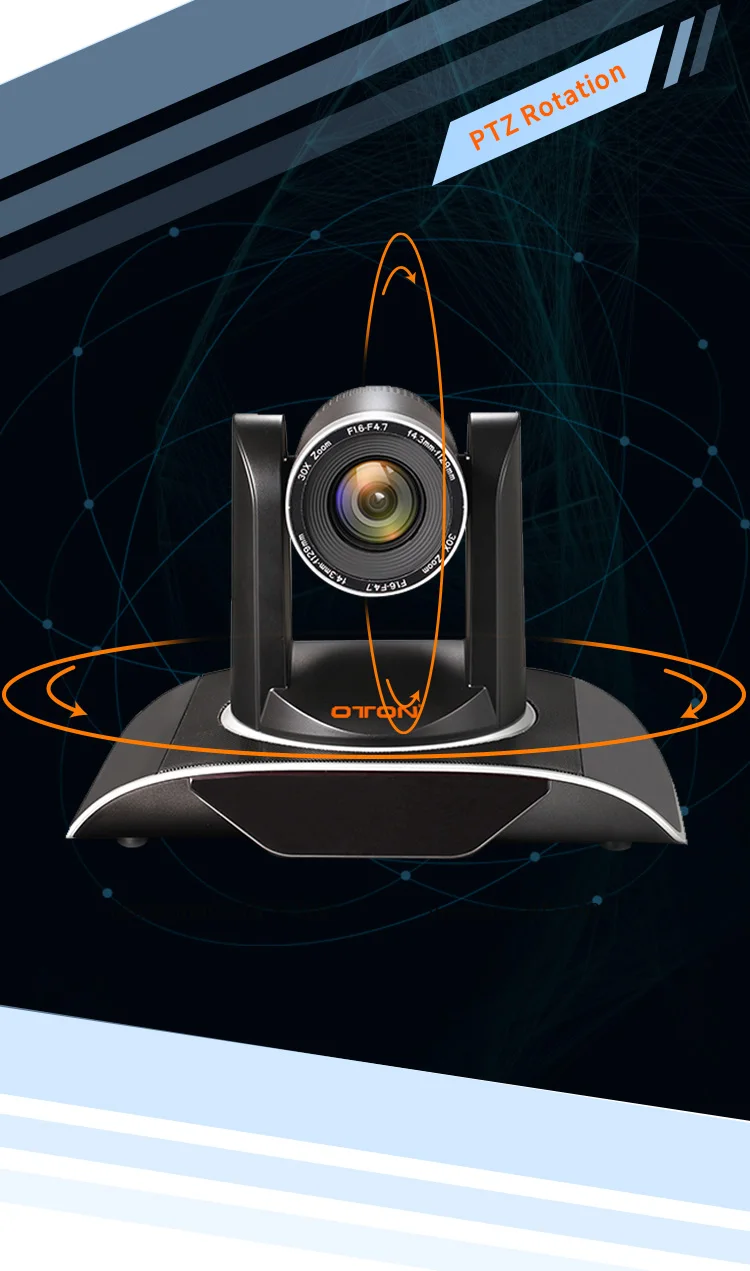

PTZ Rotation Angel | -170°~170° (Horizontal), -30°~90°( Vertical) | ||||||
PTZ Rotation Speed | 0.1-100°/second( Horizontal), 0.1-45°/second( Vertical), | ||||||
Input Voltage/Current | 12V/1A max | ||||||
Power Consumption | 12W max | ||||||
Storage Temperature and Humidity | -10℃~+60℃ and 20%~95% | ||||||
Working Temperature and Humidity | -10℃~+50℃、and 20%~80% | ||||||
Dimension | 102mm*46mm*30mm | ||||||
Weight (appx.) | 0.15kg | ||||||
Accessories | User Manual, Warranty card |
