Outboard Steering Cables 12ft Mechanical Planetary Steering Kit with 13.5" Wheels for Marine Steering Systems
- $75.00 / 5 - 99 pieces
$55.00 / >=100 pieces - 5 pieces
- Changzhou Haihong Yacht Equipment Co., Ltd.
- Jiangsu, China
- Ms Pelly Peng
PRODUCT DETAIL
| part: | steering system, marine steering system | Package: | carton |
| application: | outboard motor | brand: | Haihong |
| Supply capacity: | 2000 pieces per month | product name: | outboard boat steering system |
| Origin: | Jiangsu, China | port: | Shanghai, Ningbo |
| Packaging Details: | Woven bag or plywood packing | Standard or non-standard: | standard |
| Servo: | Planetary gear, 3/4"" tapered shaft | MOQ: | 1 set |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | length: | 12 feet |
| Processing: | Custom cable lengths available | Certificate: | ISO9001 |
Product Description
A planetary gear design has three satellite gears that rotate on their axis while simultaneously rotating around a central rudder shaft. This allows for an equal distribution of engine torque across the three points of the central gear, dividing and balancing system loads. The benefits of this particular design are extended system life, increased efficiency and reduced engine feed recirculation compared to single pinion rudders.

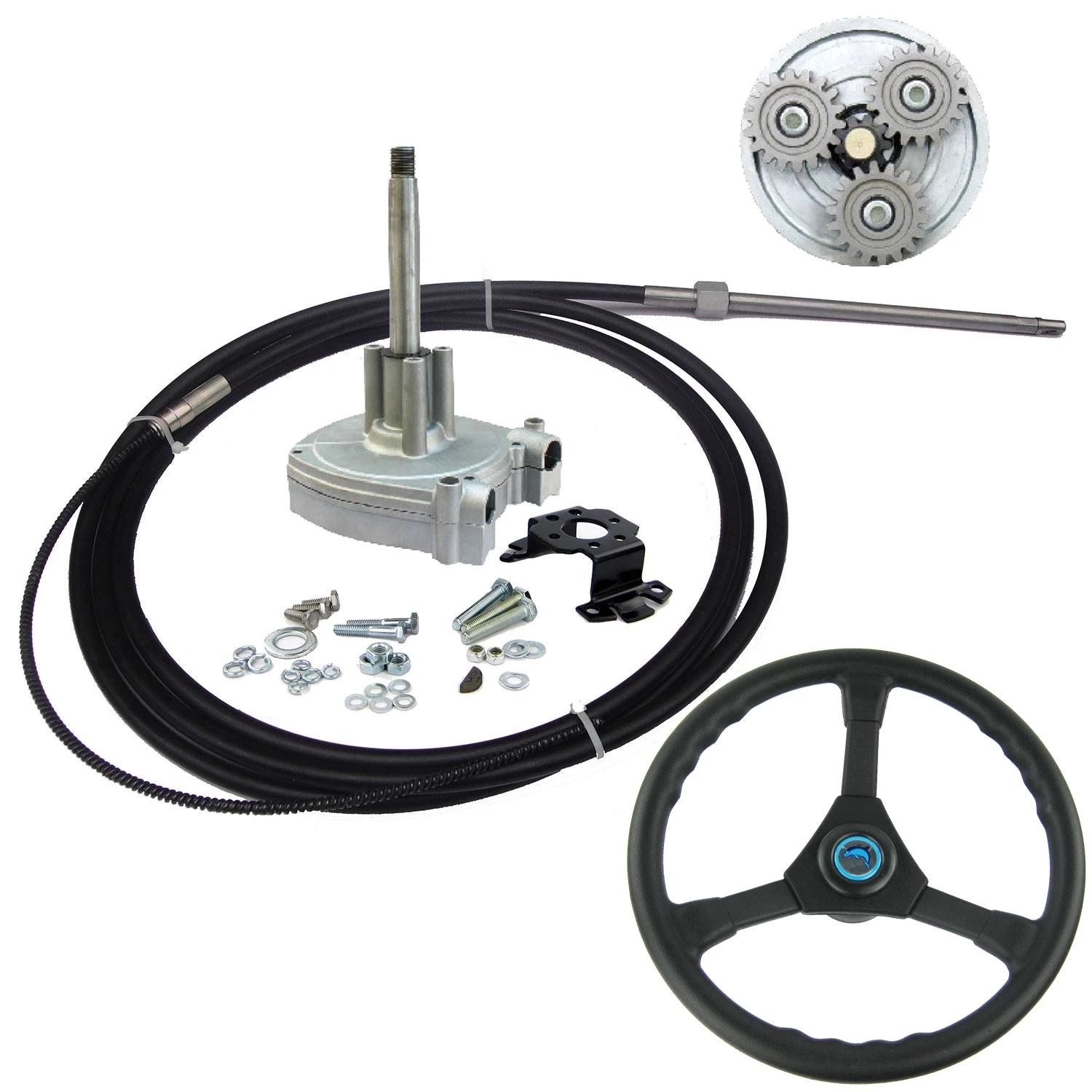

The kit includes:
· Steering cable 12 feet
· Steering Rudder - Planetary Gear, 3/4"" Tapered Shaft
· Baffle Kit

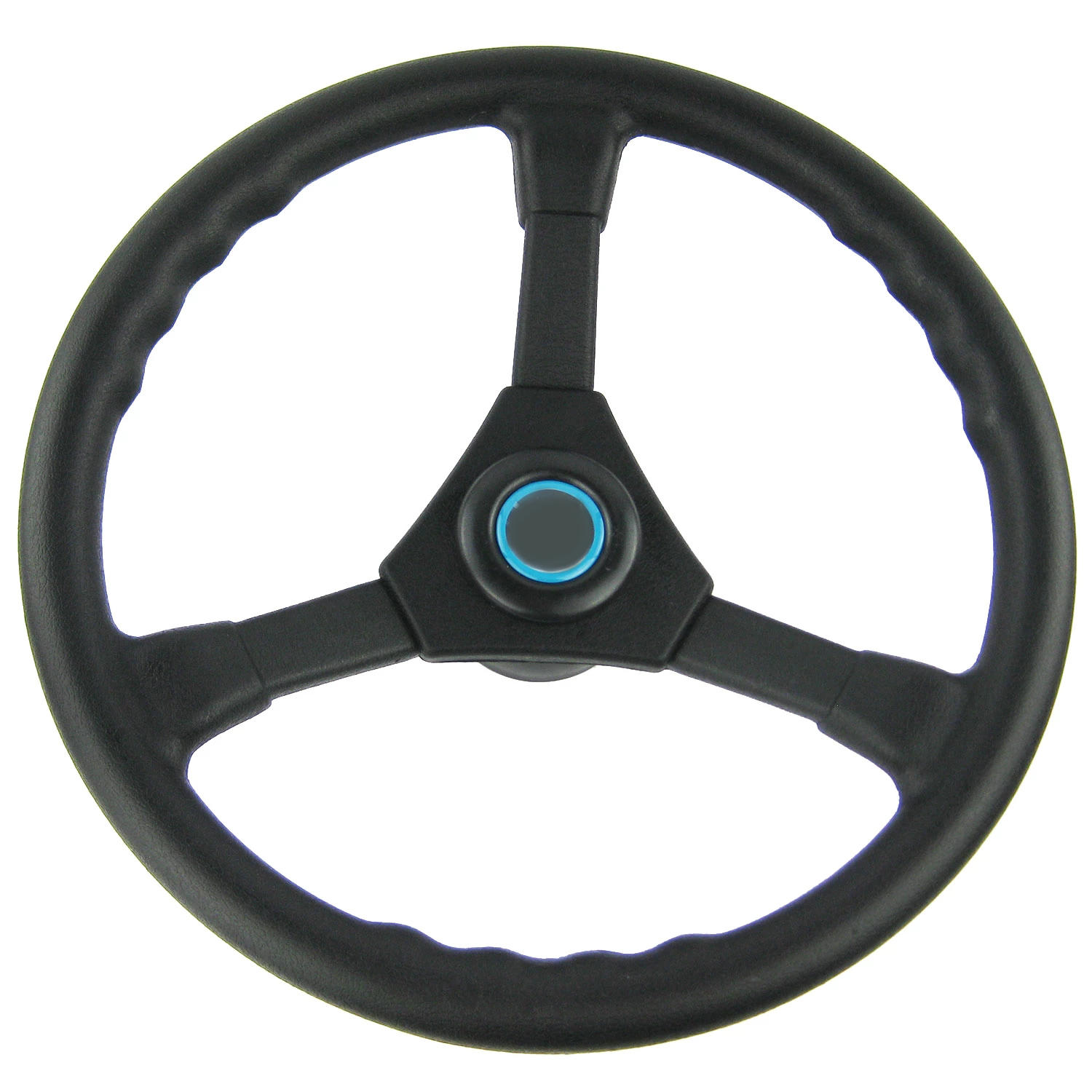

· Steering wheel
· 90 degree azimuth
1. Specially designed and developed for marine use.
2. Mainly used for mechanical/manual steering of yachts, fishing boats and other water vehicles.
3. Made of zinc alloy, corrosion-resistant, ergonomically designed, easy to install, and compact.
4. Combined with steering cable, 316 stainless steel end fittings, can be any length within 30 feet.

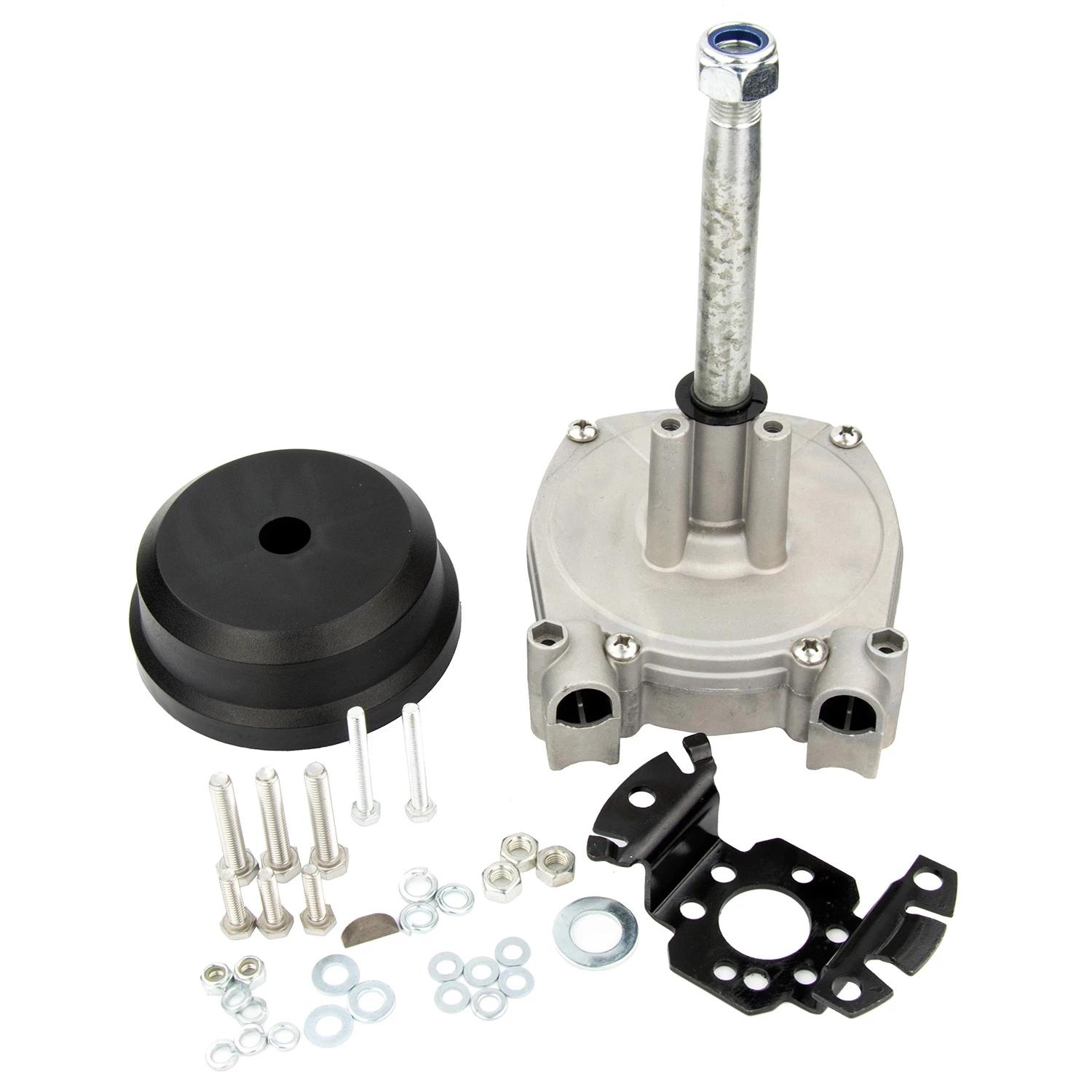

Servo:
The steering rudder is a gearbox device mounted on the dashboard of the boat. Steering gear installed on the rudder shaft
wheel.
application:
fits max. 30 ft (9 m) outboard boat (up to 200 hp)
Tiller maximum load 300 lbs.
Planetary Gear Design: 3-Turn Lock-to-Lock
Maximum steering wheel diameter 406 mm (16 in)
minimal feedback
Shaft length: 125mm
Material: chrome-plated zinc alloy
bezel kit
A fender kit is a plastic part and associated hardware that fits between the steering wheel and dashboard to cover
Helm the hardware.
feature:
Bezel made of engineering plastics
Black available as standard option
90 degree tilt
Includes mounting hardware

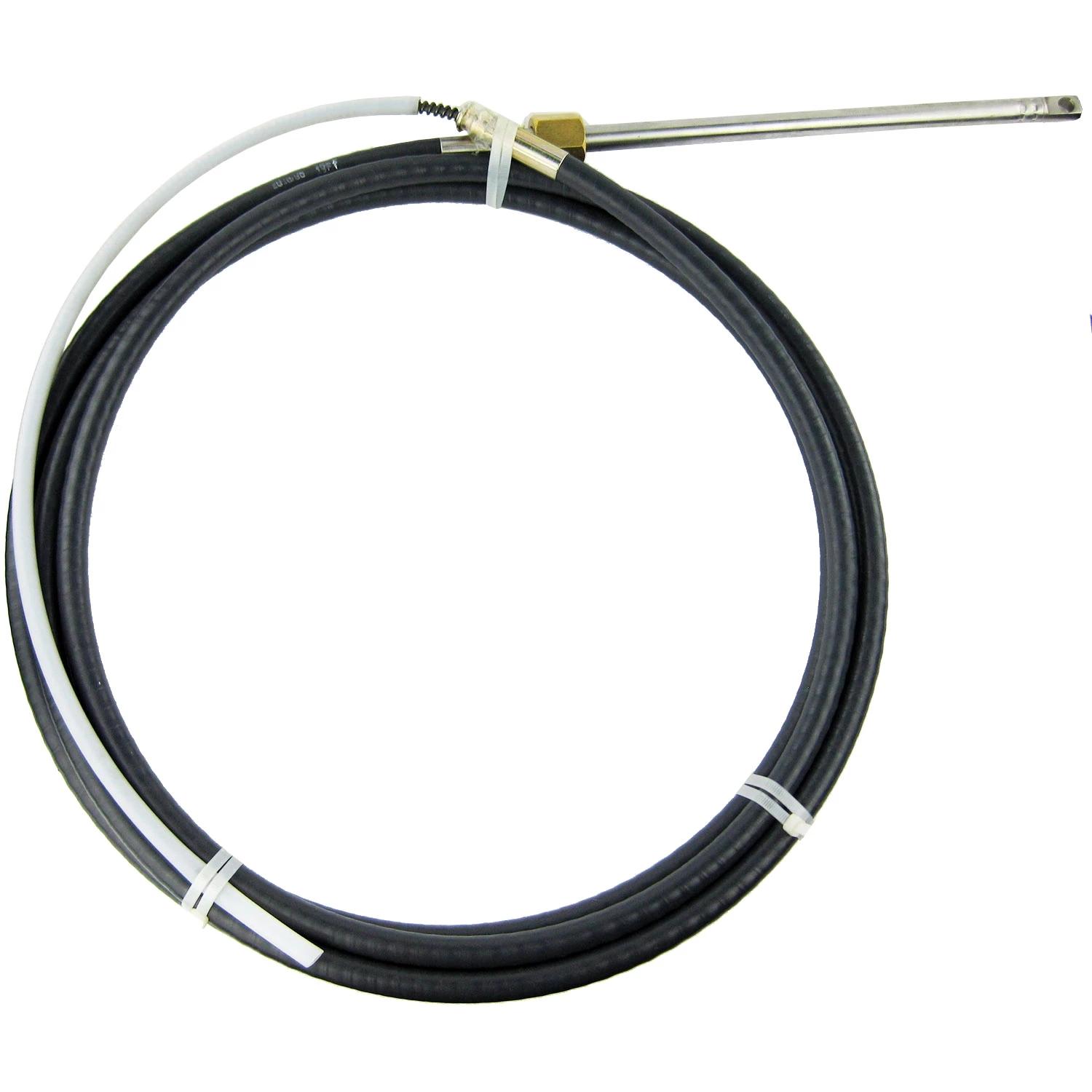

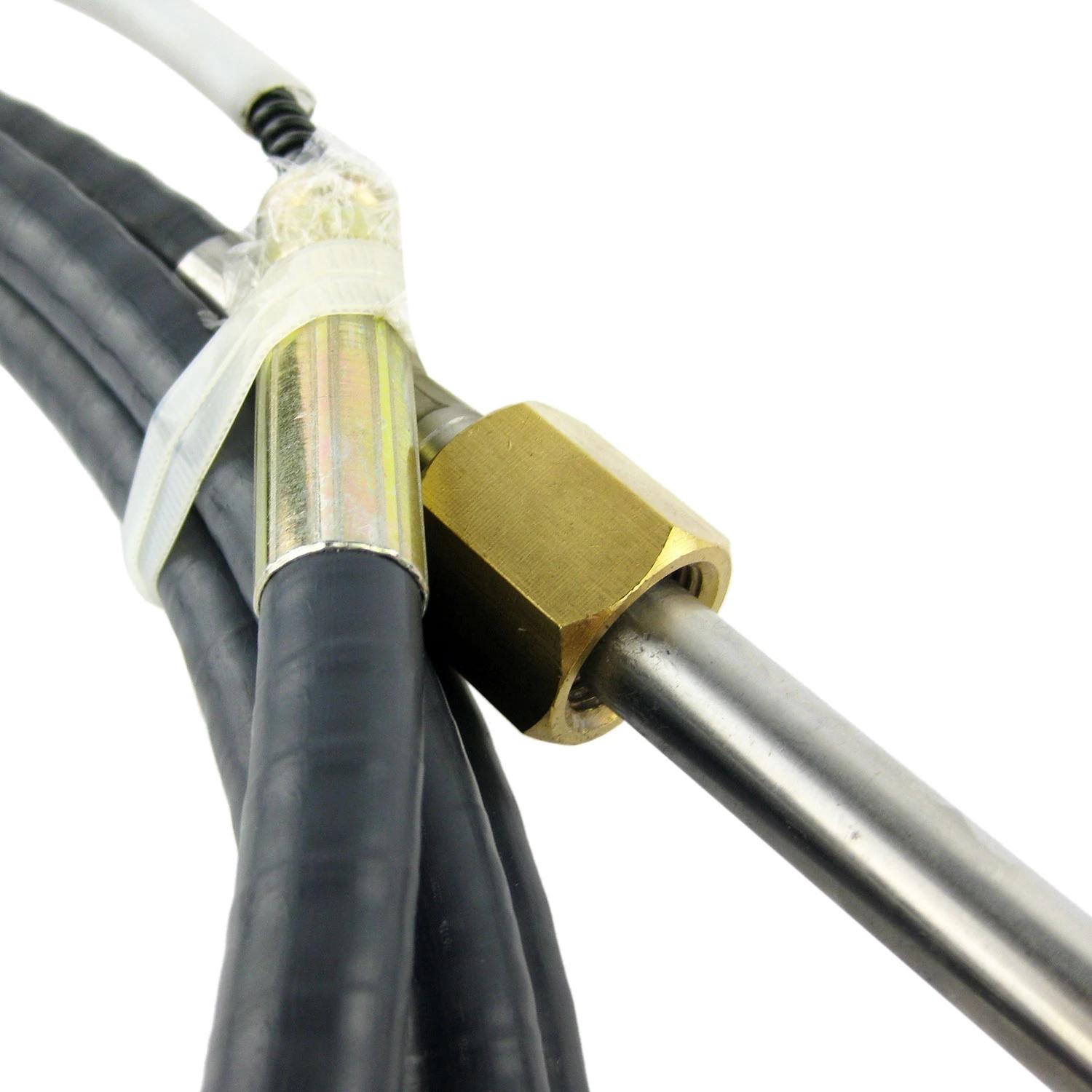

steering cable
The steering cable is a push-pull mechanical cable that converts the rotary motion of the rudder into linear motion
Engine/rudder. One end of the cable is connected to the rudder and the other to the rudder. The latest construction techniques, internal control lines are made of elastic materials. The output adopts 304 stainless steel seamless pipe and corrosion-resistant material, and the control line has a longer life.
Control wire can be used in lengths of 5-30 feet and increased in 1-foot increments.
feature:

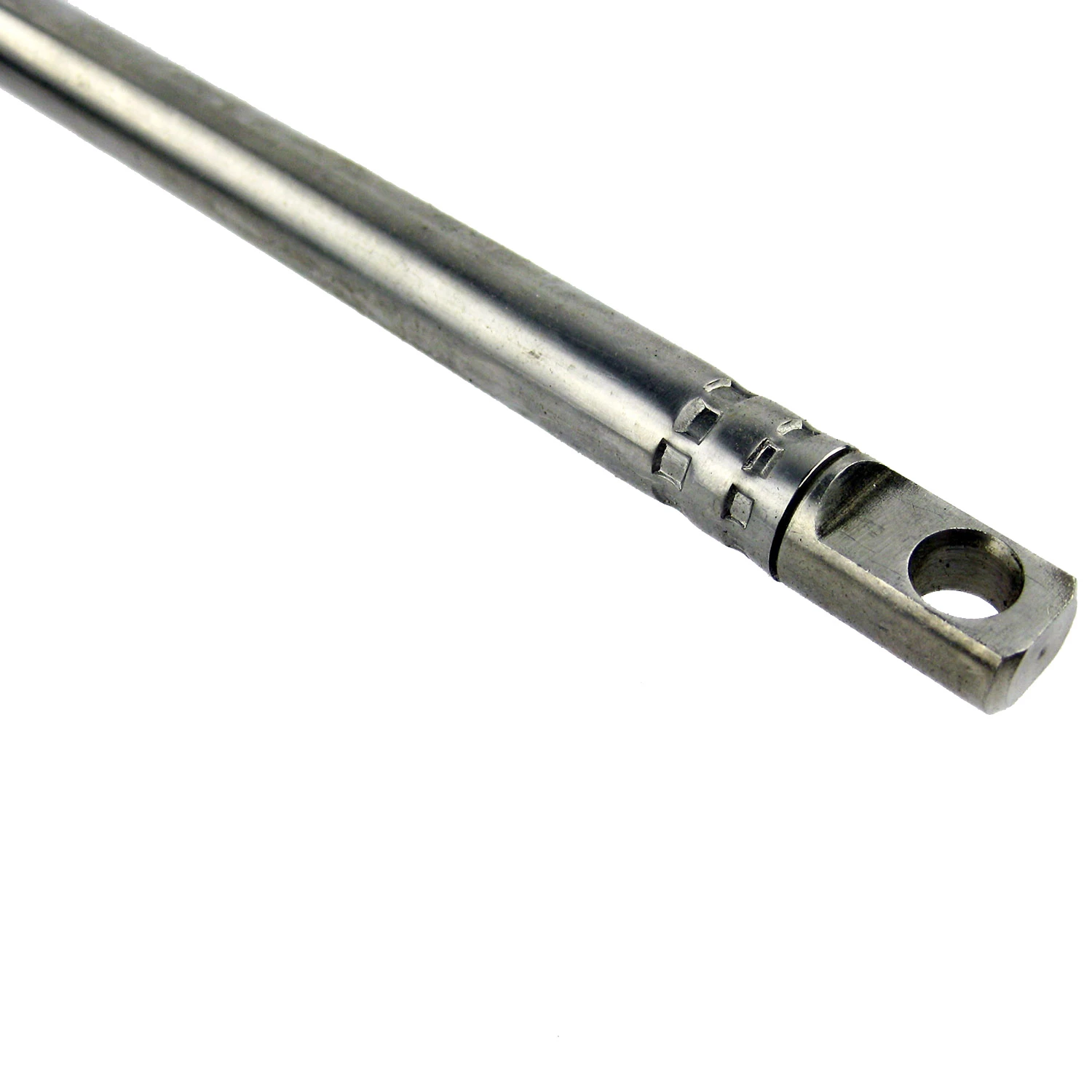

The output is made of 316 stainless steel
Maximum Travel: 9 inches (225mm)
Minimum Bend Radius: 8" (200mm)
Maximum working load at tiller end: 5000N
Cable outer diameter: 16.5mm
Spiral inner wire diameter: 8mm
· Steering cable 12 feet
· Steering Rudder - Planetary Gear, 3/4"" Tapered Shaft
· Baffle Kit
· Steering wheel
· 90 degree azimuth
1. Specially designed and developed for marine use.
2. Mainly used for mechanical/manual steering of yachts, fishing boats and other water vehicles.
3. Made of zinc alloy, corrosion-resistant, ergonomically designed, easy to install, and compact.
4. Combined with steering cable, 316 stainless steel end fittings, can be any length within 30 feet.
Servo:
The steering rudder is a gearbox device mounted on the dashboard of the boat. Steering gear installed on the rudder shaft
wheel.
application:
fits max. 30 ft (9 m) outboard boat (up to 200 hp)
Tiller maximum load 300 lbs.
Planetary Gear Design: 3-Turn Lock-to-Lock
Maximum steering wheel diameter 406 mm (16 in)
minimal feedback
Shaft length: 125mm
Material: chrome-plated zinc alloy
bezel kit
A fender kit is a plastic part and associated hardware that fits between the steering wheel and dashboard to cover
Helm the hardware.
feature:
Bezel made of engineering plastics
Black available as standard option
90 degree tilt
Includes mounting hardware
steering cable
The steering cable is a push-pull mechanical cable that converts the rotary motion of the rudder into linear motion
Engine/rudder. One end of the cable is connected to the rudder and the other to the rudder. The latest construction techniques, internal control lines are made of elastic materials. The output adopts 304 stainless steel seamless pipe and corrosion-resistant material, and the control line has a longer life.
Control wire can be used in lengths of 5-30 feet and increased in 1-foot increments.
feature:
The output is made of 316 stainless steel
Maximum Travel: 9 inches (225mm)
Minimum Bend Radius: 8" (200mm)
Maximum working load at tiller end: 5000N
Cable outer diameter: 16.5mm
Spiral inner wire diameter: 8mm
