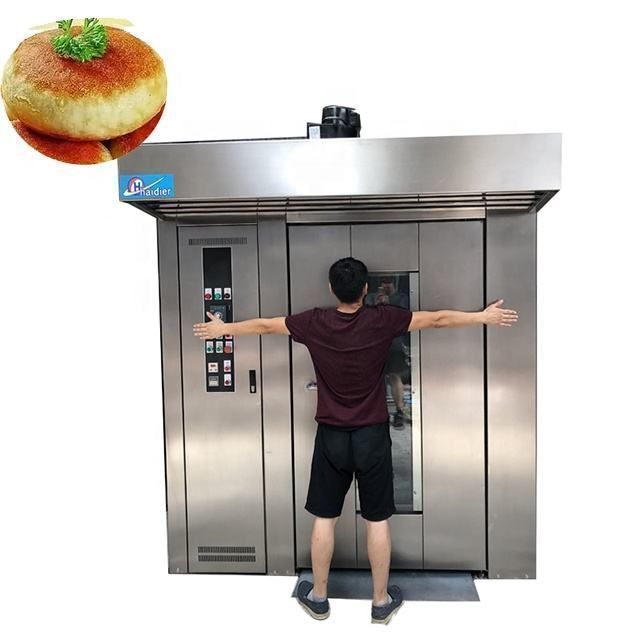

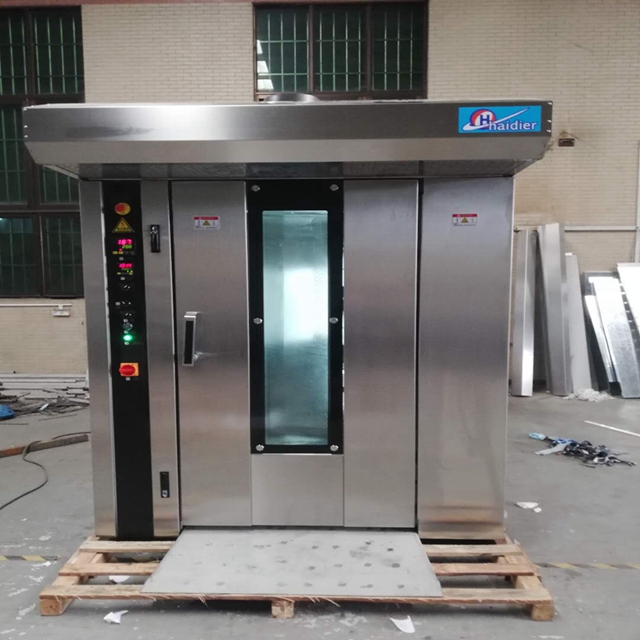

Oven equipment rotary steam oven combined with 16 trays gas convection oven
- $5900.00 /set
- 1 set
- Shijiazhuang Haidier Machinery Export Co., Ltd.
- Hebei, China
- Ms Caroline Zhang
PRODUCT DETAIL
| Function: | multifunctional | Marketing Type: | normal product |
| Video shipment inspection: | if | place of origin; place of origin: | Hebei china |
| Dimensions (L*W*H): | 1460x1000x1830 | capacity: | 16 pallets |
| Application fields: | Snack food factory, bakery, beverage factory | strength: | 23.5 |
| Core component warranty: | 2 years | feature: | high efficiency |
| Output product name: | bread | Mechanical function: | Toast |
| weight: | 310 kg | Health status: | new |
| Raw materials: | Milk, corn, fruit, wheat, nuts, soybeans, flour, vegetables, water | port: | Guangzhou Port |
| usage: | commercial | Package preview: | |
| Material: | stainless steel 201 | Voltage: | 380V/220V |
| Mechanical test report: | if | Packaging Details: | Convection oven packaging: 1. Coat the surface of the machine with anti-corrosion liquid (to protect stainless steel), then pack it with plastic pads (to prevent bumps), pack it with plastic film (to prevent ventilation), pack it in a wooden box (easy to transport), and then pack it on the wood outside the box Bandages (overall reinforcement). 2. We can provide other customized packaging |
| Supply capacity: | 50 sets per month | Energy source: | Electric gas |
| Showroom location: | not any | type: | bakery oven |
| brand: | Heidiel | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| product name: | Convection Oven with Cart | Applicable industries: | Hotels, food and beverage factories, farms, restaurants, home use, retail, food stores, food and beverage outlets |
| Warranty: | 1 year | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Tray size: | 400*600mm | Main selling points: | high productivity |
| application: | bread baking machine |

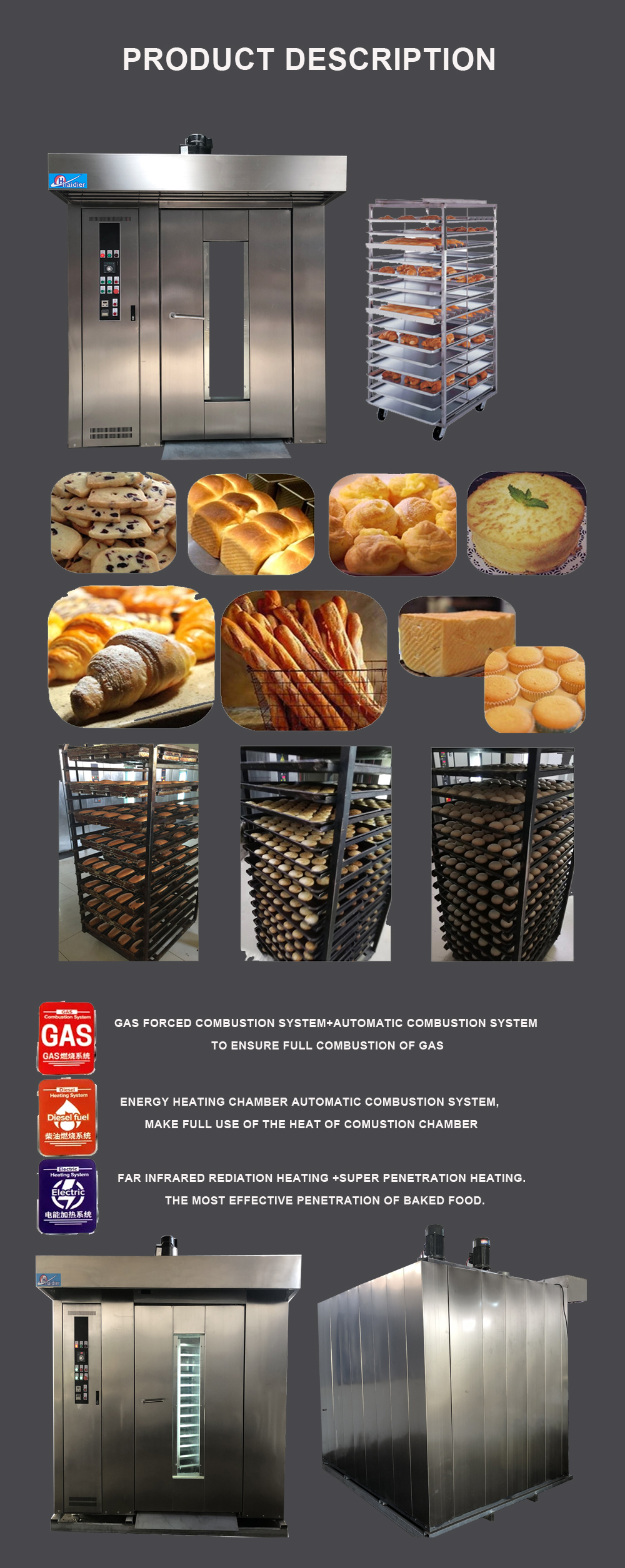

Product Description
After the company produces1989 The first rotary kiln, after several improvements and painstaking research, finally made a greater breakthrough in this technology.The new generation of all-round soft wind rotary oven.
gentle wind is based onAll kinds of baked goods are baked on the bottom fire first, and then through two cross air outlets and multiple deflectors, the low-speed and high-volume air is blown to the bottom of each layer of baking pans to make the baked bread or cake more expanded. Reduces moisture loss and improves roast quality.
Specification

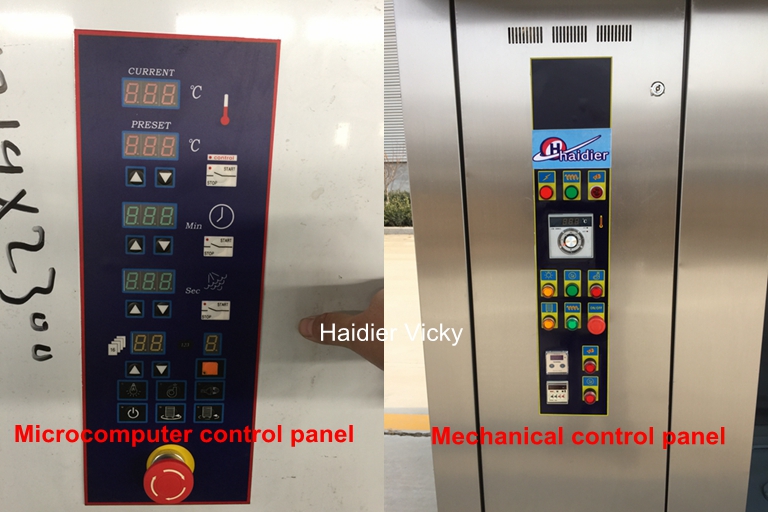

control panel:
Whether it is a machine control panel or a microcomputer,Tai Shengused to. Although it is a domestic brand,Domestic first brand30 years of market share first, stable quality, good reputation

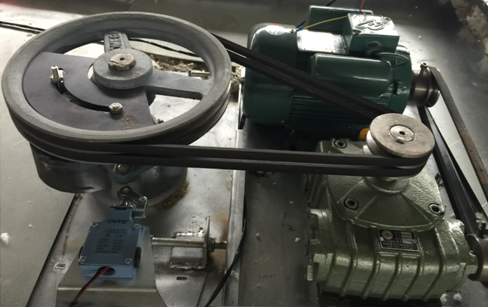

1.motor is the first brandShanghai Haiguang(Introduced from Germany Ruibo Electric)
2.bearingSeikoimported from JapanModel | Pallet size (mm) and pallet number | Power(KW) | Power(KW) | Weight(KG) | baking space (square meter) | Dimensions (mm) |
electric oven | Diesel/gas oven | |||||
HDR-4616 | 400*600/16 | 32 | 1.5 | 1050 | 4.5 | 1720*1880*2150 |
HDR-5616 | 600×500/16 | 36 | 1.5 | 1200 | 5.4 | 1780*1810*2150 |
650×450/16 | ||||||

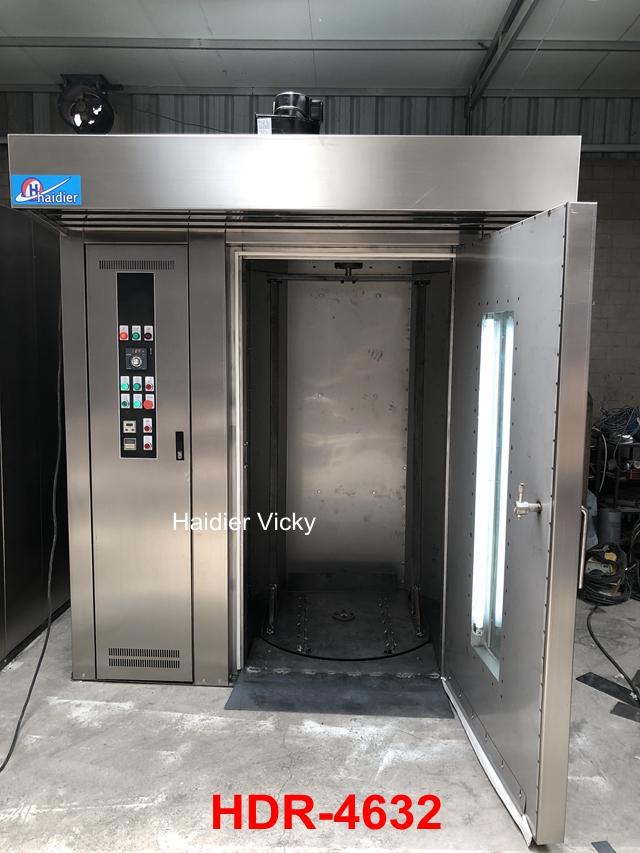

HDR-4632 | 400*600/32 | 45 | 1.8 | 1650 | 8.5 | 1950*2100*2250 |
800*600/16 | ||||||
HDR-5732 | 762×465/32 | 65 | 2.2 | 2000 | 12.6 | 1950*2100*2250 |
720×460/32 | ||||||

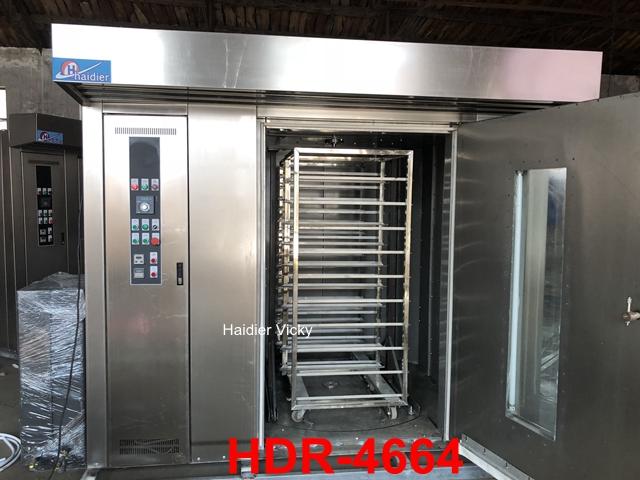

HDR-4664 | 400*600/64 | 76 | 3.8 | 2650 | 15 | 2130*3100*2350 |
800*600/32 | ||||||
HDR-5832 | 400×950/32 | 75 | 3.0 | 2600 | 15.4 | 2300*2230*2350 |
400*900/32 | ||||||
500×800/32 | ||||||
1000×800/16 |

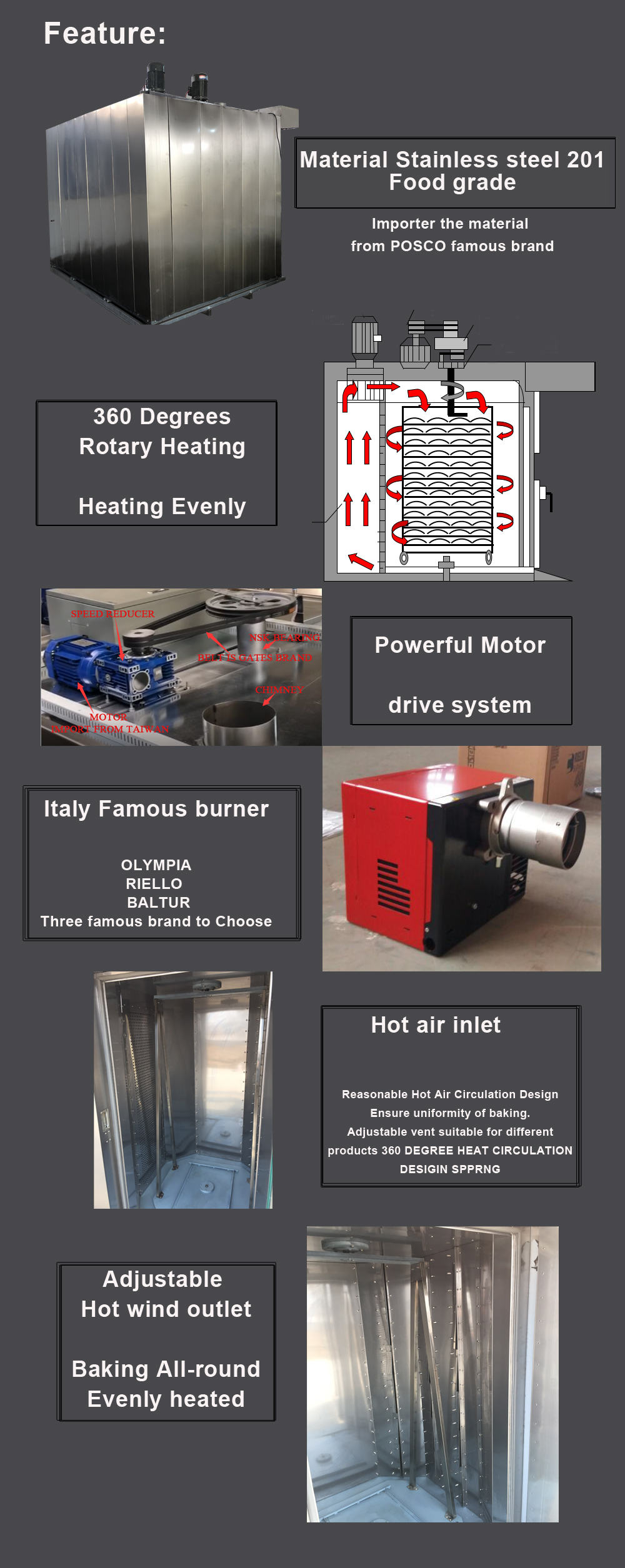

1. The machine adoptsstainless steel 201from importKorea Posco, the actual thickness is1.2 mm.
2. Electronic components are importedFrench Schneider or German Siemens.
3. The burner is imported from meDalian RIELLO or Baltur. ThisSeamless 304 heating tubeOriginally imported from Italy to ensure thermal efficiency and reduce energy consumption.
5. The machine is selectedHigh Density Insulation Material, both energy saving and warm.
6. Features areheating uniformity, high degree of automation, no color difference, good quality of finished products.
7. The machine adopts advanced technologyCNC machine toolStamping andlaser cutting manufacturingandHigh-efficiency heat-resistant and corrosion-resistant special stainless steel heat exchanger,The working principle of the machine is heat transferhot air circulation,Therefore, there will be no danger without heat transfer oil and high pressure, and the machine has been guaranteed to exceed10 years service life.
8. The machine is controlled byintegrated circuit microcomputerThe interior of the circuit is sealed, and it is equipped with a safety alarm and an explosion-proof system. Therefore, it has good safety, durability and low failure rate.
9. equippedsteam humidification system, can meet the baking humidification requirements.
2. Electronic components are importedFrench Schneider or German Siemens.
3. The burner is imported from meDalian RIELLO or Baltur. ThisSeamless 304 heating tubeOriginally imported from Italy to ensure thermal efficiency and reduce energy consumption.
5. The machine is selectedHigh Density Insulation Material, both energy saving and warm.
6. Features areheating uniformity, high degree of automation, no color difference, good quality of finished products.
7. The machine adopts advanced technologyCNC machine toolStamping andlaser cutting manufacturingandHigh-efficiency heat-resistant and corrosion-resistant special stainless steel heat exchanger,The working principle of the machine is heat transferhot air circulation,Therefore, there will be no danger without heat transfer oil and high pressure, and the machine has been guaranteed to exceed10 years service life.
8. The machine is controlled byintegrated circuit microcomputerThe interior of the circuit is sealed, and it is equipped with a safety alarm and an explosion-proof system. Therefore, it has good safety, durability and low failure rate.
9. equippedsteam humidification system, can meet the baking humidification requirements.
10. It hasCE certification.
11.Customers can customize other size converters
12. We can supplyDiesel, Gas and ElectricRotary furnace.
12. We can supplyDiesel, Gas and ElectricRotary furnace.
detailed drawing

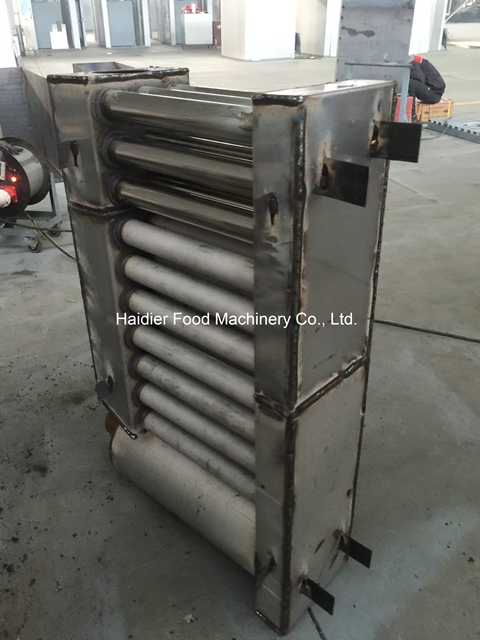

Combustion chamber:
1. The bottom of the combustion chamber is310Simported from the U.S. and3mmThick2. The bottom of the combustion chamber is319imported from the U.S. and4mmThick
3. The upper heat exchanger of the combustion chamber is304
so,
1. Temperature 319 temperature resistance is 980℃, 316 temperature resistance is about 800℃
2.310S high temperature oxidation resistance and high creep strength, the highest service temperature is 1200 ℃, most industrial applications
heating furnace. It is the best heating material.
2.310S high temperature oxidation resistance and high creep strength, the highest service temperature is 1200 ℃, most industrial applications
heating furnace. It is the best heating material.
