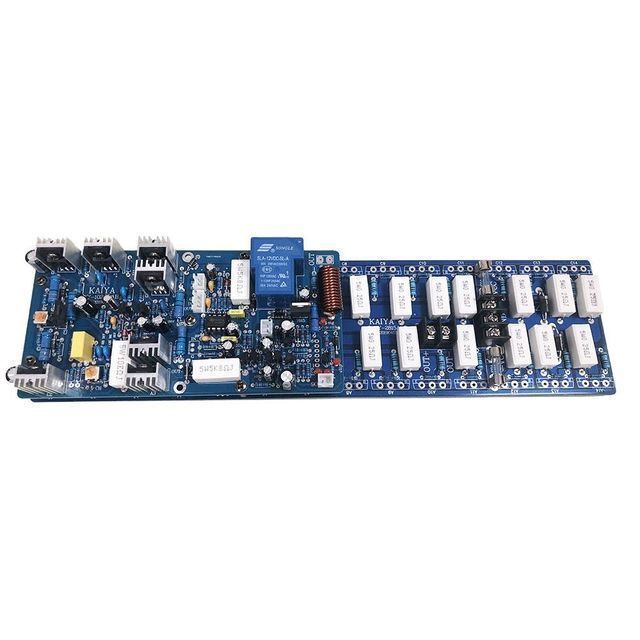

PACKBOX C5200 A1943 power tube JRC5532D operational amplifier 1500W mono high-power amplifier board-level assembled amplifier

PRODUCT DETAIL
origin:China (origin)model:C5200 A1943, T0864
Item Type:circuitchannel:1
brand:MUTGpayment terms:Western Union, T/T
Maximum power per channel:no powerOrigin:Guangdong, China
pack:Yestype:C5200 A1943 power amplifier



contact us
Contact: Ms Sandy
Tel: +86 137 1424 2013
Email: 6475166(at)qq.com
WeChat: 0086 137 1424 2013
Skype: 0086 137 1424 2013
WeChat: 0086 137 1424 2013


Dear, if you are interested in the product, please send us an inquiry with the product name, we are willing to provide you with better service











unit price:
Contact us for latest prices
more details:
Please send us an inquiry
pay:
T/T/Western Union/Trade Assurance
Delivery methods:
DHL/UPS/Fedex/EMS/Hong Kong Post





C5200 A1943 power tube JRC5532D op amp 1500W mono amplifier board

thing power amplifier
Model T0864





Product Description:

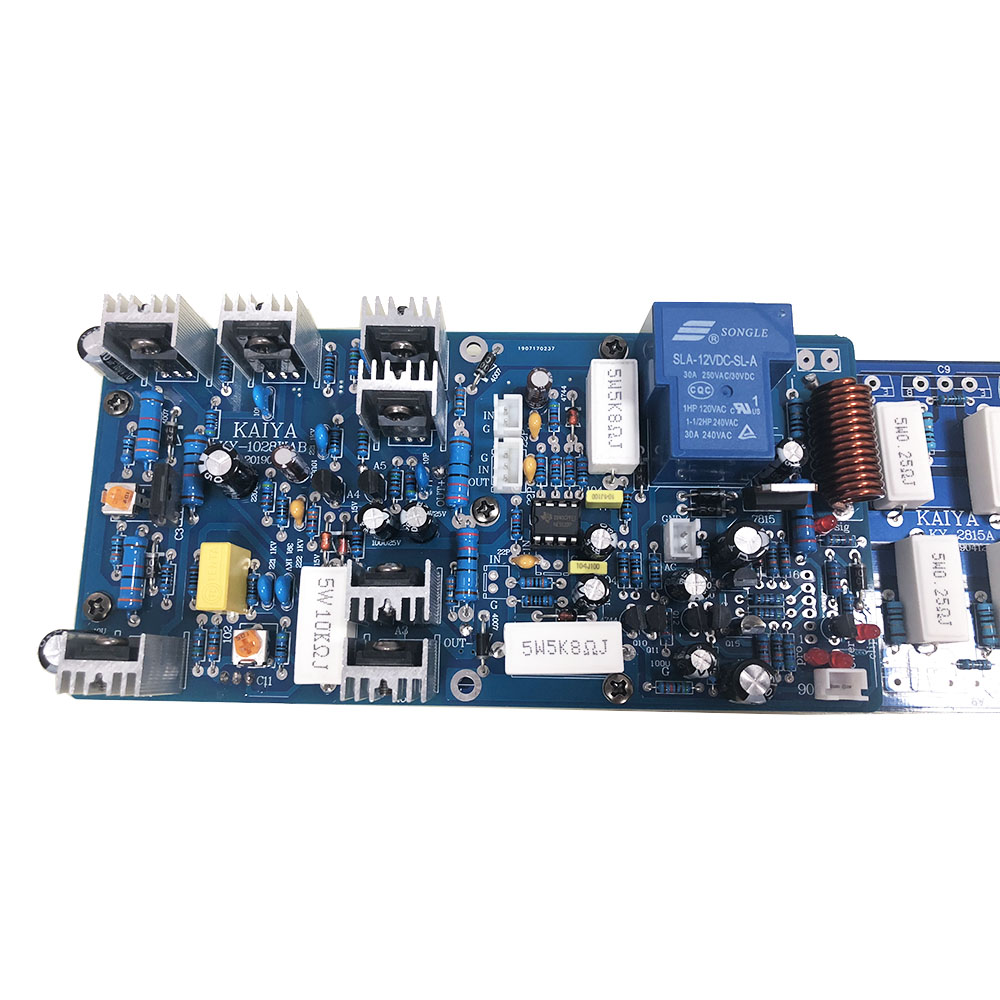

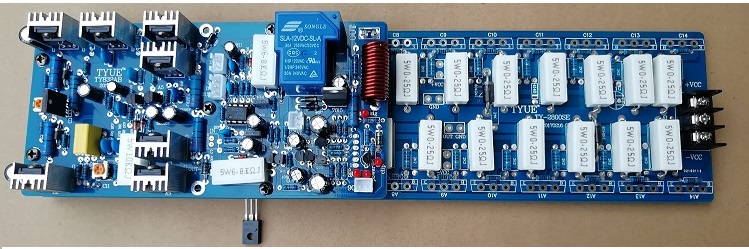

Package 1: No high-power tube, large radiator, constant temperature semi-finished power amplifier board

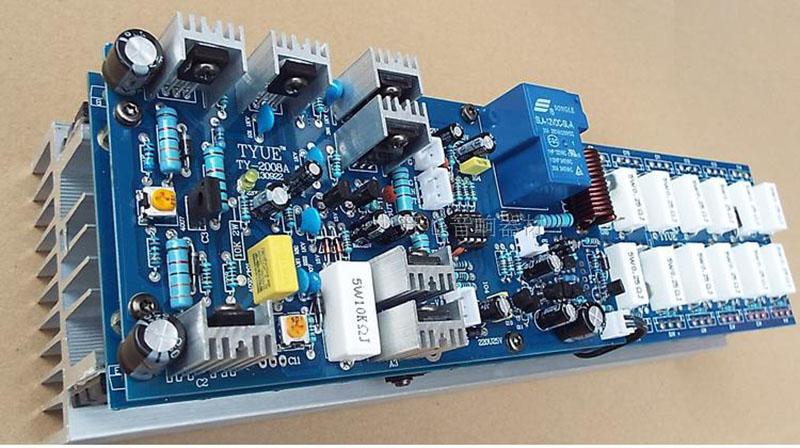

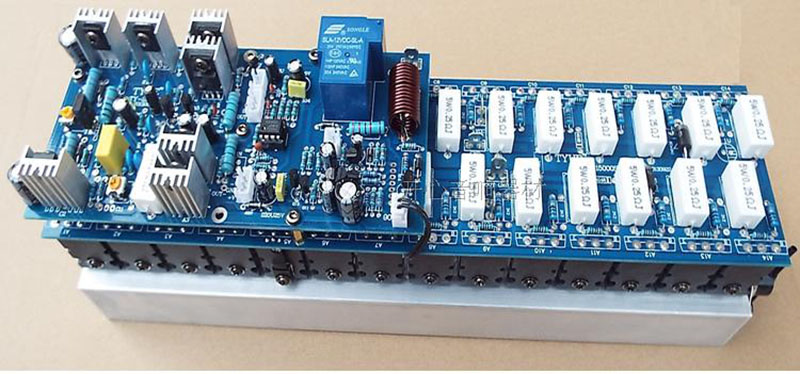

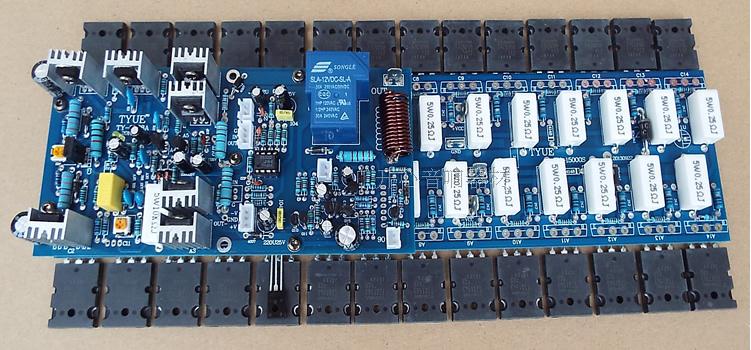

Package 2: 1500W semi-finished power amplifier board high-power tube (28-tube fever power amplifier board as shown below)

The recommended voltage is DC 135V or lower.

Use voltage:

DC dual 28-135V, the protection circuit needs a separate power supply, in order to pursue large dynamics and power, it is recommended to use DC dual 110V. The power should be above 900W

Output power: 1500W

Frequency response: +0dB/-0.8dB (20Hz~20KHz)
Total Harmonic Distortion: <0.1% 8Ω 20Hz~20KHz
Signal-to-noise ratio: (20Hz--20KHz): A-weighted, full power output >98dB
Immediate withstand response: 25V/μS
Damping coefficient 8Ω: 10Hz-400Hz: >200
Crosstalk between channels: 1kHz: -76 dB / 20kHz: -58dB
Input impedance: 20KΩ (balanced) / 10KΩ (unbalanced)
Input sensitivity: 1.25V/4Ω rated power

Input voltage:DC+/-28---+/-135V (DC+/-110V recommended)

Protection power supply.AC 12-18V



The power amplifier board size:

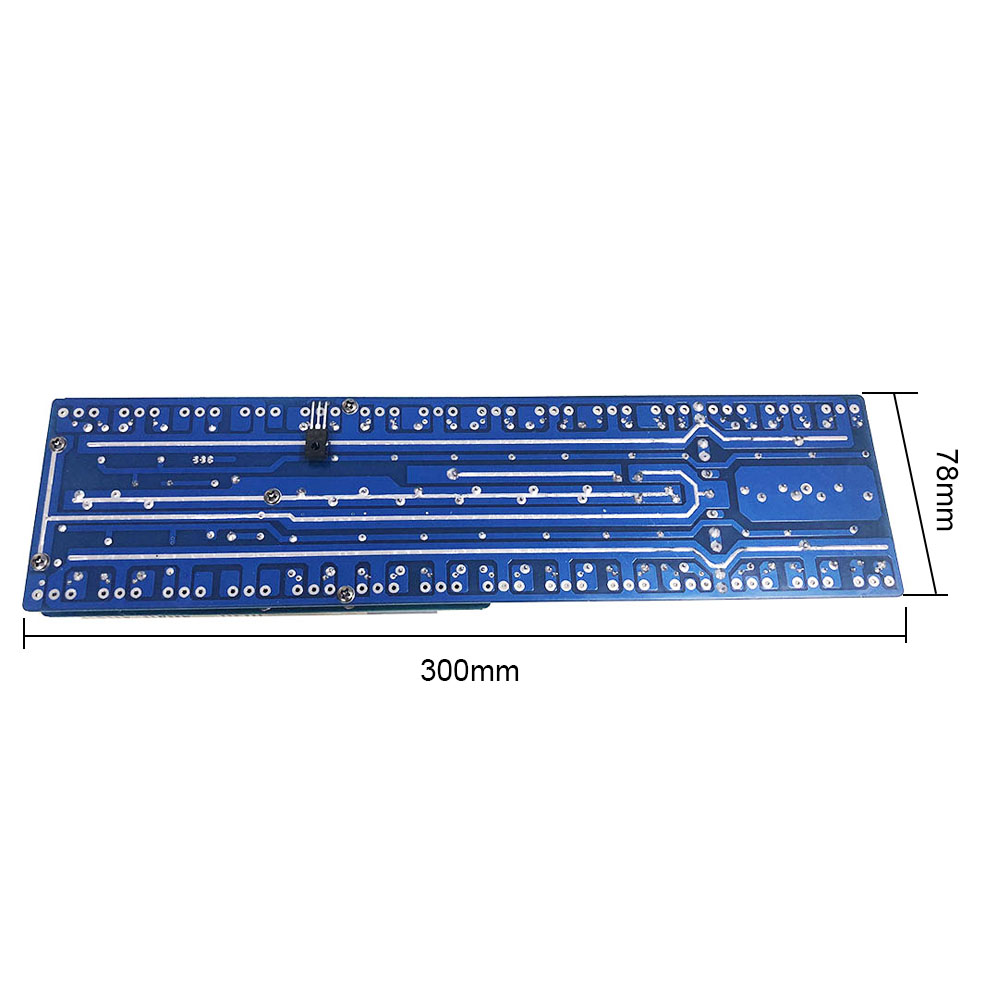

Push plate length 143mm, width X78mm. Power board 305mm long X78mm wide

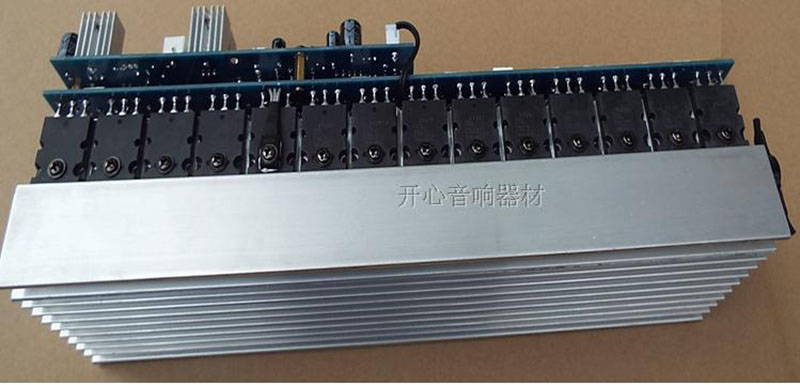

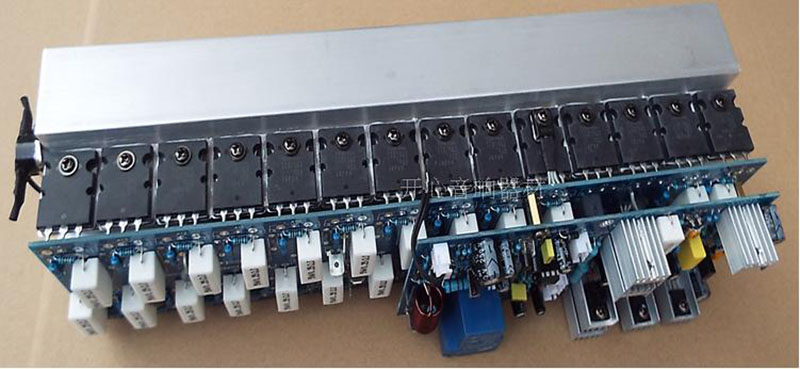

(can be equipped with a large radiator)

If it works for a long time, a cooling fan must be installed.

Package Included:

1 x Hi-Fi Amplifier Board
