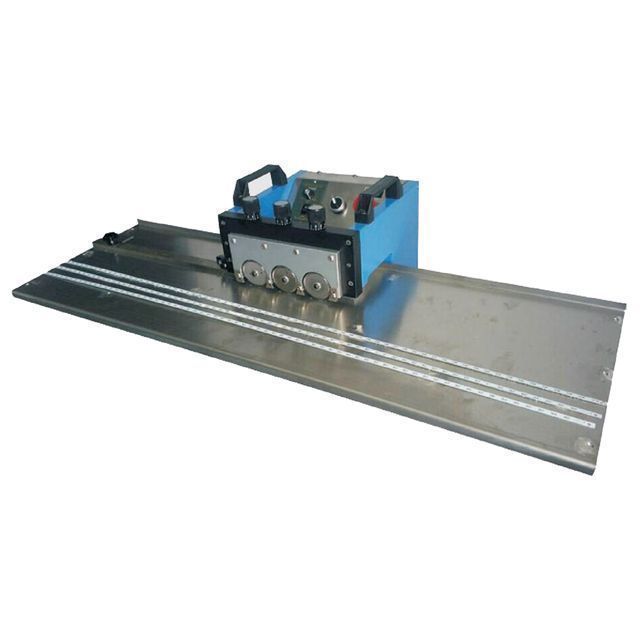

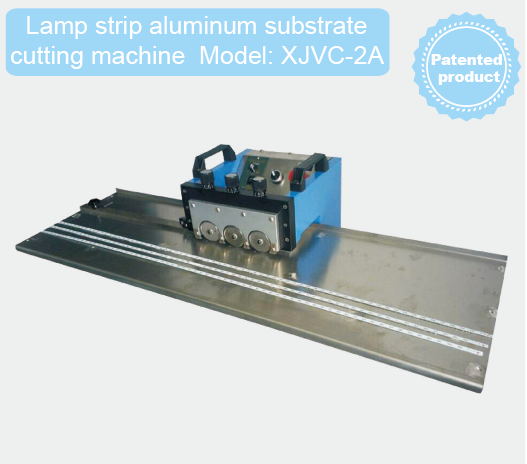

PCB FR4 and LED strip aluminum substrate cutting machine
- $800.00 / 1 - 4 sets
$600.00 / >=5 sets - 1 set
- Dongguan Xiangjie Electronic Technology Co., Ltd.
- Guangdong, China
- Mr
| Showroom location: | not any | Mechanical test report: | if |
| Packaging Details: | wooden box | Warranty: | 1 year |
| payment terms: | wire transfer | brand: | XONJE |
| Dimensions (L*W*H): | 1000*520*280MM | Core components: | PLC, motor |
| Health status: | new | Dimensions (L*W*H): | 450*300*400MM |
| port: | Port of Shenzhen, Guangdong, China | Core component warranty: | 1 year |
| strength: | 500W | Add platform dimensions (L*W*H): | 2400*520*280MM |
| Voltage: | AC220V | Video shipment inspection: | if |
| Operating Voltage: | 220V AC 500W | Splitting speed: | 0-400 mm/s |
| Maximum cutting board length: | unlimited | weight: | 25 |
| Marketing Type: | normal product | place of origin; place of origin: | Guangdong, China |
| Machine weight: | 45 kg | Applicable industries: | manufacturing plant |
| Plate thickness: | 0.6-3.5mm | Supply capacity: | 10 sets per month |
| Package preview: |
feature:
1. Simple structure and easy to use.
2. There are 3 blades on the top and bottom respectively. During the cutting process, the upper circular knife is fixed, and the lower circular knife rotates to cut. The number of blades can be customized.
3. It can be used for narrow pitch Vcut, with high efficiency and good segmentation quality.
4. According to the depth of the V groove and the wear of the tool, the distance between the upper circular knife and the lower circular knife can be adjusted precisely.
5. The slitting speed is controlled by the knob, and there are baffles on both sides of the round knife, which has high safety.
6. The round knife can be ground repeatedly.
technical parameter:
|
cutting board length |
unlimited |
|
Board speed |
0-400 mm/s |
|
plate thickness |
0.6-3.5mm |
|
Operating Voltage |
220V AC 500W |
|
machine weight |
45 kg |
|
Dimensions (L*W*H) |
1000*520*280MM |
|
Add platform size (L*W*H) |
2400*520*280MM |
Support: Air/Land/Sea
mode of transport
→ Air freight: For samples and small packages, international express such as DHL, UPS, EMS...
→ Sea freight: suitable for large packages and quantities;
→ Other ways required by customers.
delivery time:
→ within 35 days.
