Pavement Seam Sealing Machine Asphalt Crack Sealing Equipment Road Sealing Machine
- $4000.00 / 1 - 4 sets
$3500.00 / >=5 sets - 1 set
- Xinxiang Tongda Road New Technology Co., Ltd.
- Henan, China
- Ms Amanda Yang
Core Components Warranty: | 1 year | Unique Selling Points: | easy to maintain |
Plasticizing ability: | 260 kg/h | After-sales service provided: | Free spare parts, video technical support, online support, on-site installation and commissioning training, on-site maintenance and repair services |
Video external inspection: | if | Dimensions (L*W*H): | 4455x1820x2270mm |
Health status: | new | Showroom location: | Egypt, Canada, United States, Vietnam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan Stan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia |
Core components: | engine | product name: | Asphalt Crack Sealing Equipment Road Sealing Machine |
Local service location: | Egypt, Canada, United States, Vietnam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, Bangladesh , South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan | port: | Qingdao/Shanghai/Guangzhou |
Hopper volume: | 266L | Burner calorific value: | 56000 kcal/hour |
Burner Diesel Tank Capacity: | 80L | Warranty: | 1 year |
Certification: | Quality Management System / ISO9001 | Packaging Preview: | |
place of origin; place of origin: | Henan, China | Hose length: | 7m |
Marketing Type: | New Products 2020 | Mechanical test report: | if |
Thermal oil: | 93L | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Alibaba Trade Assurance | weight: | 1500kg |
Applicable industries: | Construction works, asphalt pavement | brand: | Mastery |
Packaging Details: | Asphalt Crack Sealing Equipment: Making Waxes Before Ship Loading at Sea | Supply capacity: | 50 sets of asphalt crack sealing equipment per month |
Burner Brand: | Beckett | Stirring motor power: | 1.5KW |
strength: | 7KW | Generator output voltage: | 380V/220V |

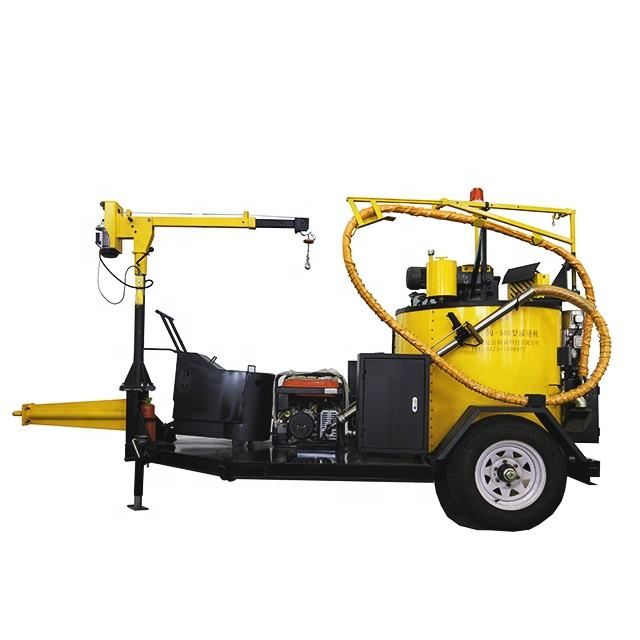

Pavement Seam Sealing Machine Asphalt Crack Sealing Equipment Road Sealing Machine
Road Crack Fillers and Sealants are suitable for sealing pavement cracks. Independent research and development by our company. The hopper has a large capacity, fast temperature rise, good thermal insulation effect, and heat transfer oil is circulated for heating. Compared with similar equipment, it is easy to operate, more stable and maneuverable, and has a long service life.

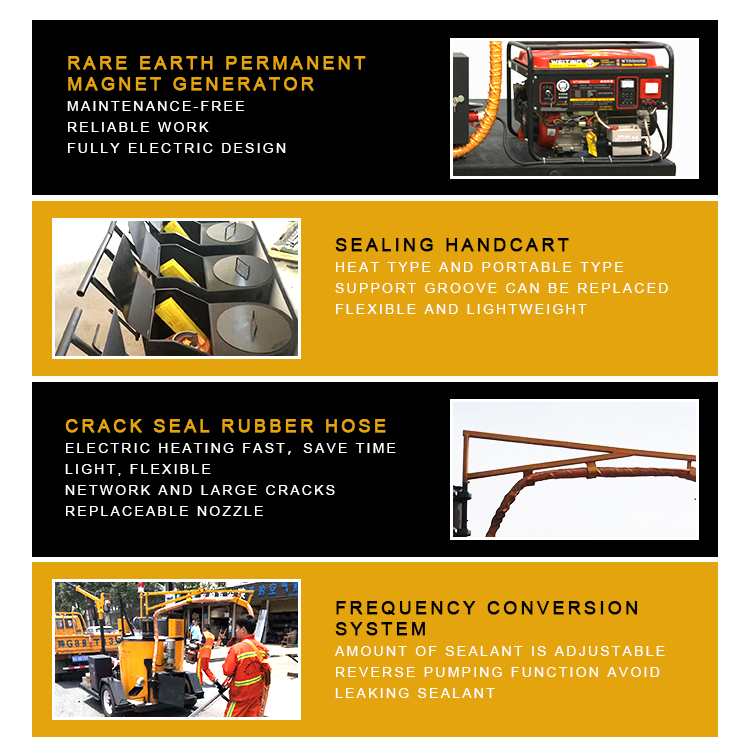

1. Set up maintenance-free rare earth permanent magnet generator as the main power source, which has the advantages of all-electric design and low maintenance cost.
2. The amount of glue is adjusted by the frequency conversion motor to reduce the wear of the glue pump.
3. The hose adopts electric heating, and the temperature rises faster.
4. The burner adopts automatic control to reduce fuel consumption.
5. The material tank heating system adopts HTF indirect multi-zone heating and 360° mixing to ensure uniform heating.
6. Quickly heat the flue with good heat preservation.
7. Heating the reactor instead of the storage bin section.

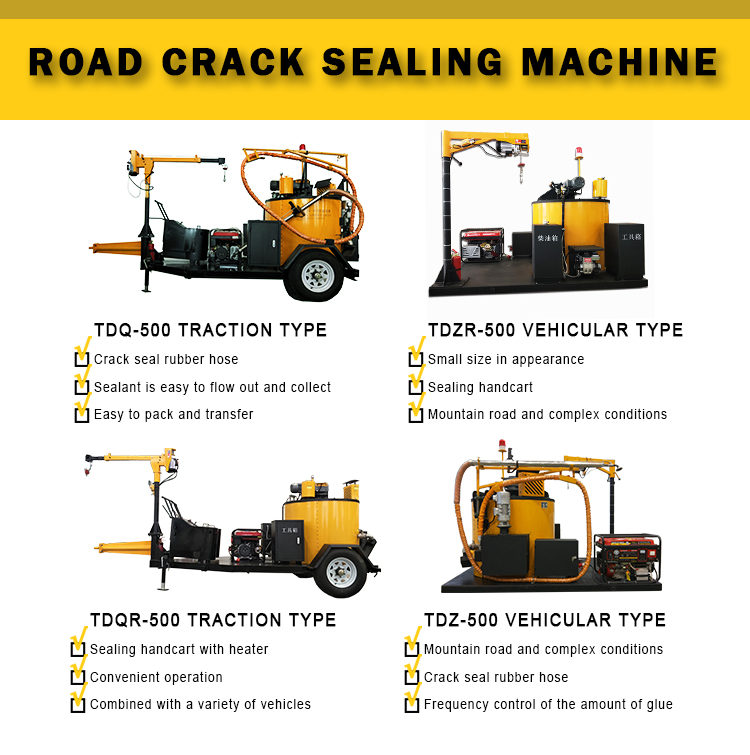

Do not. | project | TDQ-500 | TDQR-500 | TDZ-500 | TDZR-500 |
1 | Dimensions | 4455x1820x2270mm | 4455x1820x2270mm | 3000x1700x2000mm | 2500x1700x1850mm |
2 | sealant tank | 500L | 500L | 500L | 500L |
3 | net weight | 1500kg | 1350kg | 1250kg | 1250kg |
4 | Melt capacity | 260 kg/h | 260 kg/h | 260 kg/h | 260 kg/h |
5 | burner brand | Beckett | Beckett | Beckett | Beckett |
6 | Burner heat | 92400 kcal/hour | 92400 kcal/hour | 92400 kcal/hour | 92400 kcal/hour |
7 | Conduction oil consumption | 140L | 140L | 140L | 140L |
8 | Burner diesel tank volume | 80L | 80L | 80L | 80L |
9 | mixer power | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
10 | Heating power of the sealant output hose | 1.08KW | / | 1.08KW | / |
11 | Sealant output motor power | 1.1KW | / | 1.1KW | / |
12 | Sealant output hose length | 7m | / | 7m | / |
13 | Generator max. strength | 7KW | 7KW | 7KW | 7KW |
14 | Generator Fuel Tank | 25L | 25L | 25L | 25L |
15 | Generator fuel consumption | 1.1L | 1.1L | 1.1L | 1.1L |
16 | The output voltage | 380V/220V | 380V/220V | 380V/220V | 380V/220V |
17 | tire model | ST255/75R15 | ST255/75R15 | / | / |

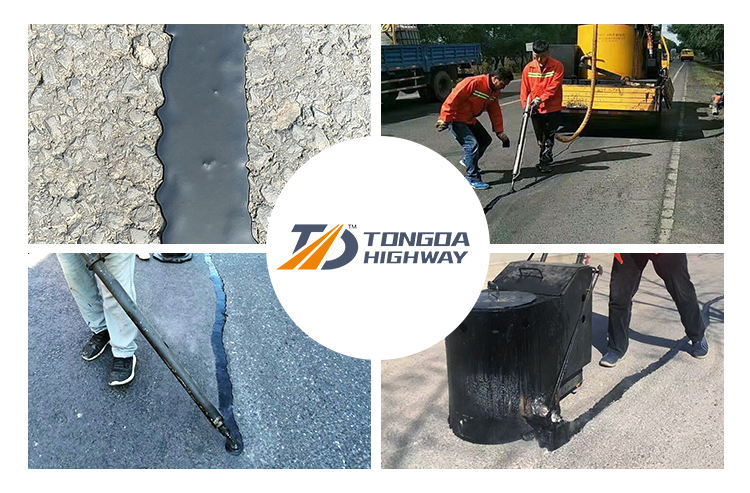

The road crack sealer is mainly used for the waterproof treatment of irregular cracks in asphalt pavement, concrete pavement, bridge expansion joints, sewers, gas pipeline buried and laid road joints.

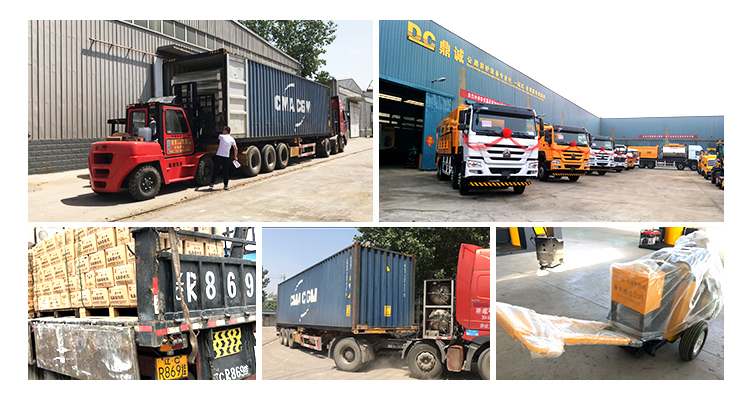

We use wooden box and iron box packaging and cutting machines to better ensure the safety and quality of products. We use multiple ports and multiple exits. Such as Shanghai, Qingdao, Guangdong and other regions. Product transportation will be faster and more convenient. The surface of the product is covered with a plastic film and a strong waterproof bag - double protection of the machine from water and surface damage. The machine is fixed on an iron frame to prevent damage. Finally, cartons are wrapped around the shelves to protect the privacy of customers' shipments.

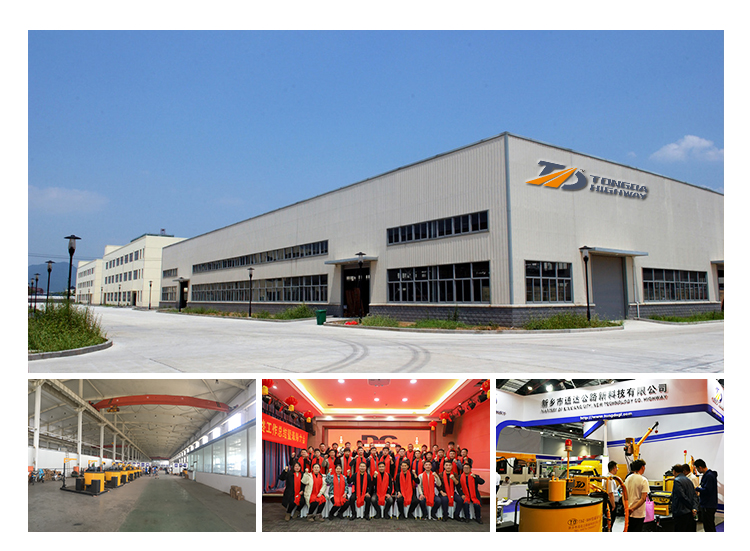

Xinxiang Tongda Highway New Technology Co., Ltd. is a high-tech enterprise engaged in highway maintenance materials, highway maintenance machinery and equipment manufacturing and maintenance new technology research. Tongda is a R&D and export enterprise integrating sales and service with road construction and equipment production. It mainly covers special vehicles (fiber micro-pulp sealer paver series, asphalt spreader series, fiber synthetic debris sealer series) and road maintenance equipment (asphalt emulsification equipment, road cleaning equipment and potting construction equipment) and other equipment. R&D, production, sales and technical services.
1. Are you a manufacturer or a trading company?
We are direct manufacturer with 17 years experience.
2. Do you have overseas service?
When you encounter problems that cannot be solved, we will arrange our engineers to help you in your country.
3. What is the quality of your products?
All our spare parts are from the original factory, 100% guaranteed quality.
4. Payment terms?
TT, LC.
