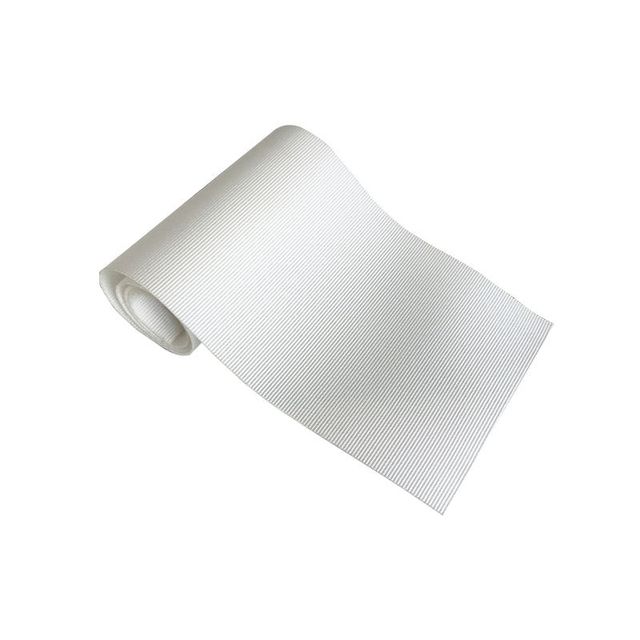

Polypropylene multifilament filter cloth vertical filter press mesh belt metallurgical industrial grade mesh cloth
- $10.00 /square meter
- 1 square meter
- Xiamen Citius Environment Technologies Co., Ltd.
- Fujian, China
- Ms Gina Huang
| color: | white, custom other colors | Supply capacity: | 1.2 million square meters / year |
| port: | Xiamen Port and Xiamen Airport | Packaging Details: | Wooden packaging, ordinary packaging with waste cloth or guide cloth for the whole roll. |
| Material: | Polyester | Applicable industries: | Food & Beverage Plants, Energy & Mining, Filters |
| Interception accuracy (um): | 5-10 | Weight (g/㎡): | 1200 |
| place of origin; place of origin: | Fujian, China, Xiamen, Fujian | Thickness (mm): | 2.05 |
| Packaging Preview: | Health status: | new | |
| payment terms: | wire transfer | brand: | Xiamen Midtown |
| type: | Braided filter | Warranty: | unavailable |
| usage: | dry filter |

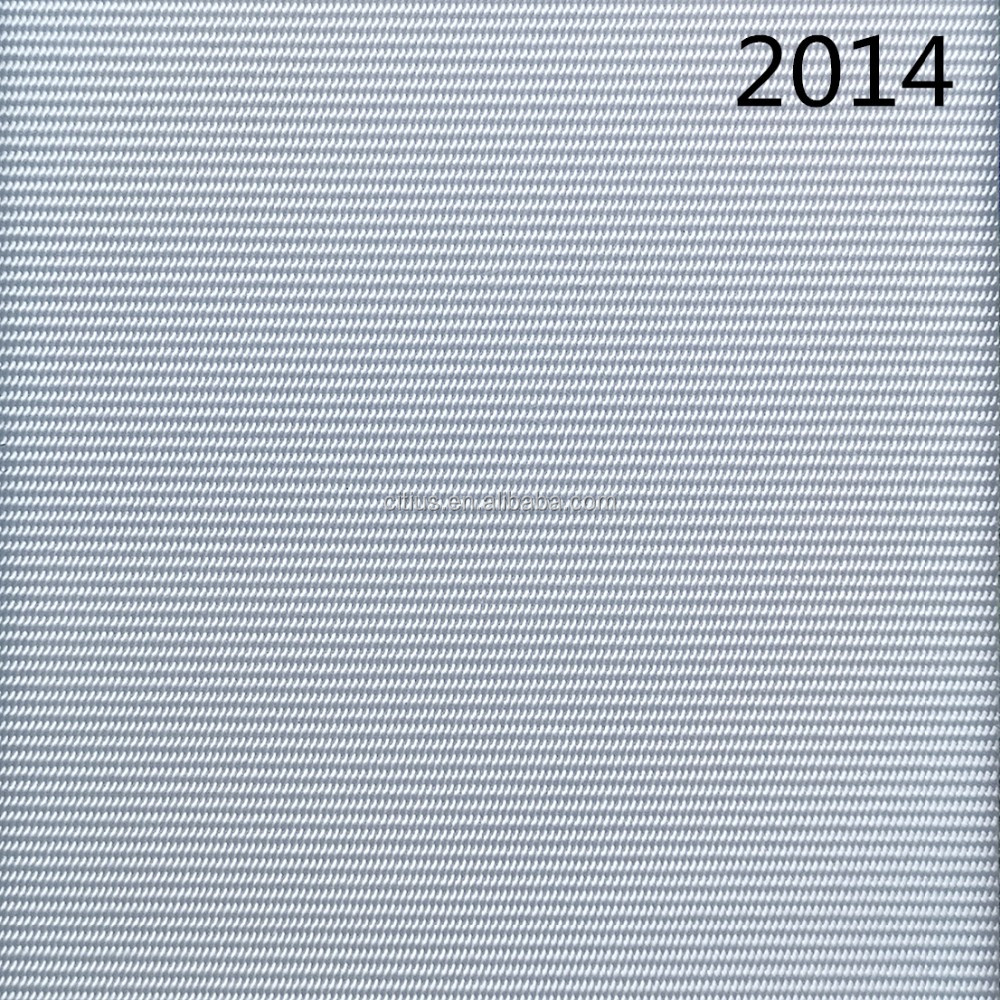

product name | Polypropylene multifilament filter cloth LAROX vertical filter press mesh belt metallurgical industrial grade mesh | ||||
color | white, custom other colors | ||||
Warp Diameter (mm)/Material | 2000D/PP | ||||
Weft diameter (mm)/material | 2000D*2/PP | ||||
Breathability at 127 Pa | 35~40 L/m².S 7.0~8.0 CFM | ||||
Breathability at 200 Pa | 40~45 L/m².S 8.0~9.0 CFM | ||||
1200Pa water permeability | 4.0-5.0 L/m².S | ||||
thickness | 2.05mm | ||||
tensile strength | 2550N/cm | ||||
Elongation (warp) | 31.0% | ||||
Elongation (500kg/m) | 0.81% | ||||
weight | 1200 g/m² | ||||
interception accuracy | 5~10 microns | ||||
Scope of use/application | Suitable for non-ferrous metal filter of vertical filter press. | ||||
Our technical department can test based on your data or samples and give you the best advice or design the best belt for you.
company information.

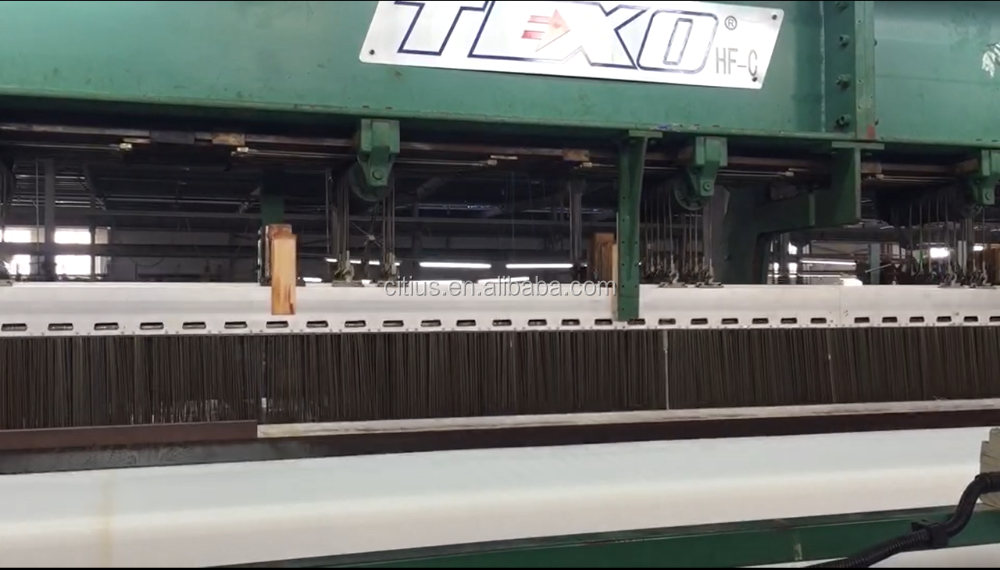

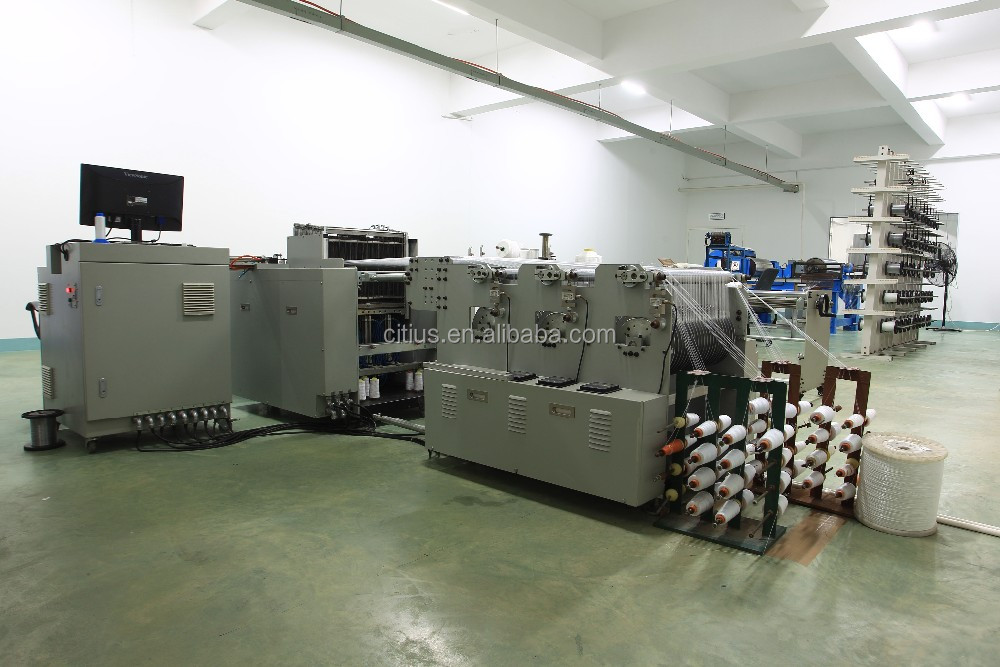

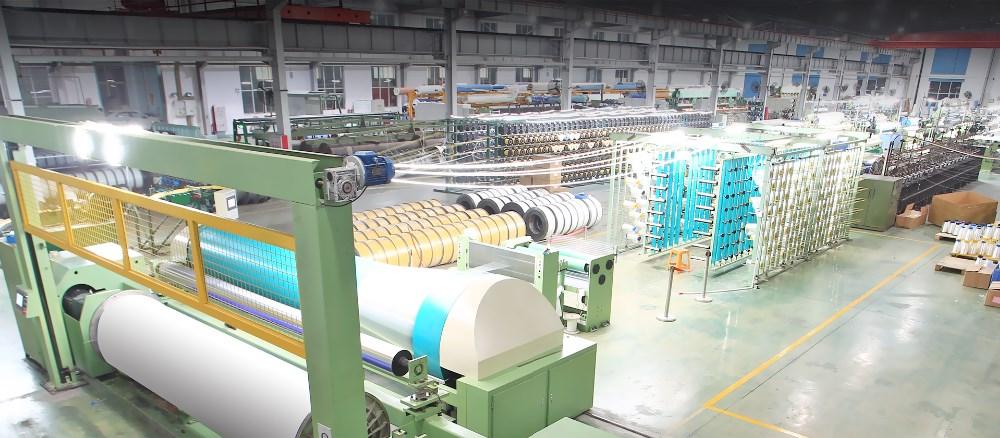

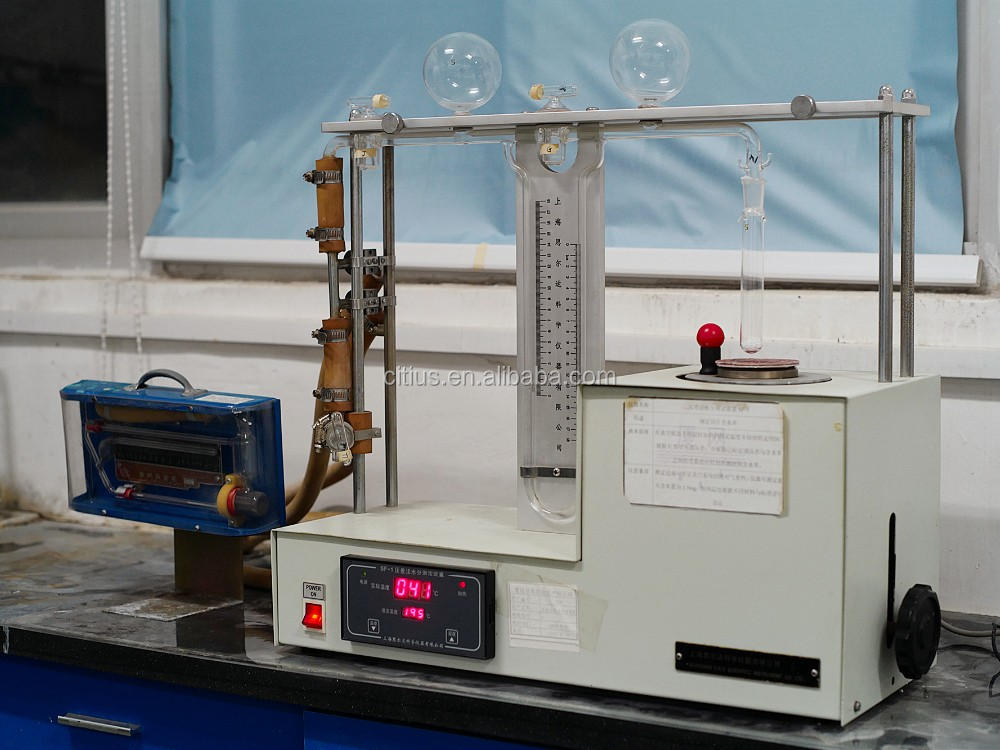

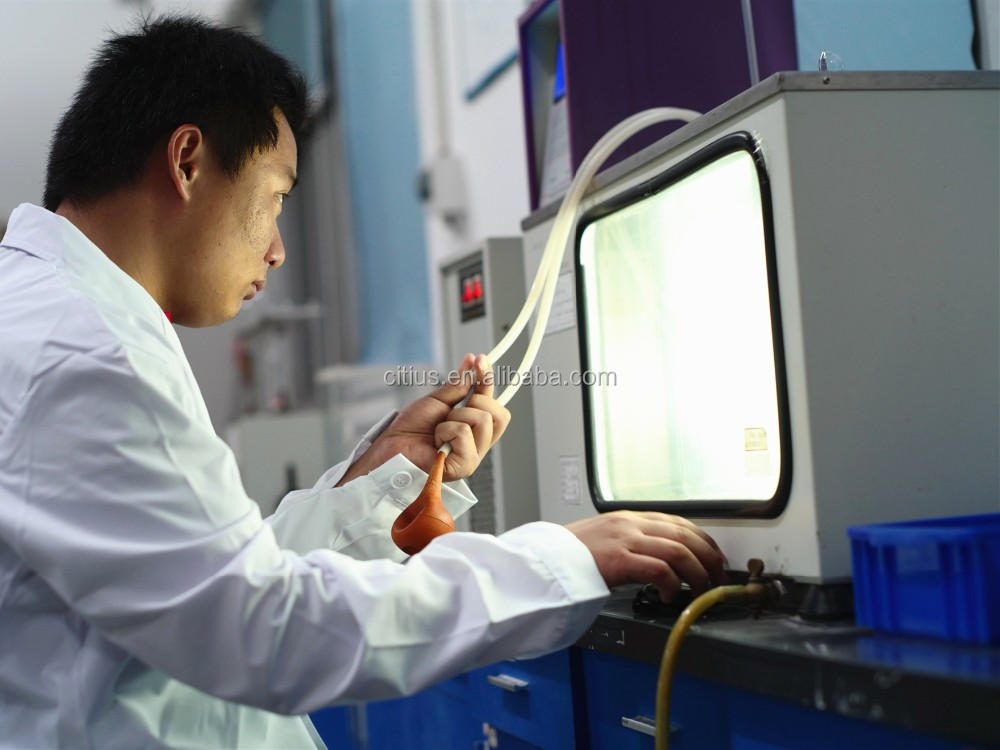

1. Xiamen Xintian Environmental Technology Co., Ltd. specializes in the engineering, design and manufacture of industrial filter cloths. We have a professional technical team and a professional laboratory to customize products for customers.
2. Citius products are divided into four applications: sludge dewatering, vacuum filtration, papermaking, and refining. Products are widely used in belt filter press, horizontal, vacuum belt filter press, paper machine, plate and frame filter press, disc filter, drum filter, continuous filter press and other dehydration equipment.
Citius manufactures many different industry-specific fabrics and filters. All fabrics are made of monofilament threads or a combination of monofilament and multifilament threads, made from virgin high viscosity PET, PP, PA, PPS chips. Fabrics that are heat-set or calendered have the following advantages:
1. Shape Stability: The fabric will retain its shape at the proper temperature and tensile strength settings.
2. Chemical stability: Citius fabric is resistant to acid, alkali and corrosion. They are also able to withstand high temperatures.
3. Long service life: Citius fabric is wear-resistant and has strong tensile strength.
4. Can meet different filtration requirements (2-100um).
5. Peel easily.
6. Strong seam strength: Citius fabric combines high-quality materials and advanced manufacturing processes to increase the service life of the product.
The products are also exported to Australia, the United States, South Africa, Brazil, Europe, Southeast Asia and other countries and regions, and have been successfully used in the filtration equipment of dwt-engineering LTD in Finland, DELKOR in the United Kingdom, BELLMER in Germany, etc., and are well received by users.

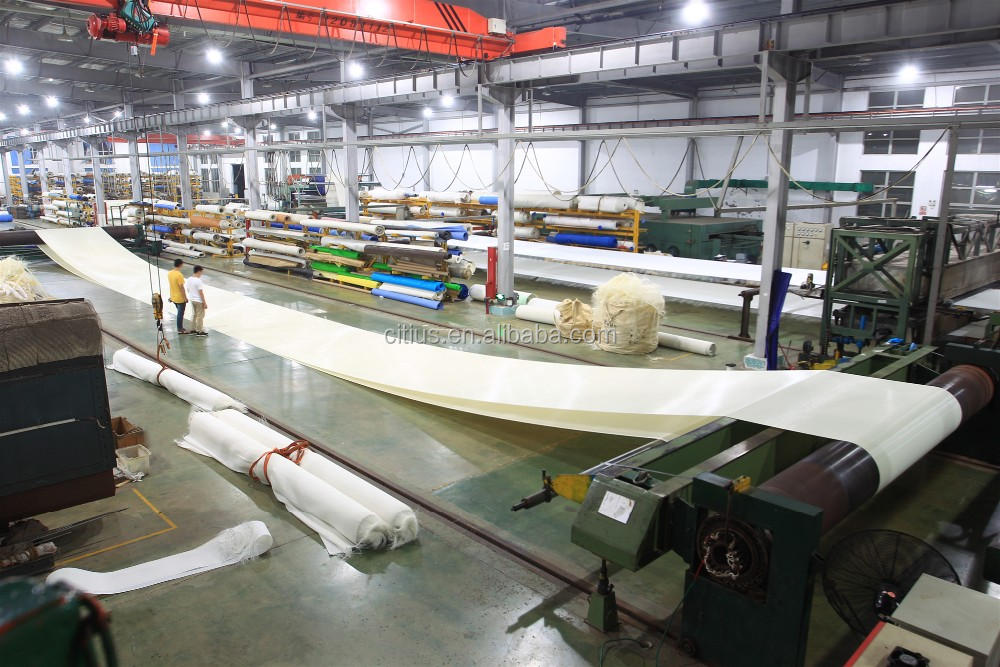

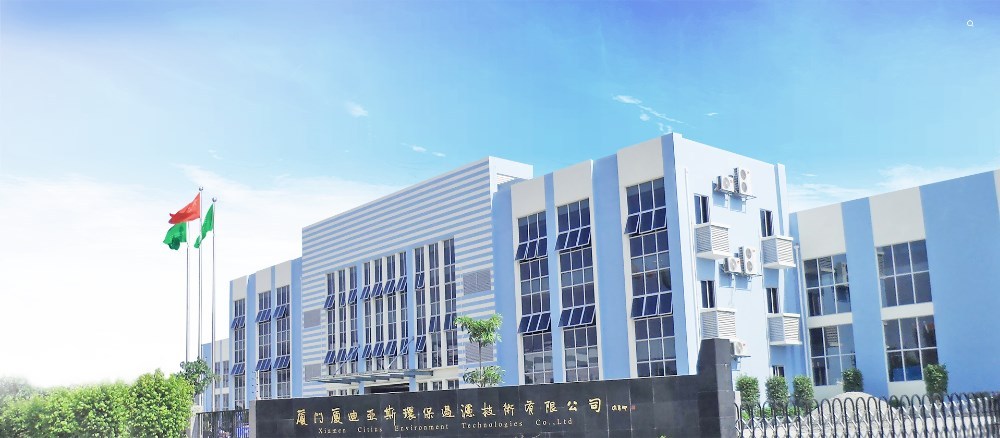

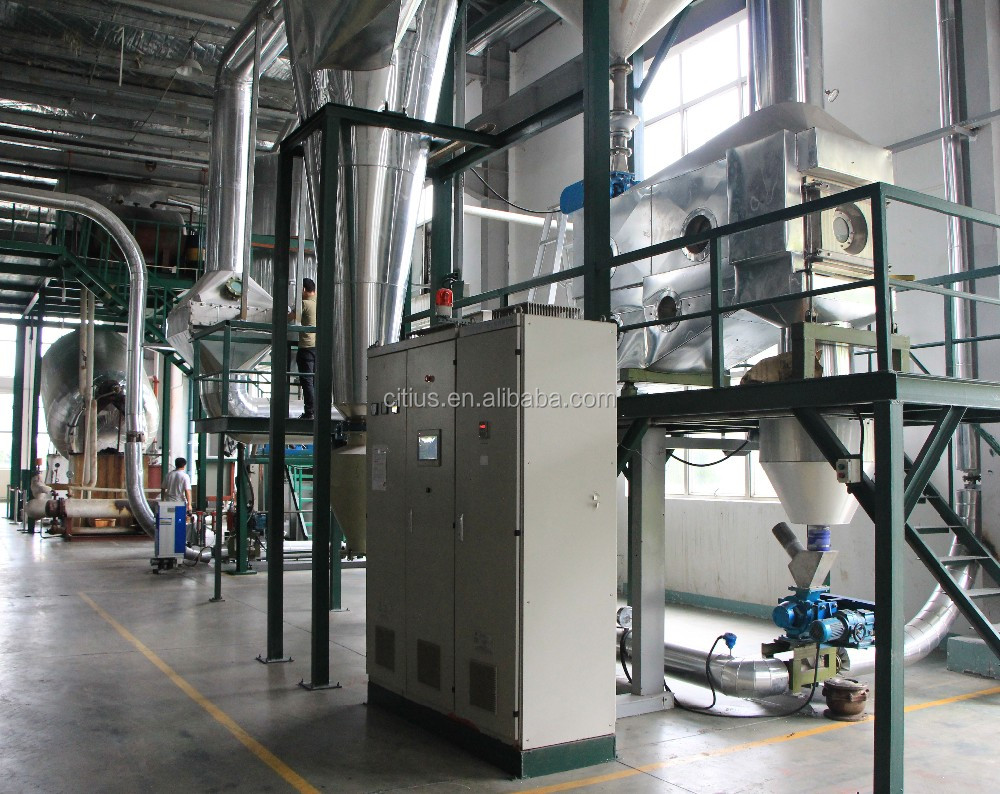

company
Certificate
