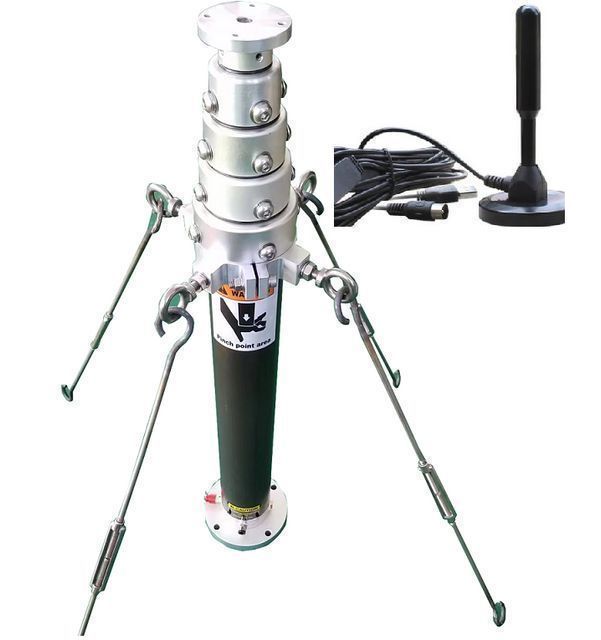

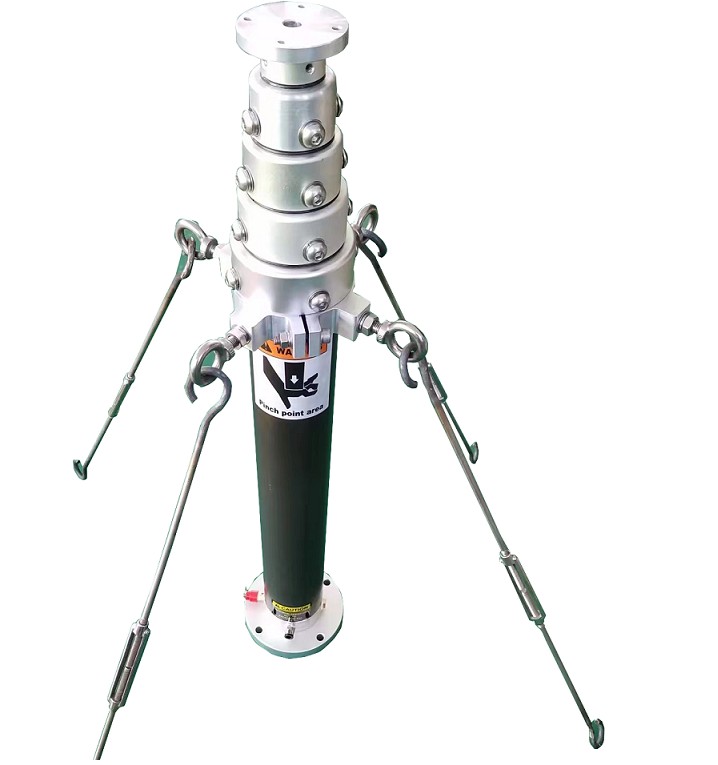

Portable Antenna Aluminum Retractable CCTV Camera Pneumatic Tripod Telescopic Mast

PRODUCT DETAIL
Material:aluminum alloycolor:bronze
application:Emergency lighting, antennas, mobile communication towers.Operating temperature:-30 degrees Celsius to +65 degrees Celsius
model:Thiel-P4-1.4-30Overall length:4m
brand:talentsCertification:ce
Packaging Details:Portable antenna mast tripod packaging: 1 set per cartonWind load:Maximum 30m/s
Accessories:Tripods, Guyed Boxes, Anchors and BoomsSupply capacity:200 CCTV cameras per month Pneumatic tripod mast
Shrink length:1.4mport:China's main ports
payment terms:L/C, Western Union, T/T, Alibaba Trade Assuranceplace of origin; place of origin:Tianjing, China
surface:Hard anodizedTypes of:Antenna mast
Product Description
Technical data
main specifications
1) Extension height: 4m
2) Stow height: 1.4m
3) Outer diameter range: 43-56-70-87mm
4) Thickness: 4.5-3.0-3.5-3.5mm
5) Maximum head load: 30kgs
6) Number of sections: 4 sections
7) Wind load: 100 km/h
8) The maximum working pressure of the air compressor: 0.25MPA
9) Working temperature: -15--+60℃
Accessories
Car clip ------ 1
Ground anchor ---------8 pcs
Pull wire ------------8 pieces
Air pump --------1
Tripod---------1 piece
Top plate -------------- 1 piece
Material
Aluminum-magnesium alloy 6063
color
bronze or silver or black
Accessories
Model
unit
pull wire
1 set
ground anchor
1 set
Air compressor or hand pump
1 unit
Tripod or car clip
1 unit
roof
1 unit
bottom base
1 unit

More details below

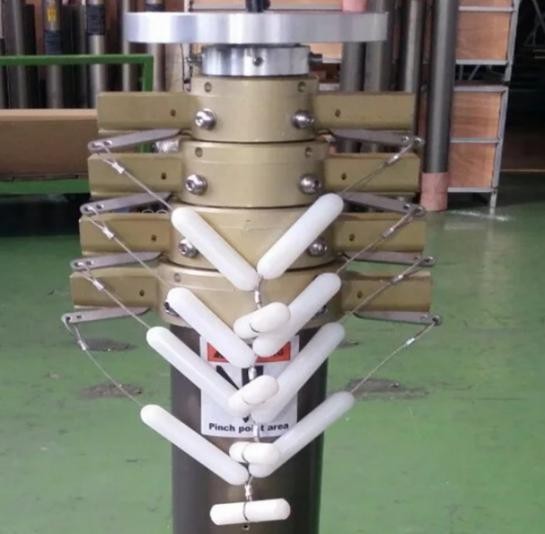

Swift Mast Cover with Guy Loop Warning Mast Completetake back. and protect the mast

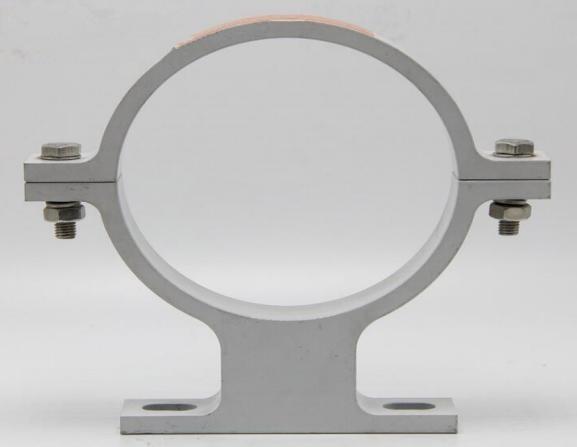

Automotive clamps for vehicle mounting masts.
The auxiliary rod is fixed on
truck or car

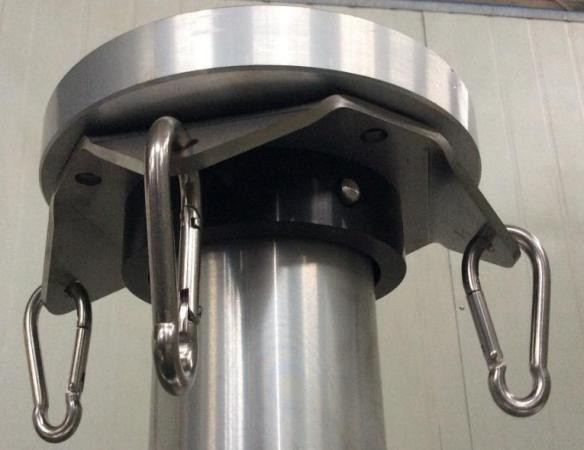

Rings for securing the guylines when the mast has no tripod or bracketng fixed accessories

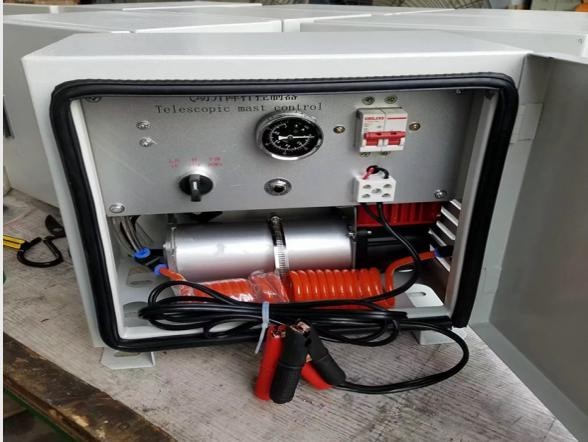

Control box: fast up and down,small air compressor
Trachea, pressure gauge

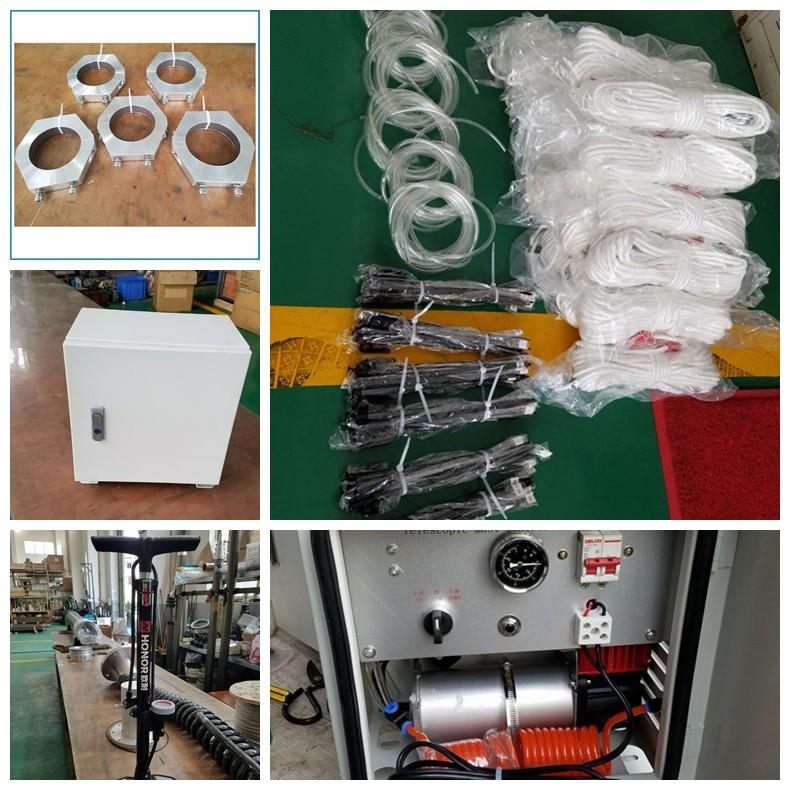

Basic accessories

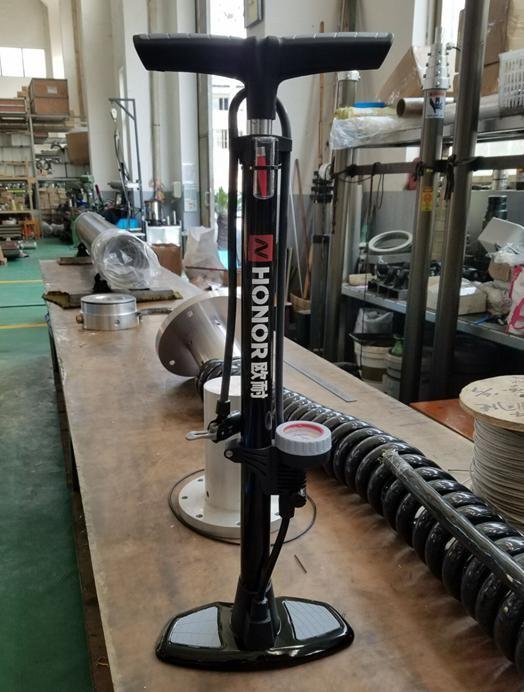

hand pump

detailed image

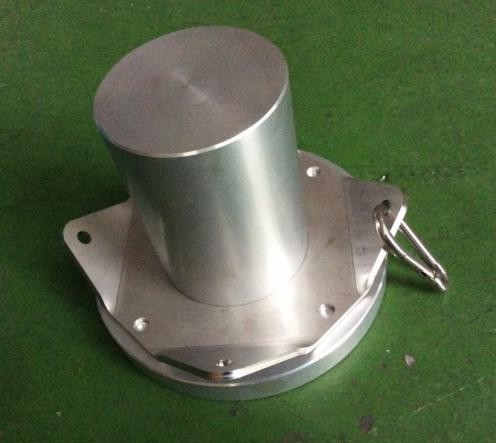

bottom flange

Mount the mast to a file or other base.
and bottom bracket with air inlet for air duct connection to air compressor or foot/hand pump.

locking

Designed for long-term use.Used to prevent the mast from slipping.

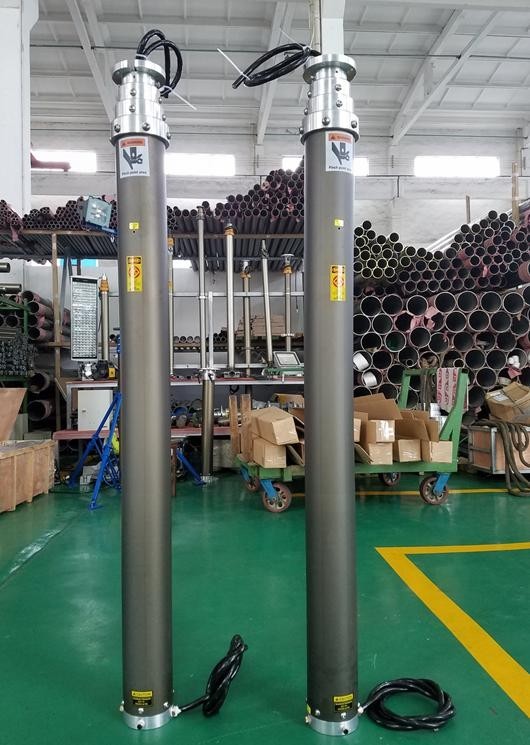

power cable

Can be inside or outside the mast
