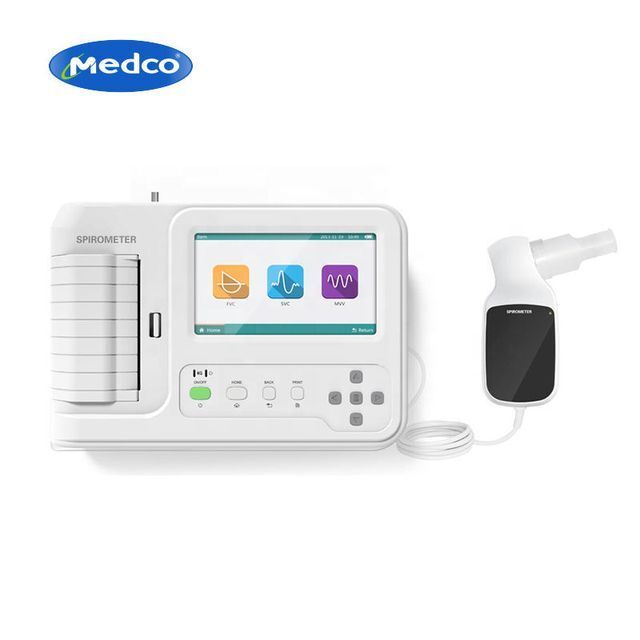

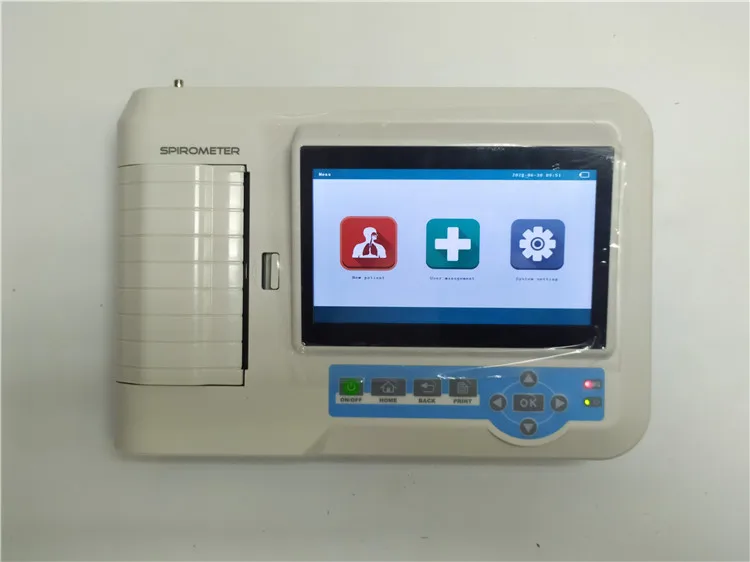

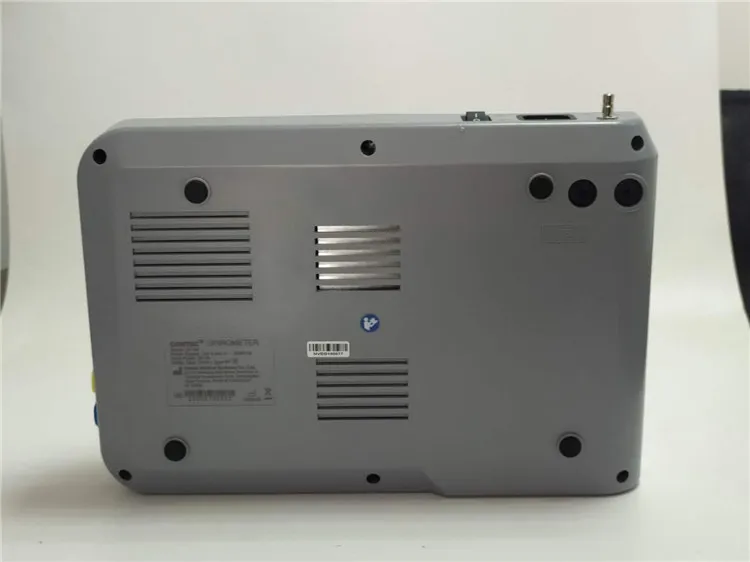

Portable Handheld 7 Inches LCD Touch Screen Lung Digital Spirometer
- $350.00 / 1 - 9 units
$300.00 / 10 - 19 units
$285.00 / 20 - 49 units
$240.00 / >=50 units - 1 unit
- Yiwu Medco Health Care Co., Ltd.
- Zhejiang, China
- Ms Lina Chen
PRODUCT DETAIL
| Power Source: | Electric; | Flow Range: | 0~ 16 L/s; |
| Place of Origin: | Zhejiang, China; | Package Preview: | ; |
| Quality Certification: | CE ISO; | Single package size: | 40X50X35 cm; |
| Model Number: | UN100; | Selling Units: | Single item; |
| Packaging Detail: | 1X UN100 Spirometer 4pcsX Mouthpiece 1X Nose clip 1X Recording paper 1X USB cable 1X Power cord 1X User Manual; | LCD screen: | 7" color TFT touch screen; |
| Volume accuracy: | ±3% or ±0.05 L (whichever is greater); | Safety standard: | Other; |
| Volume range: | 0~ 10 L(FVC); | Printing paper: | 112 mm(W) x20 m(L) high-speed thermal paper; |
| Brand Name: | SPIROMETER; | Warranty: | 1 Year; |
| After-sale Service: | Online technical support; | Flow accuracy: | ±5% or ±0.2 L/s (whichever is greater); |
| Safety type: | Class I equipment, type BF applied part; | Single gross weight: | 5.000 KG; |
| Product name: | Digital lung spirometer; | Shelf Life: | 2 years; |
| Input power: | 60 VA; | Power supply: | 100 V-240 V~ 50 Hz/60 Hz; |
| Material: | Metal,Plastic; | Instrument classification: | Class II; |
Product Description
Feature of Handheld small size touch screen digital lung spirometer for clinic
1)Measurement of Forced Vital Capacity (FVC), Vital Capacity (VC/SVC), maximum voluntary
ventilation (MVV) and relevant functions, more than 50 parameters can be measured and displayed; for several times of measurement,
the optimal result will be displayed; the condition of subject can be shown by the ratio of the measured value and the predicted
value.
2)Measurement parameters: Forced Vital Capacity (FVC): FVC,FEV1,PEF,FEV1 (FEV1/FVC),FEF25,FEF50,FEF75,
FEF2575,FEV1/VC,FEV6,FEV1/FEV6,ELA,FET,EVOL,FIVC,FIV1,FIV1/FIVC,PIF,MVV,etc.
Vital Capacity (VC/SVC): VC,IC,ERV,IRV,EVC,IVC,TV,VE,RR,tI,tI/tE,tE,TV/tI,tI/ttot
Maximum Ventilatory Volume (MVV): MVV
3)Real-time display respiration waveform:Flow-Volume loop and Volume-Time curve chart;
4)7" color LCD touch screen, buttons can be operated along with touch screen;
5)Incentive animation operation guide, easy for the use between children and the old;
6)Built-in thermal printer, reports can be printed directly;
7)BTPS automatic correction function, compensate for the impact of environmental differences;
8)Test time and environment temperature display;
9)Calibration function, ensure measurement accuracy;
10)Multiple predicted value can be selected, suitable for different population;
11)Storage of more than 10,000 groups of data;
12)Lung age estimation function;
13)Built-in lithium battery, supports both of AC and DC.
ventilation (MVV) and relevant functions, more than 50 parameters can be measured and displayed; for several times of measurement,
the optimal result will be displayed; the condition of subject can be shown by the ratio of the measured value and the predicted
value.
2)Measurement parameters: Forced Vital Capacity (FVC): FVC,FEV1,PEF,FEV1 (FEV1/FVC),FEF25,FEF50,FEF75,
FEF2575,FEV1/VC,FEV6,FEV1/FEV6,ELA,FET,EVOL,FIVC,FIV1,FIV1/FIVC,PIF,MVV,etc.
Vital Capacity (VC/SVC): VC,IC,ERV,IRV,EVC,IVC,TV,VE,RR,tI,tI/tE,tE,TV/tI,tI/ttot
Maximum Ventilatory Volume (MVV): MVV
3)Real-time display respiration waveform:Flow-Volume loop and Volume-Time curve chart;
4)7" color LCD touch screen, buttons can be operated along with touch screen;
5)Incentive animation operation guide, easy for the use between children and the old;
6)Built-in thermal printer, reports can be printed directly;
7)BTPS automatic correction function, compensate for the impact of environmental differences;
8)Test time and environment temperature display;
9)Calibration function, ensure measurement accuracy;
10)Multiple predicted value can be selected, suitable for different population;
11)Storage of more than 10,000 groups of data;
12)Lung age estimation function;
13)Built-in lithium battery, supports both of AC and DC.
Specification
Display model | 7'' LCD |
Volume range | 0~10L |
Volume accuracy | ±3% or ±0.05L |
Flow range | 0L/s-16L/s |
Flow accuracy | ±5% or ±0.2L/s |
Power supply | 100V-240V~ 50Hz/60Hz |
Input power | 60VA |
Printing paper | 112mm*20m |
