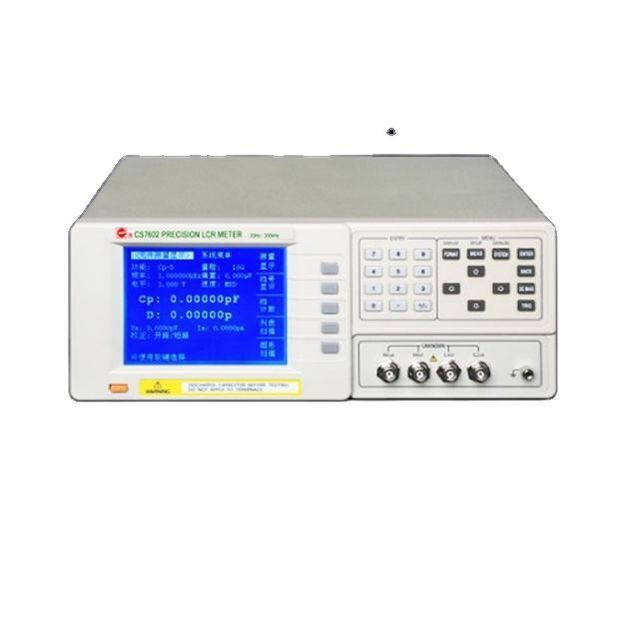

Precision wideband full digital LCR bridge CS7600

Price:$1000.00 /piece
Min. Order:1 piece
Supplier:Shenzhen Bonad Instrument Co., Ltd.
Region:Guangdong, China
Contact:Ms Jun Fang

PRODUCT DETAIL

Place of Origin:	Guangdong, China;	Warranty:	3months-1year;
Packaging Detail:	customize Carton box;	Supply Ability:	1000 Pieces per Month;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Type:	LCR bridge;
Model Number:	CS7600;	Port:	Shenzhen;
Brand Name:	Bonad;

Product Description

Product introduction

Adopting high precision components of the parameters for the design of automatic balance bridge principle analyzer, the test of 20 hz ~ 2 MHZ bandwidth, 1 uhz step, frequency of continuous random set Ω, 0.01 m ~ 100 m Ω impedance measurement range, 0.05% of the basic measurement precision and equipment provided by the automatic level control function, the scan list/graphics scan function and sorting counting function for most of the components and materials to provide accurate and complete measurement and analysis

Application field

Widely used in product research and development, factory inspection of components, online testing of products and other applications.
Performance characteristics
Frequency measurement range
Continuous from 20 Hz to 2 MHz frequency, arbitrarily set, the frequency resolution is 10μHz, high resolution and high precision
6-bit display resolution, basic measurement accuracy up to 0.05%

15 impedance parameters and 23 parameter combinations

It can measure capacitance (CS / CP), inductance (LS / LP), resistance (RS / RP), dielectric loss (d), quality factor (q), impedance (| Z |), admittance (| y |), phase angle (θ), conductivity (GP), reactance (XS), admittance (BP), DC resistance * (RDC, only cs7600x series can be measured). Two kinds of parameters are displayed at the same time in each measurement. Note: subscript s - series mode, subscript p - parallel mode Sorting (bin) measurement The 10 component option can be set, and the measured components can be filtered by the measurement results Load compensation function Compensate the measured value with reference sample. This function can ensure the consistency of measurement by multiple instruments Automatic level control function In addition to the usual open circuit excitation signal settings, the voltage/current characteristics of the components can also be evaluated in constant voltage/constant current mode. Signal level setting range: 5mVrms~2Vrms/50uA~20mA

List scan test and graphic scan test analysis function

Provide 10 groups of list scanning combination and 240 points linear/logarithmic graphic scanning function; Frequency, voltage, current, bias voltage and bias current can be set as scanning conditions to evaluate the performance characteristics of components under various measurement conditions

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	Bonad
Model Number	CS7600
Warranty	1year

Company Profile

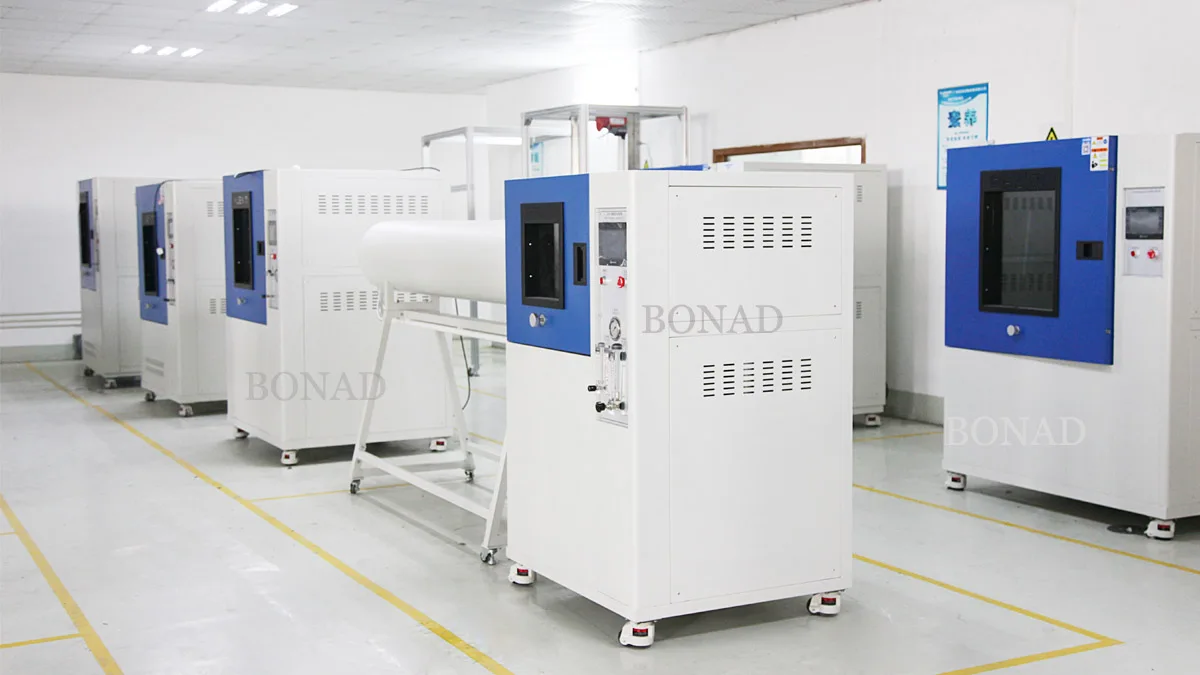

HONGKONG BONAD TECHNOLOGY LIMITED SHENZHEN BONAD INSTRUMENT CO.,LTD .is a high-tech company in HongKong, producing all kinds of precise instrument. We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder ,Laboratory Equipment,Test Chamber,Test Equipment, Lux Meter,Weight Sensor and Electric Ruler and so on. We have gathered lots of well educated and experienced researchers and administrators on this electric products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. All products manufactured are strictly in accordance with various EN,IEC,CE, UL,VDE, VS, JIS, ISO,CEE,BS,FMV,GB and other similar international standards. Main Products include: Test Chamber,Weight Sensor, Load Cell, Electrical Ruler ,Glow Wire Tester, Needle Flame Tester, and Vertical Burning Tester, Melt Dripping Tester, Building Materials Flammability Tester,Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series ,Environmental Tester,Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments. Our main business partners are from Europe, Asia, North America, Africa and other countries and regions around the world. We are always one of the most popular precise instrument manufacturers in the whole world! We welcome OEM and ODM orders QCDS(High quality Cost-efficiency Delivery-in-time Best-service) are the bases of our company. Happy people , enjoy life Choose Bonad, better future

FAQ

1. who are we?
We are based in Guangdong, China, start from 2013,sell to Southeast Asia(20.00%),Domestic Market(15.00%),South America(15.00%),Central America(10.00%),North America(5.00%),Northern Europe(5.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),Oceania(5.00%),South Asia(5.00%),Southern Europe(3.00%),Western Europe(3.00%),Mid East(2.00%),Africa(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Machinery,laboratory test equipment,Test chamber,test package,test equipment

4. why should you buy from us not from other suppliers?
BAONAD is specialized in manufacturing all kinds of test equipment,and providing OEM/ODM services for many years. We have a experience and professional team.we have exported our products to many countries.High quality control and low defective.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
