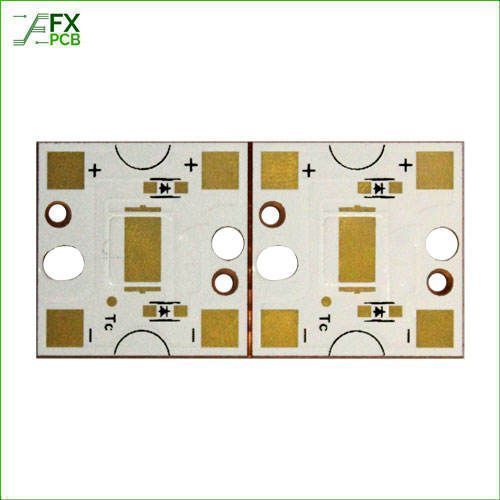

Professional Experience OEM Copper Base PCB Board Metal Core PCB Manufacturer
- $3.00 / 1 - 98 pieces
$1.20 / 99 - 999 pieces
$0.60 / >=1000 pieces - 1 piece
- Loop Limited
- Illinois, China
- Mr zou
PRODUCT DETAIL
| MOQ: | 1 | payment terms: | wire transfer |
| type: | copper substrate | brand: | FX PCB |
| Surface treatment: | HASL/ENIG/OSP/Silver | model: | copper substrate |
| Plate thickness: | 0.5mm-5.0mm | Certificate: | ISO, Rohs, CE |
| Maximum board size: | 1200mm*480mm | Packaging Details: | Inner layer: vacuum packing Outer layer: export carton |
| application: | Consumer electronics products | Copper thickness: | 1-6oz |
| Minimum board size: | 5mm*5mm | Minute line spacing: | 0.1mm |
| Origin: | Guangdong, China | Minute line width: | 0.1mm |
| Layers: | 1L/2L | Supply capacity: | 500 pieces per day |
Product Description
technical skills
project | ability |
Board classification | Aluminum base, copper base, ceramic base, copper clad laminate, composite board |
Material | Domestic aluminum, domestic copper, imported aluminum, imported copper |
surface treatment | HASL/ENIG/OSP/Silver |
layers | Single-sided printed board/double-sided printed board |
board size | 1200mm*480mm |
Minimum board size | 5mm*5mm |
Trace Width/Space | 0.1mm/0.1mm |
twist and twist | <=0.5% (thickness: 1.6mm, sheet size: 300mm*300mm) |
plate thickness | 0.5mm-5.0mm |
copper thickness | 35um/70um/105um/140um/175um/210um |
Minimum punch | 1.0mm (thickness below 1.0mm) |
minimum aperture | 0.6mm |
Minimum Solder Mask Opening | 0.35mm |
