Push-in Wire Connector Economy Type

PRODUCT DETAIL
Color:Red, Orange, Yellow, Grey, Black, Purple, Clear;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Supply Ability:100000000 Piece/Pieces per Month;Place of Origin:Jiangsu China;
Model Number:PC35;Brand Name:Heavy Power/Hiwa;
Packing:50-500EA/Bag;Certification:ISO9001/CE/ROHS/REACH;
Packaging Detail:PE bag, OPP bag, Blister, Carton, Color Box or Customized.;Type:Femal;
Application:Power;Port:Shanghai Port. Ningbo Port;

 Product  Categories

Push-In Wire Connectors
  • Unik Push in connector PC35 Series
  • Push in connector PC15 Series Economy Type
  • Push in connector PC225 Series Compact Type
  • Push in connector PC25 Series Standard Type
  • Push in connector - Releasable Type

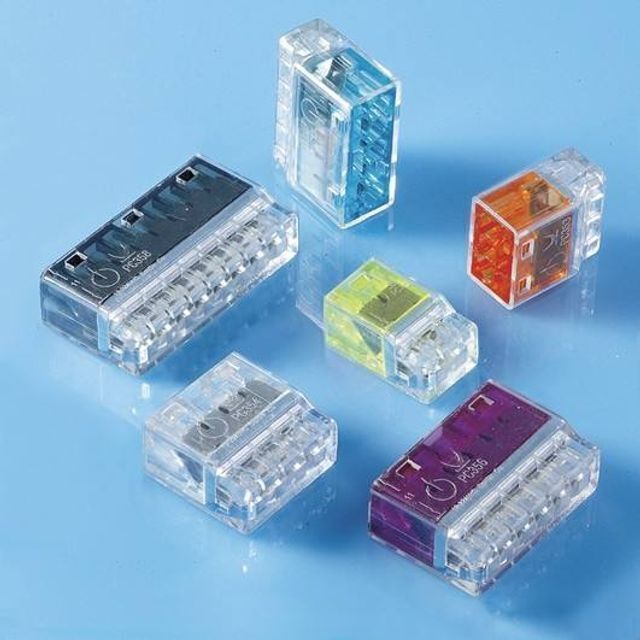

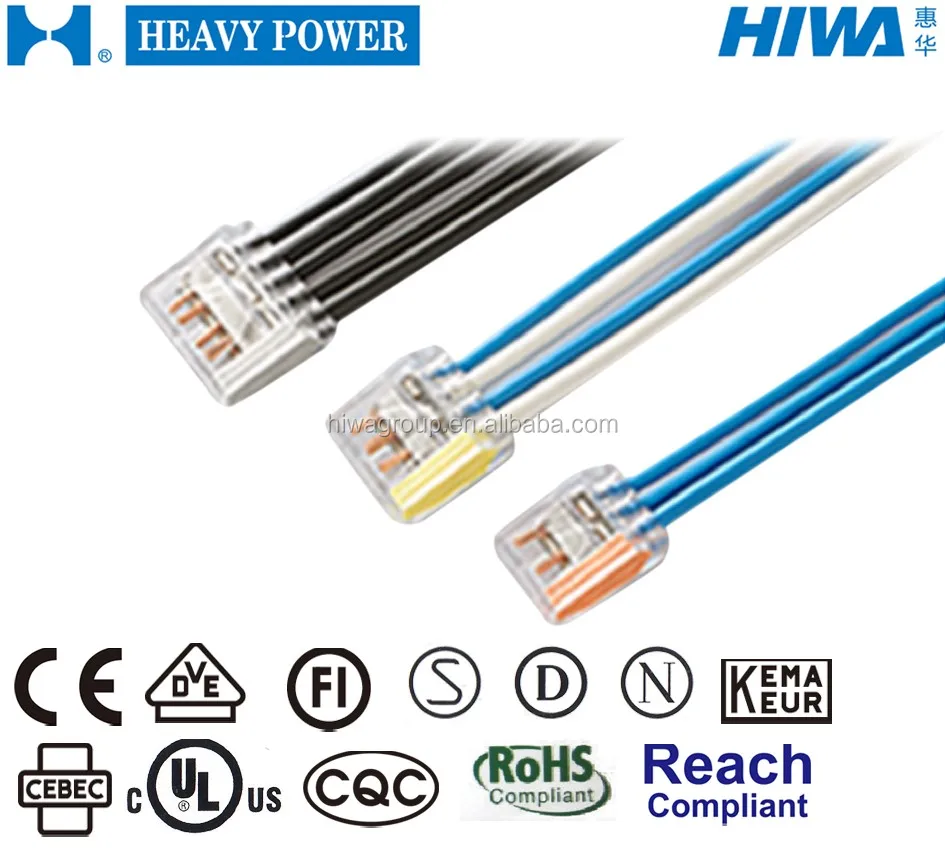

 Unik Push-in Wire Connectors PC35 Series



Characters



+
  • For use with rigid/solid and flexible/stranded conductors.
  • Polycarbonate, UL 94V-0 flame-retardant shell.
  • Spring force connector constructed from tinned copper plate, spring steel and steel frame
  • Rated to 600V max. for building wiring and 1000V max.lighting fixtures and signs.
  • Color-coded for quick and easy identification.
  • Hardened stainless steel insert restrict pull-out, requires a very low insertion force.





+
Model No.ColorPolesElectrical RatingsClamping Area Wire RangePacking
PC352Yellow224 A, 450 V, T1100,5-2,5 mm², Rigid500 Pcs/Bag
600 V, 105°C (221°F)22-12 AWG, Sol/Str Cu5,000 Pcs/Ctn
PC353Orange324 A, 450 V, T1100,5-2,5 mm², Rigid400 Pcs/Bag
600 V, 105°C (221°F)22-12 AWG, Sol/Str Cu4,000 Pcs/Ctn
PC354Clear424 A, 450 V, T1100,5-2,5 mm², Rigid300 Pcs/Bag
600 V, 105°C (221°F)22-12 AWG, Sol/Str Cu3,000 Pcs/Ctn
PC355Blue524 A, 450 V, T1100,5-2,5 mm², Rigid300 Pcs/Bag
600 V, 105°C (221°F)22-12 AWG, Sol/Str Cu3,000 Pcs/Ctn
PC356Purple624 A, 450 V, T1100,5-2,5 mm², Rigid250 Pcs/Bag
600 V, 105°C (221°F)22-12 AWG, Sol/Str Cu2,500 Pcs/Ctn
PC358Black824 A, 450 V, T1100,5-2,5 mm², Rigid200 Pcs/Bag
600 V, 105°C (221°F)22-12 AWG, Sol/Str Cu2,000 Pcs/Ctn

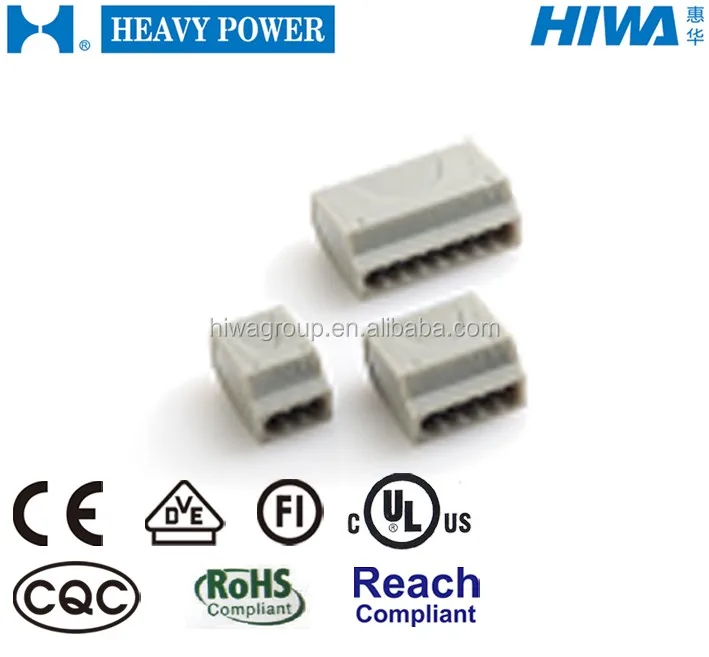

Push in connector PC15 Series Economy Type

Characters(For use with rigid/solid conductors)



+
  • Accpet conductors 0.5 - 1.5 Square MM
  • For use with rigid / solid conductors.
  • Polyamide 66, UL 94V-2 flame-retardant shell.
  • Spring force connector constructed from tinned steel with copper plates.
  • Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.
  • Compact size design perfect for tight spaces.



+
Model No.ColorPolesElectrical RatingsClamping Area Wire RangePacking
PC153Grey317.5 A, 450 V, T1100,5-1,5 mm², Rigid500 Pcs/Bag
600 V, 105°C (221°F)20-16 AWG, Sol Cu5,000 Pcs/Ctn
PC155Grey517.5 A, 450 V, T1100,5-1,5 mm², Rigid500 Pcs/Bag
600 V, 105°C (221°F)20-16 AWG, Sol Cu5,000 Pcs/Ctn
PC158Grey817.5 A, 450 V, T1100,5-1,5 mm², Rigid500 Pcs/Bag
600 V, 105°C (221°F)20-16 AWG, Sol Cu2,500 Pcs/Ctn

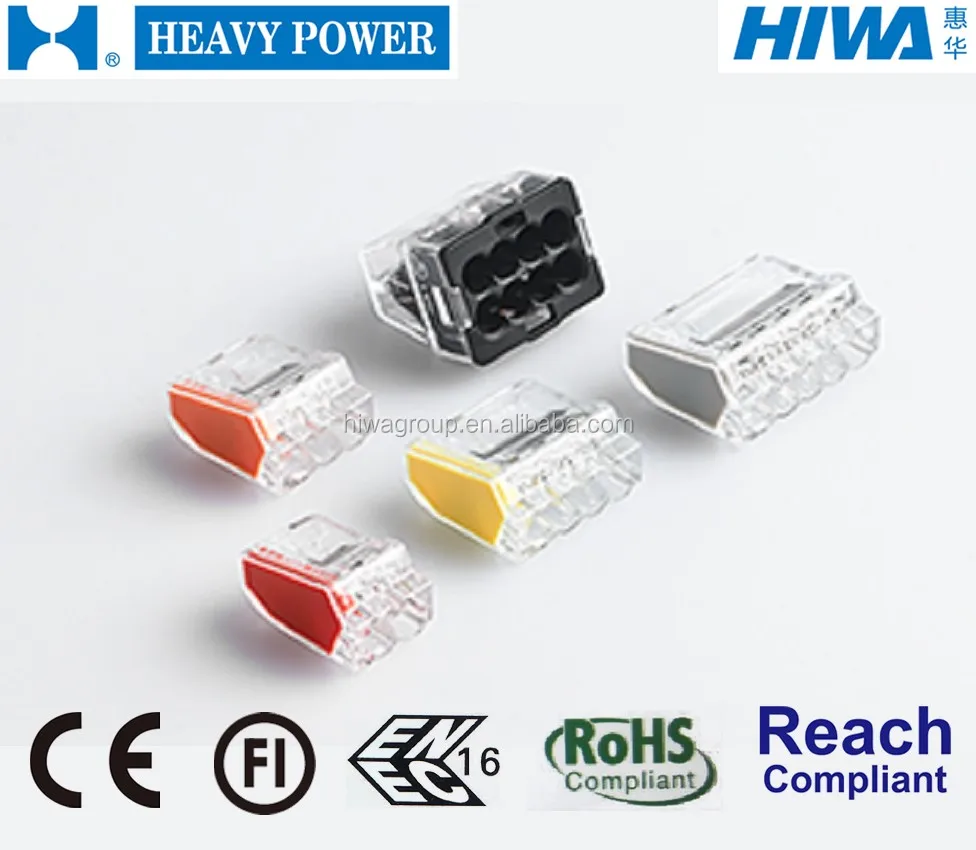

Push in connector PC225 Series Compact Type



Characters-PC225 Series



+
  • 25% more compact in size than original types with cost-saving effectiveness.
  • For use with rigid / solid conductors.
  • Polycarbonate and Polyamide 66, UL 94V-0 flame-retardant shell.
  • Spring force connector constructed from tinned steel plate with copper strip and spring steel.
  • Color-coded for quick and easy identification.





+
Model No.ColorPolesElectrical RatingsClamping Area Wire RangePacking
PC2252Red224 A, 450 V, T1101 - 2,5 mm² 1,000 Pcs/Bag
Ridid Single-core10,000 Pcs/Ctn
Rigid Multi-core
PC2253Orange324 A, 450 V, T1101 - 2,5 mm²1,000 Pcs/Bag
Ridid Single-core8,000 Pcs/Ctn
Rigid Multi-core
PC2254Yellow424 A, 450 V, T1101 - 2,5 mm²500 Pcs/Bag
Ridid Single-core5,000 Pcs/Ctn
Rigid Multi-core
PC2255Grey524 A, 450 V, T1101 - 2,5 mm²500 Pcs/Bag
Ridid Single-core5,000 Pcs/Ctn
Rigid Multi-core
PC2258Black824 A, 450 V, T1101 - 2,5 mm²400 Pcs/Bag
Ridid Single-core4,000 Pcs/Ctn
Rigid Multi-core

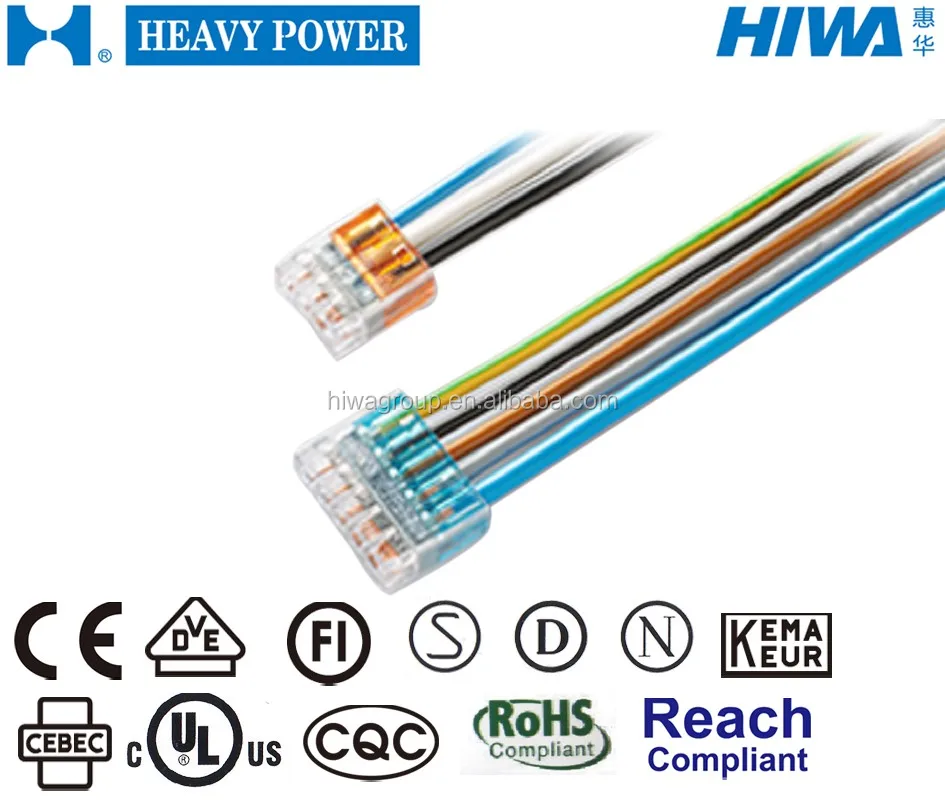

Push in connector PC25 Series Standard Type

Characters-PC25 Series



+
  • For use with 1 - 2,5 square mm solid conductors.
  • Polycarbonate and/or Polyamide 66, UL 94V-2 or 94V-0 flame-retardant shell.
  • Spring force connector constructed from tinned copper or steel plate with copper strip and spring steel.
  • Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.
  • Color-coded for quick and easy identification.



+
Model No.ColorPolesElectrical RatingsClamping Area Wire RangePacking
PC252Red224 A, 450 V, T110 1-2,5 mm², Sol500Pcs/Bag
PC252X600 V, 105°C22-12 AWG, Sol Cu5,000 Pcs/Ctn
PC253Orange324 A, 450 V, T110 1-2,5 mm², Sol500Pcs/Bag
PC253X600 V, 105°C22-12 AWG, Sol Cu5,000 Pcs/Ctn
PC254Yellow424 A, 450 V, T110 1-2,5 mm², Sol500Pcs/Bag
PC254X600 V, 105°C22-12 AWG, Sol Cu5,000 Pcs/Ctn
PC255Grey524 A, 450 V, T110 1-2,5 mm², Sol500Pcs/Bag
PC255X600 V, 105°C22-12 AWG, Sol Cu5,000 Pcs/Ctn
PC2258Black824 A, 450 V, T110 1-2,5 mm², Sol400Pcs/Bag
600 V, 105°C22-12 AWG, Sol Cu4,000 Pcs/Ctn
PC252-CLClear224 A, 450 V, T110 1-2,5 mm², Sol500Pcs/Bag
PC252X-CL600 V, 105°C22-12 AWG, Sol Cu5,000 Pcs/Ctn
PC253-CLClear324 A, 450 V, T110 1-2,5 mm², Sol500Pcs/Bag
PC253X-CL600 V, 105°C22-12 AWG, Sol Cu5,000 Pcs/Ctn
PC254-CLClear424 A, 450 V, T110 1-2,5 mm², Sol500Pcs/Bag
PC254X-CL600 V, 105°C22-12 AWG, Sol Cu5,000 Pcs/Ctn
PC255-CLClear524 A, 450 V, T110 1-2,5 mm², Sol500Pcs/Bag
PC255X-CL600 V, 105°C22-12 AWG, Sol Cu5,000 Pcs/Ctn

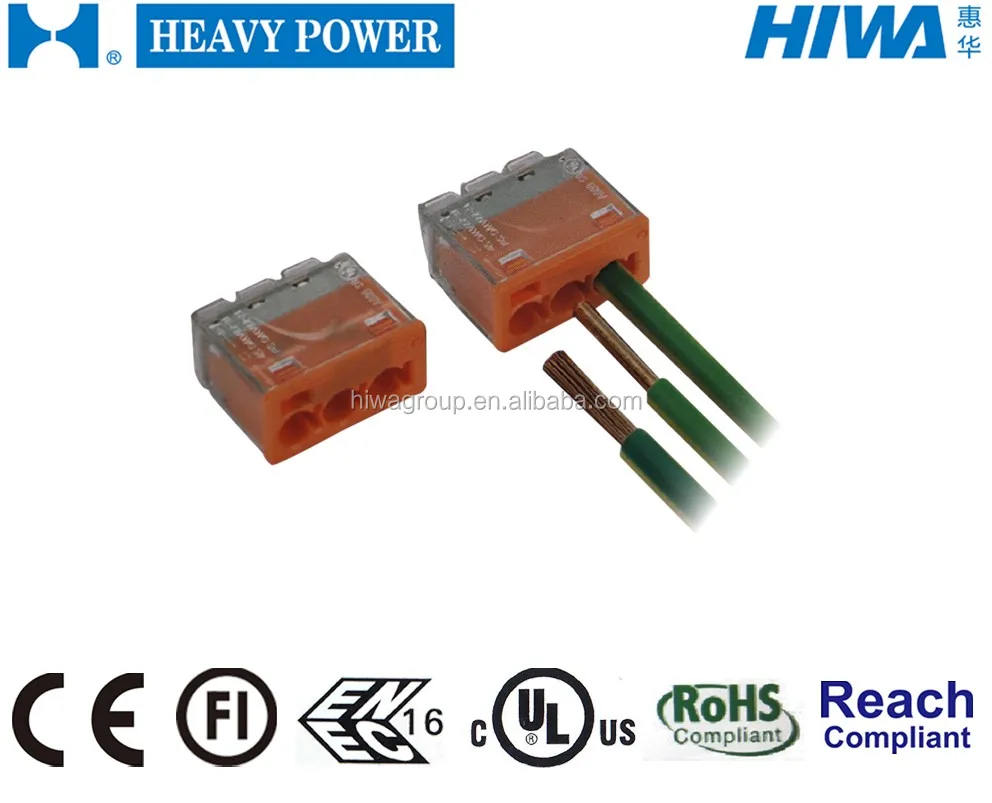

 Push in connector - Releasable Type



Characters-Releasable type

+
  • Accept conductors up to 4 square mm / 12 AWG.
  • For use with rigid/solid and flexible/stranded conductors.
  • Polycarbonate and Polyamide 66, UL 94V-0 flame-retardant shell.
  • Rated to 600V max. for building wiring and 1000V max. lighting fixtures and signs.
  • 0.5 square mm/ 18AWG and larger solid conductors are not required the operating tool.
  • Can be reused.



+
Model No.ColorPolesElectrical RatingsClamping Area / Wire RangePacking
PC883Orange332 A, 450 V, T1100,5-4,0 mm², 400 Pcs/Bag
600 V, 105°C (221°F)Rigid/Flexible4,000 Pcs/Ctn
 22-12 AWG, Sol Cu
 22-16 AWG, Str Cu

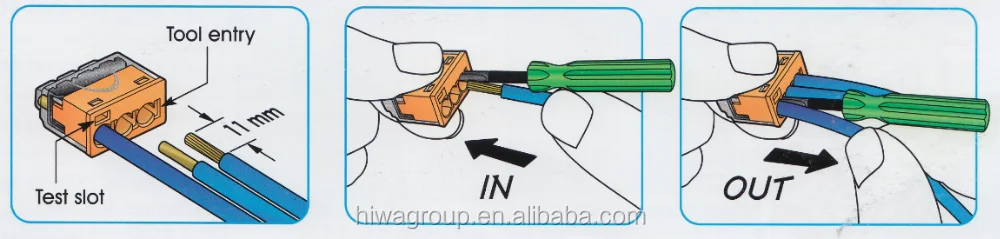

Installation:
