QCX2-18 18A 400V 220V 5.5hp 7.5hp dol le1 magneto starter switch contactor waterproof IP54
- $10.30 / 1 - 19 pieces
$9.10 / 20 - 199 pieces
$8.59 / >=200 pieces - 1 piece
- Zhejiang Zhongao Electric Co., Ltd.
- Zhejiang, China
- Mr Sunny Wang
PRODUCT DETAIL
Supply capacity: | 50,000 pieces per month | Power Type: | alternating current |
Box Material: | plastic | brand: | oasis |
port: | Ningbo or Shanghai, China | Coil Voltage: | AC230V240V380V400V415V440V optional V |
AC200-240V rated power: | 4kW/5.5HP | Number of poles: | 3 |
model: | QCX2-18 12-18A | Contactor Model: | CJX2-18 |
Main circuit rated voltage: | 380V | Current scope: | 12A-18A |
AC380-440V Rated power: | 5.5kW/7.5HP | Packaging Preview: | |
place of origin; place of origin: | Zhejiang, China | Cover material: | plastic |
payment terms: | Western Union, wire transfer | stage: | 3 |
frequency: | 50Hz/60Hz | Main circuit rated current: | 18A |
Packaging Details: | export carton | Thermal relay model: | JR28-13 |
button: | start (green) stop (red) |
product brand: | oasis | product name: | Magnetic starter | ||
Product Category: | QCX2-18 | Protection class: | IP54 | ||
temperature: | -5~+40℃ | Altitude range: | not more than 2000m | ||
application: | Control various motors and distribution circuits | ||||
Installation conditions: | The inclination angle between the installation surface and the vertical surface shall not exceed 5° |
QCX2-□□ series magnetic starters are mainly suitable for 50Hz/60Hz AC circuits with rated voltage up to 380V and rated current up to 95A. Used to control the start, stop, forward or reverse rotation of three-phase rat-shell induction motors. And can protect the motor from overload and interruption.

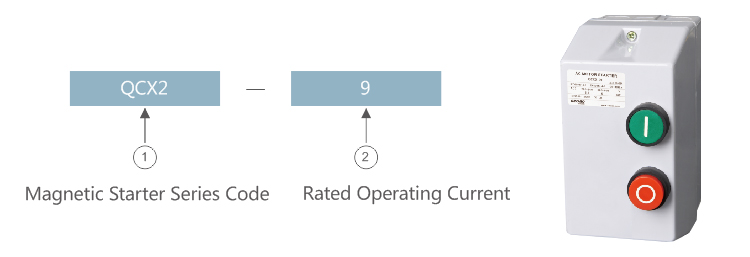

type and meaning
Application conditions
high:not more than 2000m.temperature:-5℃~+40℃, the 24-hour average does not exceed +35℃.air conditioner:In mountainous areas, the relative humidity does not exceed 50% when the maximum temperature is +40°C, and higher relative humidity is allowed at lower temperatures.Pollution level:Level three.Installation conditions:The inclination of the installation plane to the vertical plane shall not exceed 5°. The product should be installed and operated in a place free from obvious shaking, shock and vibration.

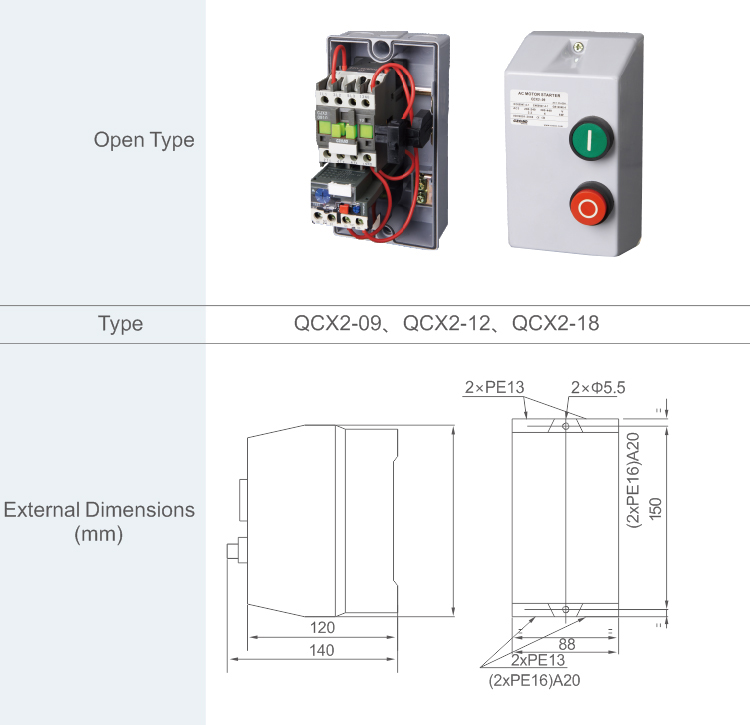

Dimensions

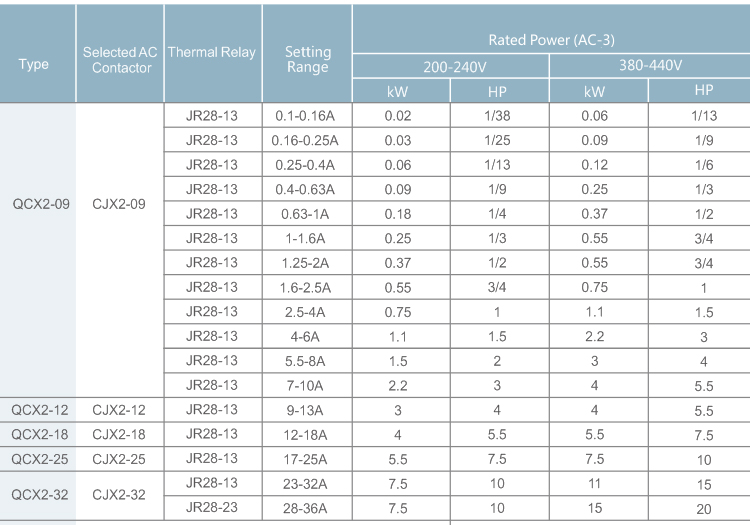

technical parameter

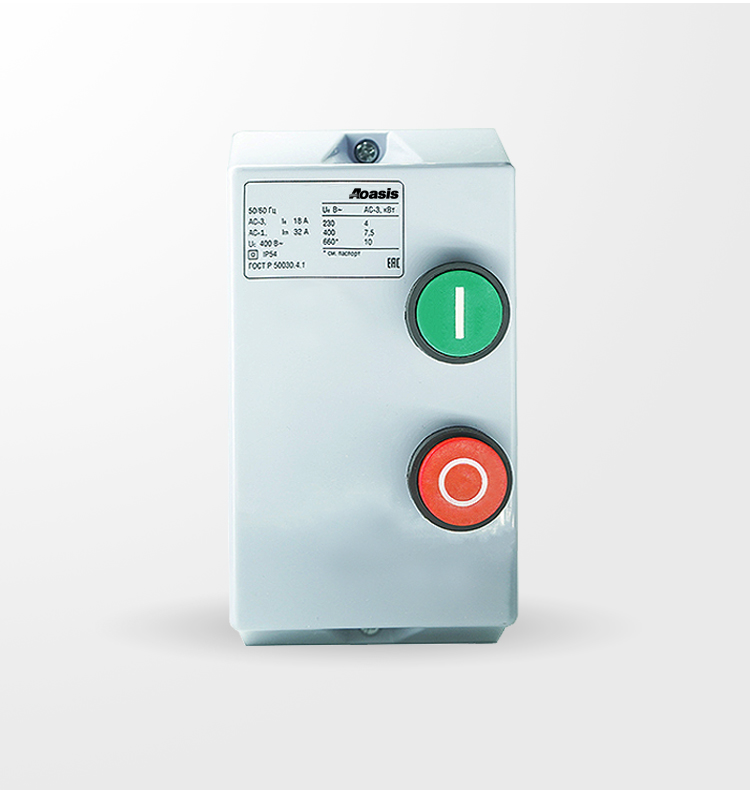

Front view

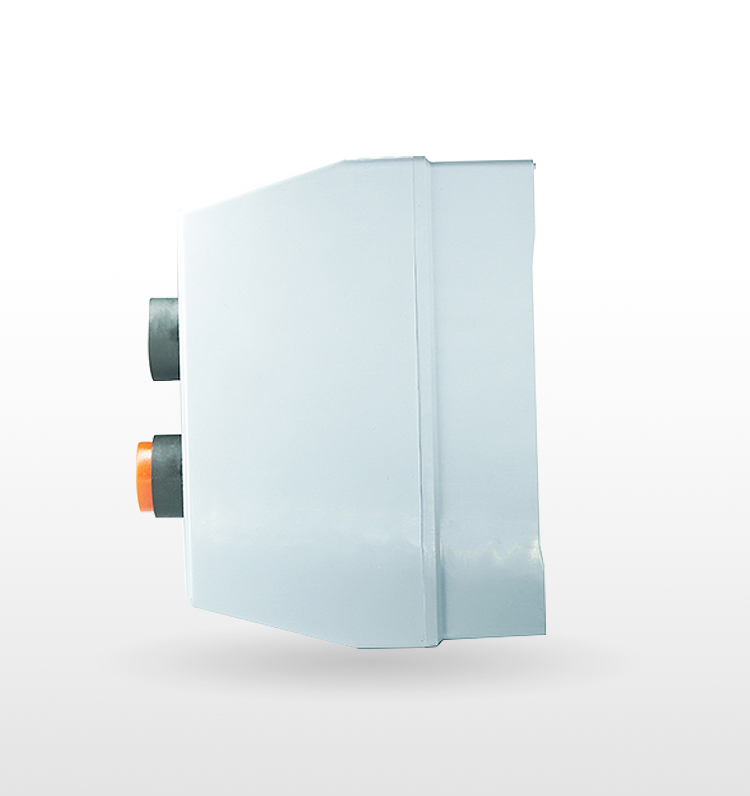

side view

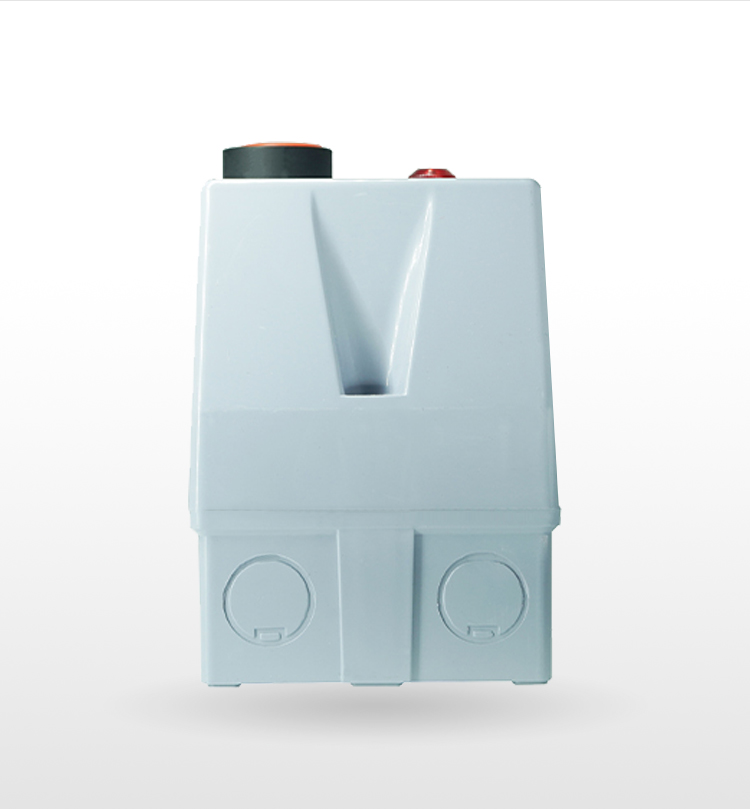

vertical view

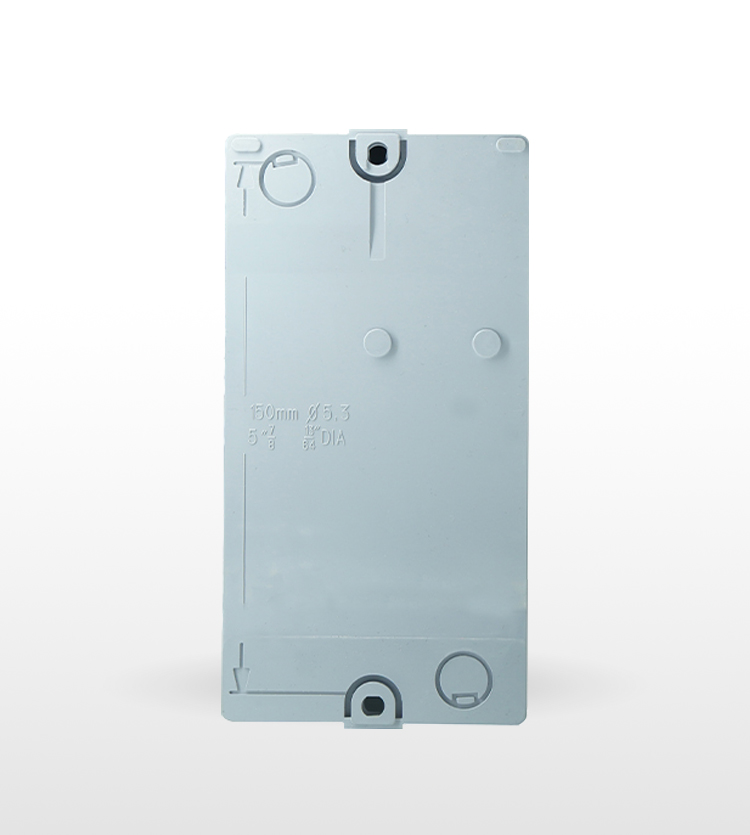

Rear view
verticalview

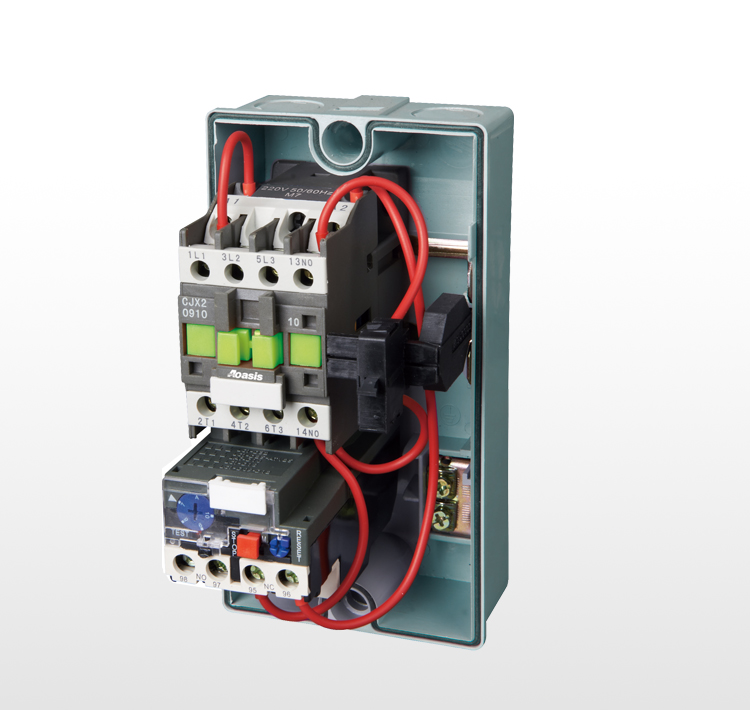

Internal structure map
