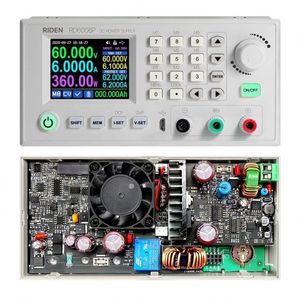

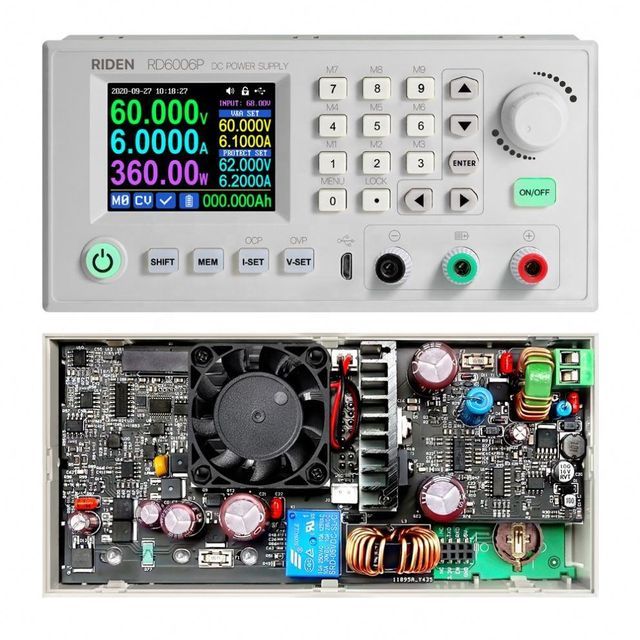

RD6006P RD6006P-W voltmeter USB wifi DC to DC voltage current step-down power module step-down adjustable converter 60V 6A
- $75.00 /piece
- 1 piece
- Shenzhen Ruised Technology Co., Ltd.
- Guangdong, China
- Mr Dennis Hong
| brand: | original brand | payment terms: | Western Union, T/T, MoneyGram |
| port: | Shenzhen | Origin: | Guangdong, China |
| Packaging Details: | carton | type: | DC-DC buck |
| Supplier type: | The original | Payment/Payment: | new |
| model: | RD6006P RD6006P-W | Supply capacity: | 10000 pieces per month |
RD6006P RD6006P-W voltmeter USB wifi DC to DC voltage current step-down power module step-down adjustable converter 60V 6A
RD6012/RD6012W manual and chassis installation manual download link:
1. RD6012(W) operation manual, PC software manual, APP manual, APP and PC software download links:
A: The main download link: https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing
B: Mediafire: http://www.mediafire.com/folder/k5q2ecp9hnvyd/RD6012
C: Backup download link: http://www.ruidengkeji.com/rdupdate/software/RidenPower/RidenPowerSupply_V1.0.0.8.rar
2,androidapplication: Download in the file link: https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing, support android 5.0 -android 10.0
Apple APPDownload: SearchRdPower download, support IOS10.0-IOS13.4 system
Android App Google PlayDownload: SearchRdPower download, support Android 5.0 and above mobile phones
3. RD6012 and S800 chassis assembly instructions: https://drive.google.com/drive/folders/1LNymuq8olL32XDJXZFeQow7xtbuP6bMI?usp=sharing
RD6012 and S12D shell assembly instructions:https://drive.google.com/drive/folders/1T66hTdQfkDyEG0yMzu-64BNY5Za8CmSn?usp=sharing
5. RD6012/RD6012W operation instruction video (similar to RD6006): https://youtu.be/fn6ROhGrLtI
Notes before buying:
1. There are two versions of RD6012 series: RD6012 and RD6012-W, RD6012-W has WIFI board, RD6012 does not. RD6012-W can use WIFI board to connect to APP, or use USB micro data cable to connect to PC software. RD6012 does not have a WIFI board, and can only be connected to the host computer software through a USB micro data cable, and does not support APP. The wifi board is connected to the host computer software, which is currently not supported.
2. The PC-side software currently only supports win 7 and above versions. For APP, only android 5.0 and above are supported. For APP and PC-side software, due to possible incompatibility, please download it before purchasing. If you can download and install it, you can place an order, otherwise stop purchasing. If you do not test the PC-side software and APP functions before purchasing and find that other products are normal except for the PC-side software or APP, we refuse to refund.
3. There are two types of shells, S800 shell and S12D shell, only the shell, does not contain any power supply. Some of the pictures show the installed RD6012, switching power supply and casing.
The S800 shell is just the shell and does not contain any power supply, but it is suitable for RD6012/RD6012W and AC-DC 800w switching power supply, you can buy it separately for easy assembly.
4. If connected to an inductive load (such as a motor), the maximum operating current is 1/3 of the range. Don't go over it.
Technical Parameters:
|
Model |
RD6006P |
RD6006P-W |
|
Input voltage range |
7-70.00V |
|
|
output voltage range |
0-60.000V |
|
|
Output current range |
0-6.0000A |
|
|
output power range |
0-360.00W |
|
|
Input Voltage Measurement Resolution |
0.01V |
|
|
Output voltage setting measurement resolution |
0.001V |
|
|
Output current setting measurement resolution |
0.0001A |
|
|
Battery voltage measurement resolution |
0.01V |
|
|
Input Voltage Measurement Accuracy |
±(1%+5 digits) |
|
|
Output voltage accuracy between setup and measurement |
±(0.5‰+4 digits) |
|
|
Output current accuracy between setup and measurement |
±(1‰+6 digits) |
|
|
Battery Voltage Measurement Accuracy |
±(0.5%+3 digits) |
|
|
Automatically cut off the current value when charging |
set by oneself |
|
|
Typical value of output ripple |
20mV VPP Note ① |
|
|
range of working temperature |
-10℃~40℃ |
|
|
External sensor temperature detection range: |
-10°C~100°C/0°F~200°F |
|
|
External sensor temperature detection accuracy: |
±3°C/±6°F |
|
|
Constant voltage mode response time |
2ms (0.1A-5A load) |
|
|
Constant Voltage Mode Load Regulation |
±(0.1%+2digits) |
|
|
Constant Current Mode Load Regulation |
±(0.1%+3digits) |
|
|
Capacity measurement range |
0-9999.99 ah |
|
|
Energy measurement range |
0-9999.99Wh |
|
|
Capacity and Energy Statistics Errors |
±2% |
|
|
Buck working mode |
Voltage drop>10%*VOUT+2V |
|
|
Cooling fan start condition |
Output current >4A or system temperature >45°C |
|
|
Off when the cooling fan is working |
Output current <3.9A, system temperature <45°C |
|
|
over temperature protection |
System temperature >80°C |
|
|
Screen Brightness Settings |
0-5 (level 6) |
|
|
Screen |
2.4-inch color high-definition display |
|
|
Weight (including packaging) |
About 0.62Kg |
|
|
Product Size |
167*81*65mm |
|
|
Support USB communication |
Yes |
|
|
Support WiFi communication |
No |
Yes |
