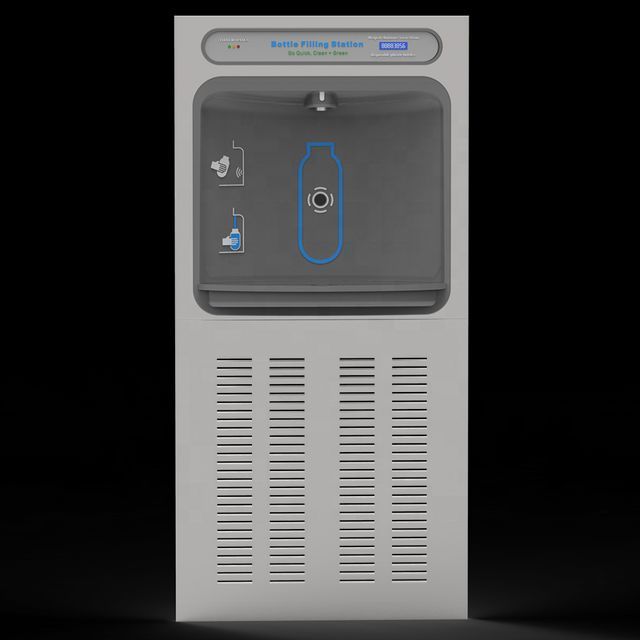

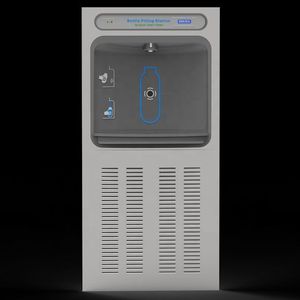

RE35IWC Recessed Wall Mounted Water Cooler, Recessed Water Dispenser with Infrared Induction Filling Machine

PRODUCT DETAIL
Voltage (V):220Warranty:1 year
After-sales service provided:Free spare partsApplication Control:Yes
application:hotel, outdoor, garage, business, homeplace of origin; place of origin:Guangdong, China
model:RE35-2IWFDimensions (L x W x H (inches):502(L)*89(W)*1037(H)mm
temperature range:coldPrivate model:Yes
Power (W):230Building Materials:Stainless steel
filter:RO or UF optionalFilling machine:Yes
Supply capacity:1000 units per monthMaterial grade:304 stainless steel
port:ShenzhenEnergy source:electrical
Packaging Details:Standard export packagingRefrigeration method:compressor cooling
brand:MaldenInstall:fully embedded in the wall
Accessibility:Yespayment terms:L/C,Western Union,T/T
Cooling gas:R134a, non-CFCtype:cold
Product Description

The Moerdeng RE35IWC In-Wall Filter Bottle Filler provides clean, fast water bottle filling and enhances sustainability by minimising our reliance on single-use plastic bottles. Fully embedded design, equipped with high-efficiency chiller. The sensor-activated bottle filler allows hands-free operation, and the intuitive LED electronic display keeps users informed of how much plastic bottles are being saved. The bottle filler features hygienic contactless sensor activation and an automatic 20-second shut-off timer.



feature

Non-contact, hygienic hands-free sensor activation (bottle filling) is designed for ease of use.

A sealed refrigeration system provides chilled water to satisfy thirst.

Fill rate is 1.1 GPM. Laminar flow provides a clean fill with minimal splashing. A true drainage system eliminates standing water.

High-performance compressors and insulation reduce energy consumption.

Visual filter monitor with LED filter status indicator for when the filter needs to be replaced.

Galvanized steel frame and stainless steel cabinet.

Rear panel and louver grille

A counter informs the user of the amount of 20 ounces. Plastic water bottles saved from waste.

Silver ion antimicrobial protection of critical plastic components to inhibit the growth of mold and mildew.

Rated for indoor use.

Specification



thing

Specification

Model

RE35 IWC

Material

SUS304 stainless steel

number of stations

1

included in the product

Filling Machine; Chiller; Mounting Bracket; Filter (Optional)

aspect

Length: 502mm, Width: 89mm, Height: 1037mm

installation options

Wall Mounted (In-Wall Frame/Board)

strength

220/50Hz or 115V/60Hz, optional

cooling capacity

8.0 GPH (30LPH)

bubbler style

no bubbler

import

1/4” OD tubing

Export

1-1/4” pipe outlet

Installation location

indoor

ADA

Yes

filter

yes, optional

notes

Requires mounting frame and can be ordered separately for early installation.



OEM & ODM service

Product customization
If you are looking for drinking water solutions beyond our standard products, we can help you customize your existing Moerdeng products to meet your unique specifications. No matter what you want to change, or you have a brand new idea, we'll help you achieve and exceed your expectations.



Nameplate customization
All Moerdeng dispensers, dispensers and fillers can be customized with your company specific logo.
Create your custom nameplate:
1. Choose your product.
2. Send us your desired logo and Pantone® color.
Moerdeng's custom team will take care of the rest!
It's that simple.





Packaging and Shipping

All our products will be wrapped in protective bubble wrap. Express, air and sea freight can be provided according to customers' needs.
