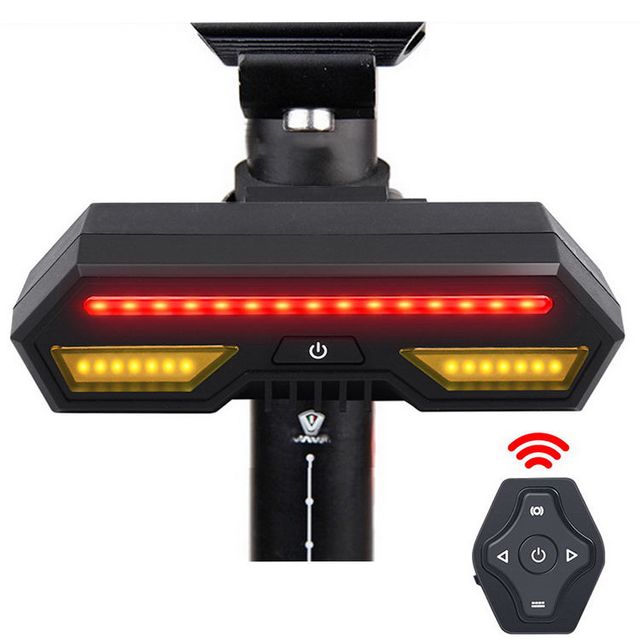

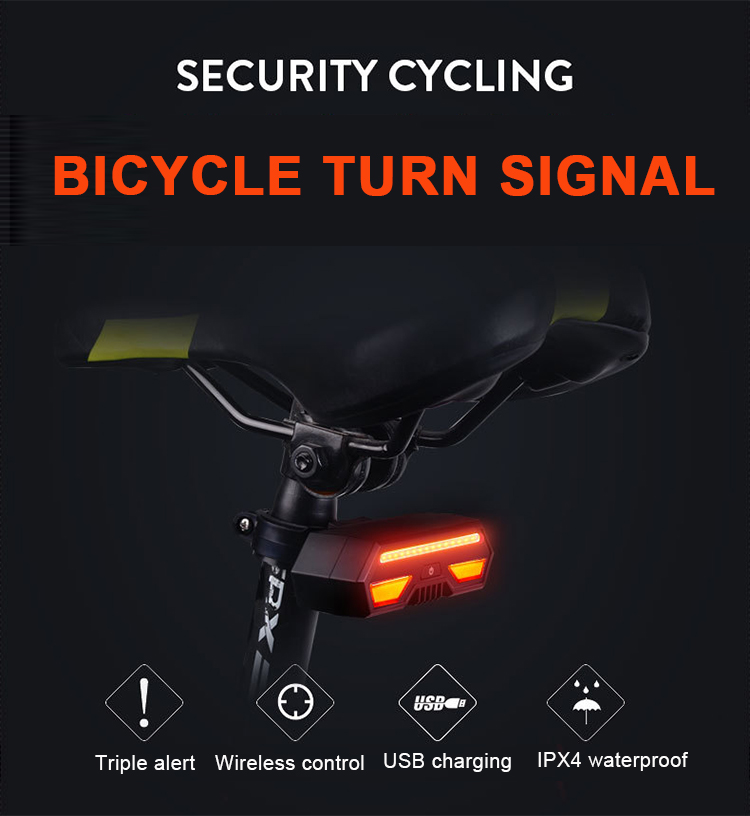

Rainproof intelligent remote control, super bright turn signal, rear light rechargeable mountain bike light CE FCC WHY

Description

When riding a bicycle, to provide safety for your outdoor riding, you can use a remote control to control this intelligent turn signal to give vehicles behind the traffic light signals, including left and right, warning of parking and braking.

Model number

LP1801

Product parameters

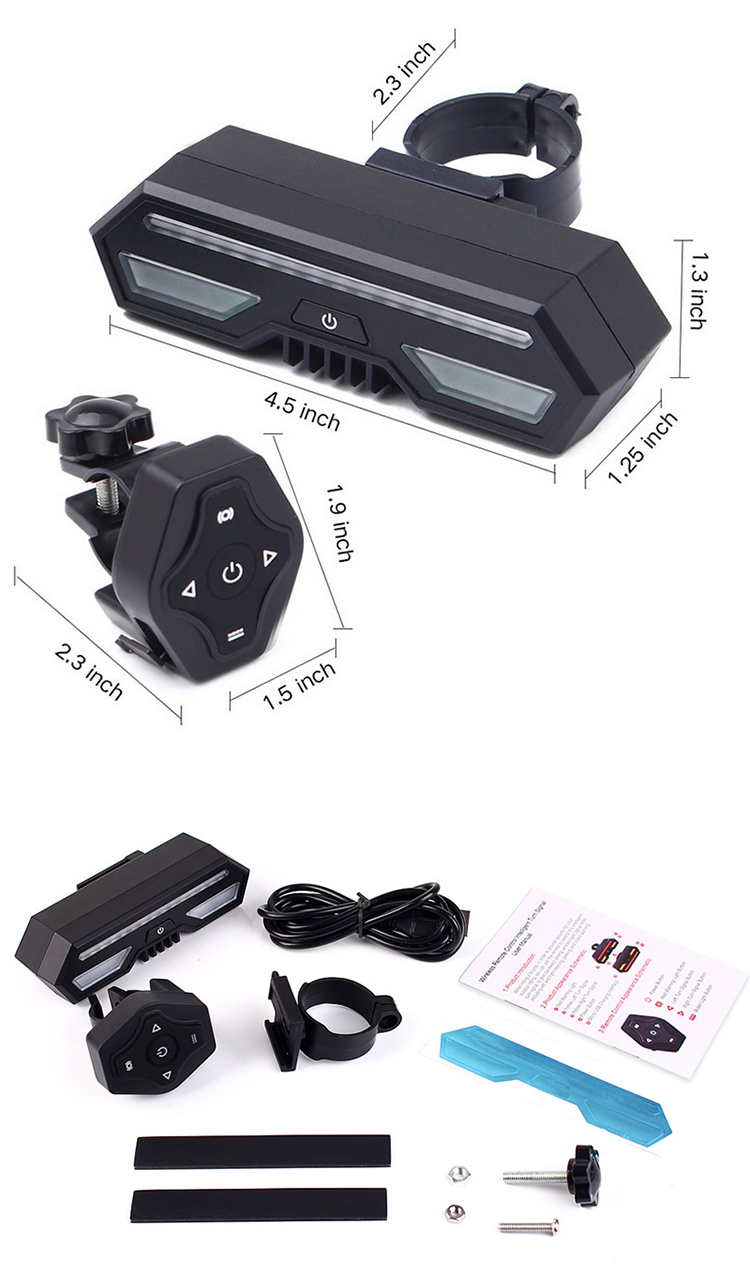

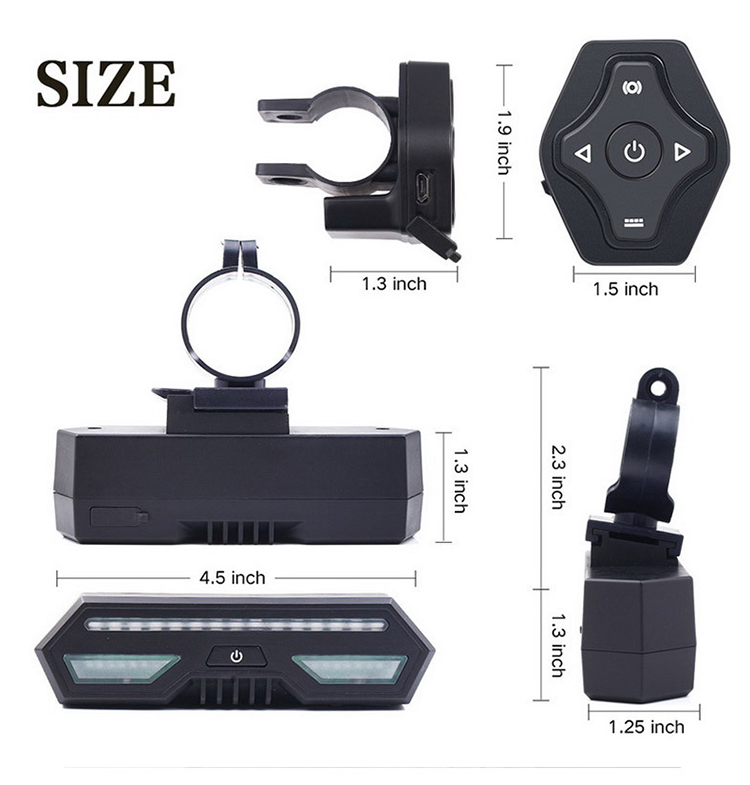

Dimensions (WxHxD): 111.6 * 30 * 33.8mm

Weight: 125 g

Waterproof grade: IPX4

Operating temperature: -20 ~ 60 ° C

Wireless transmission module: 433 MHz

Power supply: DC5V1A

Red warning light glow: 85 lumens

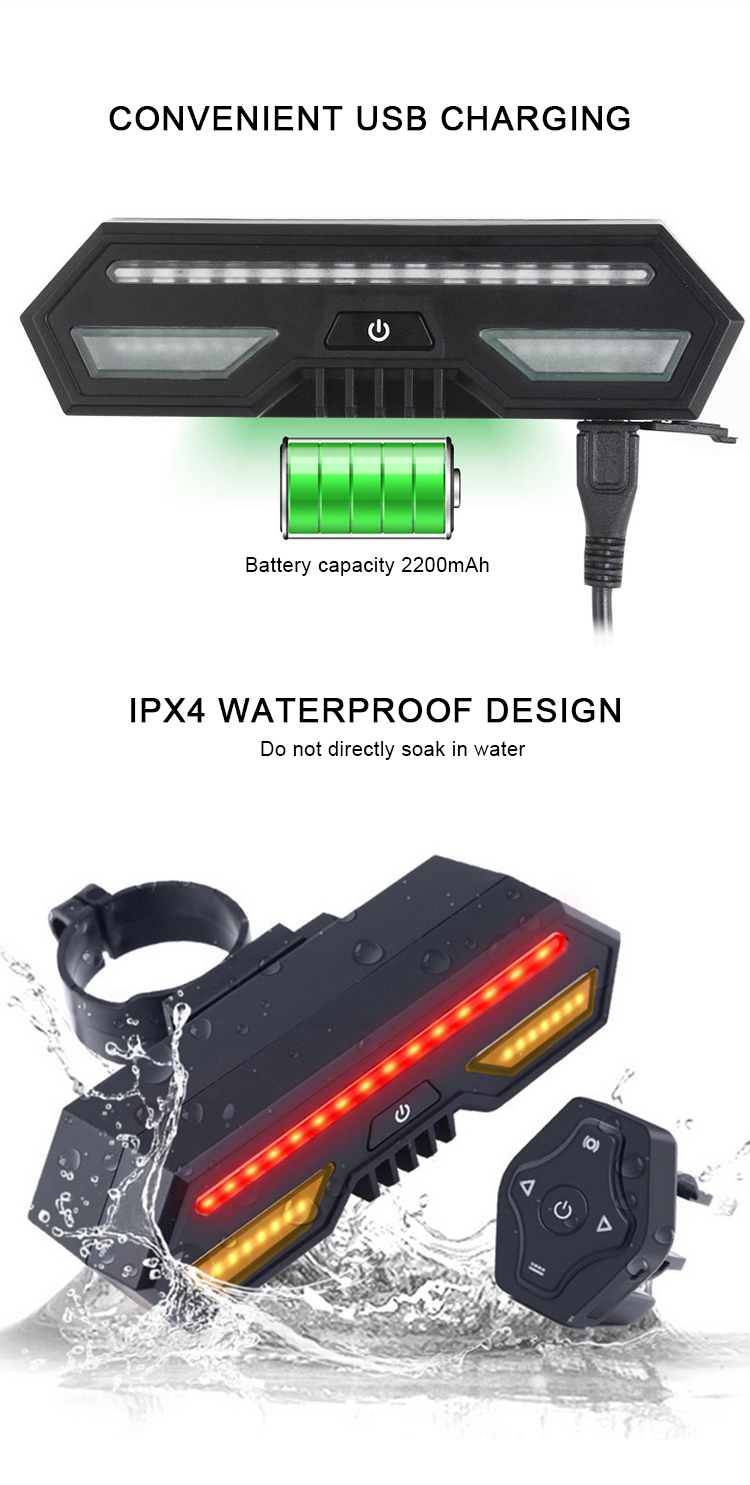

Battery capacity: 2200 mAh

Shelf life: Work for about 7 hours under constant light

Charging time: Charging time is about 2-3 hours. In the charging process, the red light turns on and the green light turns on after charging.

Standby time: It can wait for about a month when the turn signal is on but not the light, and the standby time can be more than a year when the turn signal is off.

Remote control battery capacity: 180 mAh

Remote control life: Not less than two months

Remote control charging time: About 1-2 hours. In the charging process, the red light turns on and the green light turns on after charging.

Turn on the turn signal

1.When the turn signal is off, briefly press the power button on the turn signal and the red LED lights will indicate the current power with the length of the red light bar representing the amount of electricity. If When the power is lower than the operating voltage, if it is in the starting state, the red LED will flash three times and turn off; if it is off, it will not leave.

2. Press and hold the power button on the turn signal to turn on / off the turn signal and the default LED light is always on after start.

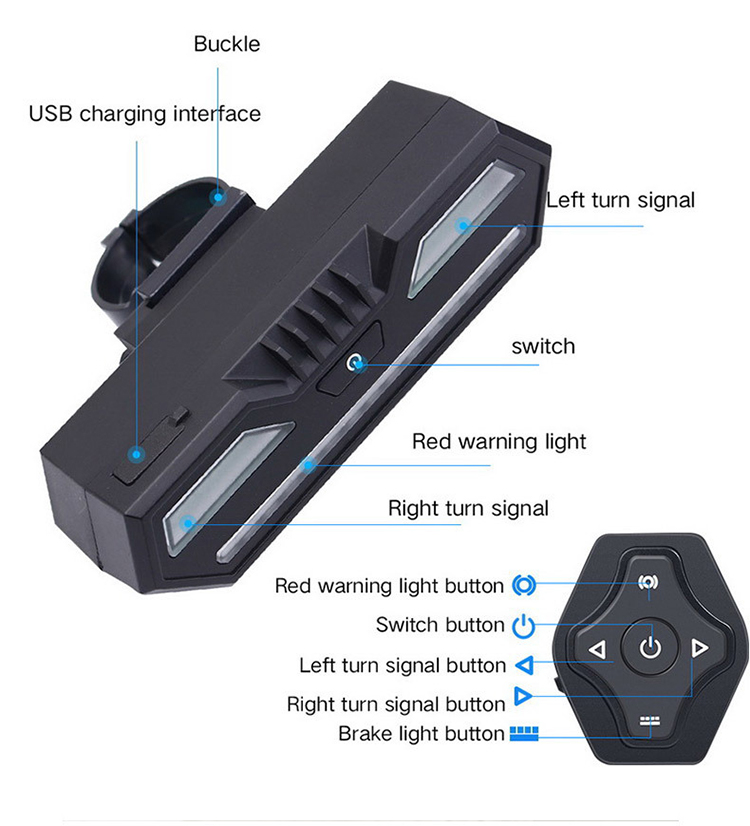

Remote control function (when turning on the turn signal)

1. Power button: Long press this button to turn it on and press long again to turn it off.

2. Red warning light button: Briefly press to change modes and there are three continuous modes on / flicker / close to switch.

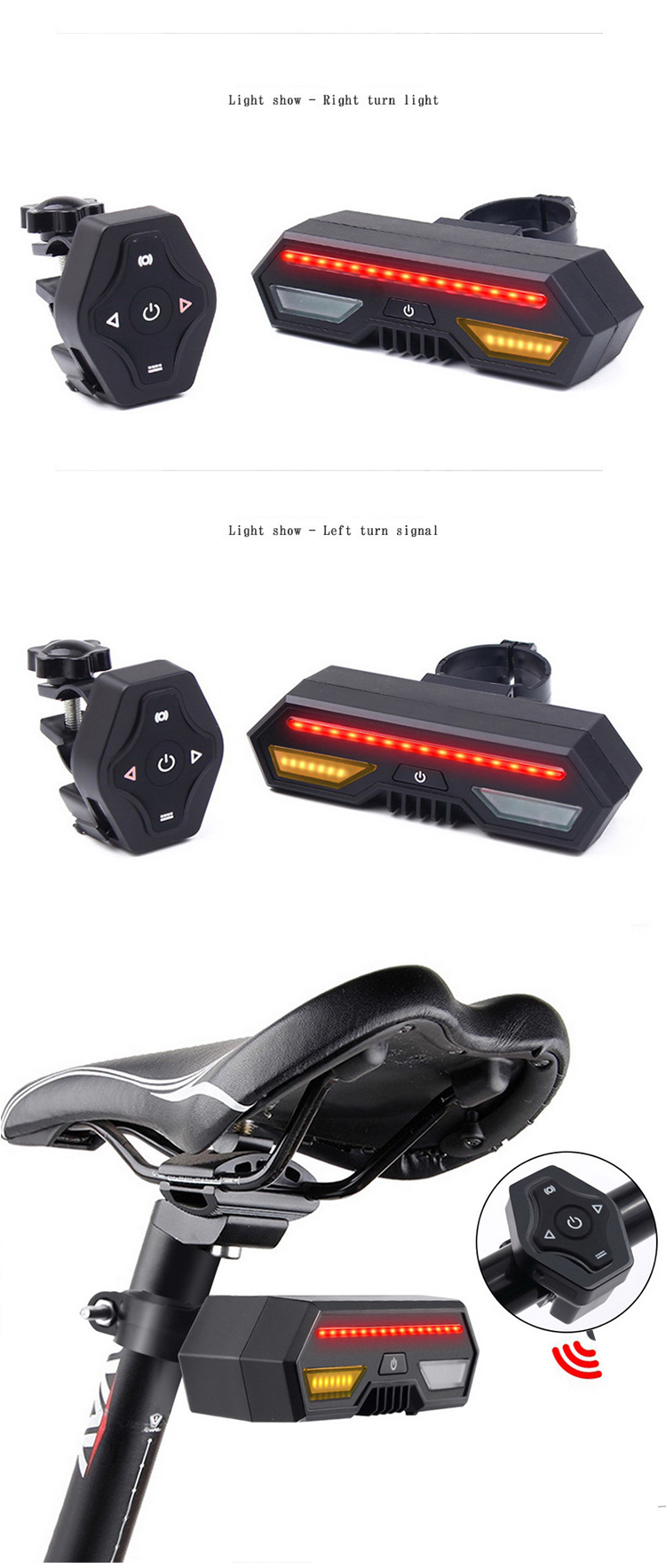

3. Left turn signal button: Press the left turn signal button on the remote control to turn it on and press again to turn it off. If the left turn signal button does not close in time, the turn signal automatically cancels the turn display after one minute.

4. Right turn signal button: The principle is the same as the left turn signal button.

5. Brake light button: Press the brake light button to turn on the brake mode and release to turn it off. During braking, the LED lights emphasize to remind the rear cars to pay attention.

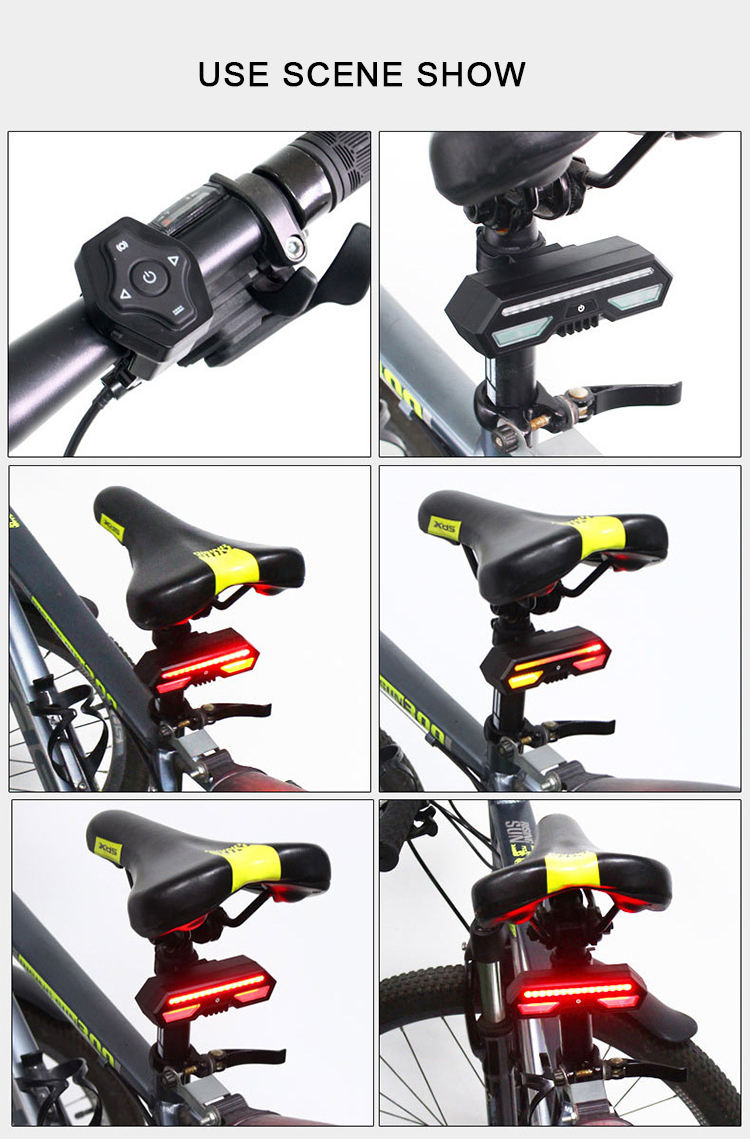

Installation notes

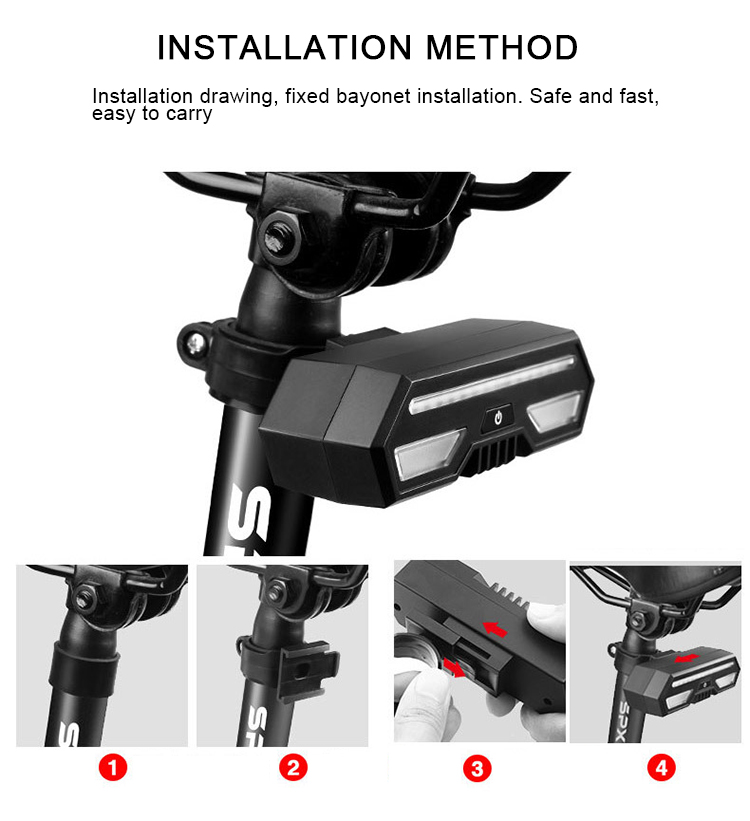

Installation of turn signal:

1. Remove the twist signal and the fixed holder in the packing box, along the grooves, slide the fixed support into the grooves and loosen the clamp

2..place the loaded beacon on the bicycle seat tube and tighten it with screws. If it is too cheap, it is better to add a rubber gasket. (turn signal is suitable for seat tube size: 25-32 mm).

Remote control installation:

Remove the remote control and then place it on the bicycle handle, tightening it with a screwdriver. The remote control is suitable for the handle size: 18-28 mm

Remote control pairing: At the same time, press the ignition button on the remote control and the turn signal, and when the turn signal flashes three times in red, it means that the pairing is successful.

Warm tips

1. Do not disassemble the turn signal yourself.

2. If the product is not used for a long time, charge it at least once within three months, otherwise it may cause the battery to not fully charge.

3. This waterproof scale product is IPX4 which can be used in rainy weather, but do not put it in water to soak.

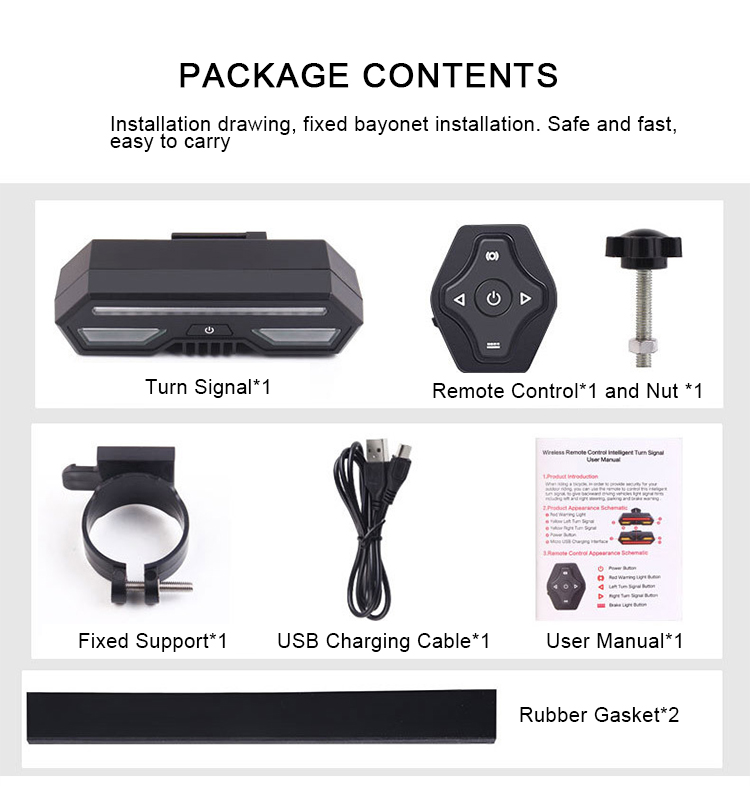

Package contents

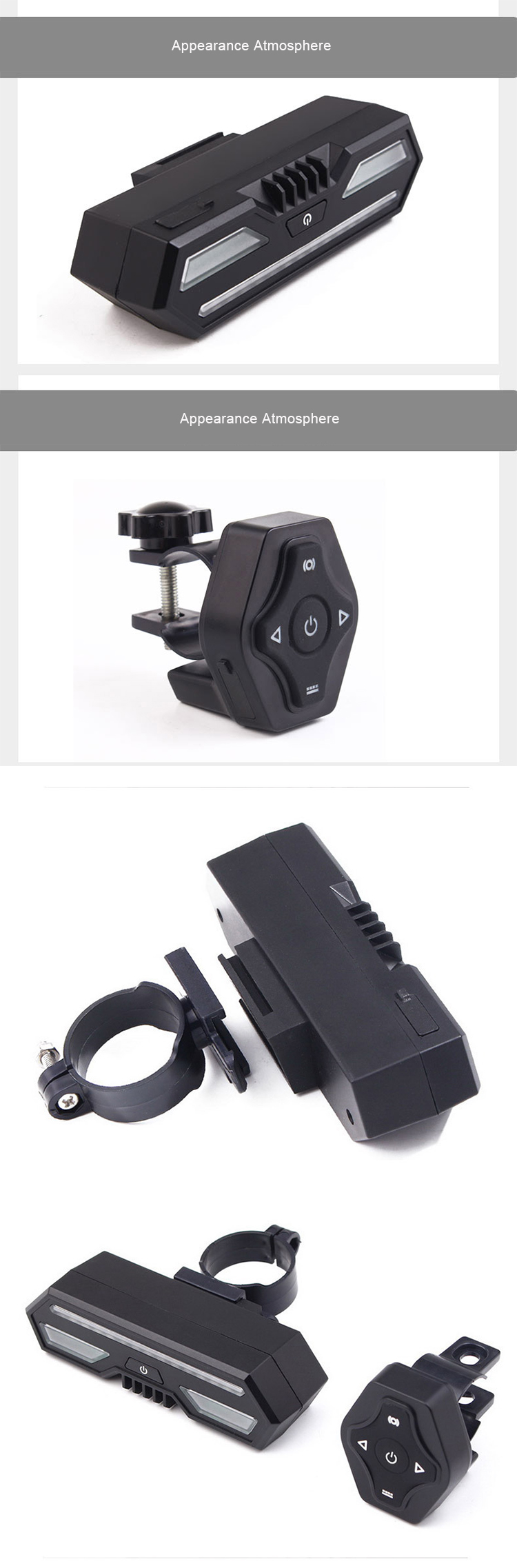

Intelligent turn signal * 1

Remote control * 1

Fixed turn signal support * 1

Rubber washers * 2

Micro USB charging cable * 1

Fixed screw and nut for signaling * 1 M4 20 mm

Screw and nut for remote control * 1 M5 25mm

User Manual * 1
