Refractory Industrial Sealing Twisted Ceramic Strands

PRODUCT DETAIL
payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGramShrinkage (1800°F, 3h):-3%
Operating temperature:450-1000°CDensity (kg/m3):96
place of origin; place of origin:Zhejiang, Chinamodel:TCR2600
Ultimate strength (≥ MPa):0.04Packaging Details:Export carton, plastic bag industry refractory sealing twisted ceramic fiber yarn
product name:Industrial Refractory Sealed Twisted Ceramic Fiber Yarnbrand:Heitex
Supply capacity:10000 kg per monthgrade:ST (Standard)
Fiber Diameter:1-5 micronscolor:white
port:Ningbo, ShanghaiThermal Conductivity:0.1-0.13 w/mk
aspect:Not applicable

Industrial Refractory Sealed Twisted Ceramic Fiber Yarn

Product Description



Ceramic fiber yarn is made of alumina silica ceramic fiber, asbestos free, can be used in different industrial applications at temperatures up to 2300 °F (1260 C), has excellent chemical stability and strong heat resistance Impact and corrosion erosion capabilities. Hydrofluoric acid and phosphoric acid and concentrated alkali are excluded. It is also resistant to oxidation and reduction, and if wetted by water or steam, the thermal properties are fully restored after drying. There is no water of hydration. It contains 15% organic carrier which helps to establish the physical formation of the product. The carrier burns out at about 750 °F (400 °C).



application



l High temperature static sealing, such as door joints or flange gaskets

l Fire protection such as fire curtains to prevent welding sparks

l For the manufacture of safety products such as safety gloves or aprons

l Expansion joint

l Pipe or round pipe insulation lagging

l Asbestos Substitutes





Product advantages



l Excellent high temperature strength

l Excellent electrical insulation ability

l Excellent corrosion resistance to acids, oils and steam

l Low thermal conductivity

l Excellent thermal insulation ability





Technical data

color

white

Al2O3+SIO2%

>=97

Aluminum 203%

>=48

Fe203%

<=1.1

Fiber diameter (um)

2,4

Fiber length (mm)

100-200

Bulk density (Kg/m3)

300-700

Moisture %

<=1.0

Thermal conductivity (hot surface), w/mk

0.12~0.13(300°C)

0.13~0.16(600°C)

0.17~0.20(1000°C)

Heating bushing shrinkage (%)

<=3.5(1000°C*3h)

High temperature loss during ignition

20

15

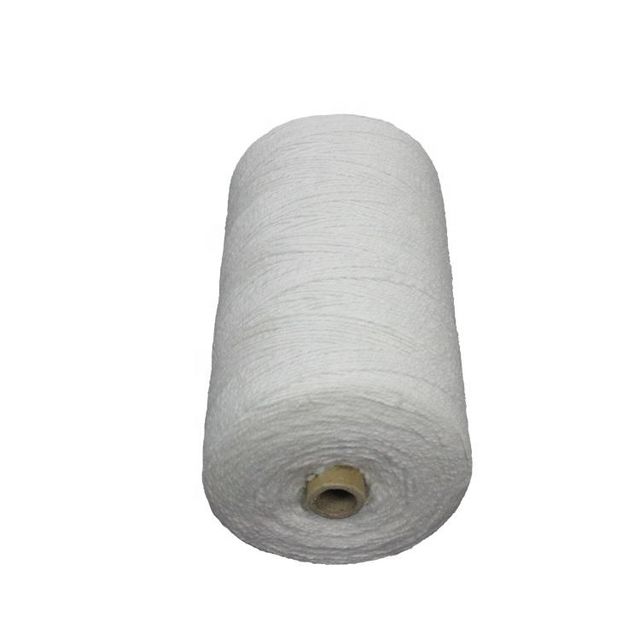

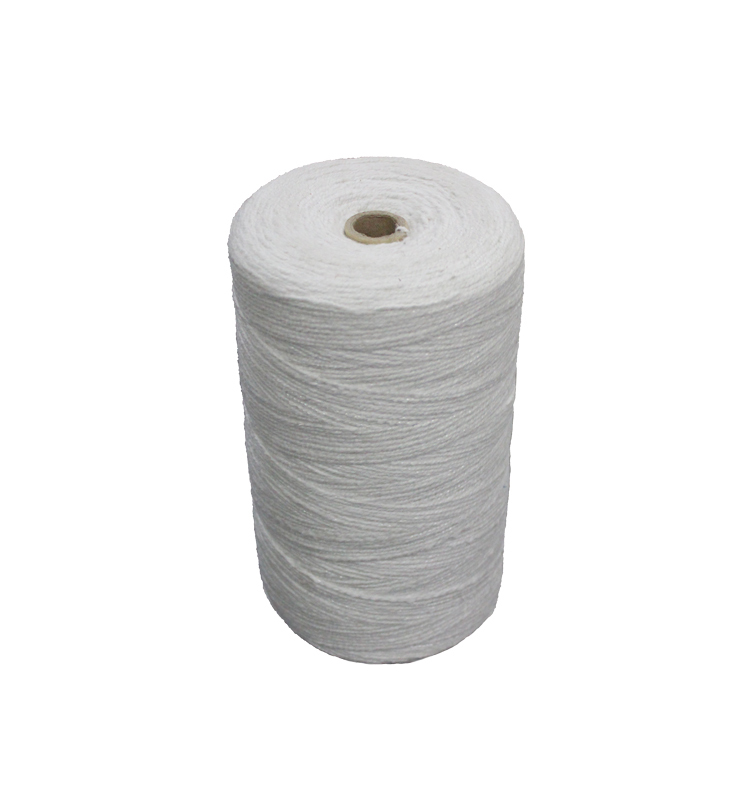

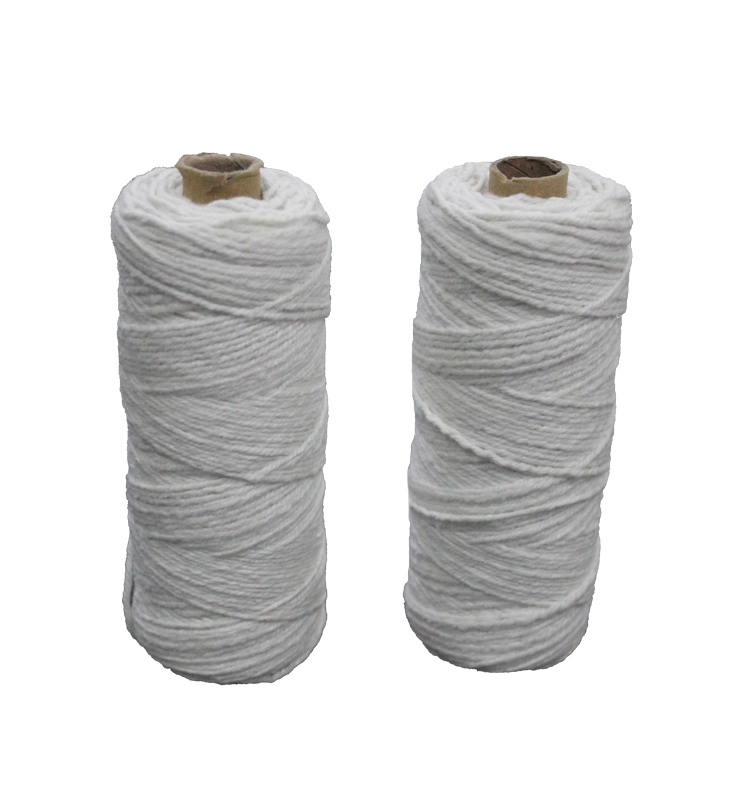

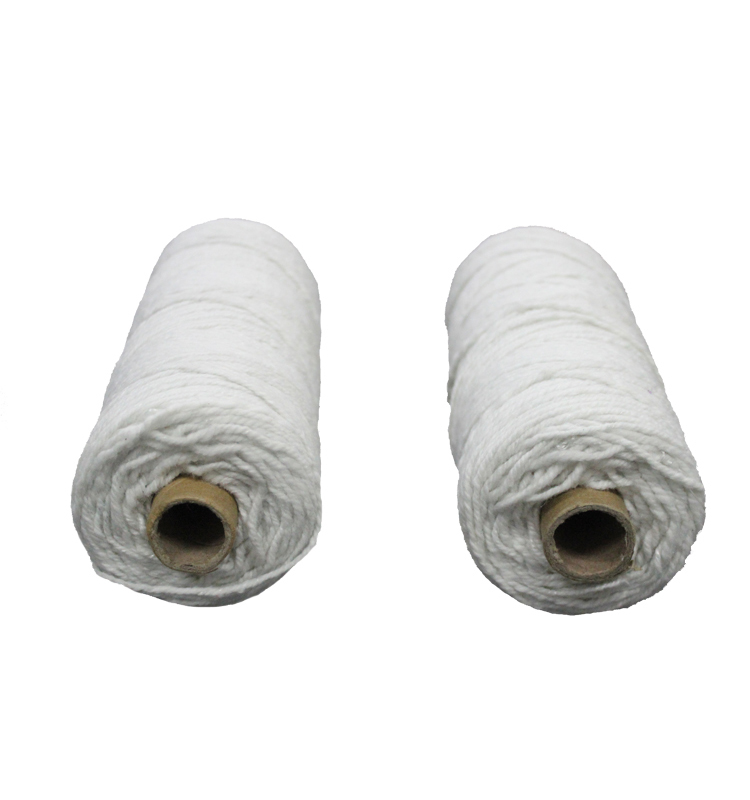

detailed image

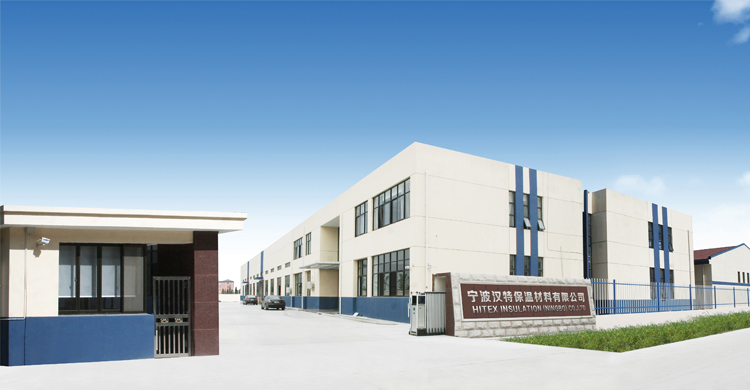

about us

Hitex offers a wide range of high temperature fabrics and textiles for the thermal insulation, fire protection, welding and cut protection, sealing and gasketing, refractory and composite industries. Technical fabrics are available in different coatings and treatments to suit extreme temperatures and conditions and more.
