Remote Control Smart Safety Emergency Lifebuoy / Intelligent Life buoy

PRODUCT DETAIL
Place of Origin:Shandong China;Maximum wave resistance level:Level 3;
Rated power:600 W;Applicable People:Adult;
Load speed:1.2 m/s(loading one person);Package Preview:;
Model Number:LBI80-6;Maximum rescue weight:120kg (1 people);
Material:Vinyl;Recommended water depth:≥50cm;
Single gross weight:55.0 KG;Single package size:60X60X60 cm;
Selling Units:Single item;Power Thruster:4 groups Pump Jet Thruster(with back-up);
Thruster Dia.:80mm;Brand Name:RIMA;
Product Description

Product Application

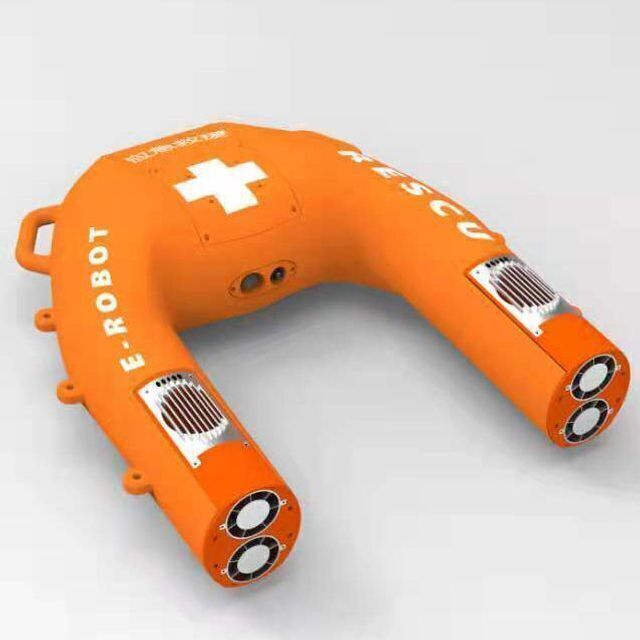

This U-shaped intelligent lifebuoy is a new type of intelligent water rescue equipment. It can replace the rescue personnel to quickly reach the accident dangerous waters and transfer the trapped people to the safety place.

Widely used in water rescue (maritime police, emergency department, rescue team), ship rescue (inland rivers, patrols, official boats, ocean vessels, fishing vessels, bulk carriers), emergency rescue deployment of reservoirs and ponds, naval training and operations.

Main Specification
  Intelligent Lifebuoy(Lifeboat)
Model
LBI80-6
Type
Double thruster



U-shaped ergonomic design
Waterproof Rating
IP68, Anti-sink

Shape Design Technology
Rotational molding with long-life, UV-resistant, and oil-resistant materials at one time;
U-type ergonomics design, easy to rescue and reducing the water resistance effectively
Lifesaving handle
4 groups on left and right
L*W*H
980mm*810mm*240mm
Net Weight
13kg
Effective drainage
61kg












Power
Power Thruster
4 groups Pump Jet Thruster(with back-up),Both sides can absorb water for sailing
Thruster Dia.
80mm
Rated power
600W



power supply battery
Platform voltage: 22.4v
Full voltage: 25.2v
Battery type: Li-Fe 7s4p
Capacity: 11.2AH
Energy: 251WH
Working environment temperature: 0-50℃
Extremely low temperature:
0- -10℃ electricity about 75%
-10℃- -20℃ electricity about 60%

Data Cloud Platform
Management
Real-time communication management of battery BMS, online detection of battery voltage, current, battery temperature, product
positioning information etc., supporting smart terminals to monitor product using status, and timely warning of possible abnormal
risks.
Battery BMS management protection
Over temperature, over charge, over discharge, over current and short circuit protection
Battery fast charging solution
Supporting to customize the battery fast charging scheme, being fully charged within 0.5-1 hours at the soonest;
Normal charging about 1 hour and 15 minutes;
Working temperature
0-50℃
Single thruster force
Maximum Single thruster force up to 20kg






Navigation
Load speed
1.2 m/s(loading one person)
No-load speed
The highest speed in freshwater cup to 5.5 m/s;Loading speed up to 1.2m/s with one 75kg adults
Endurance time
Economical speed 2.5m/s,max. 30min.
Routine cruise 20min(70% accelerator)
Maximum rescue weight
120kg (1 people)
The Max rescue weight is 280KGS for 4 people to keep the head over the water level.
Maximum wave resistance level
Level 3
Recommended water depth
≥50cm





Control Method




Remote control
Communication method:Two-way 2.4GFHSS spread spectrum technology
Antenna gain:1dbi
Working voltage:5v
Battery:4000mah1slipo
Charging:micro USB 5v2a
Remote control battery working environment:0℃-50℃
Remote control working environment:-10℃-55℃
Remote control radius on water surface:≤500m(Optional 1000m)
Navigation Control
Manual control: forward,left, right differential steering
Front and reverse automatic identification
Built-in 9-axis gyroscope, can recognize posture information, automatically turn left and right


Deployment and usage
Alert deployment
On-demand deployment near the water, can be mounted as well as be placed flat
Emergency usage
One-button start, ready-to-use when falling into water
Alarm use
Low battery automatic alarm
High throw usage
Can be used for thrown into water from height<10M
Our Advantages
The company's core power consists of the following three main core components:
(1) In the field of "underwater motor" research and development, our technical is at the same level as NASA in US, and synchronizes with the world's first echelon. The technical level: small high-performance motor - high power density 15KW/Kg, high speed 50WRPM, ultra-low Rotation speed 0.5RPM;
(2) In the field of "small propeller" research and development, we have independently developed more than 200 models small high-performance propeller maps, which can greatly improve the kinetic energy conversion effect, reduce the cost of product development and application, and fill this industry’s gap. Among Chinese private enterprises, it is in a unique and special position;
(3) In the field of "driver" research and development, our company has a completely independent algorithm. The technical capability can reach 99.5% efficiency index, and when the open loop speed is higher than 10% rotating speed, the the accuracy index deviation is less than 0.5%. It has strong precision advantages of positioning and energy saving.
Detailed Images


1. GPS beidou dual positioning
Sas-01 intelligent lifeboat adopts a new generation OF GPS/ Beidou dual positioning system to achieve faster and more accurate

2. LQR tracking control
The ontology supports automatic LQR tracking control system.

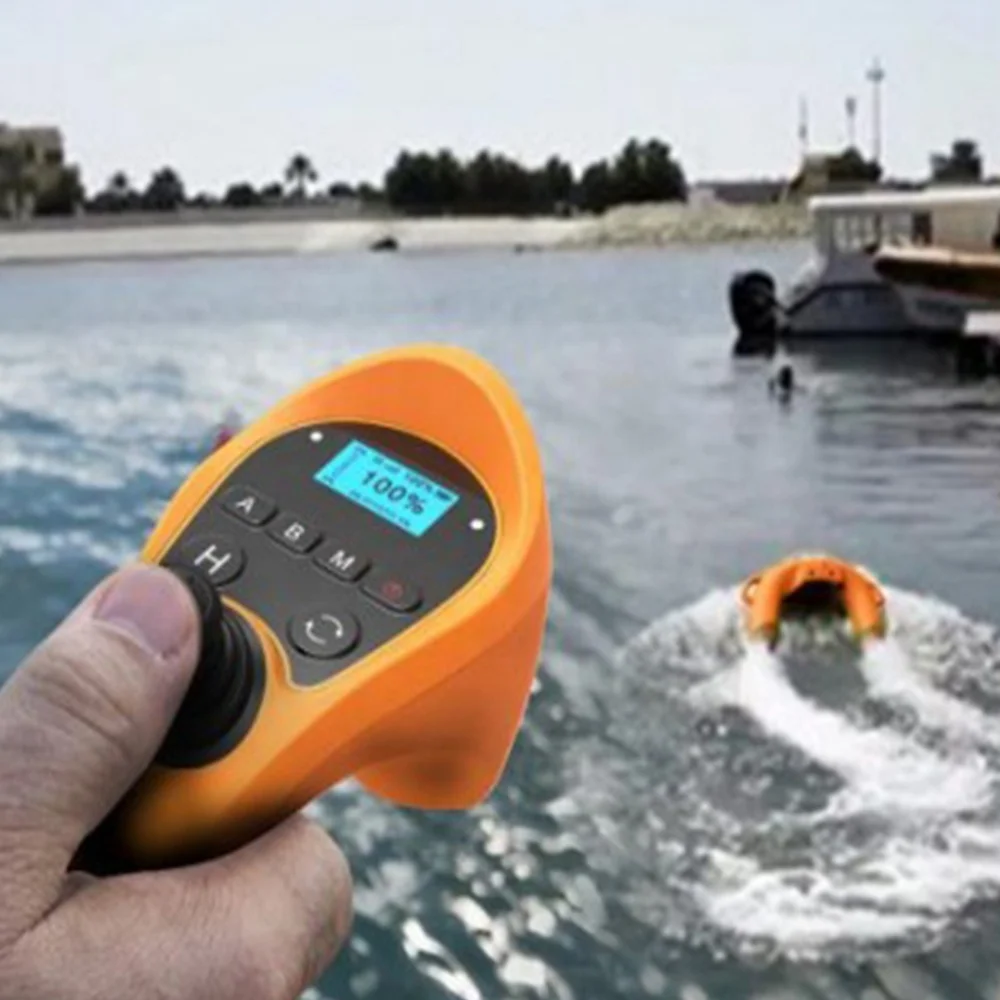

3. Remote control
The intelligent lifeboat adopts one-hand remote control, and the equipment has a relatively long communication distance, which can realize ultra-long distance control over 800-1000 meters.

Easy to operate, can accurately control the surface lifeboat route.
4. Automatic return when contact is lost
In the rescue process, if the intelligent life buoy loses contact due to signal interference or beyond the remote control distance, the intelligent life buoy will automatically start the lost contact automatic return mode and return to the original starting point.

5. Driving on both sides
Support both sides of the car, in case of heavy wind and rain cause the fuselage to turn over, after turning over, the car can run normally, with the rescue ability in the big storm.

6. Autonomous course correction
In case of course deviation caused by factors such as big wind and waves, it will automatically correct course and run normally.

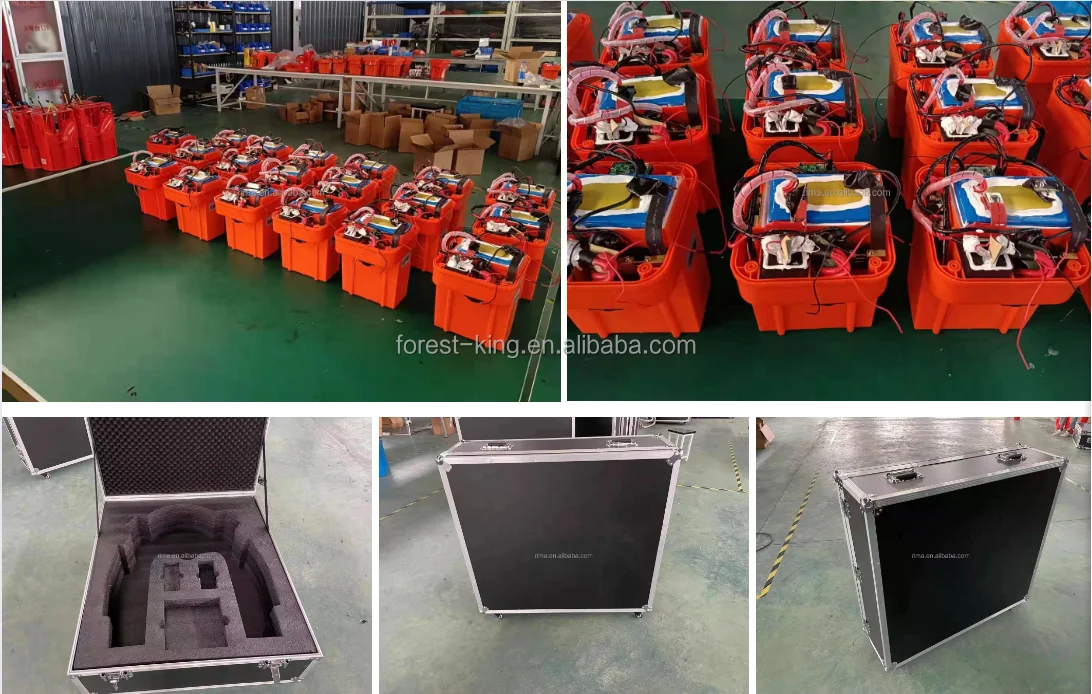

Packing & Delivery
