Round Square Lighting Round Light Panel 23w Ip65 Waterproof LED Recessed Downlight
- $15.50 / >=2 pieces
- 2 pieces
- Shenzhen Smart LED Limited
- Guangdong, China
- Ms June Liu
| Dimmable: | SCR/0-10V/Dali order | power supply: | air conditioner |
| Sales unit: | single product | color: | black and white |
| Single package size: | 25X5X10 cm | Input voltage (V): | AC 85-265V |
| enter: | 100-240V, 50-60Hz | UGR: | 10-19 |
| Color temperature (CCT): | 4100K (neutral white) | Color rendering index: | Ra80, Ra90, Ra97 (R9>95) |
| Series power: | 15w 25w 35w 45w | light source: | to lead |
| Color rendering index (Ra>): | 80 | Protection class: | IP20 |
| Working hours (hours): | 50000 | Color rendering index (Ra): | 80 |
| Warranty (year): | 3 years | Lamp Luminous Efficiency (lm/w): | 100 |
| application: | Gardens, hotels, landscapes, office buildings, residences, stadiums, theme parks, warehouses | Gross weight per piece: | 1.500 kg |
| Lighting Solutions Services: | Agi32 layout, auto CAD layout, DIALux evo layout, Lighting and circuitry design, LitePro DLX layout, Project installation | place of origin; place of origin: | Guangdong, China |
| Lifespan (hours): | 50000 | Supported dimmers: | Yes |
| brand: | clever |

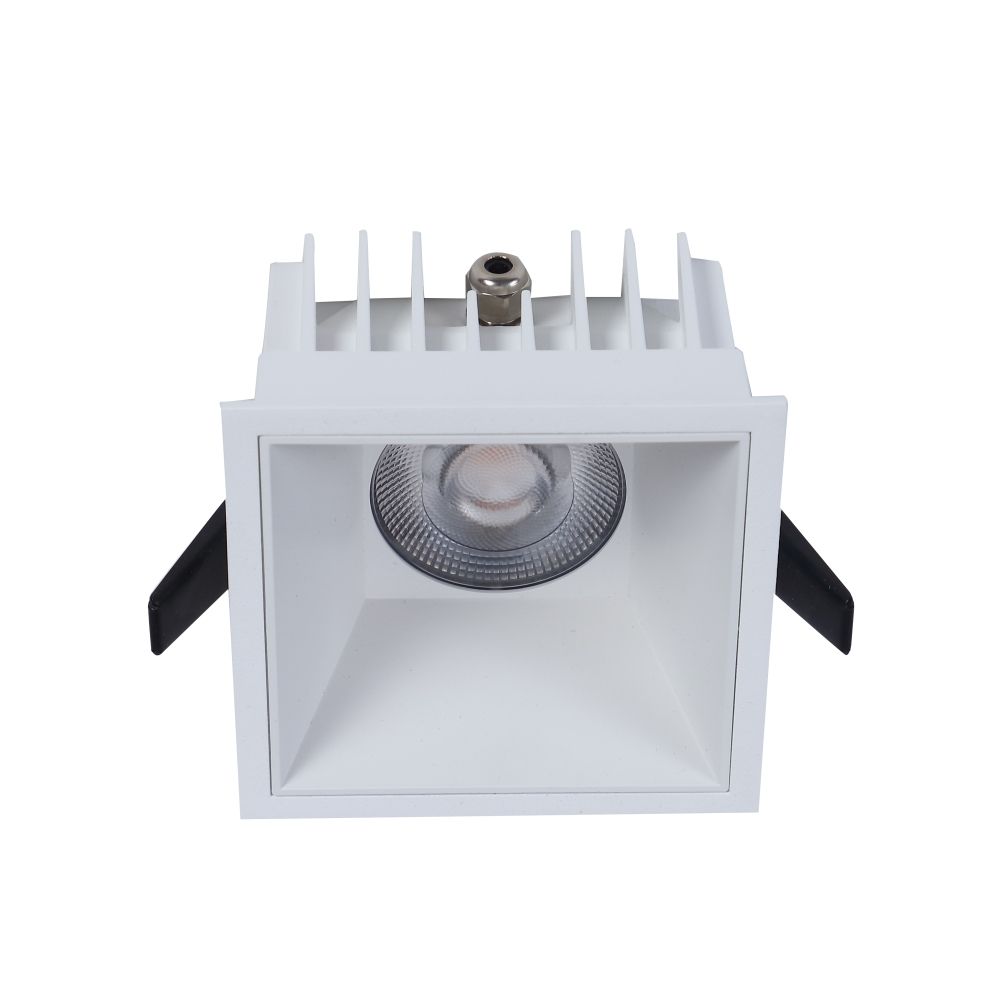

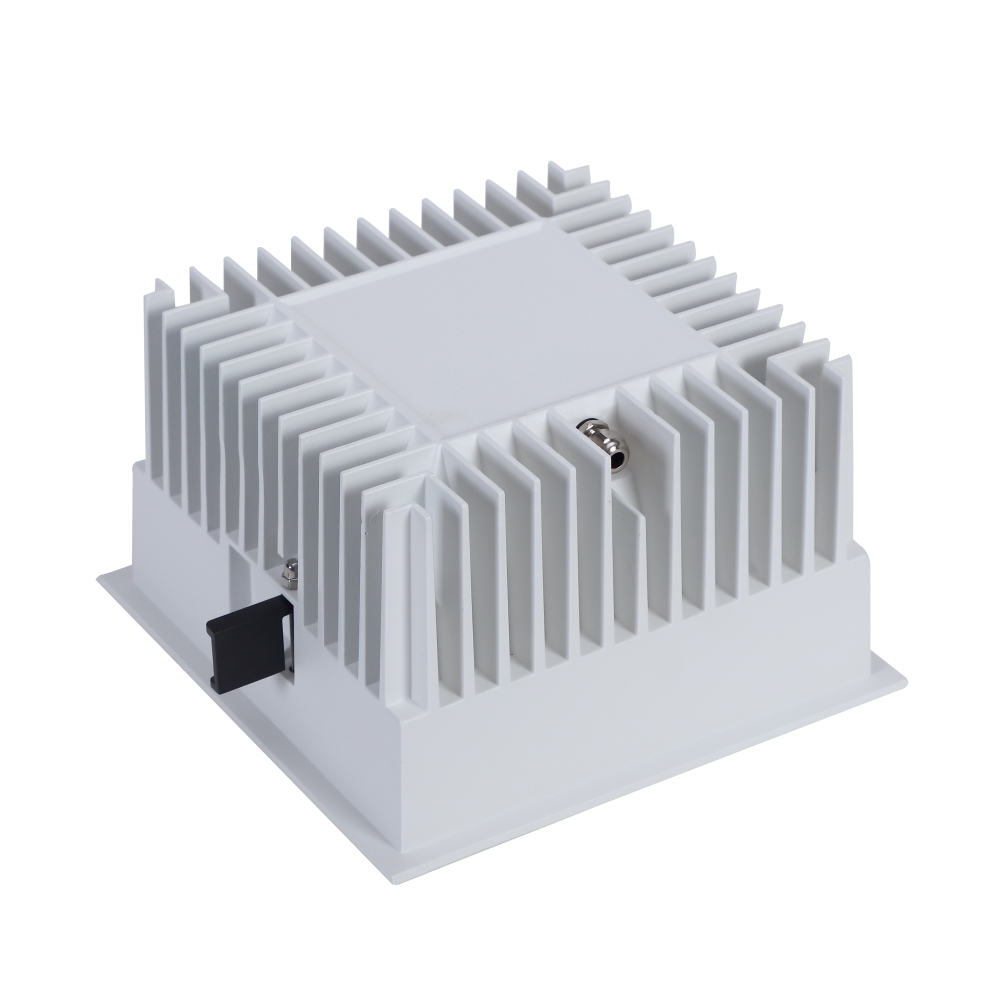

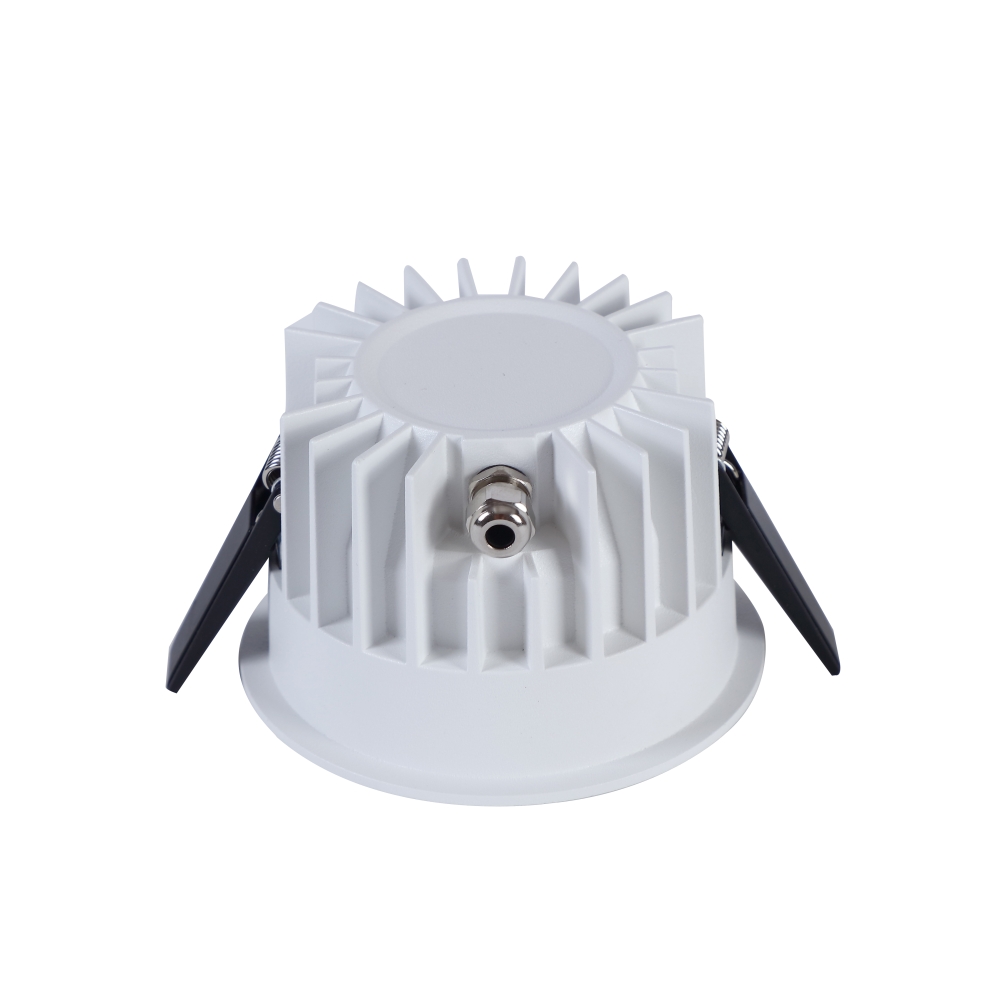

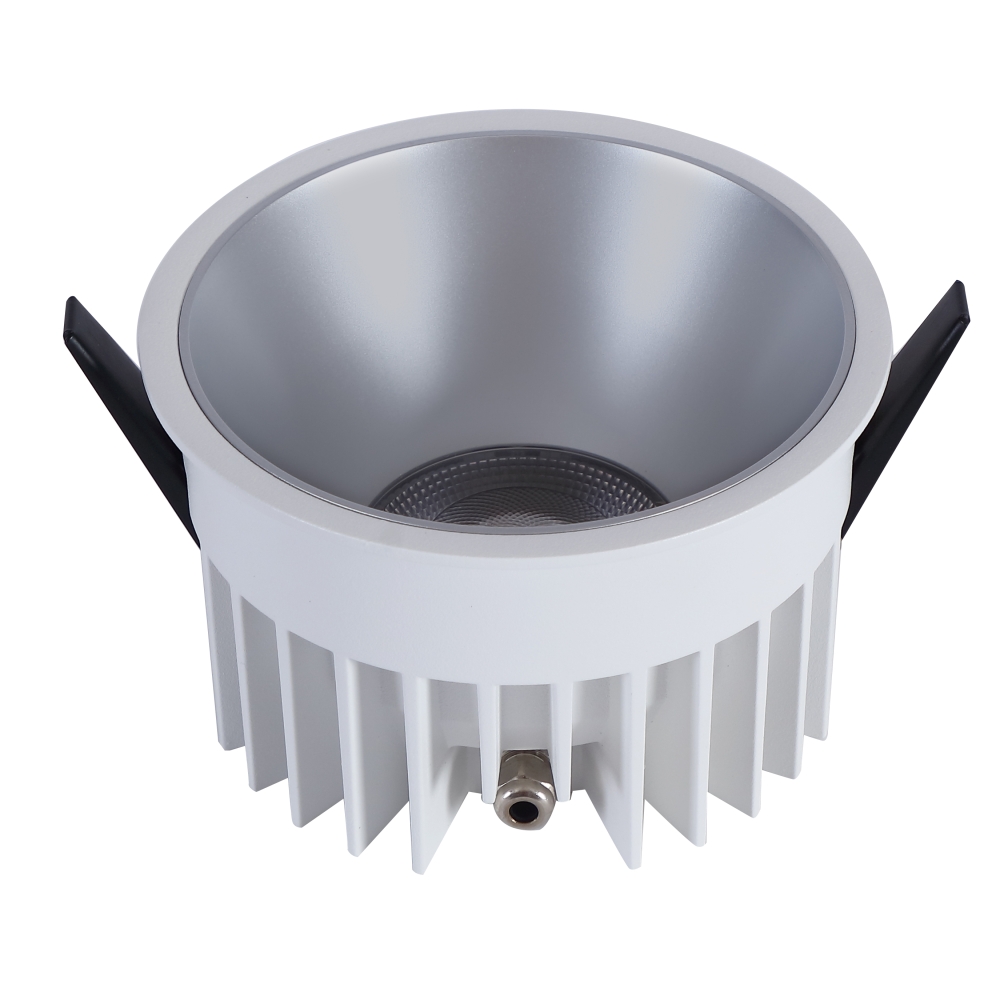

Model: Integrated die-casting recessed ceiling downlight
Power: 7W 10W 20W
Material: Integrated Design Aluminum
CCT: 2700K, 3000K, 4000K, 5000K, 6000K White, Dim to Warm, Tunable White
Color rendering index: Ra80, Ra90, Ra97
UGR: 10-19
Output efficiency: 110~130lm/W
Input: Ac100-240V, 50-60Hz, no flicker

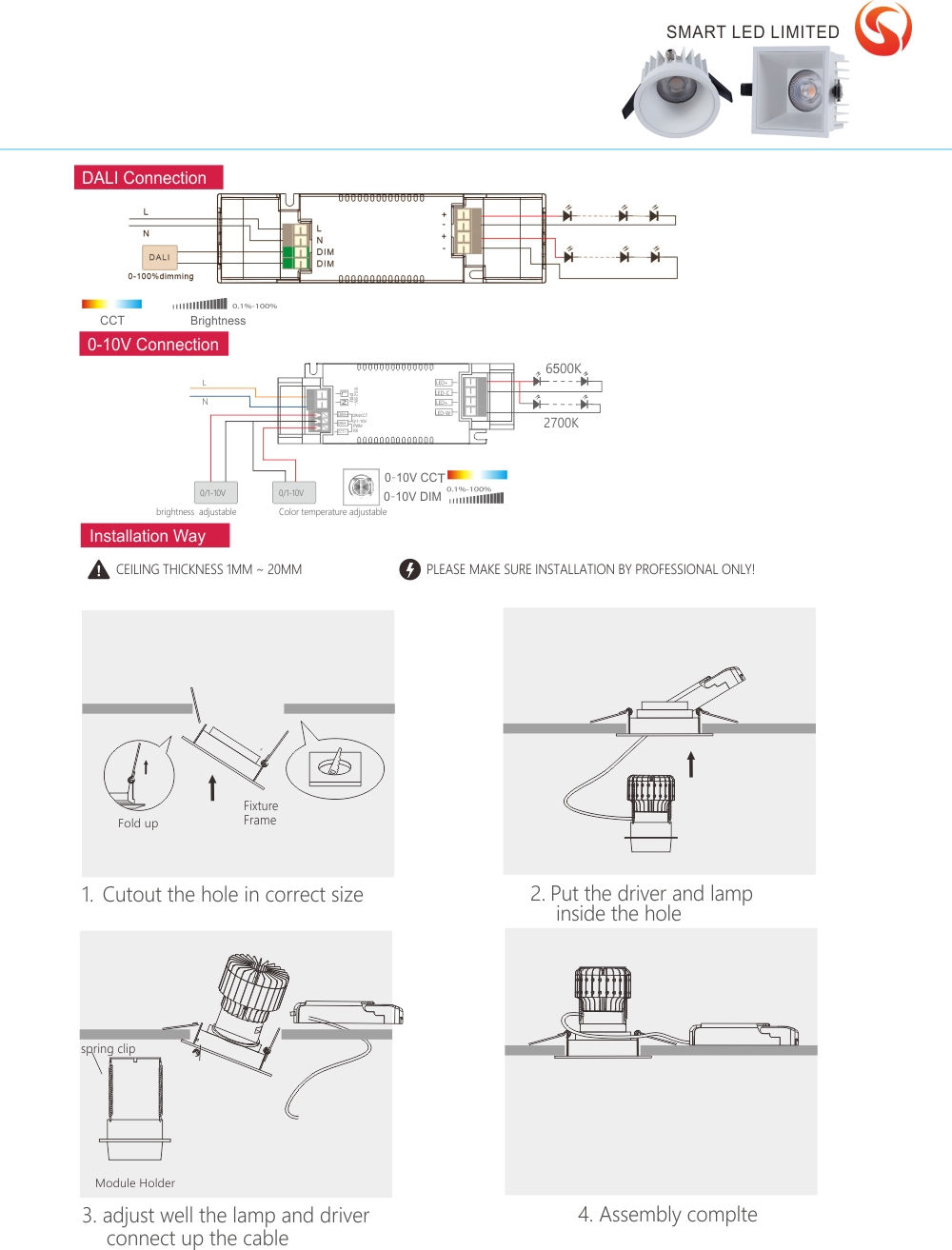

Dimmable: Triac Dim, 0-10V Dim, Dali Dim, CCT-Dim (on order)
Warranty: 5 years
application:Products are widely used in offices, commercial centers, shopping malls, supermarkets, factories and other indoor main lighting.

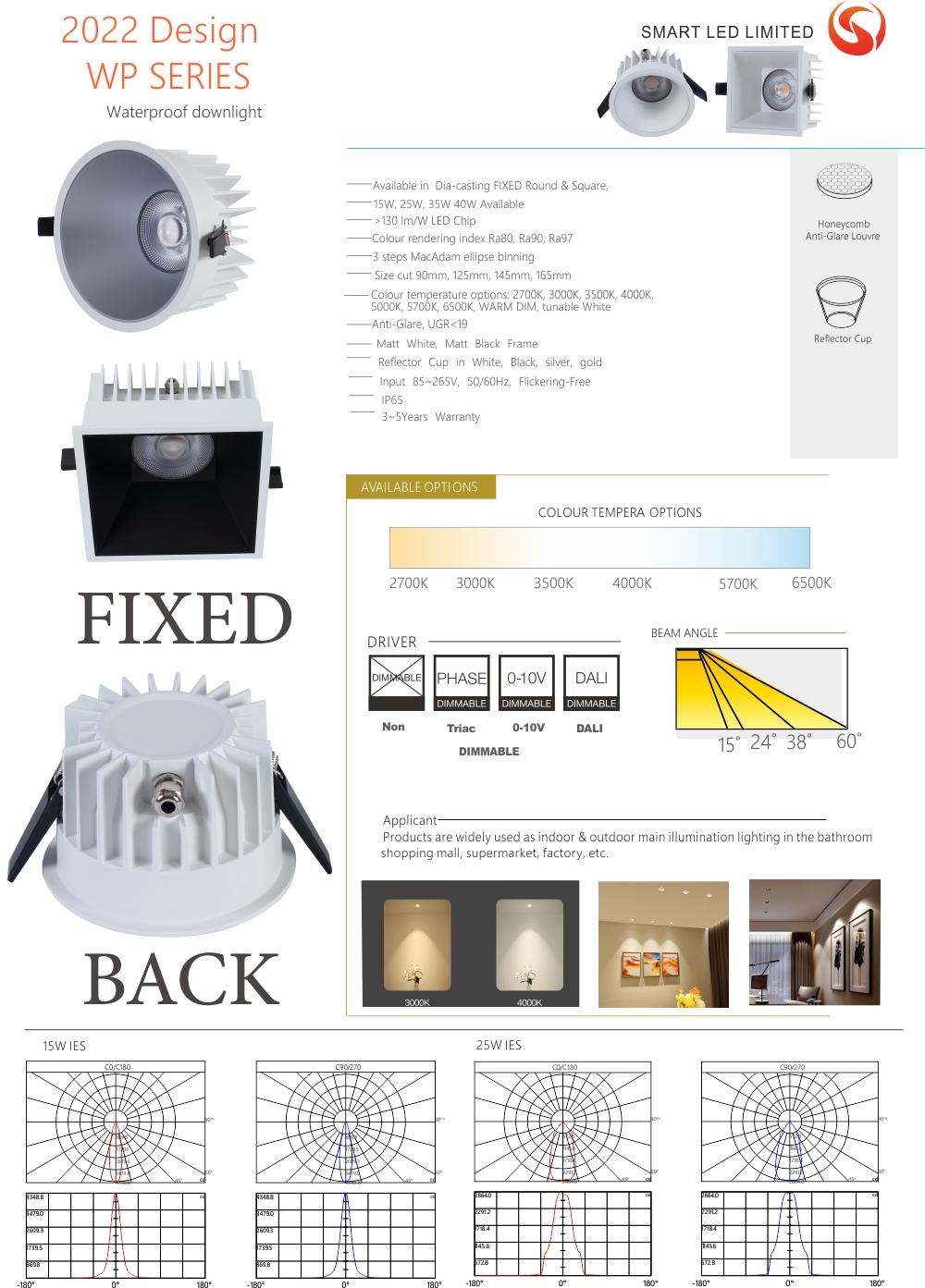

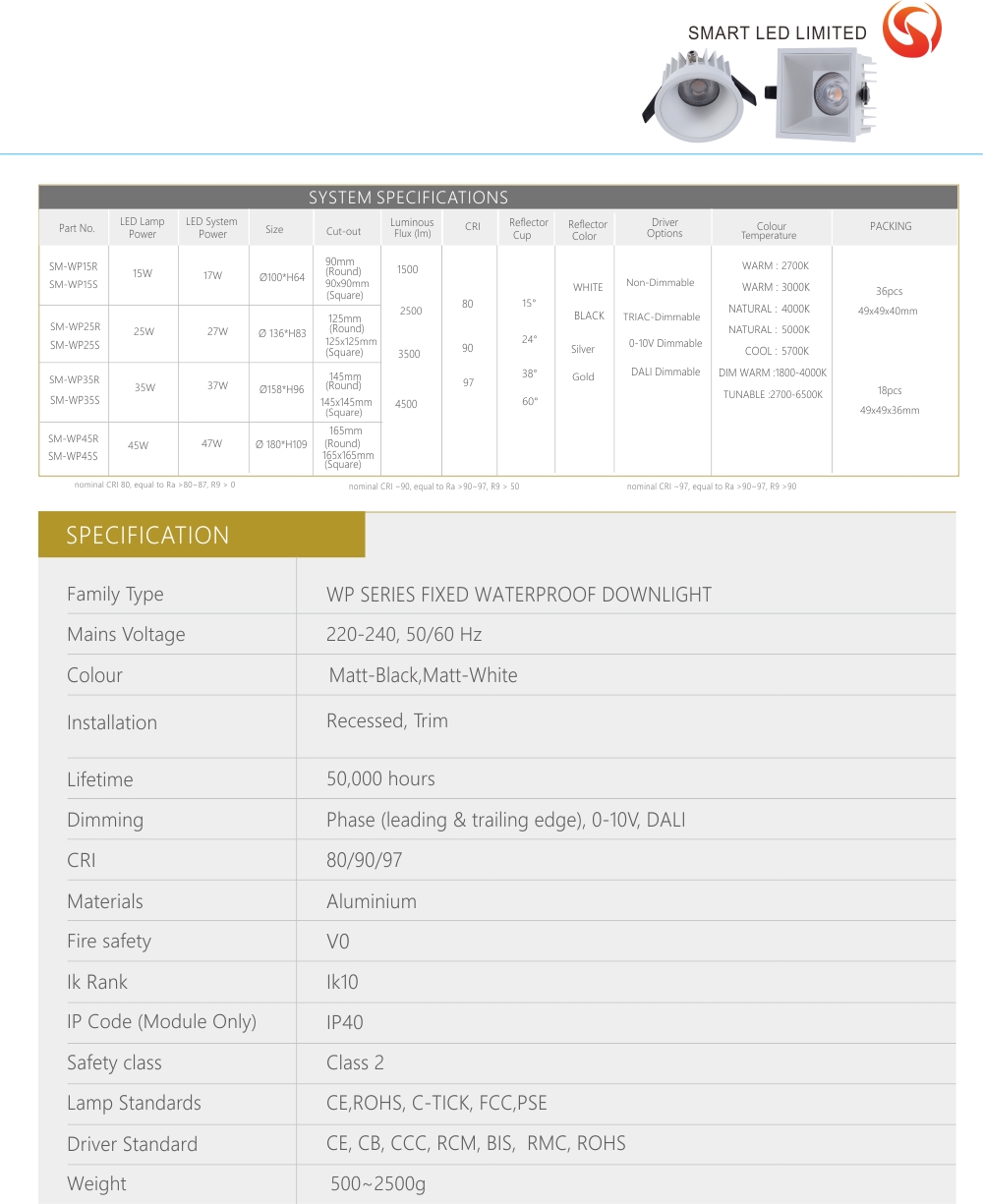

Product parameters
| model | SM-WP15R & SM-WP15S | SM-WP55R & SM-WP25S | SM-WP35R & SM-WP35S | SM-WP45R & SM-WP45S |
| sharp | round and square | |||
| system power | 15W | 25W | 35W | 45W |
| Input voltage | AC100-277V / AC100-240V | |||
| Frequency Range | 50Hz~60Hz | |||
| LED initial luminous flux (lm) | 1500lm (±50) | 2500lm (±100) | 350lm (±100) | 4500lm (±150) |
| Dimensions (mm | 100X64mm | 136X83mm | 158x96mm | 180x109mm |
| cut out | 90mm | 125mm | 145mm | 165mm |
| Color rendering index | Ra80, Ra90, Ra97 | |||
| UGR | 10-19 | |||
| Beam angle | 15° 24° 38° | |||
| IP rating | IP65 | |||
| shell color | white, black | |||
| Storage temperature | -25°-45° | |||
| Operating temperature | -45°-65° | |||
| Fire-proof level | V0 | |||
| certified | CE, Rohs, C-tick, FCC, PSE, REACH | |||
| optical data | IES | |||
>>>Click here to get the catalog now
SMART is also very experienced in ODM&OEM cooperation with customers for personalized products, all new ideas are welcome.
Q1. Do your products have certificates?
A: Yes, all of our products have CE (EMC+LVD), Rohs, C-tick, FCC, PSE, REACH, ERP and other certifications
Q2. What is the warranty?
A: 5 years warranty for our commercial lights.
Q3. Can I have sample lamp? What is the MOQ?
A: You are very welcome to set sample order to feel our quality, so MOQ=1, mixed samples are acceptable.
Q4. How long is the delivery time?
A: 3-5 days for sample order, 7-20 days for mass order, it depends on the quantity.
Q5. What is your payment terms?
A: T/T, L/C, Paypal, Western Union in advance.
Q6. How to move order
A: Usually by express DHL, FEDEX, TNT or UPS, when the order is large, it takes 3-5 days on the way, or it takes 10-25 days by air or sea.
Q7. Is it possible to print your company name or logo on the lamps
A: Yes, please inform us before ordering
Q8. How to process an order
A: 1> Please let me know your needs and requirements
2> According to your needs, we quote all the expenses for you
3> Please confirm all details on PI and arrange deposit
4> We arrange the production, and ship to you by express, and tell you the tracking number you want to track
