SDAPO PM3812AT 48 volts to 12 volts 2 amps standard module total 25.5 watts
- $3.56 / 1 - 99 pieces
$3.44 / 100 - 999 pieces
$3.37 / 1000 - 4999 pieces
$3.33 / >=5000 pieces - 1 piece
- Shenzhen Dapo Communication Co., Ltd.
- Guangdong, China
- Ms Xiao Vivian
PRODUCT DETAIL
| compatibility: | end span (1,2 + / 3,6 -) and mid span (4,5 + / 7,8 -); | Gross weight per piece: | 0.300 kg; |
| model: | PM3812AT; | brand: | SDAPO; |
| Packaging Details: | Packed in pallets and cartons; | type: | slope module; |
| size: | 38*38mm; | Specification: | Comply with IEEE802.3af/at standard; |
| application: | slope module; | Single package size: | 11X13X6 cm; |
| place of origin; place of origin: | CN;Guaya; | Safety: | With perfect short circuit protection, 1500V high voltage isolation; |
| Sales unit: | single item; | Country of Birth: | Shenzhen, China; |
| application: | all network cameras; | Card: | Stabo; |
Product Description
You are welcome to customize POE modules of various sizes and appearances and functions. Layout is required to charge initial R&D fees. R&D expenses can be deducted after ordering a certain number of modules (usually 5000). The samples are qualified, mass production.
1. Product Features:
* Specifications: Comply with IEEE802.3af/at standard
* Safety: with perfect short circuit protection, 1500V high voltage isolation
* Size: 38*38mm
* Compatibility: The integrated network adapter supports both End-span (1,2+/3,6-) and Mid-span (4,5+/7,8-) power modes
2. Application: All IP Cameras
3. Main parameters:
* Specifications: Comply with IEEE802.3af/at standard
* Safety: with perfect short circuit protection, 1500V high voltage isolation
* Size: 38*38mm
* Compatibility: The integrated network adapter supports both End-span (1,2+/3,6-) and Mid-span (4,5+/7,8-) power modes
2. Application: All IP Cameras
3. Main parameters:
Do not. | scope | symbol | sensitive | Typical value | maximum | unit |
1 | Input voltage | Input voltage | 44 | 48 | 57 | five |
2 | The output voltage | +VDC | 11.8 | 12 | 12.3 | five |
3 | Output current | pressurized water reactor | 2 | 2.3 | One | |
4 | isolation voltage | International Organization for Standardization | 1.48 | 1.5 | 1.52 | kV |
5 | Storage temperature | Tj | -40 | 25 | 120 | °C |
6 | Operating temperature | tstg | -40 | 25 | 85 | °C |
* Typical value is 25℃, measured under 48V power supply environment, for reference design only
3.2 Do not exceed the recommended load value of 1800mA (excluding IR-cut switch) to adapt to different environments

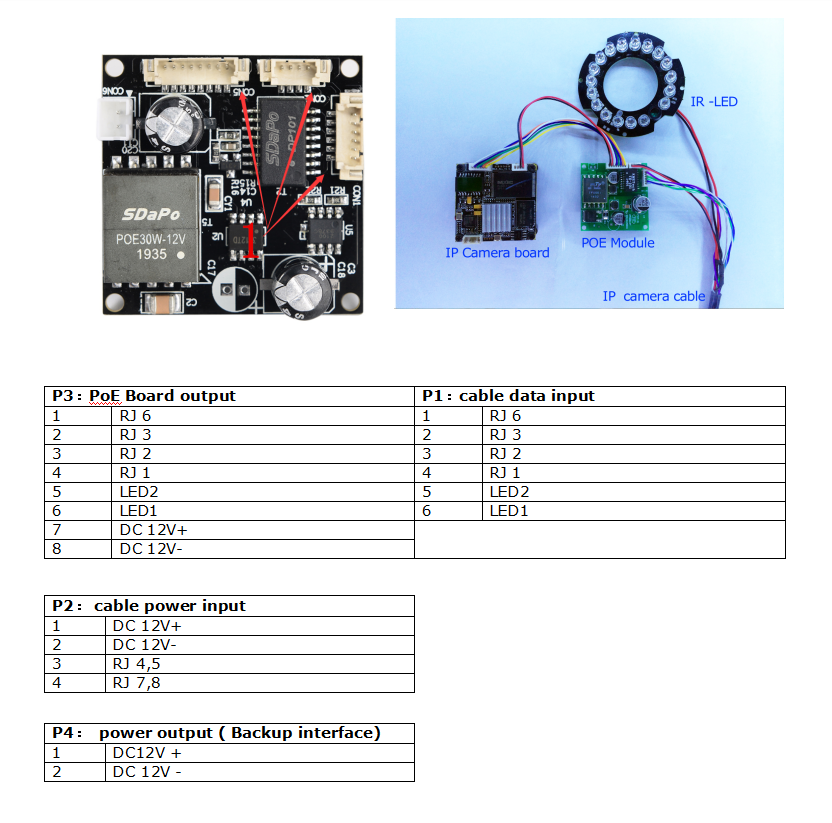

4. Interface definition:
3.2 Do not exceed the recommended load value of 1800mA (excluding IR-cut switch) to adapt to different environments
4. Interface definition:
