SEEPEX/MONO/NETZSCH and other standard open hopper screw pumps, screw pumps, screw pumps

PRODUCT DETAIL
Applicable industries:Manufacturing plants, food and beverage plants, energy and mining, chemicals, wastewater treatment, paper, electronics, petroleum, non-metalsCore component warranty:1 year
Warranty:1 yearSupply capacity:5000 sets per year
Marketing Type:New Products 2020Health status:new
structure:screw pumporigin:Wuhan, China
transport package:Export casebrand:Ronis
Certification:International Organization for Standardizationtrademark:Ronis
Production capacity:5000 sets/yearFlow range:0.5-100 cubic meters per hour
Specification:Stainless steelpayment terms:L/C, D/P, T/T
Packaging Details:Fumigated wooden box packagingVideo shipment inspection:if
Customs code:8413604090Mechanical test report:if
type:screw pumpCore components:rotor, stator
Showroom location:not anyPressure range:0-4.8 MPa or higher
model:RD seriesPackage preview:
port:Wuhan

Product Description

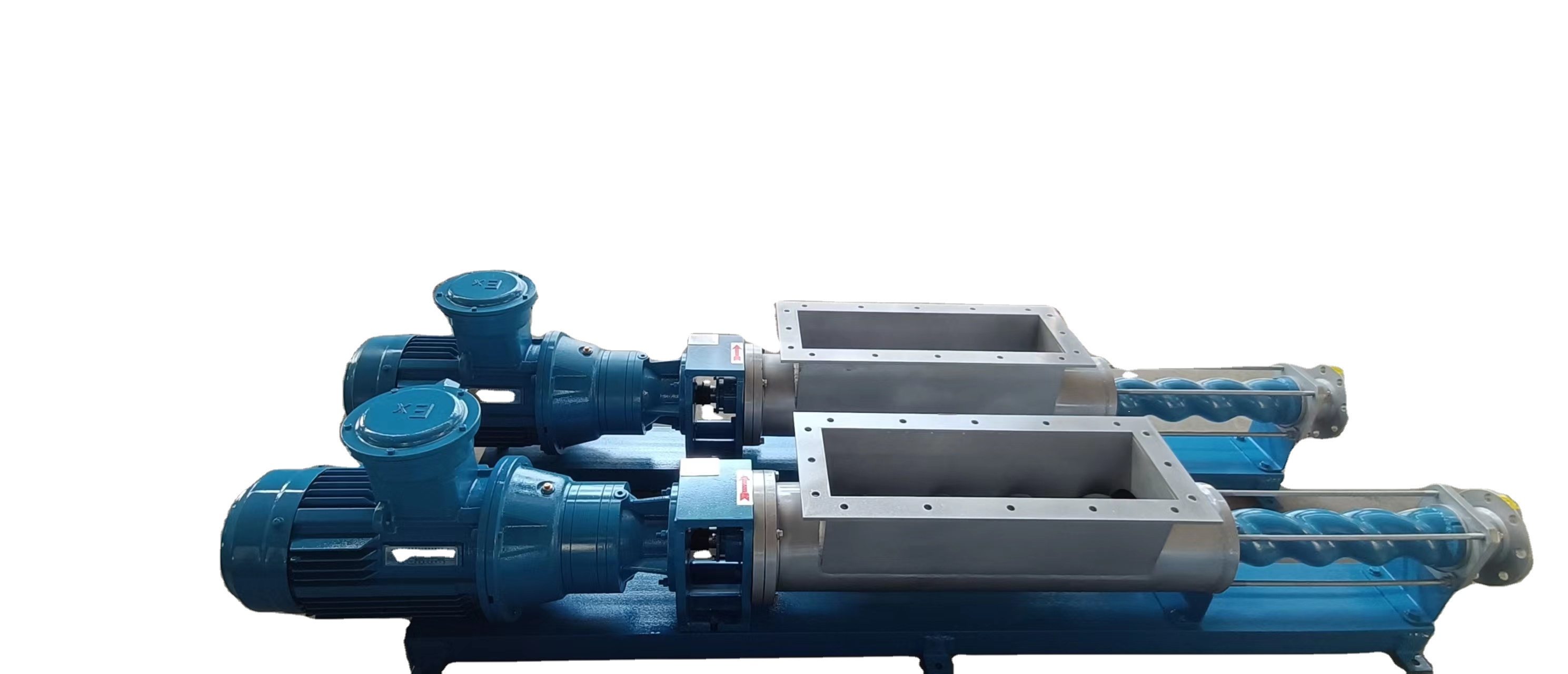

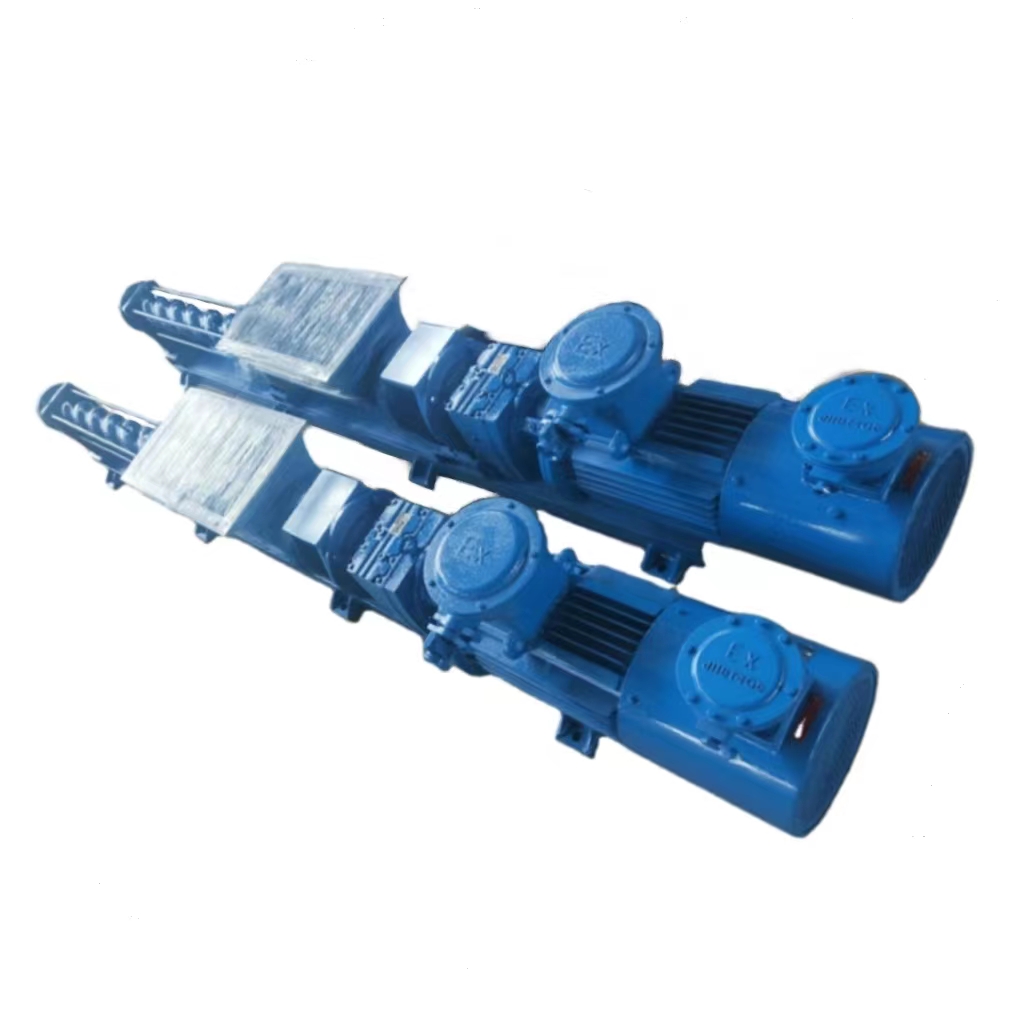

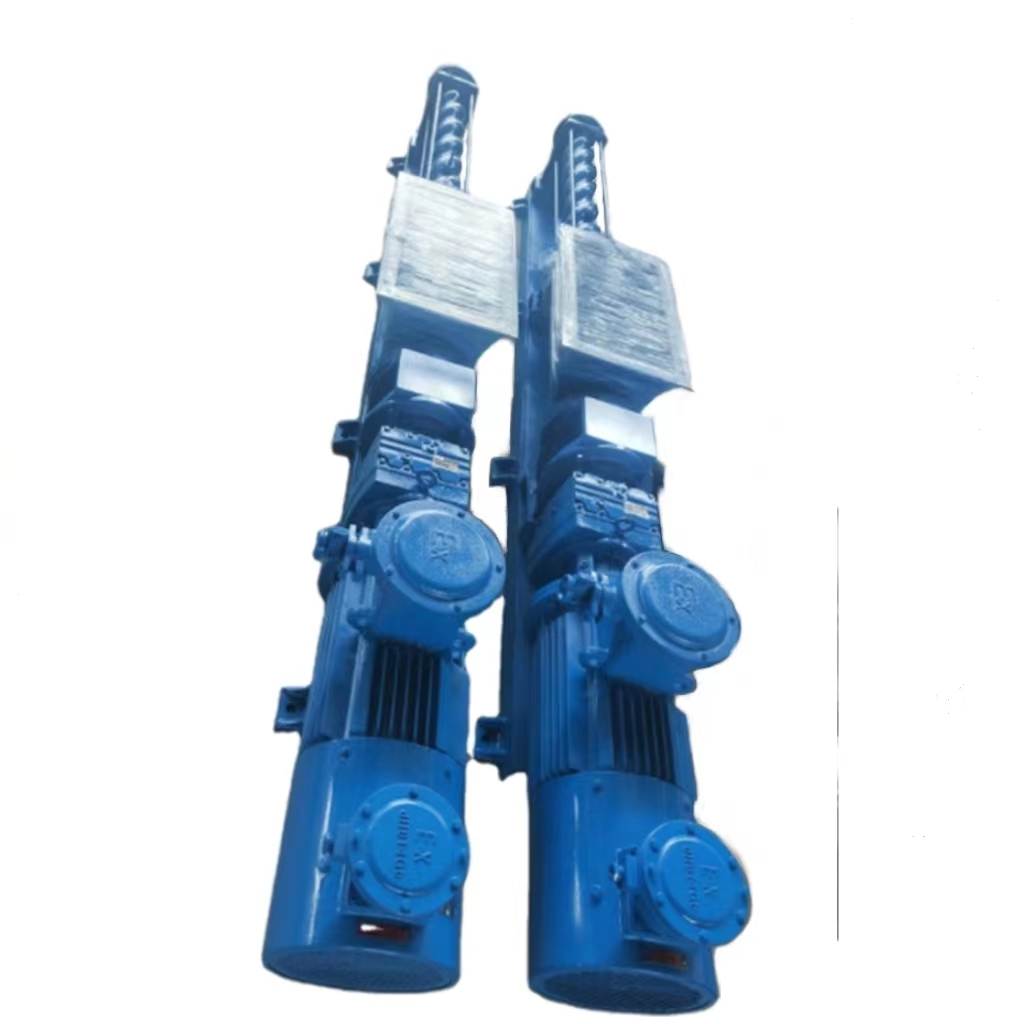

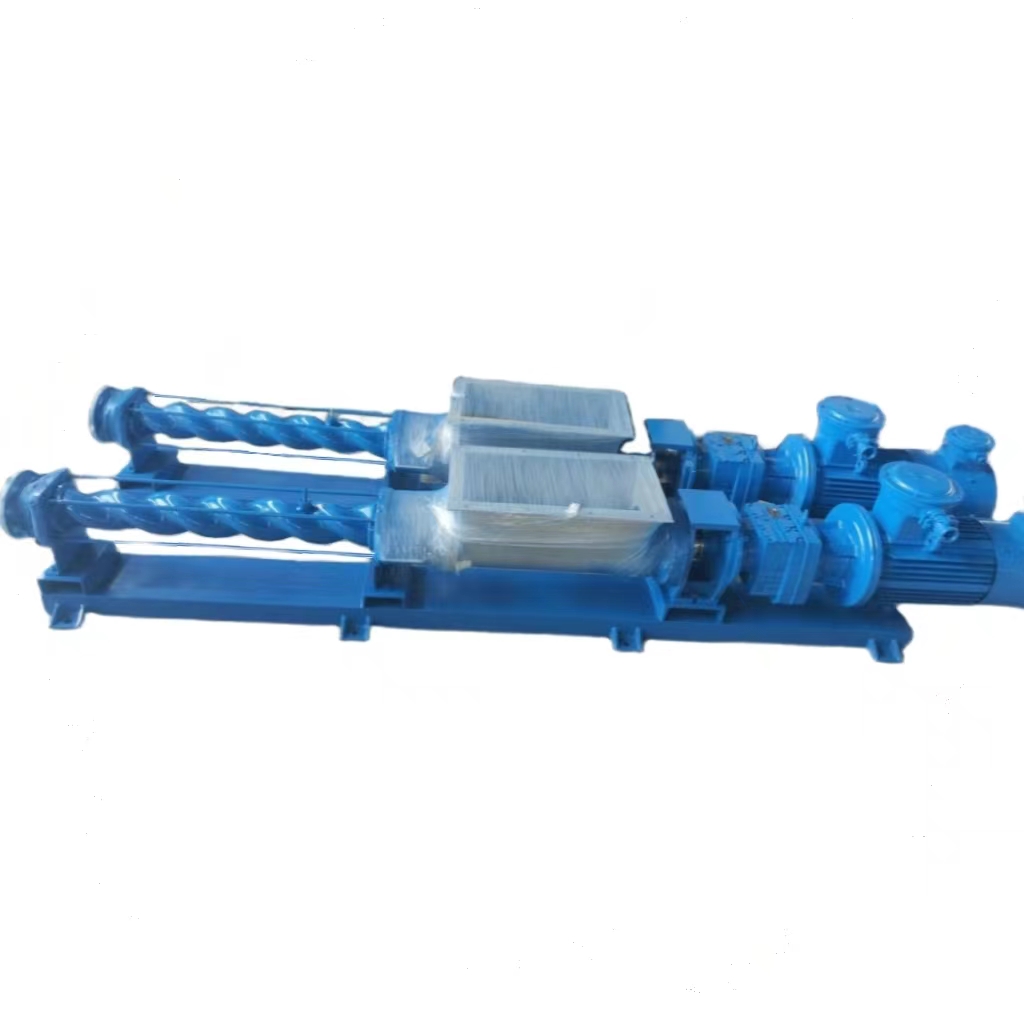

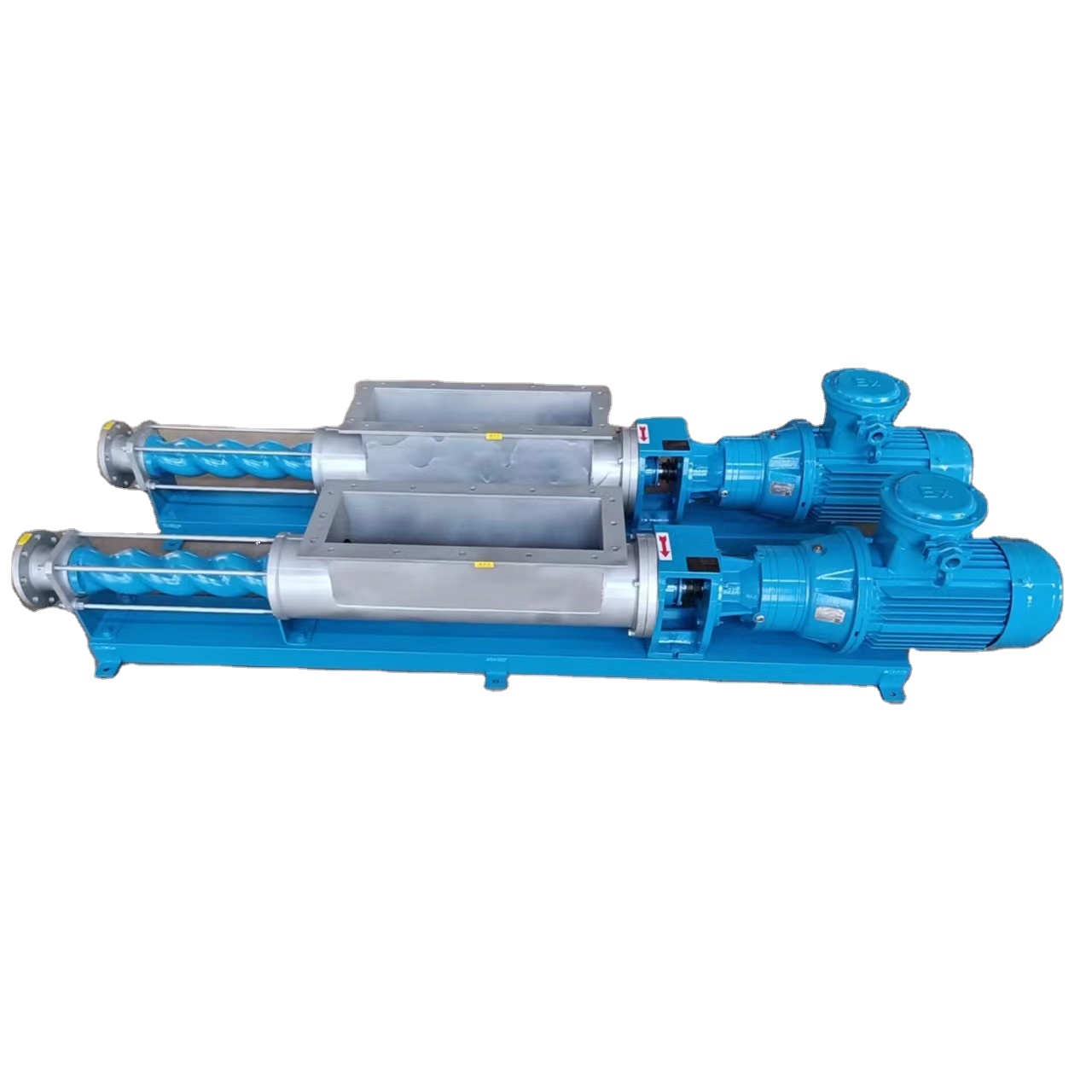

The RD open hopper pump suction space is designed as a large rectangular opening for feeding. The combination of the connecting rod and the screw conveyor realizes progressive advancement, prevents the accumulation of materials at the pump inlet, and improves the volumetric efficiency and uniformity of pump delivery. It is suitable for conveying medium with high viscosity, high solid content and poor fluidity, such as dried sludge, paste, mud, etc. The opening size can be adjusted according to customer requirements during on-site installation.

Product Details











Product parameters

Model flow range pressure range
RD open hopper pump 0.5-100 cubic meters per hour 0-4.8Mpa or higher


Applications
1.Sewage treatment industry: transportation of sewage, sludge, additives, dehydrated dry mud, etc.

2.Paper industry: conveying different concentrations of pulp, cotton pulp, straw pulp, as well as defoamers, rosin gum, coagulants, deinking agents, kaolin, talcum powder, whitening agents, etc.

3.Chemical industry: emulsion explosives, synthetic fiber liquid, viscose liquid, polymer, flocculant, precipitant, lime milk, liquid commodity, pigment, resin, calcium carbonate, titanium dioxide, styrene-butadiene latex, coal water slurry, etc.

4.Food industry: transportation of raw materials, sauces, milk, fruit juice, carbonated drinks, potato starch residue, honey, chocolate, meat filling, chili sauce, etc., as well as solid and liquid transportation of malt pulp, distiller's grains, filter materials, etc. in breweries mud.

5.Electronics industry: glue filling, dispensing, solder paste, 3D printing, gypsum slurry, silica gel, etc.

6.Petroleum industry: mining and transportation of oilfield crude oil, heavy oil, sludge, gas, sand and other mixtures.

7.Non-metal industry: transportation of mud, ceramic oil, refractory clay and suspension in ceramic industry production, transportation of raw pulp in kaolin production.


company profile

Wuhan Runnais Pump Equipment Co., Ltd. (Roones)Located in Wuhan City known as the thoroughfare of nine provinces.RonniesIt is a well-known diversified enterprise integrating R&D, production, sales and service in Central China. Now, the company has a professional design and development team of high-tech young talents.

The company mainly produces screw pumps, sludge cutting machines,Spiral sludge dewatering machine, dosing device, agitator, screw conveyor and other environmental protection equipment. The product can transport various acids,alkali,Salt, oil, high-concentration viscosity, hot and cold water, corrosive media, widely used:Environmentally friendly sewage treatment,garbage disposal, paper printing and dyeing, food and medicine,Water Resources and Hydropower, urban water supply, municipal engineering, A generationindustrial production, Petroleum, chemical industry, shipbuilding and other fields.

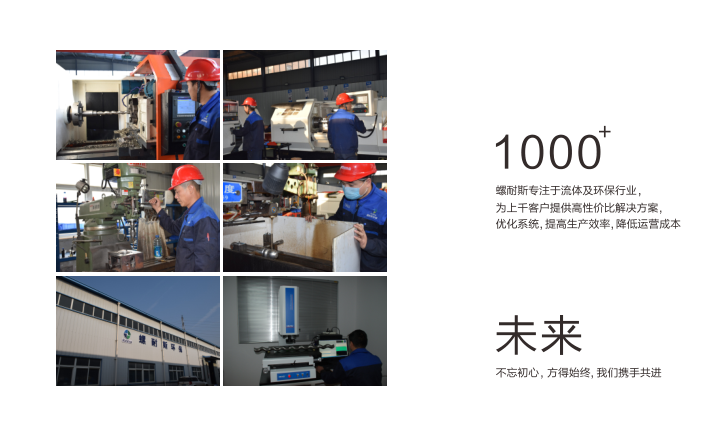

With strong production capacity and excellent technical team,companyEstablished a complete automatic processing technology,Possessing advanced technologies and formulas at home and abroad, it produces stators and rotors with high-precision CNC processing equipment, automatic polishing and welding equipment, infrared detection and laser equipment.

Our company always pursues to meet customer needs, strives for breakthroughs with innovation, seeks reputation with quality, seeks development with integrity, and seeks long-term development with service. RoNice products are sold at home and abroad. Sincerely invite colleagues from all walks of life to visit our company for guidance and create lasting brilliance with us.

exhibition

FAQ

1. What products does Ronice offer? (1) Ronice offers progressive cavity pumps, progressive cavity pump accessories, progressive cavity valves and fluid system products. (2) Overview of the product range of Ronice screw pumps for conveying and metering low to high viscosity media with or without solids Control system services for monitoring, regulating and controlling processes: consulting, commissioning, maintenance, NETZSCH, SEEPEX and MONO Universal Spare Parts, Repair

2. Does Ronice offer custom pumps? Yes, this is our specialty, we customize our modular systems with different designs and material combinations for each application. This means we develop the best technical and most economical solution for your needs.

3. Can Ronice spare parts be ordered online? Yes, it is possible to order Ronice Progressive Cavity Pumps and spare parts online as well as general accessories of other brands (NETZSCH, SEEPEX.MONO). To order, please contact us.

4. How soon can my Ronice pump be delivered?
Typically, standard pumps are delivered within 4 to 6 weeks. Emergencies within seven days are possible. Please contact us.

5. If you have special packaging requirements, please inform us.

6. Product quality assurance
(1) In accordance with international standards, the whole pump is guaranteed for 1 year
(2) 6 months warranty for spare parts
