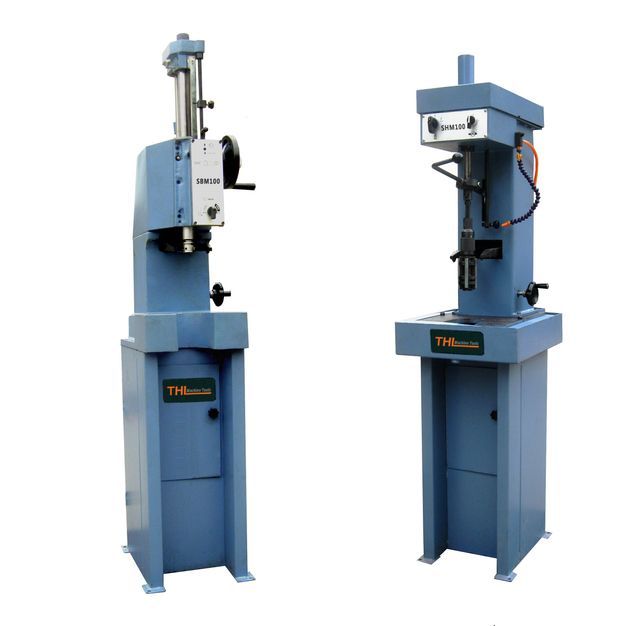

SHM100 Motorcycle Cylinder Upgrade Machine

PRODUCT DETAIL
Mechanical test report:iftype:Belt Grinder
Supply capacity:1 unit per dayOrigin:China
Marketing Type:New products in 2019Warranty:1 year
Weight (kg):117Main selling points:easy to operate
Core components:engineVideo outbound inspection:if
Core component warranty:1 yearHealth status:new
payment terms:wire transferPackaging Details:wooden box
port:ShanghaiAfter Warranty Service:Video Technical Support
Showroom location:Russia, USA, PeruApplicable industries:Manufacturing plants, machinery repair shops
Local service locations:Russia, UkraineWhether CNC:normal
After-sales service provided:Online support, video technical support
Berco APM100 SR100 Research

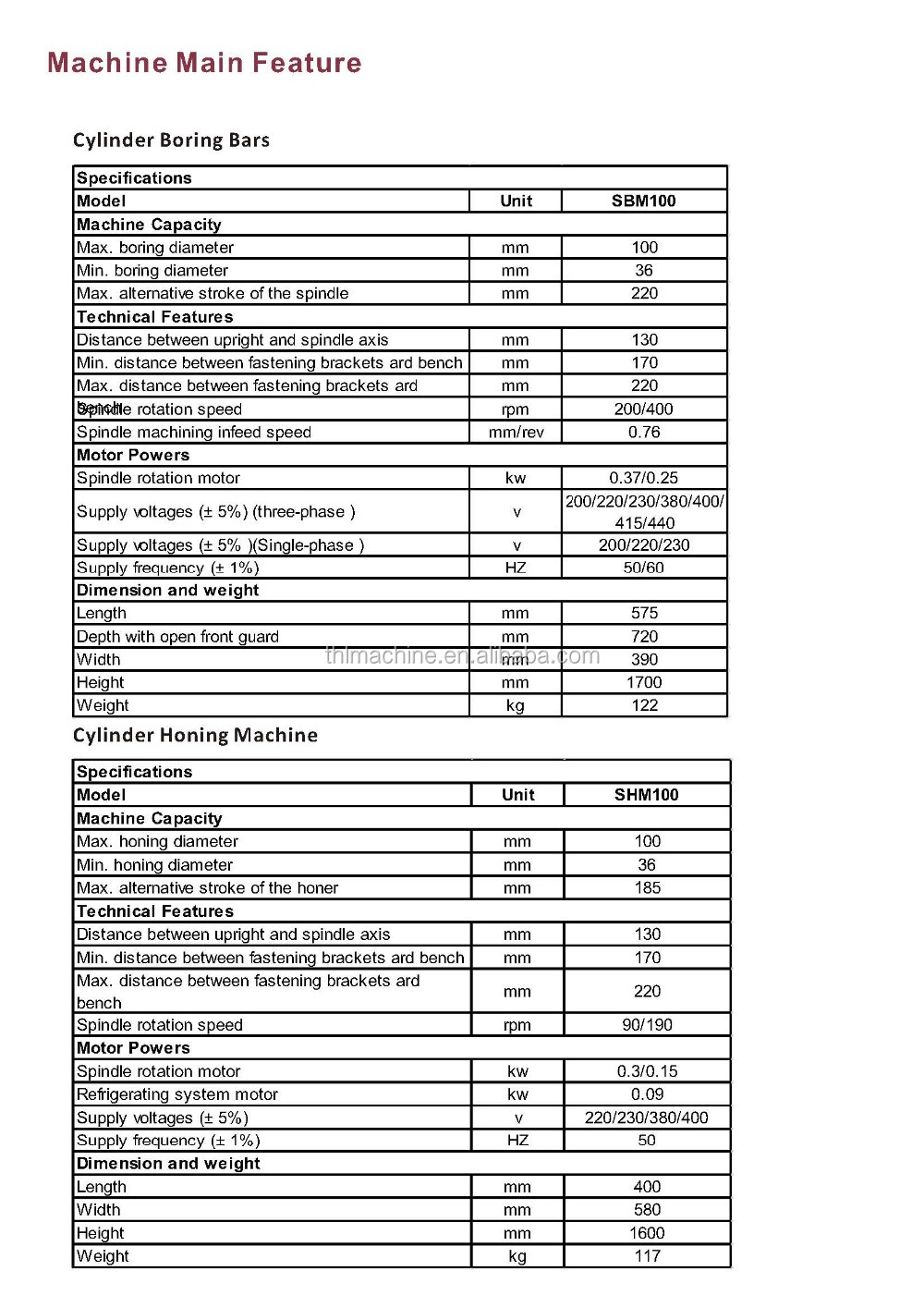

Model unit SHM100
Machine capacity
maximum. Honing diameter mm 100
minute. Honing diameter mm 36
maximum. Alternate Itinerary for Honorees mm 185
technical features
Distance between column and spindle axis mm 130
minute. Distance between fixed brackets ard benches mm 170
maximum. Distance between fixed brackets ard benches mm 220
Spindle speed Rotating speed 90/190
Motor Power
Spindle Rotation Motor kilowatt 0.3/0.15
Refrigeration system motor kilowatt 0.09
Power supply voltage (± 5%) v 380/400
Power supply frequency (±1%) hertz 50
size and weight
length mm 400
width mm Chapter 580
high mm 1600
weight Kilogram 117
