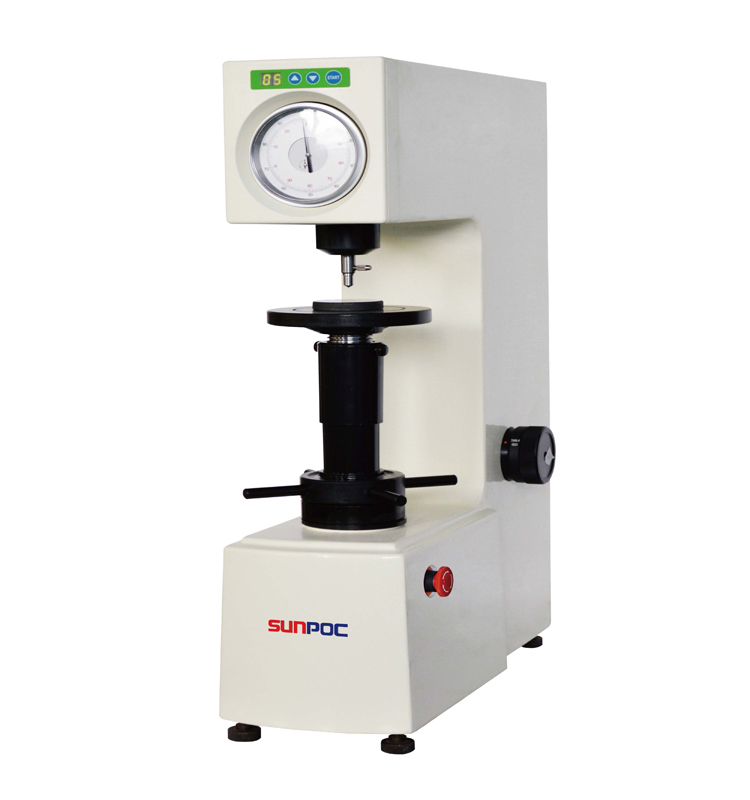

SHR-1500E Electric Rockwell Hardness Tester

PRODUCT DETAIL
place of origin; place of origin:Guizhou, ChinaHardness scale:HRA HRB HRC
Test force (gf):60kgf(588N) 100kgf(980N) 150kgf(1471N)product name:Rockwell hardness
payment terms:L/C,T/T,Western Unionport:Shanghai
Quality Standard:Standard ASTM B647-84 (2000)Warranty:24 months
Packaging Preview:Key words:Rockwell hardness tester
model:SHR-1500ESupply capacity:2000 sets per month
Packaging Details:Standard export wooden boxes are suitable for rough sea freight.Model:SHRS 450M
brand:Samboexpiration of pay:wire transfer
type:Rockwell hardnesspower supply:AC220V/50Hz
Product Description

The SHR-1500E electric Rockwell hardness tester adopts an automatic loading and unloading test force mechanism, and the test force is adjusted by the load-changing handwheel. It can choose the dwell time and is very easy to use. No human error other than setting zero dials. The instrument has high sensitivity and stability.


Application: Suitable for quenched steel, tempered steel, annealed steel, chilled castings, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel, etc.


Standards: ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.

Product number
SHR-1500E
initial test force
10kgf (98.07N)
total test force
60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)
indenter
Diamond Rockwell indenter, ф1.588mm ball indenter
Load method
Automatic (load/pause/unload)
Hardness reading
dial
Resolution
0.5 hours
dwell time
2~60s
maximum. Sample height
175mm/custom 400mm
throat
165mm
power supply
AC220V, 50Hz
Size (length, width and height)
Machine: 520×215×700mm, Packing: 650×370×950mm
weight
Net weight: 78kg, gross weight: 100kg

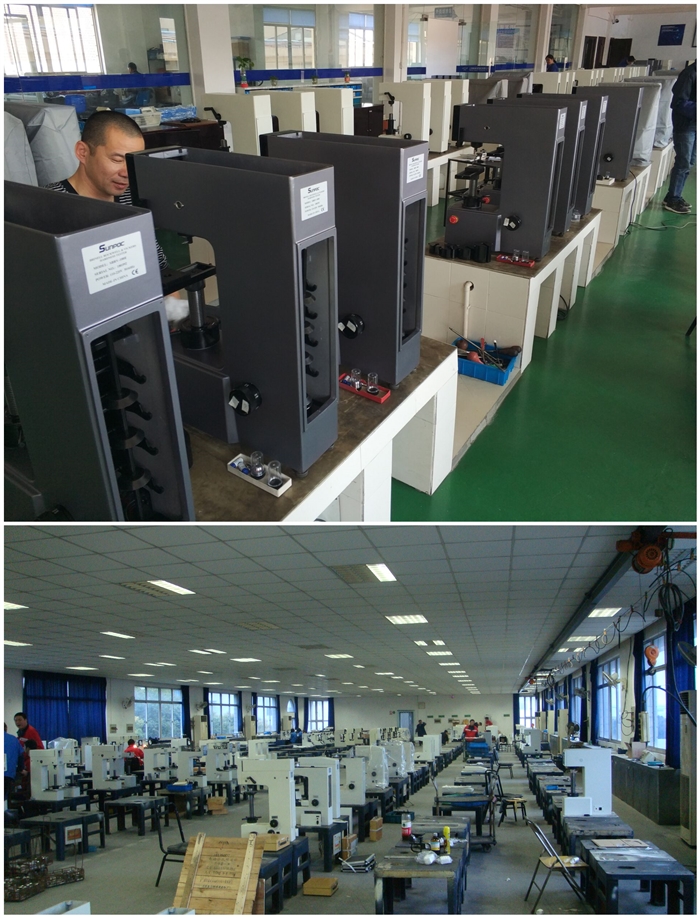

Our factory
