SINGDEN SI-R8404 Portable Language Translator Translation Device
- $42.00 /set
- 1 set
- Foshan Singden Technology Co., Ltd.
- Guangdong, China
- Ms SINGDEN TECH
| place of origin; place of origin: | Guangdong, China | Certificate: | CE RoHS FCC certificate |
| style: | portable | brand: | Hinden |
| Applies to: | 1+3 languages | Packaging Details: | carton |
| payment terms: | L/C, T/T, Western Union, MoneyGram | Function: | language distribution |
| product name: | infrared receiver | model: | SI-R8404 |
| color: | Black | port: | Foshan, China |
| Supply capacity: | 1000 sets per week |

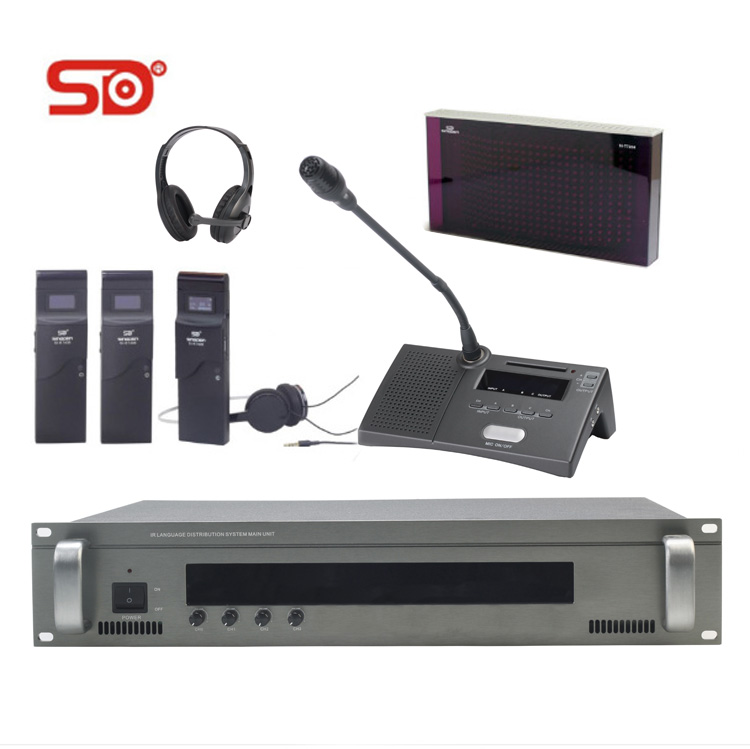

SINGDEN SI-R8404 Portable Language Translator Translation Device

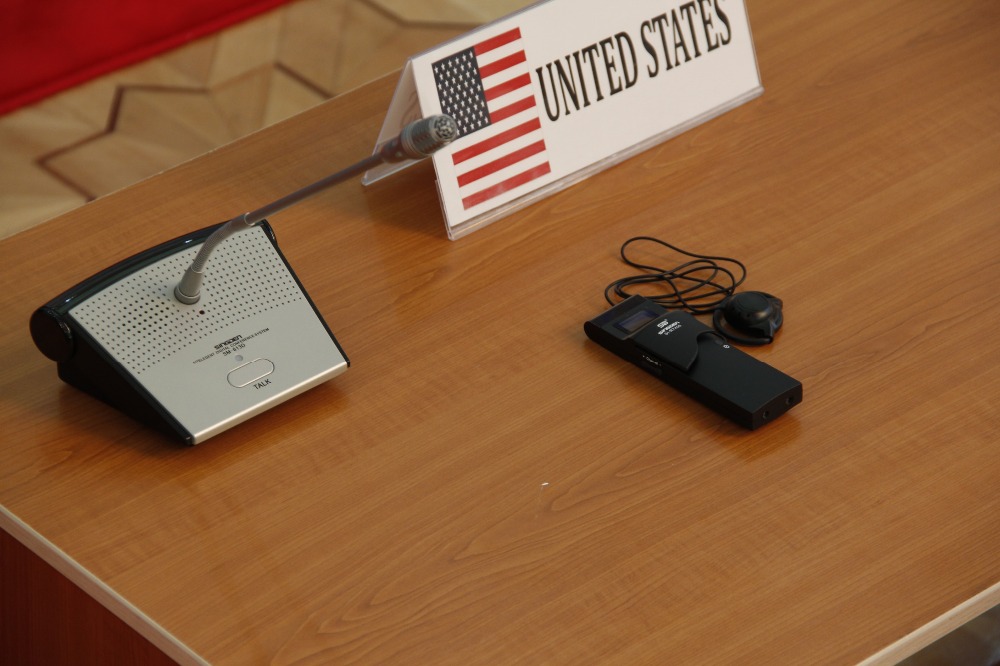

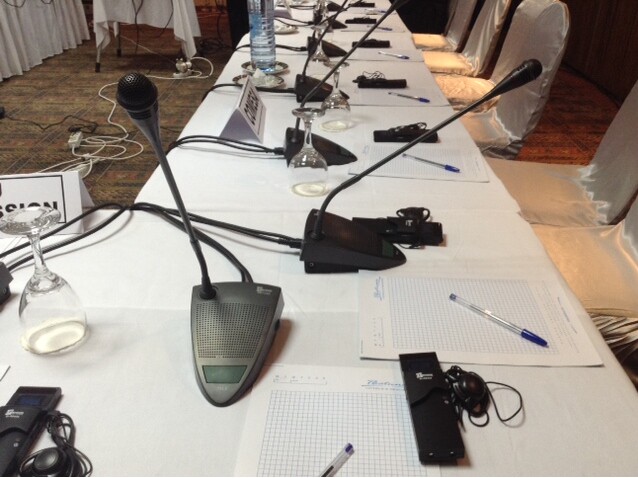

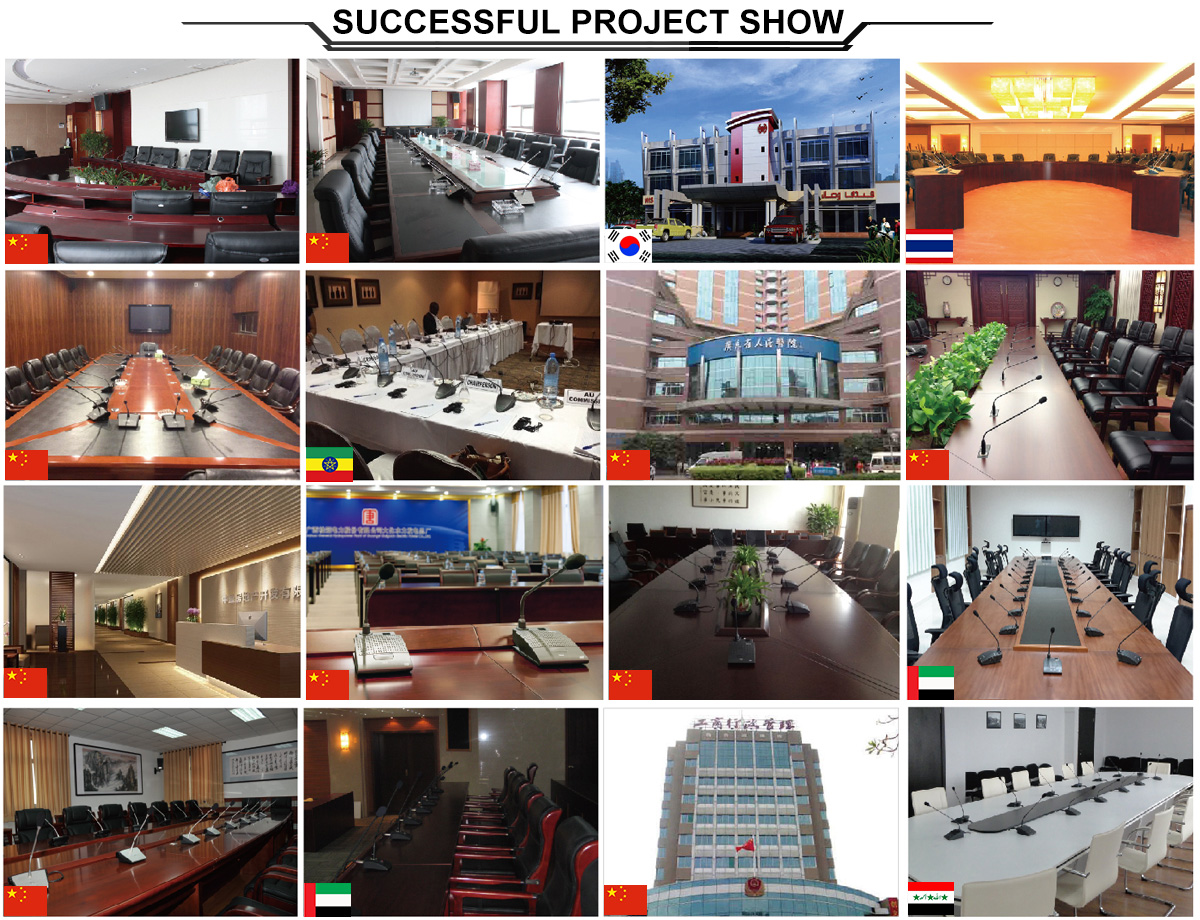

Project cases:

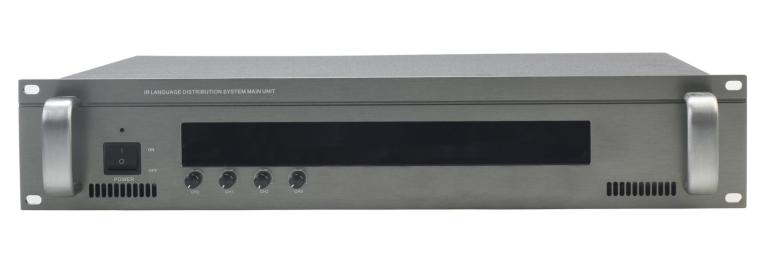

Transmission host
The SI-H7104 digital transmitter is the central modulator unit in a digital infrared system. It accepts audio from SI-H7104 or other compatible audio sources. The SI-H7104 modulates the incoming audio signal onto a carrier, which is sent directly to one or more SI-T7204 digital infrared radiators. Then the output of the radiator is passed to each SI-R7404 representative receiver.
feature:
• High security against external interference.
• Suitable for different conference halls
• Automatic Level Control (ALC).
• Do Not Disturb Under Fluorescent Lights
• Easy to operate and save engineering cost
• Possess state-of-the-art technology
• Ergonomically elegant configuration
• Input channel direct function
• With 4CH interpreter voice recording
• PB test and display function
• Mounts in a 19" frame
Specifications:
Modulation | FM |
frequency synthesis | digital phase locked loop |
frequency band | 1.7-4.0MHz |
Frequency response | 100Hz-14kHz |
frequency stability | 10ppm |
pre-emphasis | 75 microseconds. |
Distortion at 1 kHz | <0.5% |
channel separation | >70dB |
RF output power level | 700 mV |
RF output impedance | 50 ohms |
input resistance | 18k ohms |
maximum. input power level | 2V |
AGC range | 30 decibels |
SNR | >75dB |
energy consumption | 40W |
Operating Voltage | 230V/50Hz |

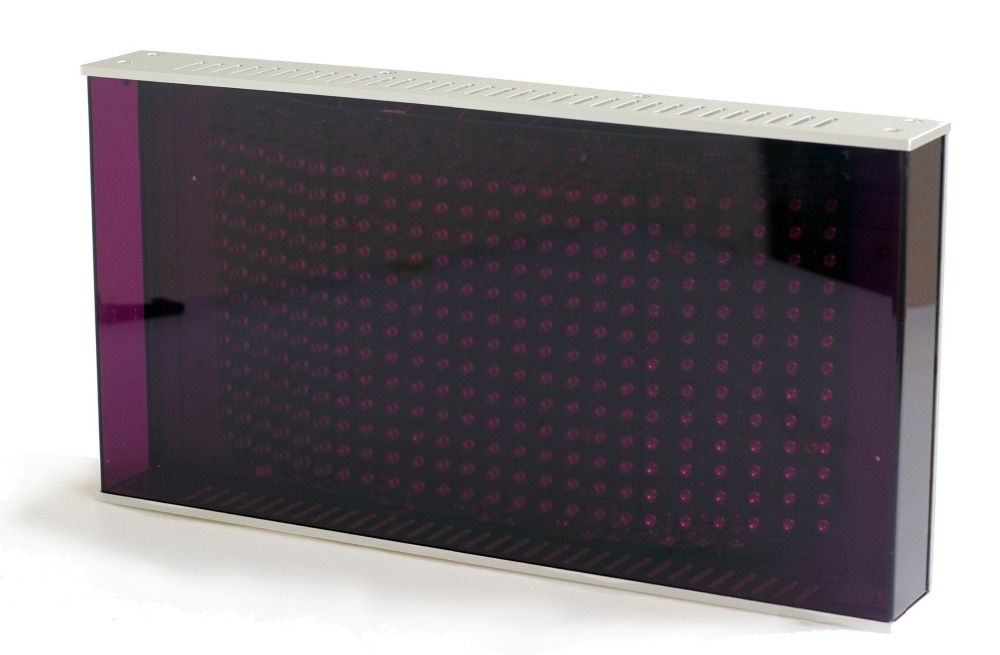

infrared radiator
The radiators transmit at a higher frequency (2 to 8 MHz) to completely eliminate any interference from the hall lighting. Different radiators are available to suit venues of all sizes.
feature:
• Automatic on/off of the carrier signal from the transmitter unit
• Automatic gain control to ensure the diode has maximum. efficiency
• Convection cooled for quiet, reliable operation
• Mounts on ceiling, wall, floor stand or optional tripod
• Easily daisy-chain for extended coverage
• Half Radiation Angle: ±22°
Specifications:
frequency band | 1.7 - 4.0 MHz |
maximum. Infrared output power | 25W |
maximum. coverage | 30 meters |
output level control | Low/High (50%/100%) |
angle of half intensity | ±22° |
RF output impedance | 50 ohms |
RF input voltage | 100-2000mV |
energy consumption | 55W/Standby 8W |
power supply | 230V/50Hz |

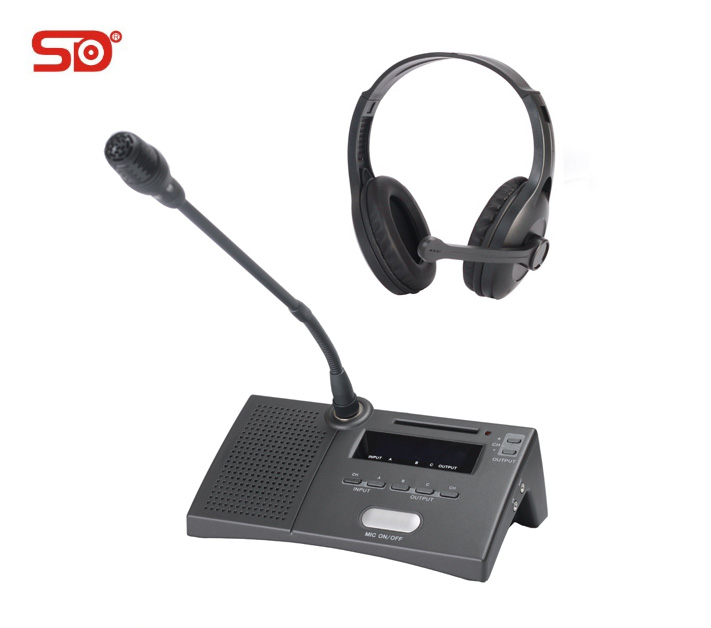

translation unit
The system fits seamlessly into the chain starting with the conference system and continuing through the interpreters. In cases where it takes care of language assignments, you know that the interpreter will always be in perfect condition.
feature:
• use headphones
• 4CH simultaneous interpretation.
• Simple operation, just one click.
• IR Transmit main unit can connect 4 translation machines.
• Voice adjustable and prevents feedback
• Representative talking too quickly; ask to slow down.
• Automatic numbering of system units
• Prevention of interpreter's cough
• One interpreter unit can be used by two interpreters in turn.
• Comfortable stereo headphones or lightweight earhooks for more inconspicuousness.

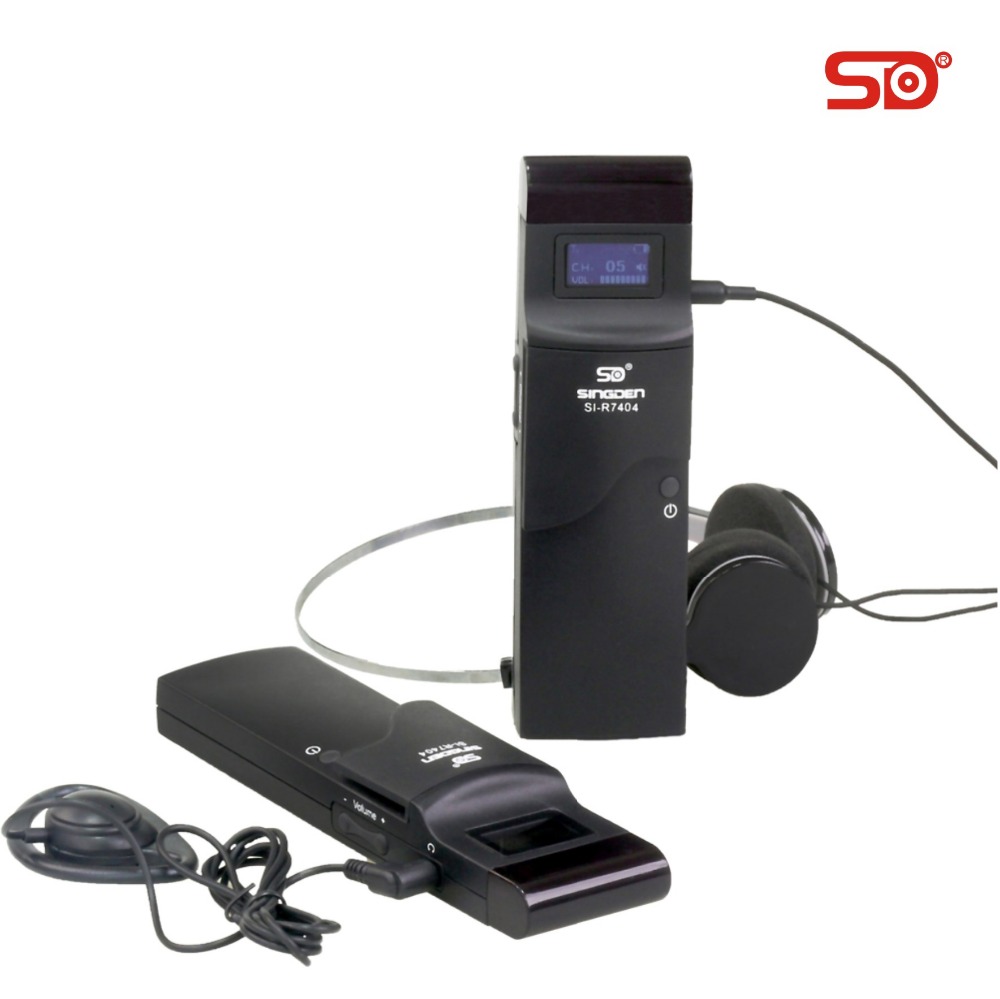

infrared receiver
The ergonomically designed receiver fits easily in a shirt or jacket pocket. Can receive 4 different channels. Simple channel selection and a clever coverage check feature make life easy for users and installers alike, and it comes in an attractive and stylish design that fits easily in the hand or shirt pocket. The comfortable and lightweight DH 6021 stereo headphones are perfect for the receiver.
feature:
• Pocket wireless handheld device
• Supports up to 4 different languages
• Channel selector and headphone connector
• Power switch and volume control
• Powered by rechargeable batteries

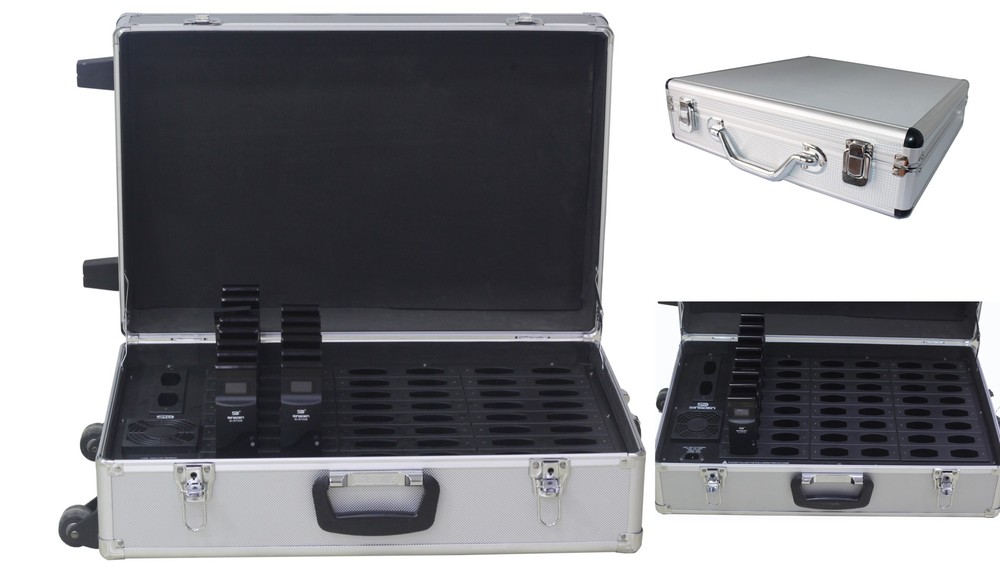

• Aluminum carrying case provided for the receiver
• Volume, channel and signal level displayed on LCD
Specifications:
Modulation | FM |
frequency synthesis | digital phase locked loop |
carrier frequency | 1.7 - 4.0MHz |
Frequency response | 100Hz-14kHz |
pre-emphasis | 75 microseconds. |
Distortion at 1 kHz | <1% |
channel separation | >55dBA |
frequency stability | 10ppm |
Operating Voltage | 3.1V-5V |
energy consumption | 60 meters |
charging storage box
This cabinet should be used to charge the receiver unit. The cabinet has a stylish design and is suitable for fixed installation. Suitable for wall and tabletop use. Each charging location should ensure high charging performance and optimal battery life.
feature:
• For charging the infrared receiver
• Power supply: 230V/50Hz
• Stores 48 receivers

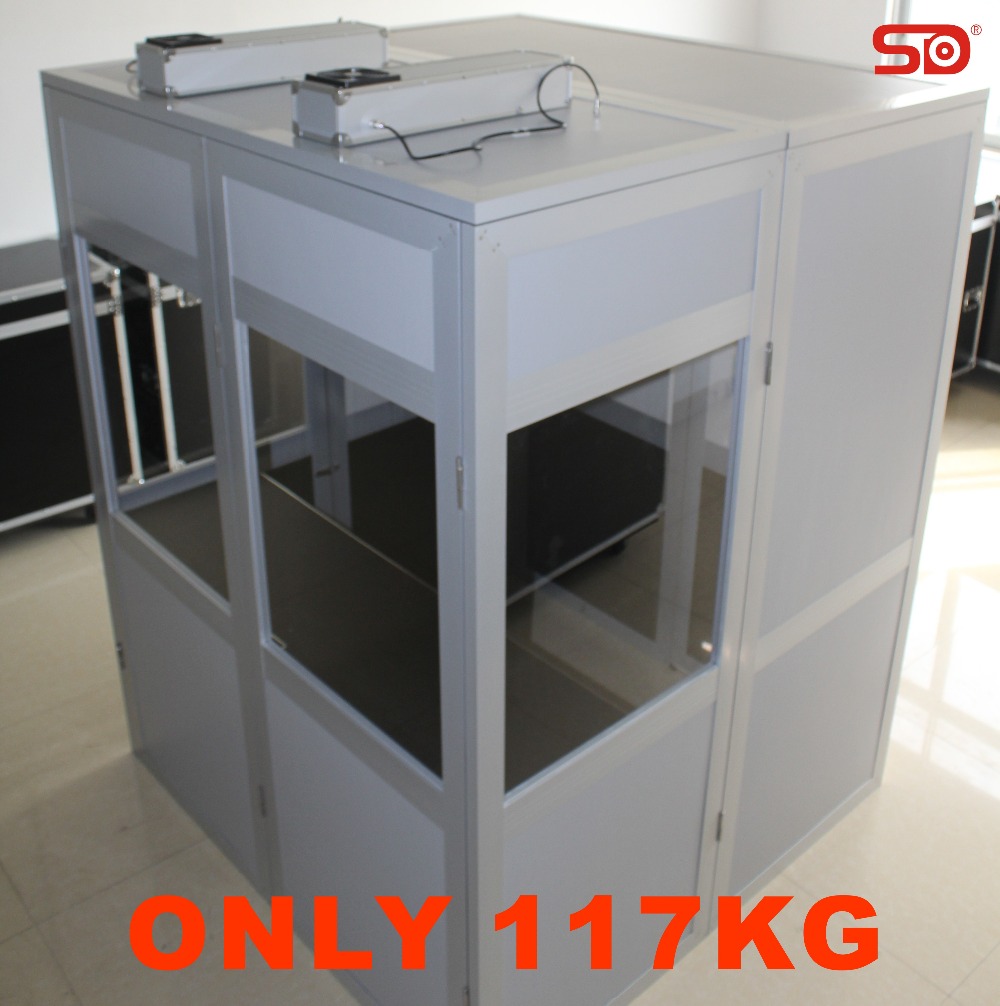

The lightest interpreter booth according to ISO4043 standard
This is our standard interpreting booth and is the best selling product of its kind.
It's designed to be a perfect visual match with other translation kiosks on the market, not just visually.
Our interpreter cubicles feature very light panels and are a joy to assemble (no need to strain to carry the panels).
The windows are taller and wider, reaching the limit of each panel's aluminum profile edges. Light entering the interior has been increased by +15%.
feature:
Flame Retardant Foam:
High-density flame-retardant foam (according to British standard BS5852), the sound insulation effect is very good, and the sound attenuation is from 24 to 37dB.
Washable Leather:
Washable leather is used as the surface; black leather is used on the lower half to hide kick stains, and white leather is used on the upper half to let in more light.
Scratch-resistant glass:
5mm scratch-resistant glass is used as the window to enhance the hardness and not easy to break or scratch. Good light transmission performance and long-term use without fatigue.
Aluminum frame:
Aluminum oxide is used as the frame, which is environmentally friendly, waterproof, impact-resistant, high-temperature resistant, odorless, non-deformable, easy to clean, and durable.
Standard: European Commission (EC) certification, only 106 kg, in line with ISO4043 specification
LxDxH
- Internal booth: 1500 x 1550 x 2000 mm
- External stand: 1560 x 1600 x 2030 mm
- Workbench: 1550 x 450 x 20 mm
1. Q: Are you a manufacturer or a trading company?
A: We are manufacturer with more than 12 years experience
2. Ask:Do you have a qualification?
Yes, we have CE and RoHS certificates, and SINGDEN's own patents for designing products, you can contact sales to check the certificates.
3.Q: Can we visit your factory
A: Yes, warmly welcome to visit our factory at any time, our address is as below for your reference
Address: Wufansha Industrial Park, Nanhai District, Foshan City
4. Q: What is your main product?
Conference system and simultaneous interpretation system
5.Q: How many years is your product warranty
A: Three years of system components and unlimited free technical support.
6. Q: If there is any problem with your product, should we refund or replace it?
A: Don't worry about the quality of the equipment, because SINGDEN has fully inspected and tested before delivery.
If the product really has a problem, please contact sales, SINGDEN engineer team will help you solve the problem immediately through guidance; if the problem cannot be solved by your side, SINGDEN will send new parts for replacement within the warranty period, you only need to use a screwdriver to replace Parts, parts free, freight collect.
7. Q: What is your delivery time?
3-7 working days
