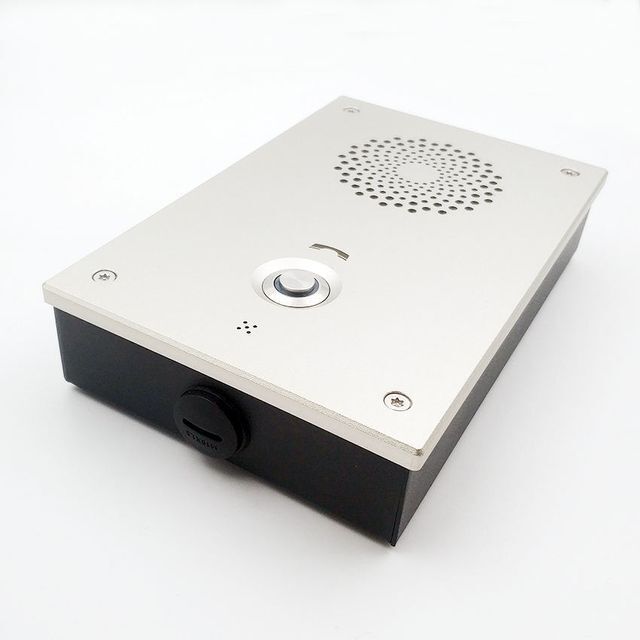

SIP Door Access Control IP Video Intercom Door Bell SIP Intercom

PRODUCT DETAIL
Waterproof level:IP65;Package Preview:;
Wan port:RJ45 10/100M Ethernet port;SIP:Standard SIP 2.0 protocol;
Resolution:1280 X 720;Brand Name:Xuntech;
Warranty:1 Year;Certification:CE/FCC/ROHS;
Single package size:26X12X5 cm;Single gross weight:1.000 KG;
Place of Origin:Guangdong, China;Selling Units:Single item;
POE:Support;Power:12V;
Speaker:3W/4Ω;Model:YG-01;
Product Description
Product Name
SIP INTERCOM
Material
Aluminium + PCB
Highlights
1. Support one call key and two keys mode to choose.
2. With voice record output, can connect to hard disk video recording.

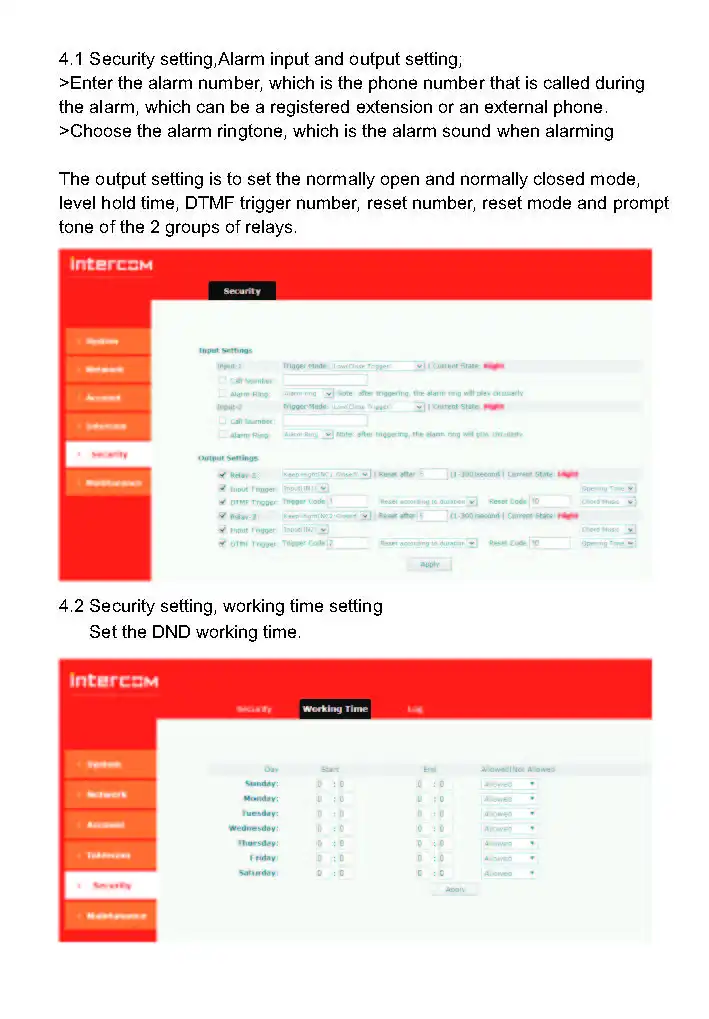

3. Two input, support to connect with infrared probe, door sensor, vibration sensor and emergency button etc., build the security linkage.
4. Two output, can connect with alarm lamp, locks and other equipment, control the security linkage through DTMF, remote server or two output input linkage controller.
5. With external active speaker output interface, support HD voice(G.722) background music broadcast.
Specification
1. Standard SIP 2.0 protocol
2. 1* RJ45 10/100M Ethernet port (support POE)
3. 1~2*Programmable button
4. 12V power input
5. 1~2*Short circuit input/output
6. External amplifier
7. One-click get IP address
8. G.711A/U,G.722,G723.1,G.726-32,G729AB
9. Compatibility with platforms like Broadsoft,VoS,FreeSWITCH and Asterisk/Elastix, etc. 10. Speaker: 3W/4Ω
11. Working Temperature: -30~45℃
12. Waterproof level: IP65

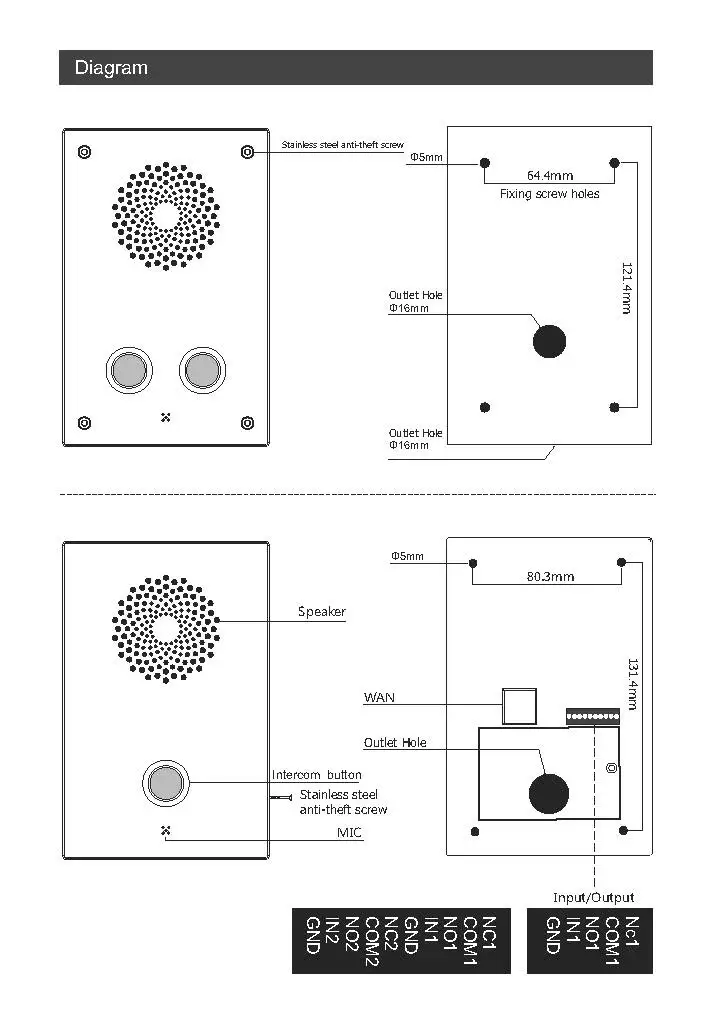

13. Dimension: 105*162*32mm

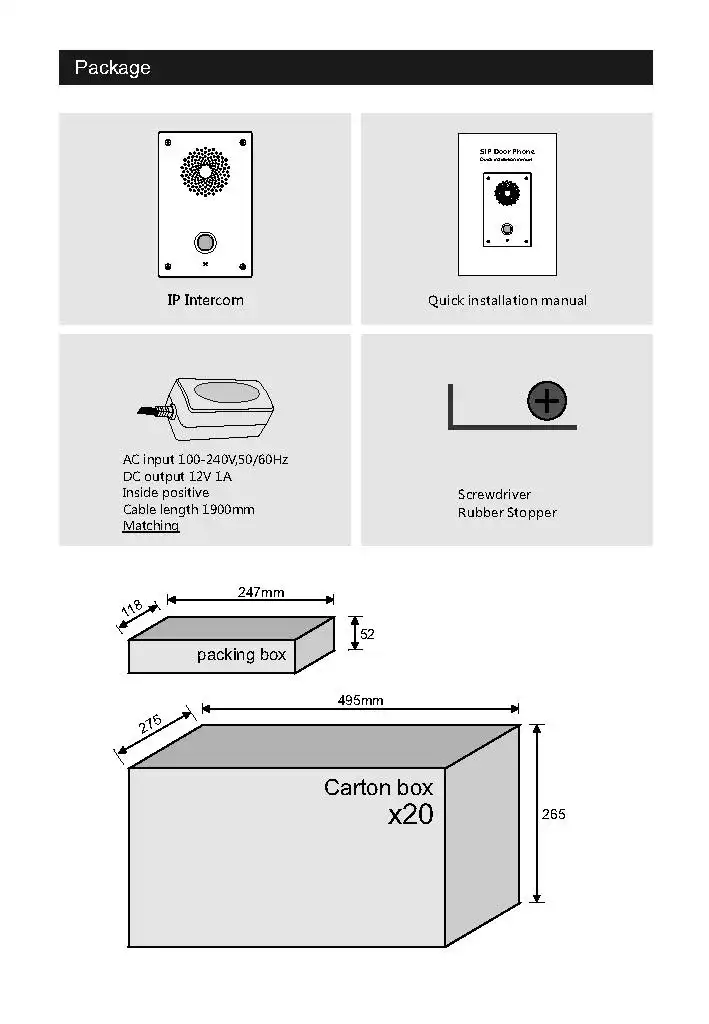

14. Package: Specification & QIG/ Tool Kit/Power Adapter (Optional)
Applications
Finance:     ATM intercom, Bank treasury
Safe City:   Public street, plaza and emergency area
Education: University, primary and secondary school, stadium
Industry-Petroleum: chemical and mining plants
Business:   Reception desk, shopping mall, business building
Product performance description 产品性能介绍说明


The Intercom is based on the embedded Linux OS and industrial standard RFC3261 (SIP 2.0), has high compatibility with major IPPBXs and dispatch systems. This intercom supports two-way voice talking, 1~3 speed dial buttons, 2 sets of relay control output input, POE power supply, external power amplifier, etc. This product can be widely used in public emergency places such as commerce, education, logistics, medical treatment, high-speed, barrier and so on.
Generic
2 SIP lines Duplex speaker phone (HF) Wall-mount installation 2 embedded short circuit input interfaces Output interface for active speaker External Power Supply Industrial Standard Certifications: IP65, IK10, CE/FCC

Audio
Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB Wideband Codec: G.722 Duplex intercom with Acoustic Echo Canceller (AEC)-Hands-free mode, 96ms tail-length Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation(BNE) Packet Loss Concealment (PLC) Dynamic Adaptive Jitter Buffer up to 300ms DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO Omnidirectional pickup: the pickup distance is up to 5 meters

Call Features
Intercom
Speed Dial
Auto-Answering (per line)



Networking
Physical: 10/100 Mbps Ethernet
IP Configuration: Static / DHCP Network Access Control: 802.1x VPN: OpenVPN VLAN

Protocols
SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP LLDP OpenVPN SNTP FTP/TFTP HTTP/HTTPS


Deployment & Maintenance

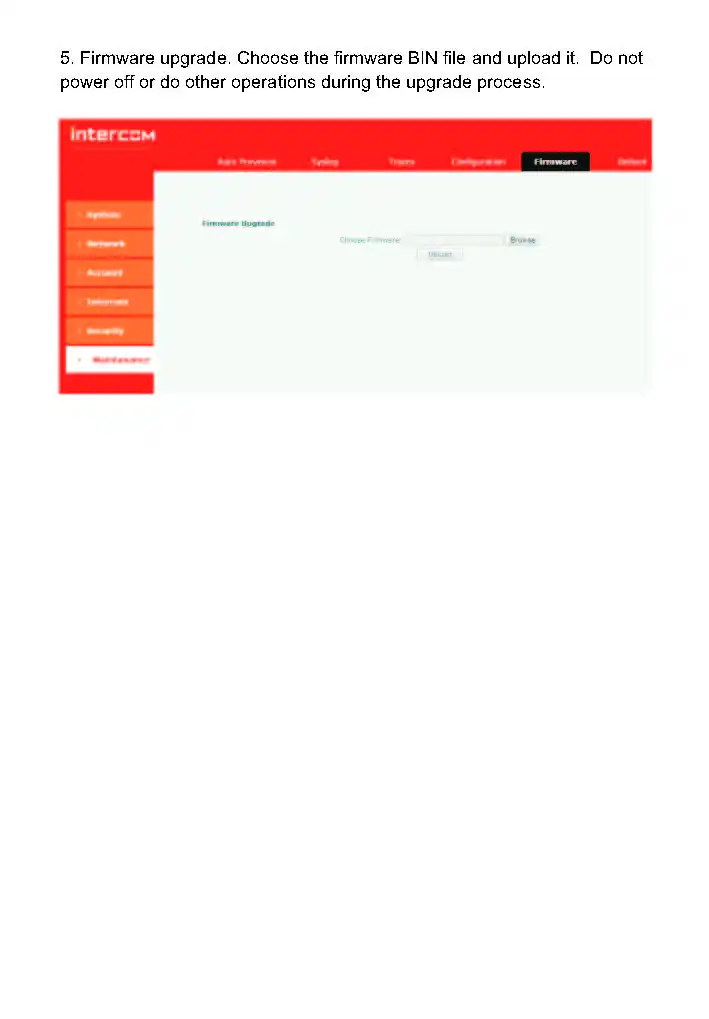

Auto-Provisioning via FTP/TFTP/HTTP/ HTTPS/DHCP OPT66 Web Management Portal Web-based Packet Dump Configuration Export / Import Firmware Upgrade

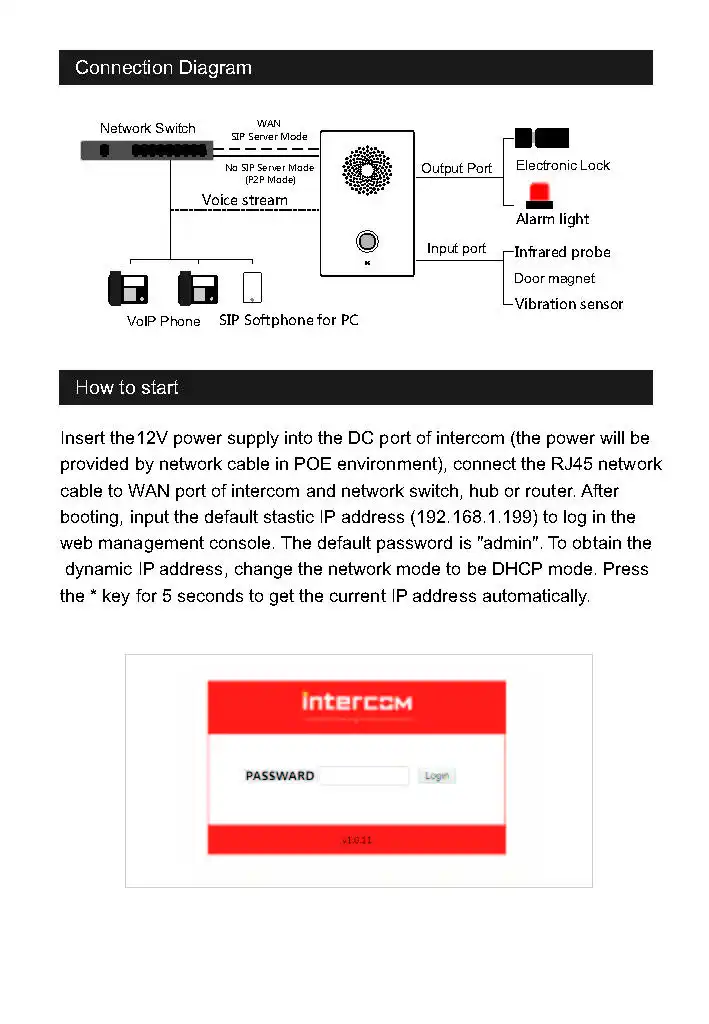

Installation Instructions
Company Profile

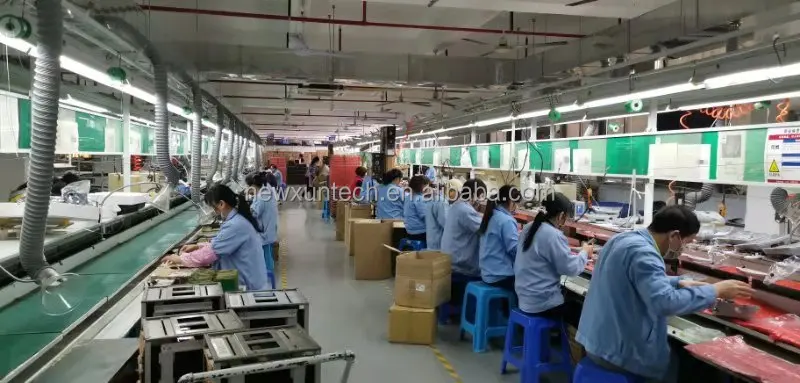

Shenzhen Xinxunxing Electronics Co., Ltd., started in 2004, specializes in R&D, production and operation of various telephones, like Antique phone, Hotel phone, office phone, big button phone, 2G/3G/4G Fixed wireless phone , SIP Intercom and so on. The factory covers an area of 1,200 square meters and has more than 100 employees (including more than 20 professional and technical person).

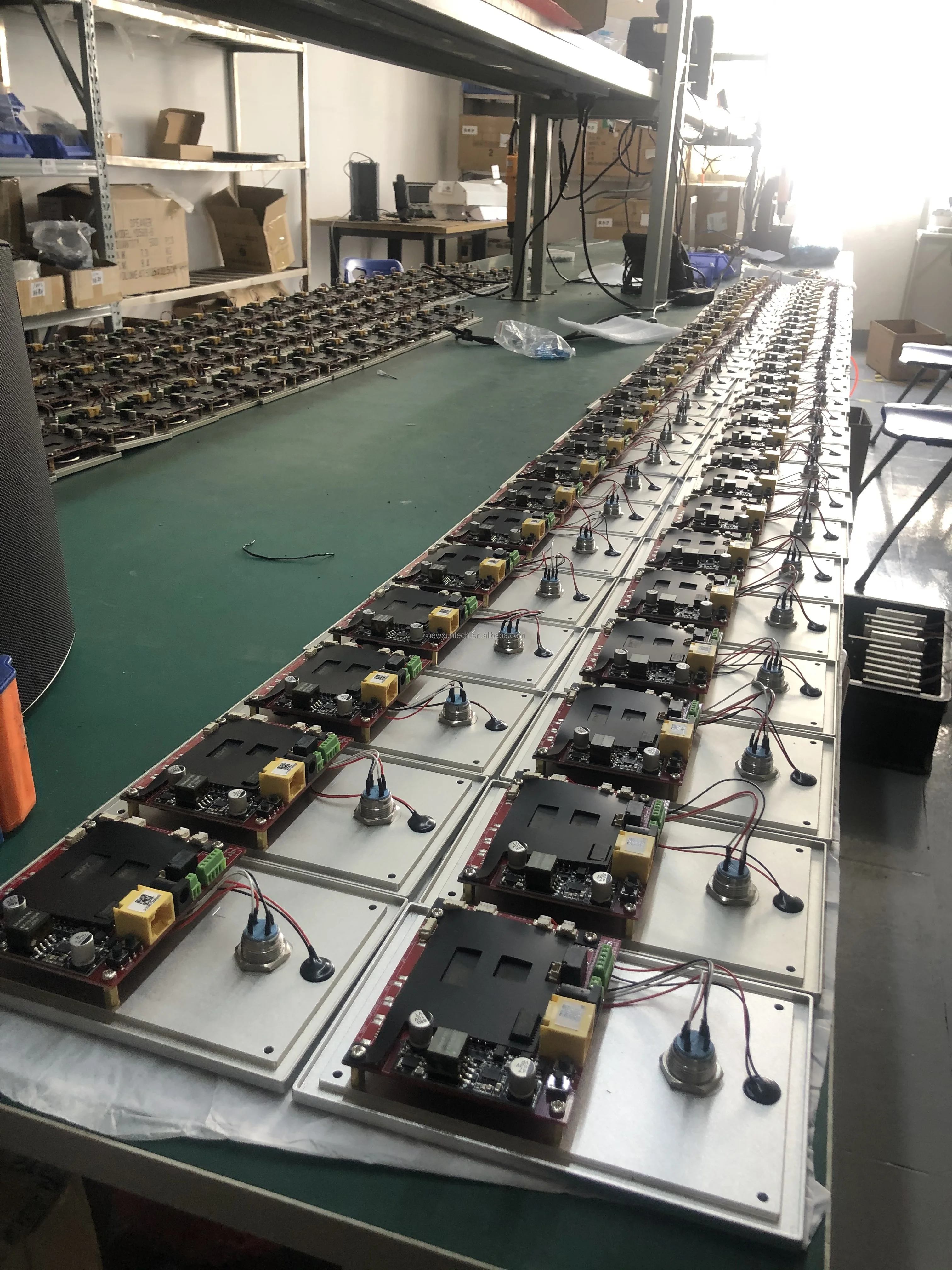

In order to provide high-quality and low-cost telephone products, the company provides "one-stop" production services, including mold manufacturing, injection molding, PCB production, keypad production, silk screen printing, assembly, etc., with an annual output of 1 million telephones.
FAQ
Q: For SIP intercom ,are you develop by your company ?
A: Yes, we have team for both HW and SW developing, and we can do customrized for all customer request.


Q
: Are you a factory ?
A: Yes, we are factory since 2004.

Q: Are you professional on telephone industry ?
A: Yes, we have professional engineer in HW and SW, all of them have more then 5 year's experience in this industry.
We can provide OEM and ODM service to our customer.

Q: What you main customer ?
A: Our main customer in Asia, South America and EU market,

Q: Are you provide OEM service ?
A: Yes, we can design and develop new products according to provided pictures, samples and rough ideas.

Q: What kind equipment provide in factory ?
A: SMT machine, Plastic injection machine, Silkscreen machine, Assembly line, Test Roon.

Q: How to control your product quality ?
A: We always regard quality as our life. All the products are under strict QC in production.
Our factory follow IOS 9001. And we do full test for all product.

Q: How about your warranty ?
A: We provide 1 year warranty for our product.

Q: Are you provide free samples ?
A: Yes, we can provide free samples, and customer just need bear freight.
Our Advantages
1. Reply your inquiry in 24 hours.
2. Experienced staffs answer all your questions professionally.
3. Provide customized design service.
4. Exclusive and unique solution can be provided to our customer by professional staffs.
5. Excellent after-sales service can be assured
6. Warranty period is one year.

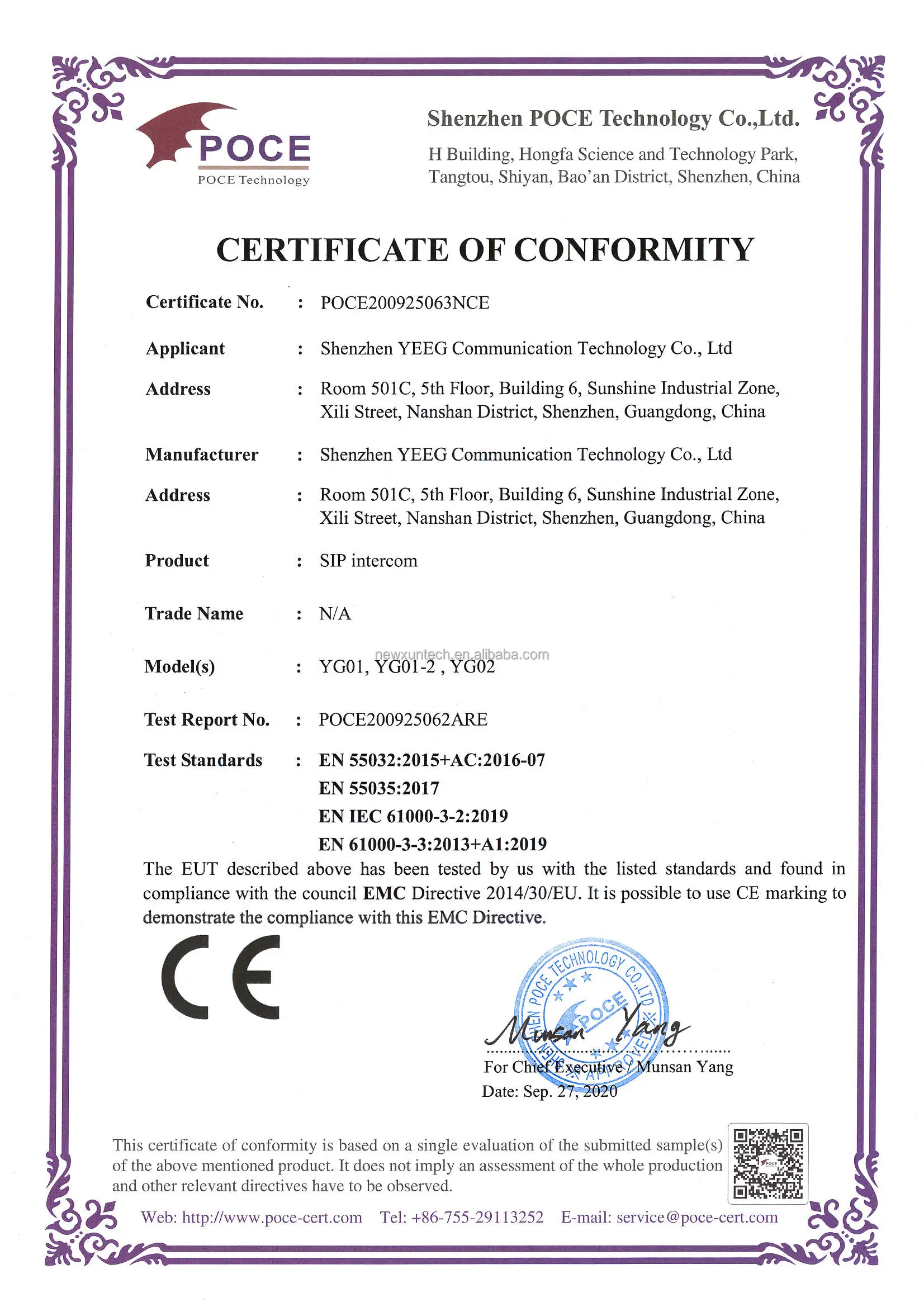

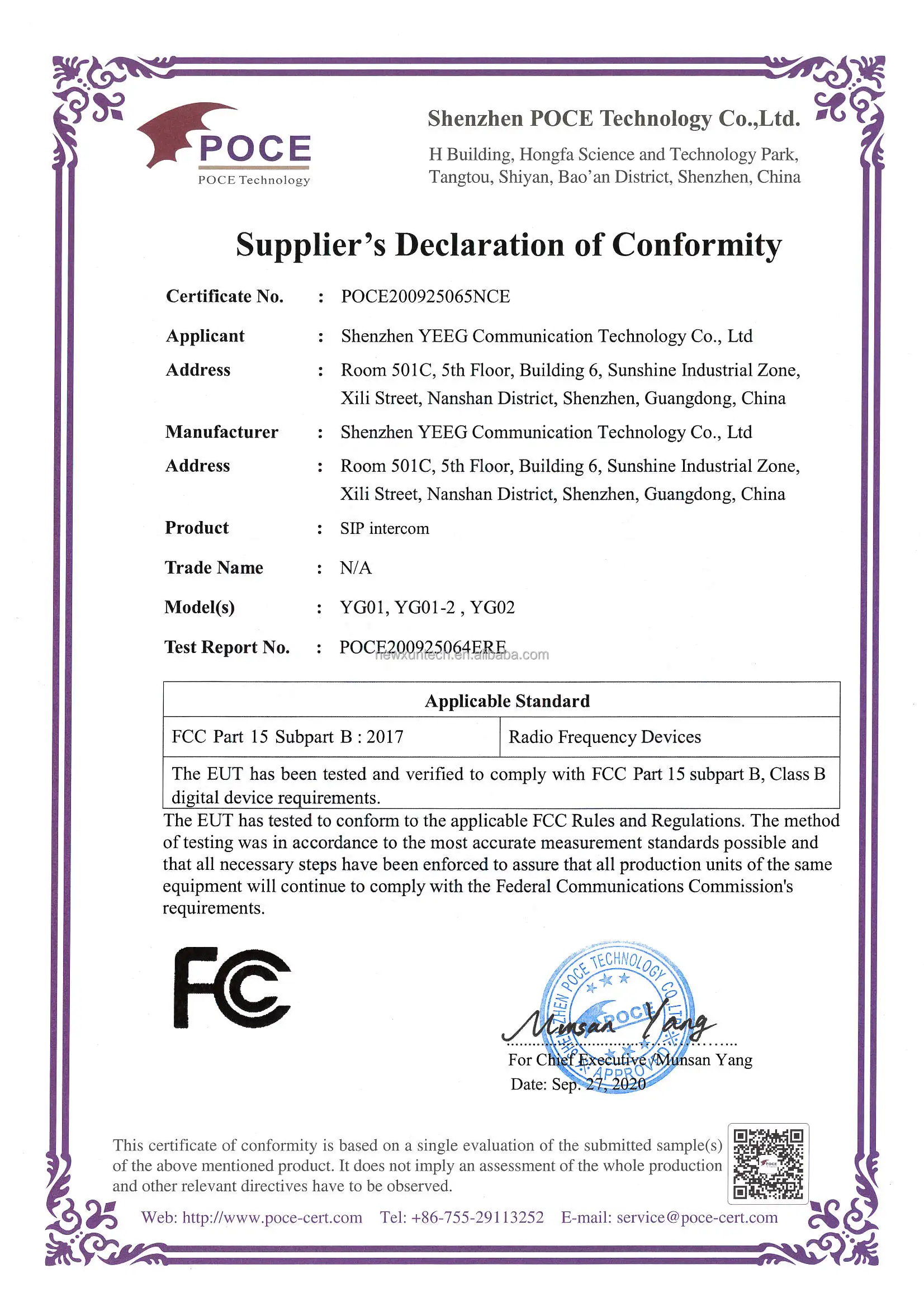

Certifications
