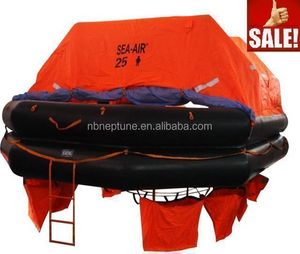

SOLAS approved 25 person marine liferaft

PRODUCT DETAIL
Functional Specifications:Sea Throwing Inflatable Life Raftpayment terms:L/C, T/T
capacity:6, 8, 10, 12, 15, 16, 20, 25, 30, 35 peopleport:Ningbo
Loading height:18-50m from the water surfacemodel:ATOB-25
use:Applicable to ships on international voyagesPackaging Details:available in cans
Gas composition:carbon dioxide and nitrogenWarranty:1 year
Shipping Details:15-30 daysstandard:SOLAS(1974/96), LSA, MSC
Supply capacity:8000 units per yearbrand:HNA
Material:Neoprene coated cloth, tarpaulinTemperature inflation range:-30 to 65 degrees
Equipment equipment:Solas A\B Survival Kitplace of origin; place of origin:Zhejiang, China

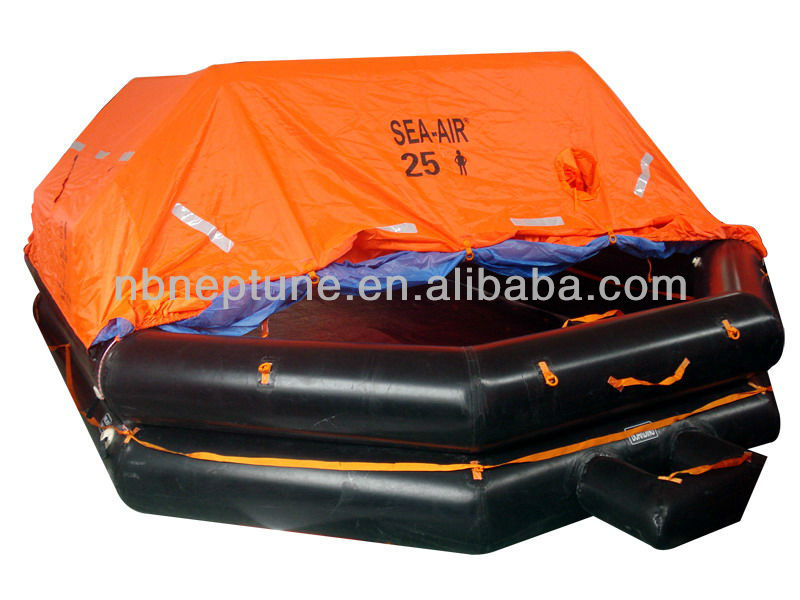

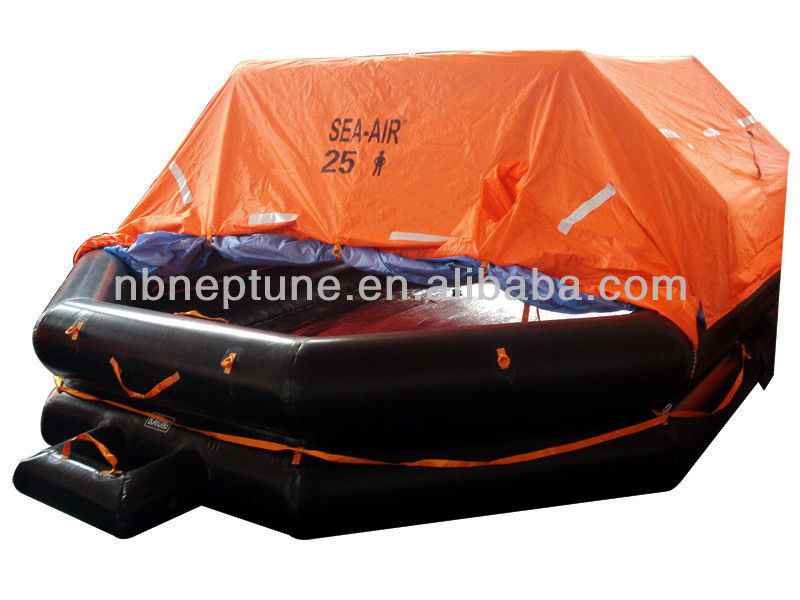

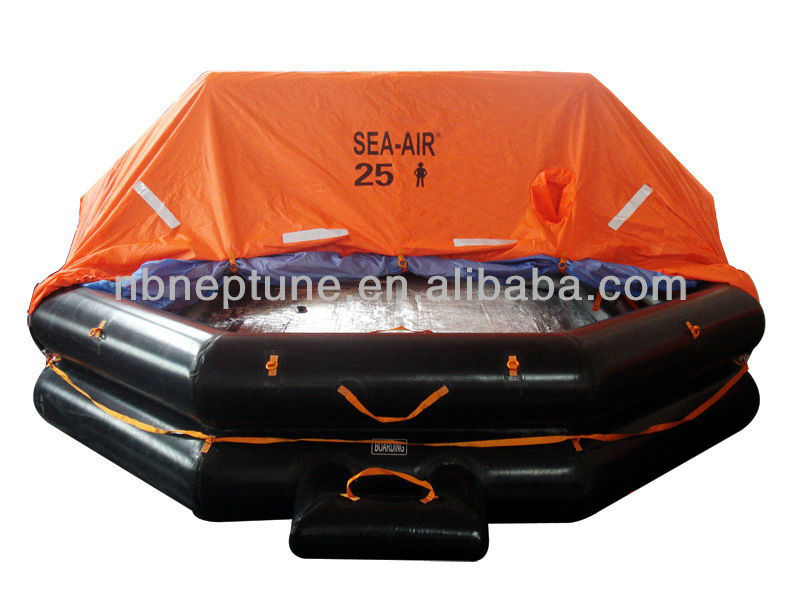

SOLAS approved 25 person marine liferaft
model.Atob-25
shaperectangular octagon
capacity25
MaterialNeoprene coated cloth (buoyancy tube), tarpaulin (canopy)
cylinder7.5 length x 2
gas compositioncarbon dioxide and nitrogen
Lighting system1 internal light, 1 external indicator light
Battery Life12 hours
ballast system8 x 60.5 liter water bladders for better stability
Temperature Inflation Range-30 — +65°c
maximum loading height18 - 50M from the water surface
useSuitable for offshore cruising or long sea voyages
standardConforms to Chapter 3 of Part 4 of China Maritime Safety Administration - "Statutory Inspection Rules for Ships and Offshore Installations - Technical Regulations for Statutory Inspection of Sea-going Ships on Domestic Navigation" in 2004 and its 2008 amendment. and SOLAS(74/96) LSA, MSC.81(70), MSC.226(82), MSC.218(82), MSC.293(87), ISO15738(2002)
equipment equipmentSolas A/B bag
Life raft size (mm)4894x3194x1650

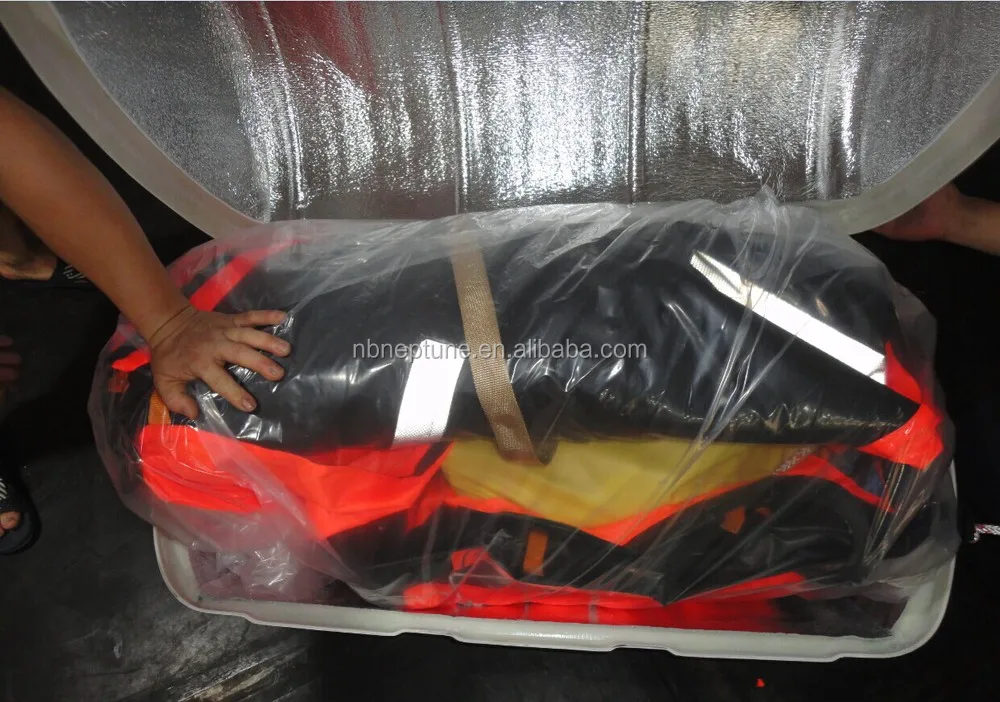

Cylinder size (mm)1490x757x678 (Solas A package)
1335x696x620 (Solas B pack)

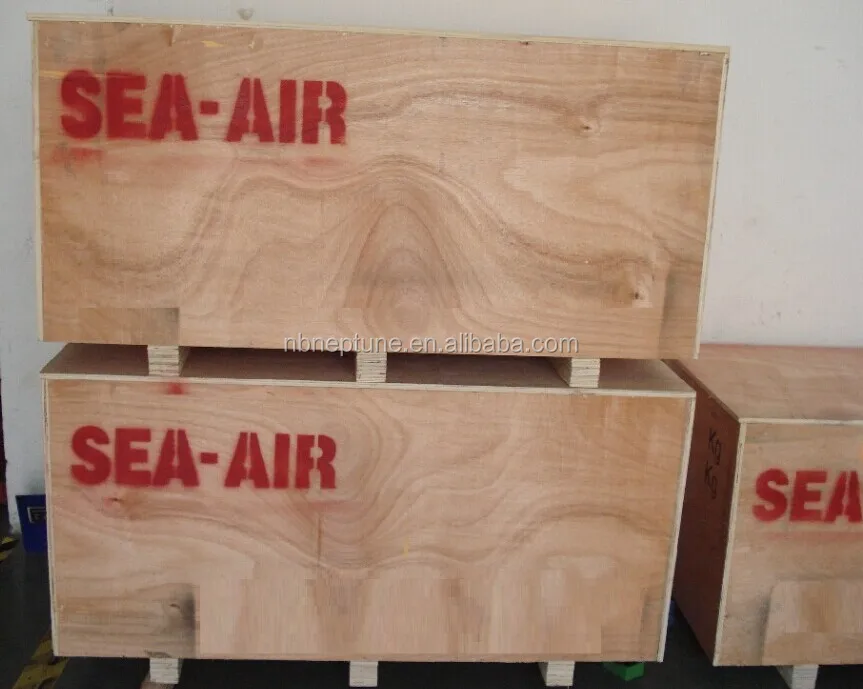

Outer packing size (mm)1530x785x780 (Solas A pack)
1400x750x740 (Solas B pack)
Weight (kg)≤185

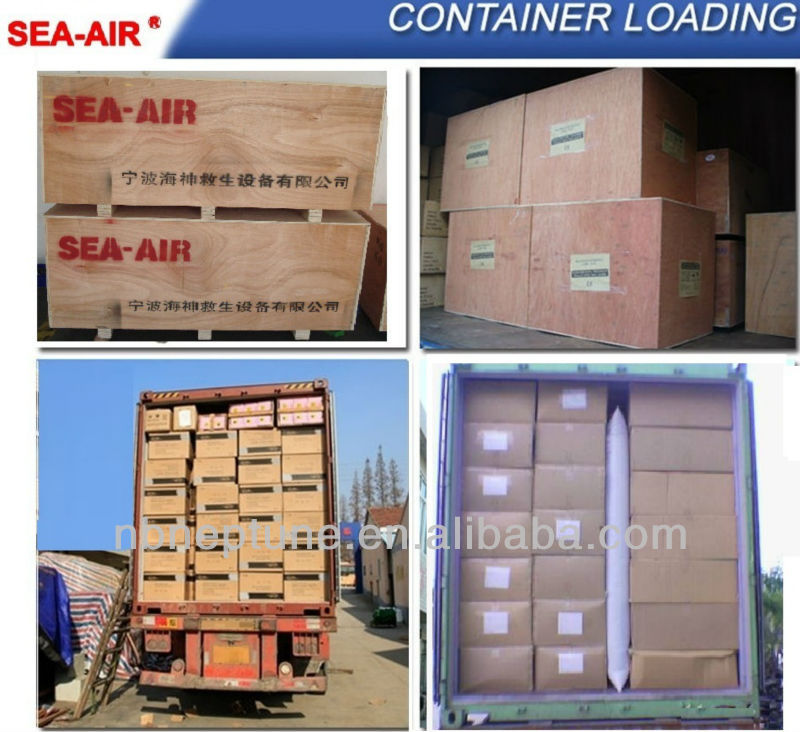

delivery:

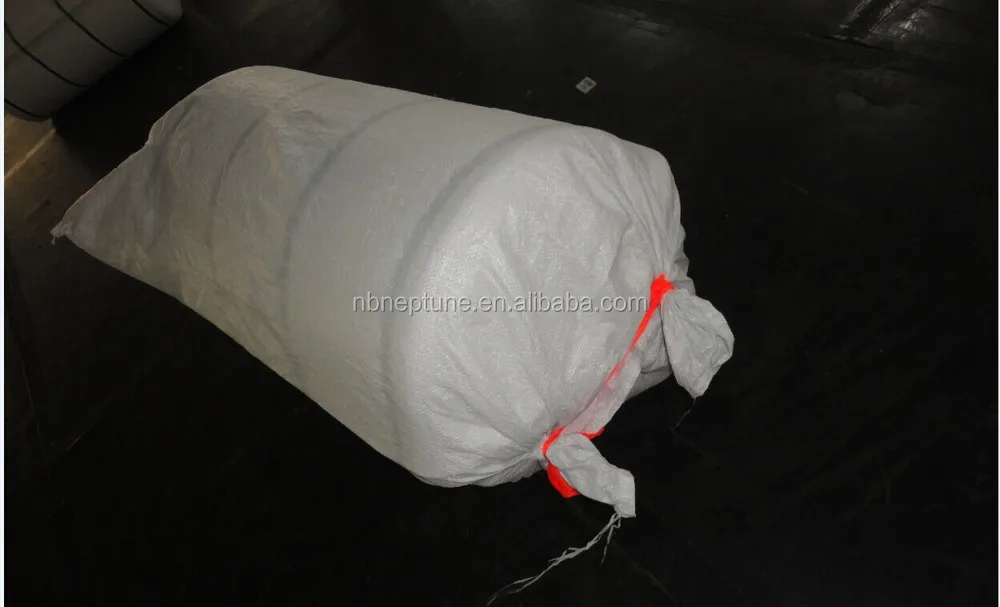

Solas packSolas B bag
Quantity/ 20'FCL: 27unitsQuantity/ 20'FCL: 33units
Quantity/ 40'FCL: 57unitsQuantity/ 40'FCL: 69units
Quantity/ 20'HQ: 72unitsQuantity/ 20'HQ: 87 units
