SR20 Turbo engine
- $3000.00 / 1 - 1 units
$2000.00 / >=2 units - 1 unit
- JJH International USA LLC
- Wyoming, China
- Mr Criss Walton
| Origin: | Wyoming, USA | MOQ: | 1 item |
| Supply capacity: | 1 unit per week | car model: | SR20 |
| Warranty: | 12 months | payment terms: | L/C, D/P, D/A, T/T |
| Original equipment number: | 43543 | size: | 46*36*30cm |
| port: | Port Wyoming. U.S. | Packaging Details: | 500-1550 kg or according to buyer |
| product name: | SR20 |

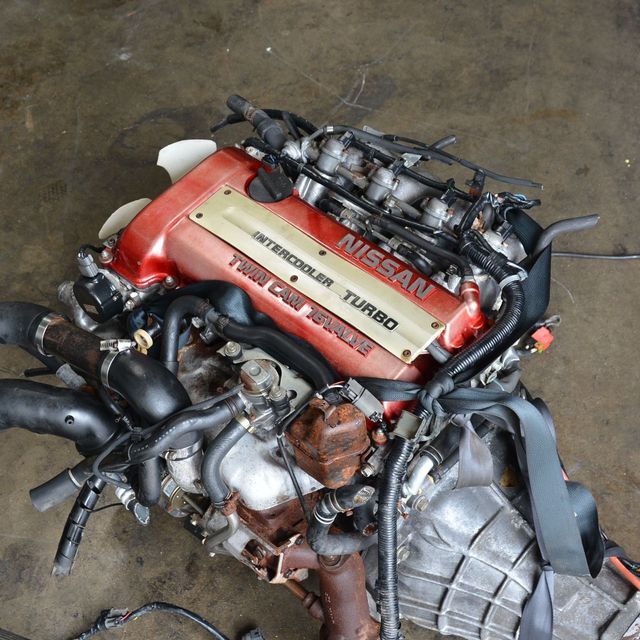

Used JDM SR20 Turbo Engines for sale
unbelievably strongSR20 engineIt first appeared on the Nissan Bluebird in the fall of 1989. A strong and powerful engine known for punching above its caliber. thisSR20DET modelis a more powerful version, produced from late 1990 to 1994. The compression ratio was lowered to 8.3, it used a Garrett T28 (TB2804) turbocharger, and Thunderbolt pressure was increased to 10.5 psi (0.72 bar). The engine is equipped withCamshafts 248/248 degrees, lift 10.0/10.0 mm, injectors 440 cc/min, reinforced head bolts, injectors, reinforced connecting rods, crankshaft and Independent Throttle Body (ITB). Here you can get the full stackSR20 turbo engine for sale.
The SR20DET is known for its frequent use in the 180SX/200SX models. It's a powerful 1998cc DOHC turbocharged engine with 16 valves that is very popular in the Japanese drifting community.
quality of useSR20 turbo engine for sale, ideal for a variety of construction and replacement projects180SX/200SX/, all the way to Primera, Pulsar, X-Trail GT, Infinity G20, and a few others.
Parts Contained in JDM Units
- 5-speed turbo gearbox
- electronic control unit
- Harness
- lighter
- Mass Flow
- intake manifold
- exhaust manifold
- cap
- coil set
- alternator
- power steering pump
Nissan SR20 Reference Specifications
| engine manufacturer | plant |
| alias | SR20 |
| initial production | 1989-2007 |
| Cylinder Block Alloy | aluminum |
| configuration | Straight 4 |
| valve train | DihydroHC 4 valves per cylinder |
| Piston stroke, mm (in) | 86 (3.39) |
| Bore, mm (inches) | 86 (3.39) |
| Compression ratio | 8.3 (SR20DET) 8.5 (SR20DET) 9.0 (SR20VET) 9.5 (SR20DE/SR20Di) 11.0 (SR20VE) |
| shift | 1998 cubic centimeters (121.9 cubic inches) |
| power output | 85 kW (115 hp) at 6,000 rpm 92 kW (125 hp) at 5,600 rpm 103 kW (140 hp) at 6,400 rpm 110 kW (150 hp) at 6,400 rpm 118 kW (160 hp) at 6,400 rpm 121 kW (165 hp) at 6,400 rpm 140 kW (190 hp) at 7,000 rpm 151 kW (205 hp) at 6,000 rpm 151 kW (205 hp) at 7,200 rpm 162 kW (220 hp) at 6,000 rpm 165 kW (225 hp) at 6,000 rpm 169 kW (230 hp) at 6,400 rpm 184 kW (250 hp) at 6,400 rpm 206 kW (280 hp) at 6,400 rpm |
| Torque output | 166 Nm (122 lb ft) at 4,800 rpm 170 Nm (125 lb ft) @ 4,800 rpm 179 Nm (132 lb ft) at 4,800 rpm 178 Nm (131 lb ft) at 4,800 rpm 188 Nm (139 lb-ft) at 4,800 rpm 192 Nm (142 lb ft) at 4,800 rpm 196 Nm (145 lb ft) at 6,000 rpm 275 Nm (203 lb ft) at 4,000 rpm 206 Nm (152 lb ft) at 5,200 rpm 275 Nm (203 lb ft) at 4,800 rpm 275 Nm (203 lb ft) at 4,800 rpm 280 Nm (207 lb ft) at 4,800 rpm 300 Nm (221 lb ft) at 4,800 rpm 315 Nm (232 lb ft) at 3,200 rpm |
| red line | 7,100 (SR20DE low port) 7,500 (SR20DE High Port) 7,500 (SR20DET red top) 7,200 (SR20DET black top) 7,200 (SR20VE) |
| horsepower per liter | 57.6 65.6 70.1 75.1 80.1 82.6 95.1 102.6 102.6 110.1 112.6 115.1 125.1 140.1 |
| gasoline type | gasoline |
| Weight, kg (lb) | 160 (350) – SR20DE 180 (400) – SR20DET |
| Fuel consumption, l/100 km (miles/gallon) -City -highway - combination |
Suitable for Infiniti G20 11.5 (20) 6.8 (35) 8.7 (27) |
| Turbocharger | inhale naturally Gellert T25G Garrett T28 Gellert T28BB |
| Fuel consumption, L/1000km (quarts per mile) |
up to 0.5 (1 quart per 1200 miles) |
| recommended oil | 5W-20 5W-30 5W-40 5W-50 10W-30 10W-40 10W-50 10W-60 15W-40 15W-50 20W-20 |
| Engine Oil Capacity, L (Quarts) | 3.4 (3.6) |
