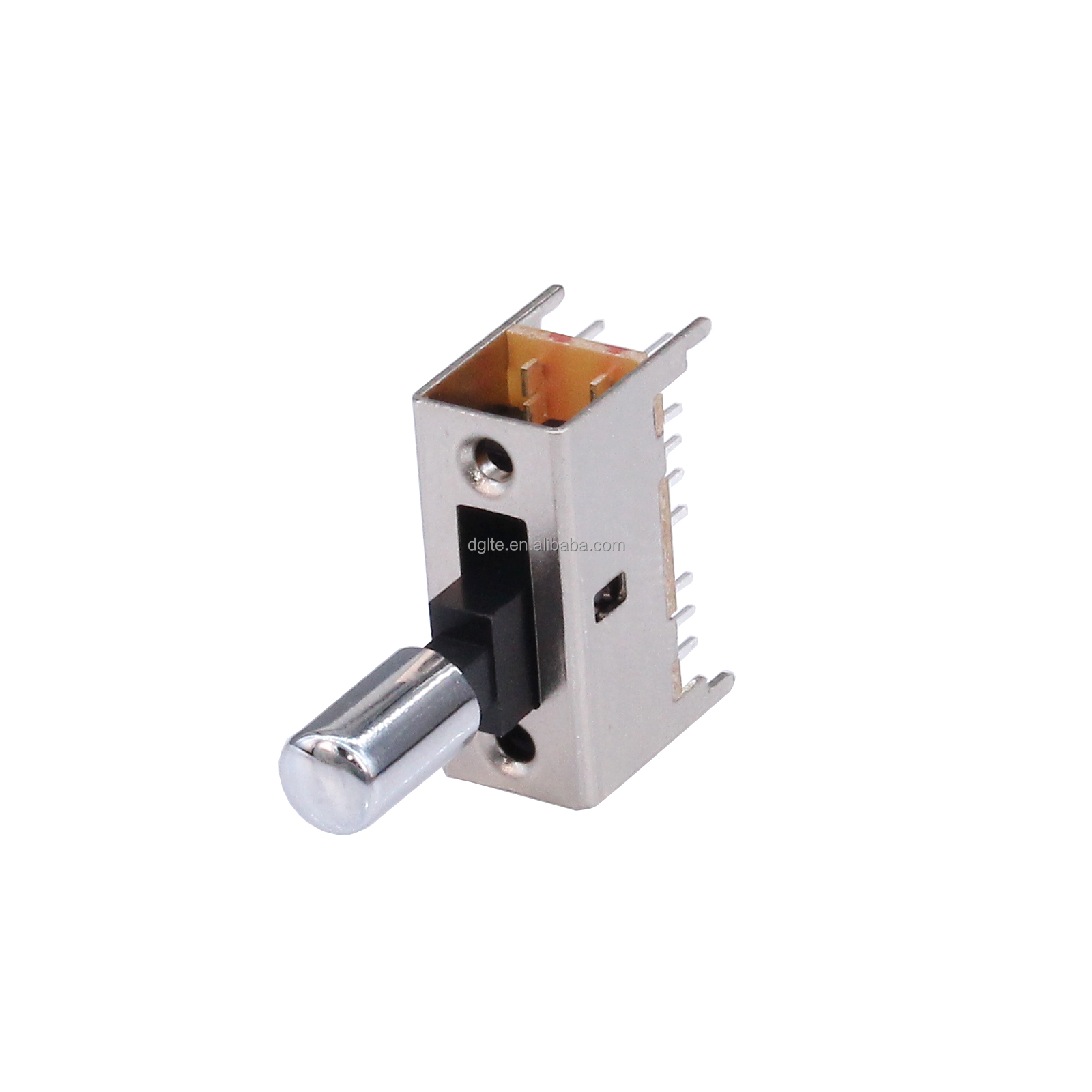

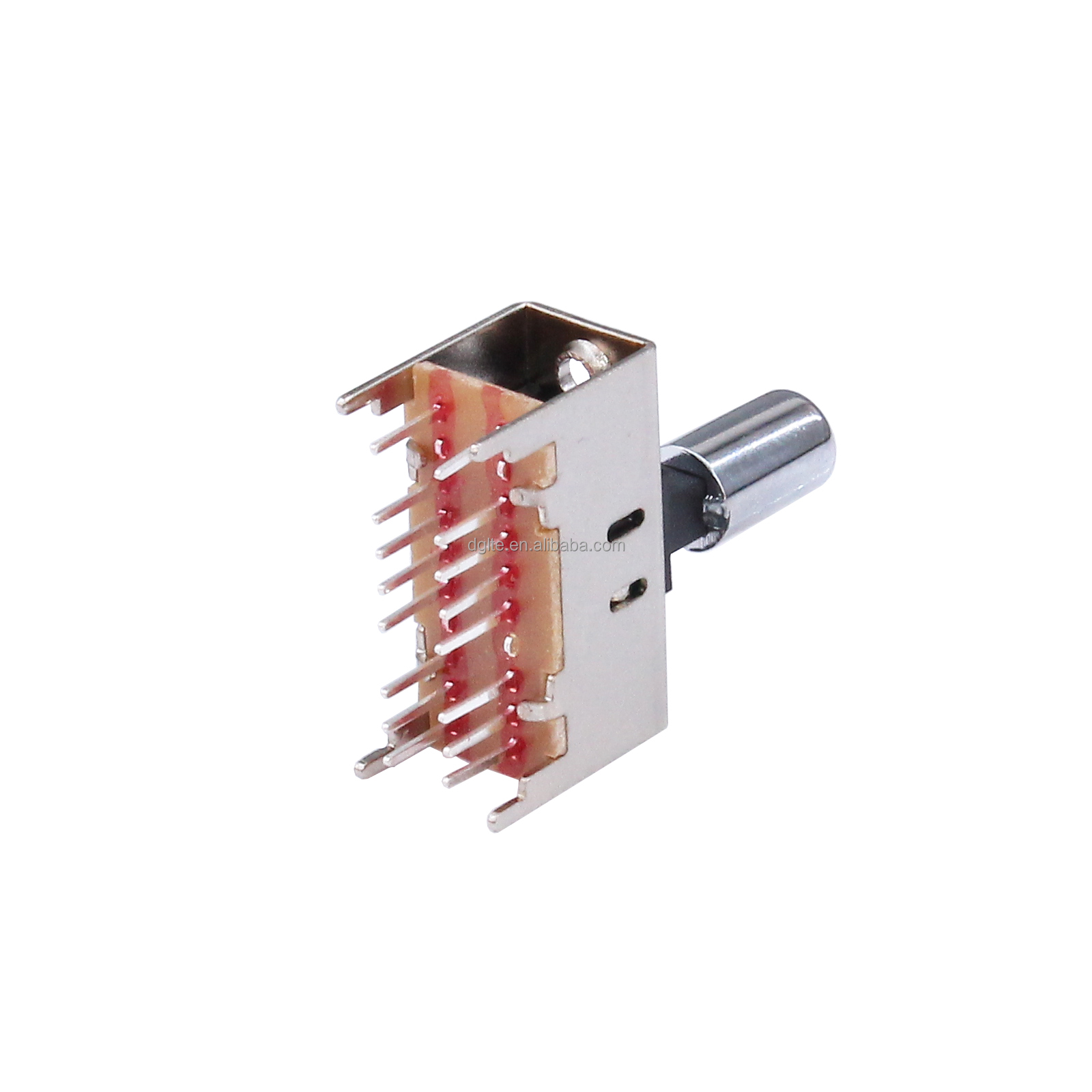

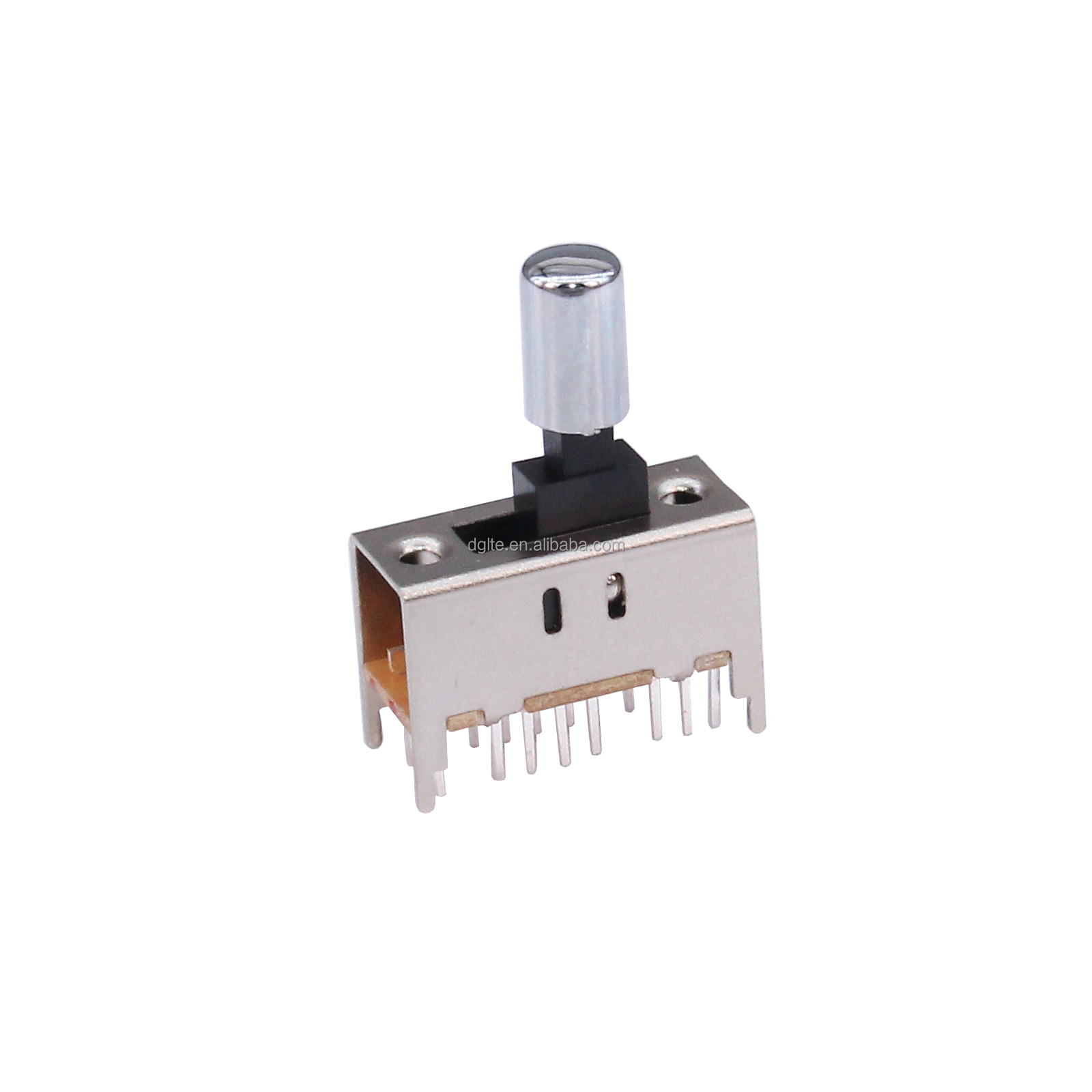

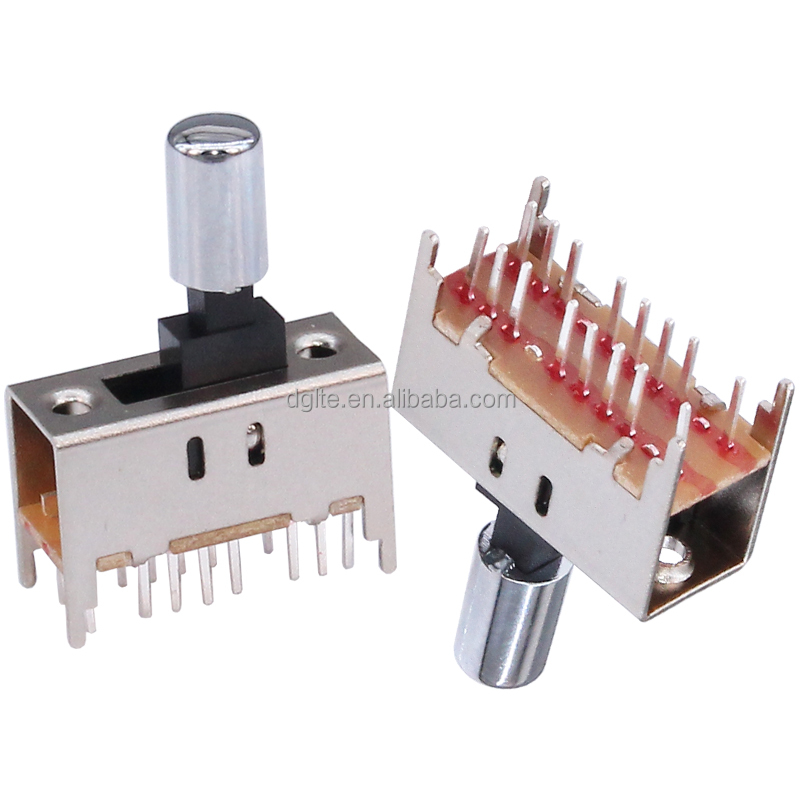

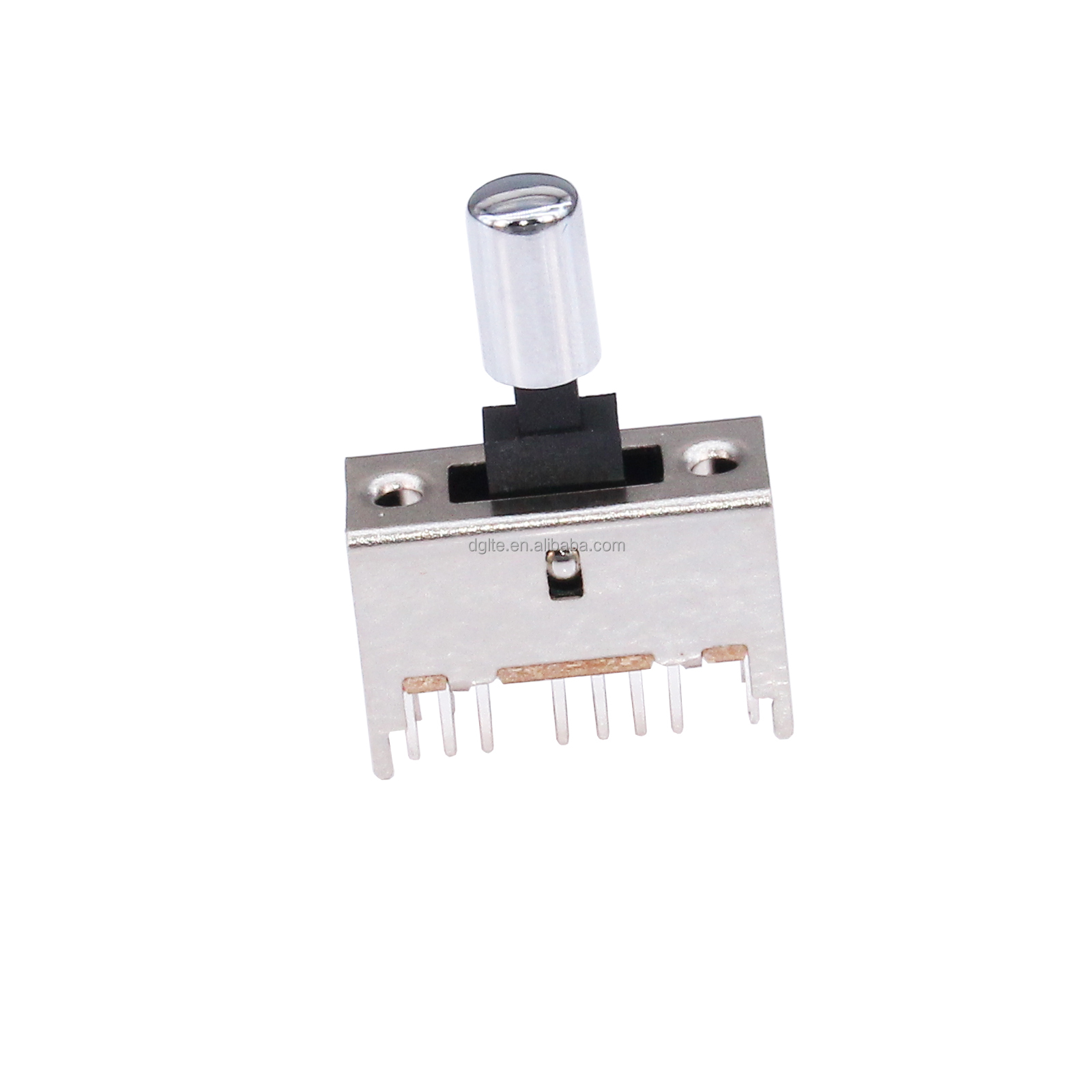

SS43D01G5 Widely used high quality fully electronic push button dip slide switch

PRODUCT DETAIL
product name:slide switchmodel:SS43D01G5
payment terms:wire transferSupply capacity:100000000000 pieces per year
Is it smart:Noport:to discuss
Dielectric Strength/Voltage Resistance:AC 500V/1 minuteInsulation resistance:Minimum 100MΩ
score:DC 50V 0.5ATerminal Strength:300 grams force
Operating force:250gf±150gfOrigin:China
Packaging Details:plastic boxbrand:Little, LT
brand:LT, Rio TintoContact resistance:100mΩ max
model:SS43D01G5timing:short
Certification:rohs, reached
Product Description

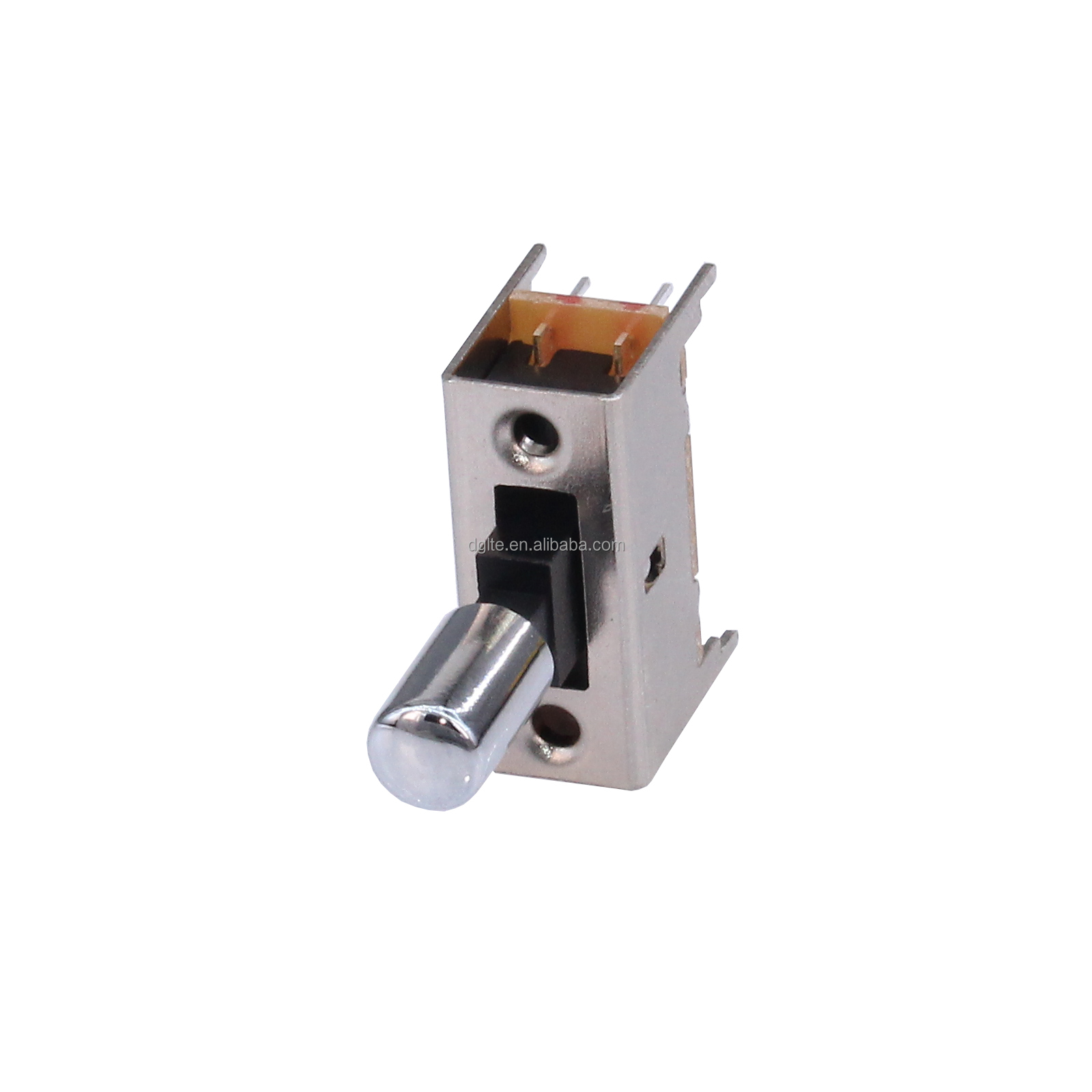

product name
slide switch
brand LT, Rio Tinto
model SS43D01G5
score DC 50V 0.5A
timing short
Contact resistance 100mΩ max
Insulation resistance Minimum 100MΩ
Dielectric Strength/Voltage Resistance AC 500V/1 minute
operating force 250gf±150gf
terminal strength 300 grams force
Life 10,000 cycles
Operating temperature -16 to +60°C
