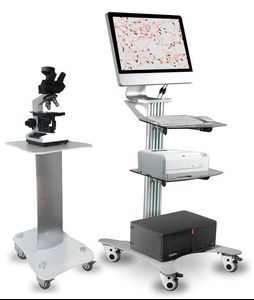

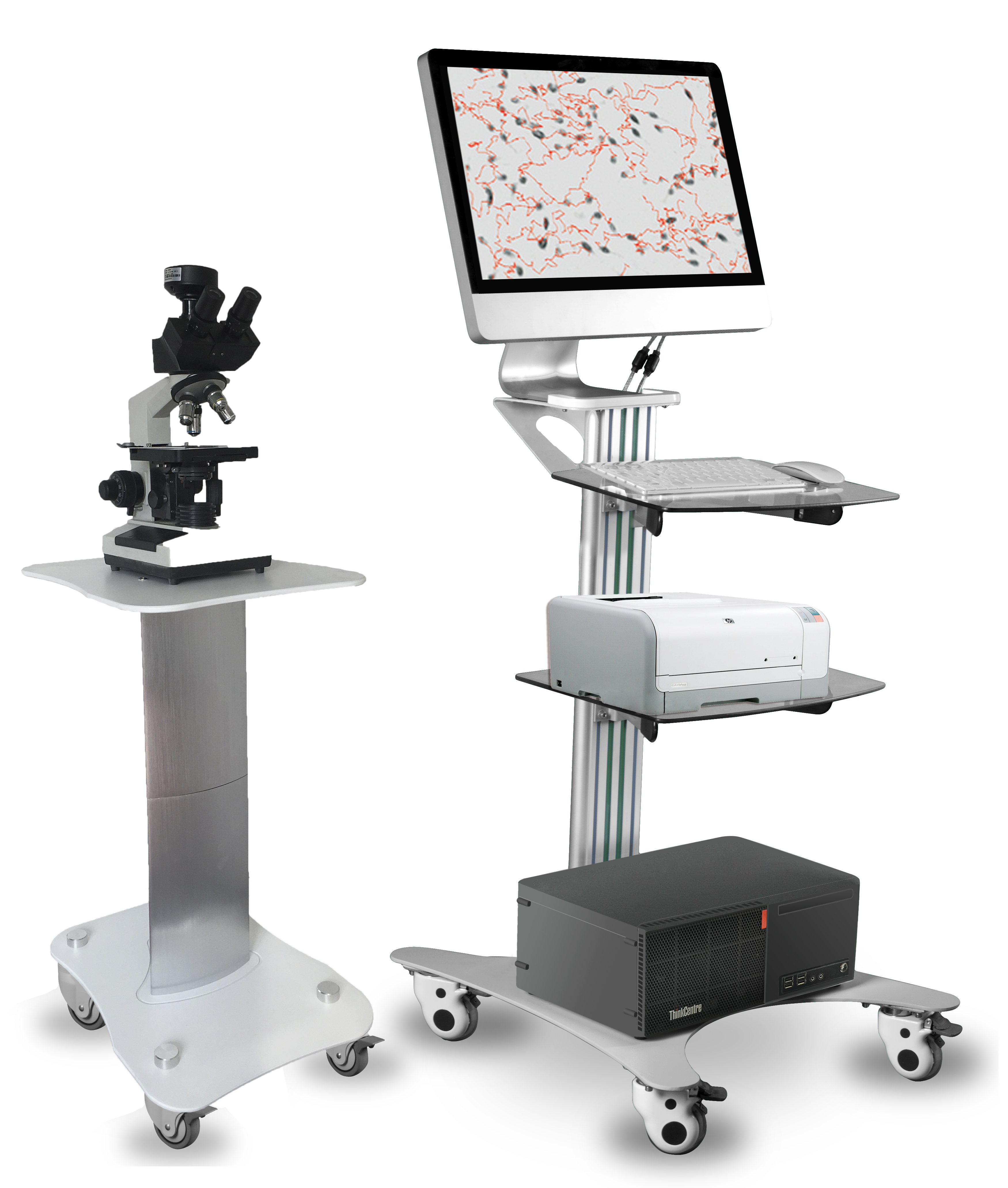

SW-3703 CASA semen analyzer and computer all-in-one sperm quality analysis system
- $3232.63 /set
- 1 set
- Jiangsu Sanwe Medical Science And Technology Co., Ltd.
- Jiangsu, China
- Ms Claire Gao
Warranty: | 1 year | Energy source: | electrical |
place of origin; place of origin: | Jiangsu, China | Consumables: | cum slipping |
payment terms: | L/C, Western Union, T/T, MoneyGram | microscope: | brand microscope |
MOQ: | 1 unit | Instrument classification: | Secondary |
Supply capacity: | 40 sets per week | product name: | Automatic Semen Analyzer |
Packaging Details: | One box, 66X56X109, gross weight: 65KGS | Supply capacity: | 220V, 50Hz |
Shelf life: | 1 year | Quality Certification: | CCC certification |
safety standard: | not any | Warranty: | 18 months |
port: | Shanghai or other ports | After-sales service: | online technical support |
Material: | plastic | payment terms: | T/T, MoneyGram, |
camera: | Mingmei MD30 | brand: | Three for |
model: | SW-3703 | language: | English. Chinese |
Semen software: | Yes |
Instrument introduction
It is a high-tech intelligent product applied to modern reproductive medicine, which combines computer image processing technology and advanced artificial intelligence technology. It can be used for automatic identification of sperm and automatic tracking of sperm movement, quickly complete a number of parameter analysis in line with WHO international standards, and conduct comprehensive quantitative analysis of sperm activity and static characteristics. It is suitable for clinical semen detection and provides important scientific basis for male fertility.
Instrument Features
Various impurities different from sperm can be filtered out to ensure the accuracy of detection.
Knife-free testing ensures natural sperm motility and monolayer sampling.
All data and dynamic still images of the patient's sperm examination are stored in digital form. It can be used for a variety of query, modification, summary and printing of inspection reports, and can freely share resources within the network.
Advanced morphological analysis software, clear and intuitive color pictures.
Test items
Sperm density, sperm survival rate, sperm movement trajectory, sperm movement distribution curve
Average speed of sperm curve movement, total number of sperm, total number of motile sperm, sperm survival rate
Average speed of sperm linear movement, total number of sperm, total number of motile sperm, sperm survival rate
Average velocity, total sperm count, total motile sperm count, sperm survival rate for average sperm path motion
Sperm motility graded speed: A fast forward movement, B slow forward movement, C no forward movement, D ultra slow or resting sperm survival rate
Sperm lateral amplitude, sperm wing, sperm whipping frequency, linear motion rate, total
Linear velocity, average movement velocity, number of sperm linear movement
technical parameter
The maximum number of detected sperm: 1000
Detection speed range: 0-180µm/s
Picture frame number: 0-75
Particle size resolution: 0-150µm/s
Analysis time: 1-5 seconds or longer
Number of image collection groups: 1-15 groups
Applicable magnification of microscope objective lens: 10x.20x.25x.40x
The sperm detection system displays no less than:
Static sperm distribution curve,
Semen characteristic data and statistical analysis data of all major functions, 3) sperm dynamic trajectory curve,
Displays various sperm movement speeds and sperm energy contour maps,
Management use case information such as patient name;
The output of the sperm detection system should not be less than:
1 | Sperm main technical data |
2 | Sperm dynamic trajectory curve |
3 | Analysis and Histograms |
4 | Case information for administration, such as patient name |
Subjective inspection items:
Other components of semen - epithelial cells, blood cells, white blood cells
The number of teratoses—the number of cephalic deformities, the number of tail deformities, the number of body deformities, and the number of mixed teratogens
Teratogenic rate
Sperm appearance, sperm viscosity
Sperm volume, dilution ratio
Sperm smell, sperm extraction method
Sperm pH, date and time of sperm extraction
Time control, patient basic information
System Features
The actual clinical needs at the grassroots level were considered during the design process. The structure is simple and reasonable, the performance is stable, the human-machine interface is friendly, and the use is intuitive and convenient; the operator can master the operation method without training. Manual inspection adopts quantitative standards to reduce the knowledge pressure of inspectors, which is an epic change in inspection methods.
High degree of intelligence, automatic detection, analysis, scaling, to ensure the accuracy of detection data under any magnification, objective, accurate and scientifically provide comprehensive sperm quality detection data.
Comprehensive and intuitive data image test analysis, rich test data and comprehensive analysis data; 34 semen indicators can be detected; 3 speed distribution statistics graphs; the detection speed is fast, and the detection and analysis are completed in an instant, which greatly reduces the labor intensity of workers. Can effectively reduce pollution; Strong operability; On-screen counting function, real-time display of test data; Repeated verification of test results is clear; The design of the printed report is simple, and the diagnosis results are clear at a glance.
It has a database function; the test results are stored in the system hard disk, and can be queried, adjusted, and printed; it provides advanced methods for clinical scientific research and teaching; powerful expansion functions can be applied to the analysis and analysis of biological characteristics such as cells or Escherichia coli Inspection, and special industries such as animal or animal husbandry.
