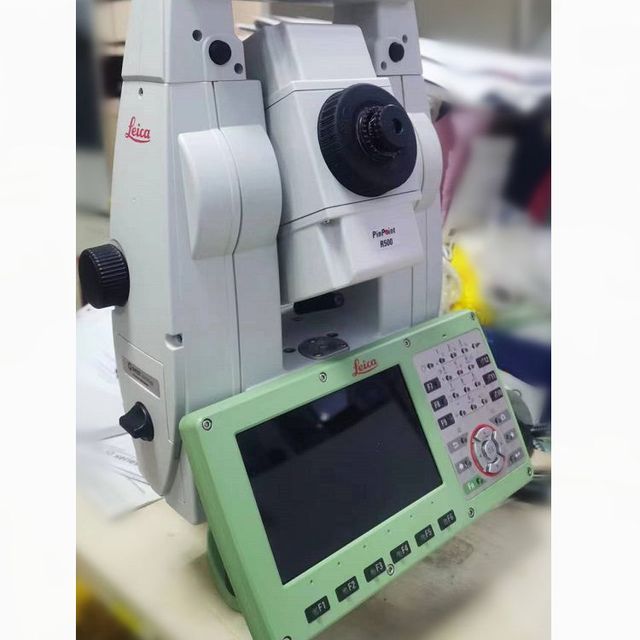

Second hand 1 second precision robot total station TS16P R500 total station price
- $13000.00 / 1 - 2 sets
$12600.00 / >=3 sets - 1 set
- Chongqing Qianlixing Instrument Co., Ltd.
- Chongqing, China
- Ms Sophia LI
PRODUCT DETAIL
| brand: | Reka | Angle accuracy: | 1'' |
| Warranty: | 3 months, 6 months | Package preview: | |
| Measurement mode: | robot | Supply capacity: | 3 items per month |
| image: | upright | model: | TS16P,TS16P |
| exhibit: | Dual LCD display | Customization support: | OEM, ODM |
| No reflector: | 500m | Packaging details: | 1 piece in 1 box |
| Storage: | 50,000 points | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| port: | Shenzhen | High-speed ranging: | 0.15 seconds |
| Operating temperature: | -20℃~50℃ | Place of origin: | Switzerland |
Product Description
Viva TS16 total station | ||||||
angle measurement | ||||||
Accuracy 1 Hz and V | Absolute, continuous, diameter | 1 inch (0.3 mg), 2 inch (0.6 mg), 3 inch (1 mg), 5 inches (1.5 mg) | ||||
distance measurement | ||||||
Range 2 | Prism (GPR1, GPH1P) 3 No prism/any surface 4 | 1.5m to 3500m R500: 1.5m to >500m, R1000: 1.5m to >1000m | ||||
Accuracy/measurement time | Single (prism) 2,5 Single sided (any surface) 2, 4, 5, 6 | 1mm + 1.5ppm / usually 2.4s 2mm + 2ppm / usually 3s | ||||
Laser spot size | 50m away | 8mm x 20mm | ||||
Measurement technology | system analyzer | Coaxial visible red laser | ||||
Videography | ||||||
panoramic camera | sensor Field of view frame rate | 5-megapixel CMOS sensor 19.4° Up to 20 frames per second | ||||
Auto Aim - ATRplus | ||||||
Target aiming range 2 / Target locking range 2 | Circular prism (GPR1, GPH1P) 360° prism (GRZ4, GRZ122) | 1500m/1000m 1000m/1000m | ||||
Accuracy1,2 / measuring time | ATRplus angle accuracy Hz, V | 1 inch (0.3 mg), 2 inch (0.6 mg), 3 inch (1 mg), 5 inches (1.5 mg)/usually 3-4 seconds | ||||
Power search | ||||||
range/search time | 360° prism (GRZ4, GRZ122) | 300m/usually 5s | ||||
Guidance Light (EGL) | ||||||
Working range/accuracy | 5–150m / usually 5cm @ 100m | |||||
General | ||||||
field software | Leica is obsessed with apps | |||||
Display and keyboard | 5" (inch), WVGA, Color, Touch, Face I Standard/Face II Optional | 37 keys, lighting | ||||
processor | TI OMAP4430 1GHz dual-core ARM® Cortex™ A9 MPCore™ | Operating System – Windows EC7 | ||||
energy management | Replaceable lithium-ion battery | Working hours 5–8 hours | ||||
data storage | internal memory memory card | 2GB SD card 1 GB or 8 GB | ||||
interface | RS232, USB, Bluetooth®, WLAN | |||||
weight | Total station with battery | 5.3 - 6kg | ||||
Environmental indicators | range of working temperature Dust/Water (IEC 60529)/Humidity | –20°C to +50°C IP55/95%, non-condensing | ||||

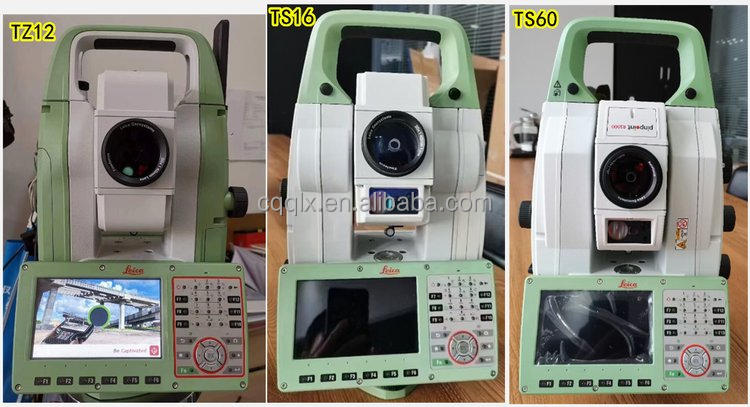

Viva | TS16M | TS16A | TS16P | TS16I | TS16G |
angle measurement | √ | √ | √ | √ | √ |
prism ranging | √ | √ | √ | √ | √ |
prismless distance measurement | √ | √ | √ | √ | √ |
Automatic lighting ATR Plus | × | √ | √ | √ | √ |
Super search PS | × | × | √ | √ | × |
wide angle camera | × | × | × | √ | × |
guiding light | √ | √ | √ | √ | × |
