Sesame Pepper Cumin Paddy Wheat Seed Mung Bean Peas Specific Gravity Table Separator Machine
- $8500.00 / 1 - 2 sets
$7900.00 / 3 - 4 sets
$7500.00 / >=5 sets - 1 set
- Shijiazhuang Synmec International Trading Limited
- Hebei, China
- Mr Sam Lian
PRODUCT DETAIL
| Spare: | one year; | Local Service Location: | South Africa; |
| Supply Ability: | 100 Sets per Month; | Machinery Test Report: | Provided; |
| Warranty: | 5 years; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,cash; |
| Video outgoing-inspection: | Provided; | Use: | Remove bad seeds; |
| Condition: | New; | Certification: | ISO9001,TUV,CE,SONCAP; |
| Key Selling Points: | High Productivity; | Marketing Type: | Hot Product 2019; |
| Raw material: | Carbon Steel; | Product name: | gravity separator; |
| Application: | farm; | Core Components: | Bearing,Motor,Gear; |
| Showroom Location: | South Africa; | Applicable Industries: | Manufacturing Plant,Farms; |
| Capacity: | 5T/H; | Power: | 220-680v; |
| Place of Origin: | Hebei, China; | Warranty of core components: | 3 years; |
| After-sales Service Provided: | Engineers available to service machinery overseas,Online support; | Weight: | 2000kg; |
| After Warranty Service: | Video technical support; | Discount: | yes; |
| Port: | tianjin; | Brand Name: | SYNMEC; |
| Type: | Grain Processing Equipment; | Color: | White; |
| Packaging Detail: | wooden case or container; |
PRODUCT DESCRIPTION
Introduction and Application:

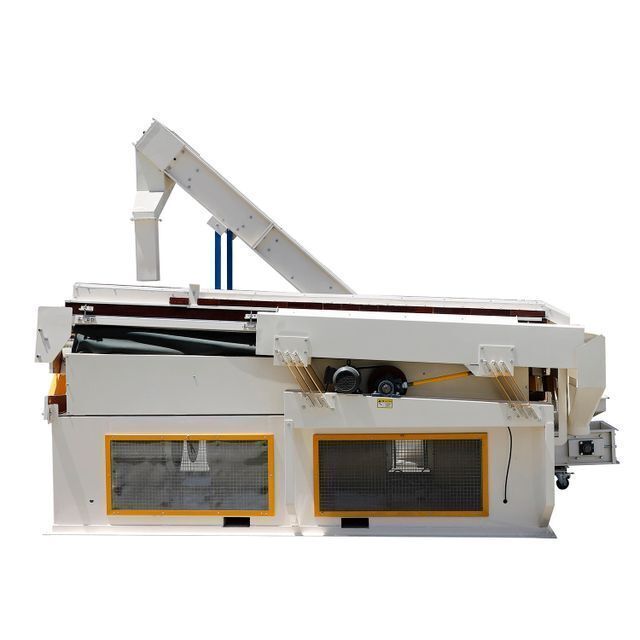

5XZ-6 gravity separator is used for fine cleaning and impurity separation of seeds and beans with identical particle size but with differences in their specific weight.
The Gravity Separator is used to remove partially eaten, immature, insect damaged sick seed and moldy seed from good seed, which traditional cleaning method by Seed Cleaner and Indented cylinder prove to be less effective.
The Gravity Separator is suitable for efficient cleaning all cereals, grains ,pulses ,beans and seeds of all crops such as wheat, paddy, barely, maize, millets, sunflower seed, soybean, rice, quinoa seed, chia seed. oil seeds ,sesame , clover seed, vegetable seed etc.
Specification:
Model | 5XZ-6 |
Capacity (Count by wheat) | 5000 kg/h |
Sieve Table Size | 3000*1200 mm |
Total Power | 8.95 KW |
Motor for build-in Air Blower | Three air blower (1.5KW*4 = 6 KW) |
Motor for vibration | 2.2 KW (the vibration speed of deck can be adjusted by frequency converter from 0-480r/m) |
Motor for Good Grain Release | 0.75 KW |
Lateral angle of inclination | 3°～6° |
Longitudinal angle of inclination | 0～6° |
Amplitude | 7mm |
Dimension (L*W*H) | 3440×1630×1900 mm |
Weight | 2000kg |
Working Process:

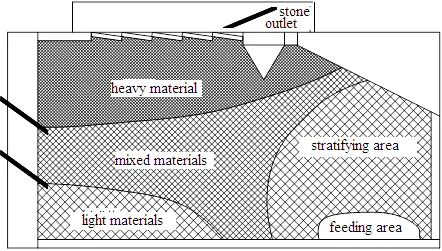

The seeds or beans are fed continuously on the vibration deck surface of the Gravity Separator, and then spread and makes a uniform bed of material over the deck surface on stratifying area.
In stratifying area, by the function of uniform air system the light materials will go top of product bed and heavy material will go lower under the light materials and touch the deck surface.

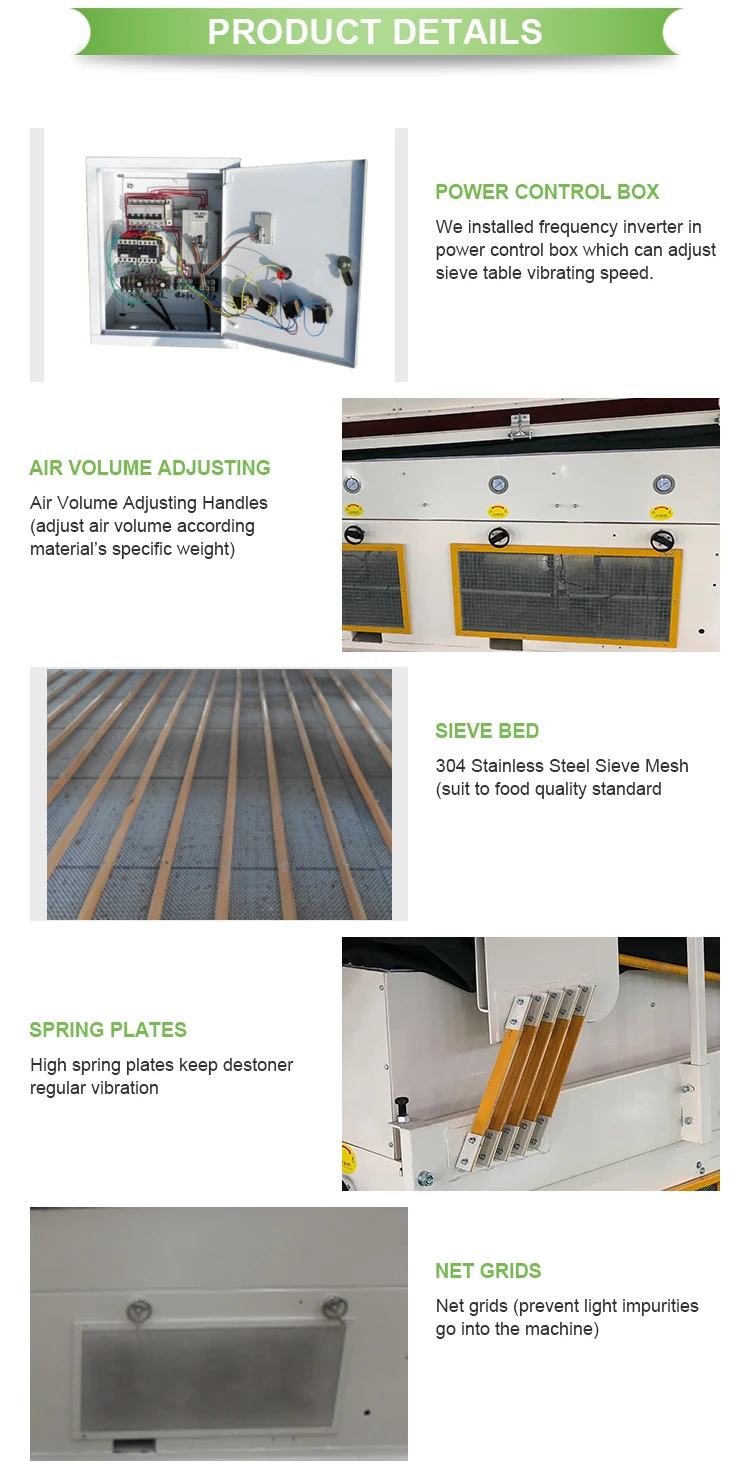

PRODUCT DETAILS
APPLICATION INDUSTRY
RELATED PRODUCTS
5X Fine seed cleaner
5XQS Destoner
5XZ Gravity separator
5XWY/M Indented cylinder
5XCX Magnetic separator
5PJ Bean polishing machine
5SSM Dry bean huller
5BY Seed coating machine
DCS-B Packing machine
