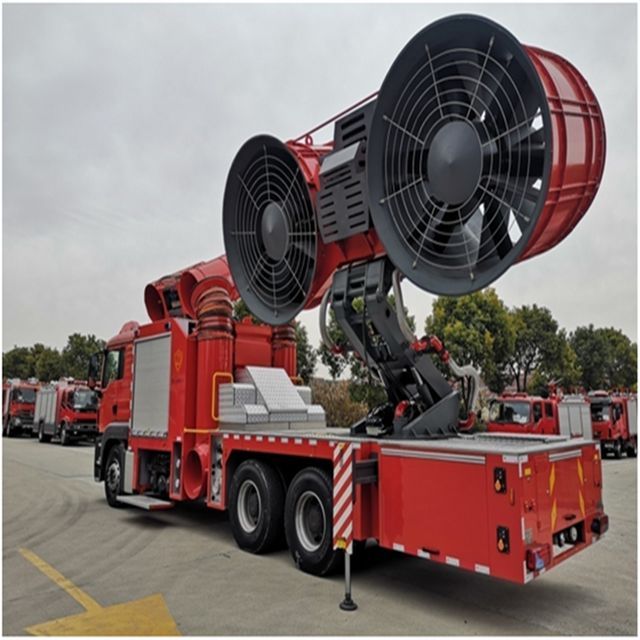

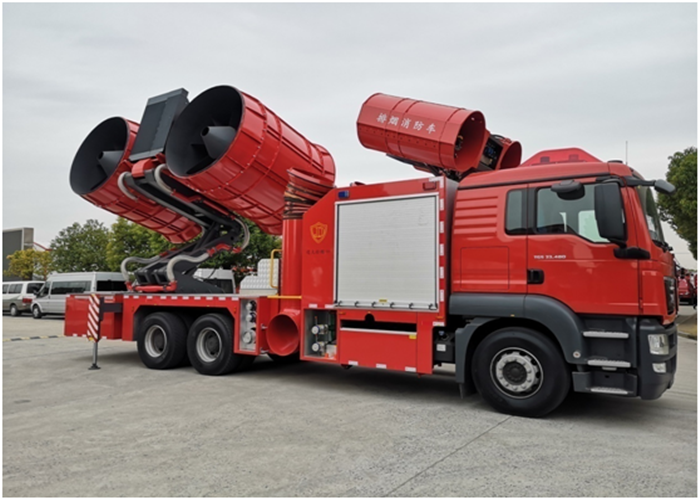

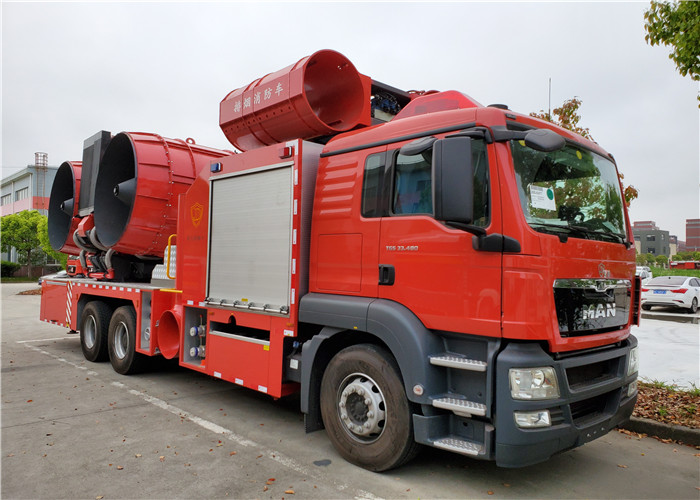

Shanghai Jindun new generation large smoke exhaust fire truck for sale
- $400000.00 /unit
- 1 unit
- Shanghai Jindun Special Vehicle Equipment Co., Ltd.
- Shanghai, China
- Mr Howard Da
| Health status: | new | Maximum speed: | 115km/h |
| type: | smoke, double sided | Warranty: | 1 year |
| Gasoline type: | diesel engine | Wheelbase: | 3310mm |
| size: | 6095X2000X3260mm | Chassis brand: | man |
| Transmission type: | manual | maximum. Working height: | 5 meters |
| Driver type: | 6X4 | Fuel tank capacity: | < 3000 liters |
| Maximum power: | 353 kW | gross weight: | 4000 kg |
| port: | Shanghai port | seat: | 1 |
| horsepower: | > 450 hp | Drive wheel: | 6x4 |
| Emission Standards: | 5 euros | color: | Red |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | Packaging Details: | The packaging of the fire rescue vehicle will be our export standard. We will choose the best transportation type according to the truck volume, truck structure, Sail Schedule and customer's requirements! |
| brand: | Golden Shield | Supply capacity: | 300 units per year |
| Origin: | China Shanghai |
Shanghai Jindun new generation large smoke exhaust fire truck for sale
two.Chassis (original import)
1.main specifications
Model: TGS 33.480 6X4 BB
CCC Model: TGS 33.480
Drive type: 6x4
Cab: MAN TGS L Cab
Wheelbase (mm): 5,100+1400
Rear Suspension (mm): 2,750
Maximum engine power: 353 kW/480 HP (G5)
2.Carrying capacity
Chassis weight: 9,593 kg (4996+4597, this data is for reference only)
Maximum permissible load: 23,407 kg (wheelbase 5,100 mm)
Allowable load on the front axle: 7,500 kg (7,000 KG for record)
Rear axle allowable load: 2x13, 000 kg (26000KG)
Allowable gross vehicle weight: 33,000 kg
3.Performance
Top speed: 108 km/h (89 km/h with electronic speed limiter)
Minimum turning diameter: 21.7M
Minimum ground clearance: 254 mm (front); 305 mm (rear)
4.taxi
TGS L cab (narrow body, standard roof), 2240mm wide, 2280mm deep, fire red, high-comfort air spring main driver's seat, single front passenger seat, rear berth. Qiz billion storage space, automatic temperature control environment air-conditioning system (R134A refrigerant, no Freon), car multimedia (color screen + USB interface), central door lock, electric windows on both sides, electric thermal rearview mirrors on both sides, two Side electric thermal wide-angle mirror, right electric thermal rearview mirror, right front mirror, etc.
Packaged in nude, waxed via ro-ro or bulk vessel.
1. We always provide a professional fire truck service team.
2. Any questions about the fire truck will be answered within 24 hours.
3. Good quality, reasonable price and fast delivery.
4. Our chassis are directly from other factories. No middlemen, no high prices. At the same time, we research and develop together with MORITA CORPORATION. Therefore, we can provide you with good quality fire trucks at competitive prices.
5. We guarantee that all of our trucks will go through strict quality control and test report to make sure it is in good condition before shipment. We strive to achieve 100% customer satisfaction with every sale we close.
6. We provide a 12-month warranty for the fire trucks.
7. We provide spare parts to customers in time.
8. Our mission is to provide quality products to save lives.
9. Such as military fire trucks Chinese aircraft carrierMade by us.
