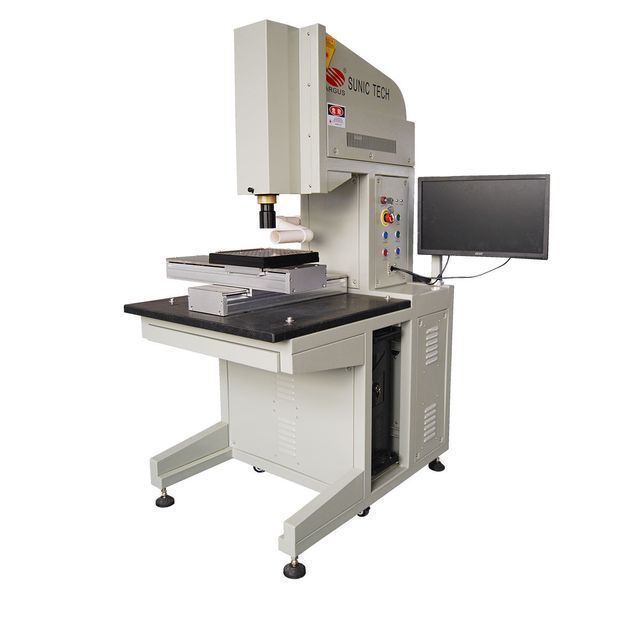

Silicon wafer photovoltaic solar cell laser cutting machine with sorting function can be customized
- $12000.00 /set
- 1 set
- Wuhan Sunic International Trading Co., Ltd.
- Hubei, China
- Ms Scarlett He
PRODUCT DETAIL
| Showroom location: | UK, Mexico, Romania, Australia | brand: | Argus |
| CNC or not: | Yes | Laser source brand: | Raycus |
| payment terms: | L/C, Western Union, T/T | Cooling method of solar cell scriber: | air cooled |
| Operating temperature: | 0-35℃ | Applicable materials: | Monocrystalline, polycrystalline, amorphous silicon, solar cells. |
| working desk size: | 210*210mm or 350*350mm Solar Cell Scribe | Laser frequency: | 20kHz~200kHz |
| Main selling points: | high accuracy | Maximum scribing speed: | 200mm/s solar cell dicing machine |
| Supported graphic formats: | AI,PLT,DXF,BMP,Dst,Dwg,LAS,DXP | Health status: | new |
| Control system brand: | Sunich | Laser wavelength: | 1064nm |
| place of origin; place of origin: | China | Packaging Details: | Export standard wooden packaging, fiber laser scriber exempt from customs. |
| After warranty service: | Video technical support, online support | Laser type: | fiber-optic laser |
| Solar cell dicing power supply: | 220V/50Hz (customized) | cooling method: | air cooled |
| Certification: | CE, ISO, SGS | application: | laser scribing |
| Local service location: | UK, Mexico, Australia, Romania | port: | China's main ports |
| Applicable industries: | Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies | controlling software: | Chinanews.com |
| After-sales service provided: | Engineers available to service machinery overseas | Line Width: | <30 microns |
| Supply capacity: | 120 sets per month | Accuracy of solar cell scribe: | ≤±10μm |
Product Description
Laser cutting machine for semiconductor wafer dicing
Laser scribing machine, fiber laser scribing machine, solar cell cutting machine, solar cell laser scribing machine, solar cell sheet
Scribing machine, silicon fiber laser scribing machine.1. sunic laser new product solar cell scriber laser scriber. The newly designed mechanical structure makes the whole machine
The operation is more concise and convenient. Rewritten part of the source code of the solar cell scribing laser scribing machine software
Ensure more stable and faster operation.
2. High quality laser scribing machine/solar cell scribing machine. Imported fiber laser, showing better laser beam quality (standard
base model), thinner cut seams and smoother cut edges.
3. Independent research and development of photovoltaic cell laser cutting/solar cell dicing machine, international standard module design, no need
The mainternace can keep the new solar cell scribing laser scribing machine running continuously without interruption.
4. Convenient operation and machine integration, the equipment is smaller and the operation is more convenient. controlling software
The solar cell scribing laser scribing machine is specially designed by our company Sunic Laser for the fiber laser scribing machine.
5. The T-type double-station workbench of the fiber laser scribing machine runs alternately to improve work efficiency and the highest speed
The laser scribing machine can reach 20mm/s.
technical parameter
technical indicators | technical parameter |
Model Specifications | SFS20 |
Laser wavelength | 1064nm |
laser power | 20W |
Laser repetition rate | 20Khz-100khz |
Maximum scribing speed | 200 mm/s |
Line Width | ±10μm |
Line Width | <30 microns |
Working platform size | 350x350mm |
power supply | 380V(220V)/50HZ/1.5KVA (customized) |
Cooling method | Forced air cooling |
Operating temperature | 0-35℃ |
Working humidity | 5-95% |
pack | Standard wooden package for export, free from customs |
working platform | Vacuum adsorption with double air tanks, T-shaped platform with two positions working in turn |
