Simple dry mix mortar production line, 2-5T/h ceramic tile adhesive dry mortar mixer machines for sale
- $2956.00 /set
- 1 set
- Henan Huaning Machinery Equipment Co., Ltd.
- Henan, China
- Ms Mandy Chen
PRODUCT DETAIL
| Capacity: | 2-5 T/h; | Machinery Test Report: | Provided; |
| Dimension(L*W*H): | as required; | Payment Terms: | Western Union,T/T,Ali Trade Assurance; |
| Condition: | New; | Warranty of core components: | 1 Year; |
| Second Lift Motor: | 4kw; | Voltage: | 220V-440V; |
| Weight: | 1500; | After-sales Service Provided: | Engineers available to service machinery overseas,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; |
| After Warranty Service: | Video technical support,Online support,Field maintenance and repair service; | Warranty: | 1 Year; |
| Marketing Type: | New Product 2021; | Showroom Location: | None; |
| Features: | High Efficiency; | Certification: | ISO; |
| Packaging: | Valve Port Packaging; | Local Service Location: | None; |
| Key Selling Points: | Low Noise Level; | Name: | 2-5 t/h Dry Mortar Production Line; |
| Supply Ability: | 30 Set/Sets per Month Simple Dry Mortar Production Line; | Core Components: | PLC,Engine,Gear; |
| Packaging Detail: | Export Standard Container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight.; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Construction works ; |
| Product name: | Dry mortar mixer; | Packing Motor: | 3kw; |
| Port: | Qingdao,Shanghai,Tianjin,Guangzhou.etc.; | First Lift Motor: | 4kw; |
| Advantage: | Convenient Maintenance; | Place of Origin: | Henan China; |
| Brand Name: | Huaning; | Application: | Dry Mortar Production; |
| Video outgoing-inspection: | Provided; | Power: | 22kw; |

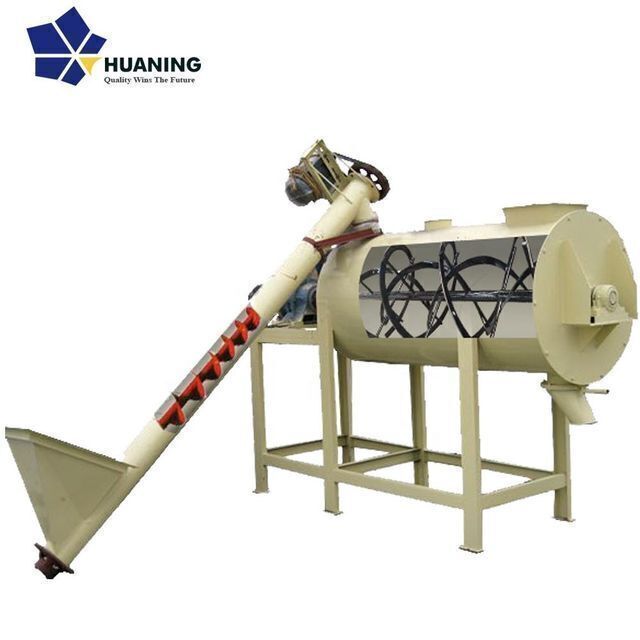

Dry mortar production machinery is mainly composed of dry mortar mixer, feed screw conveyor, three ribbon mixing machine, secondary hoist, a storage hopper and automatic packing machine, etc.. This system is an efficiency production system after multiple times improvement on the basis of multiple ribbons dry mortar mixer. Mixed product will be into a storage bin through second lift machine. Then worker can carry out filing operation and not affect the next production. Matching an accurate packing machine can greatly improve production efficiency.
| Name |
GLHL1.0 Production Line |
GLHL1.5 Production Line |
GLHL2.0 Production Line | GLHL3.0 Production Line | |
| Host Type | GLHL-1000 | GLHL-1000 | GLHL-1500 | GLHL-2000 | GLHL-3000 |
| Feed Screw Converey | Power(kw) | 3 | 4 | 4 | 4 |
| Size(mm) | φ165x3200 | φ219x3600 | φ219x3600 | φ219x3600 | |
| Second Lift Screw Converor | Power(kw) | 3 | 3 | 3 | 4 |
| Size(mm) | φ165x3000 | φ165x3000 | φ165x3000 | φ219x3300 | |
|
Size Of Storage Bin (mm) |
φ160x2850 | φ160x2850 | φ180x2850 |
2100x1320x2850 (Double port) |
|
| Automatic Valve Port Paching Machine | Power(kw) | 3 | 3 | 3 | 3 |
| Packing Efficiency(s/bag) | 6 | 6 | 6 | 6 | |
| Size(mm) | 980x680x1050 | 980x680x1050 | 980x680x1050 |
980x680x1050 |
|
