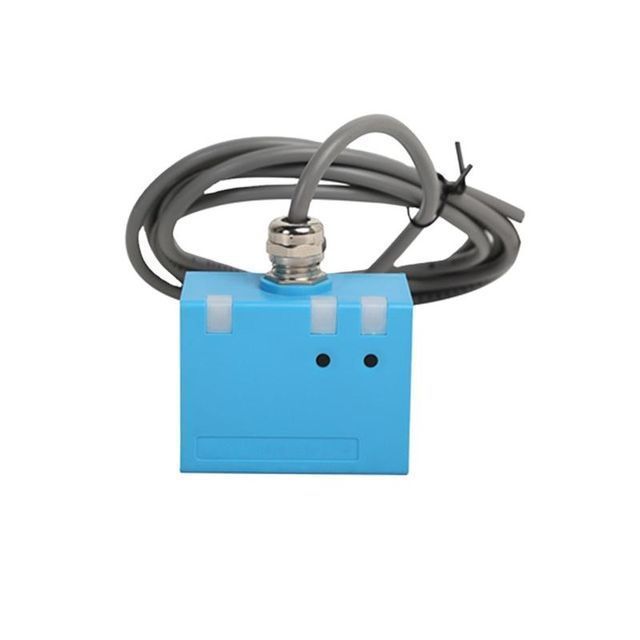

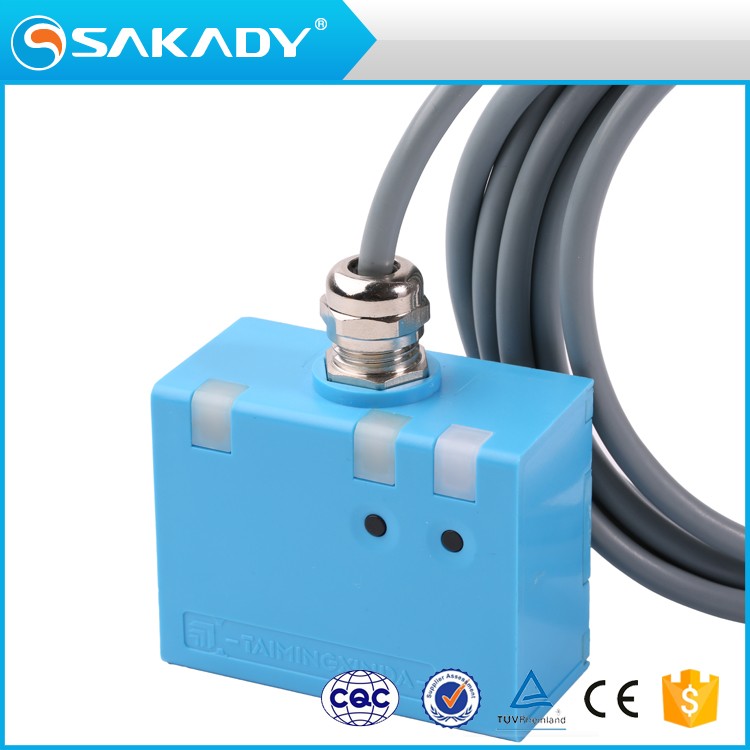

Single-axis tilt angle sensor for tilt angle measurement
- $60.00 / 1 - 49 pieces
$55.00 / 50 - 99 pieces
$50.00 / >=100 pieces - 1 piece
- Hangzhou Sakady Sensor Co., Ltd.
- Zhejiang, China
- Mr Sa kady
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,Angle Sensor | usage: | Object detection and security |
| describe: | tilt sensor | Protection class: | Protection class 67 |
| thing: | Angle sensor | type: | tilt sensor |
| power supply: | 10 ~ 30V DC | Resolution: | ≤ 0.1° |
| color: | blue | Supply capacity: | Angle sensor 1000 pieces per month |
| brand: | Sakadi | Absolute accuracy: | ≤±0.5° |
| port: | Ningbo, Shanghai | output: | NPN, PNP, Relay NO, Relay NC |
| model: | TM-INC360-10U-Y | Warranty: | 1 year |
| Packaging Details: | Packaging: Each set of angle sensors will be packaged in a PE bag together with the instruction manual and mounting bracket, 1 set/box, 30 boxes/carton, standard packaging for export. Gross Weight: 9.5kgs/CTN Volume: 0.027CBM/CTN | Material: | ABS |
| scope of test: | 0~360° | Certificate: | CCC,CE |
| place of origin; place of origin: | Zhejiang, China |
Single-axis tilt angle sensor for tilt angle measurement
feature
 |
|
Specification
| Model | TM-INC360-10U-Y |
| scope of test | 0~360° |
| absolute accuracy | ≤±0.5° |
| response delay | ≤ 20ms |
| Resolution | ≤ 0.1° |
| Repeatability | ≤ ±0.1° |
| temperature drift | ≤ 0.027°/K |
| run display | Green LED |
| Setup Instructions | Two yellow LEDs flashing to indicate switch status |
| bottom | 2 push bottom |
| toggle state | Two yellow LEDs: switch status (each output) |
| Operating Voltage | 10~30VDC |
| No-load current | ≤ 25mA |
| Power up stabilization delay | ≤ 200ms |
| output | analog voltage |
| ambient temperature | -40~85℃ |
| shell material | ABS |
| Protection class | IP67 |
| connect | 2m PVC cable, 4x0.25mm² |
LED display:
|
LED display according to working status |
lead green powder |
lead yellow powder |
lead yellow powder |
|
Set switch point (output S1) |
dark |
flash |
dark |
|
Set switch point (output S2) |
dark |
dark |
flash |
|
start upsimulationBoundary point setting mode. |
dark |
flash |
flash |
|
Set the simulated boundary points |
dark |
flash |
dark |
|
normal operation |
bright |
toggle state |
toggle state |
|
reset. |
|
|
|
|
2s...10s |
dark |
flash |
flash |
|
resume normal operation |
flash |
dark |
dark |
|
undervoltage |
flash |
dark |
dark |

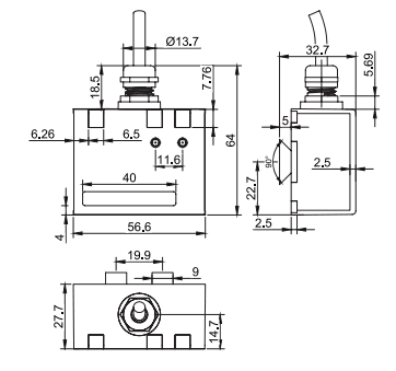

Dimensions:
Sensor Orientation:
When the electrical interface is vertically up, it defaults to the zero position of the sensor.
According to the specific requirements of customers, preset 0.
For example, when going straight down, the electrical interface is zero.

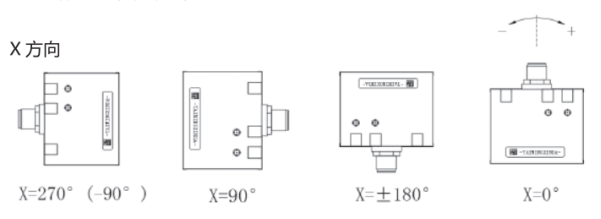

X direction:

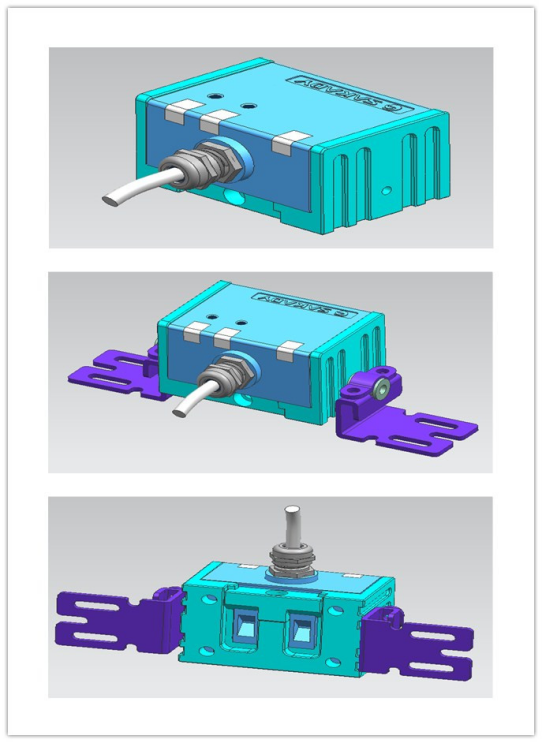

Mounting brackets:
