Small Diameter Automatic Paper Straw Making Machine Milk Tea Straw Bending Machine
- $13500.00 / 1 - 2 sets
$13000.00 / >=3 sets - 1 set
- Wenzhou Gaoda Paper Tube Machinery Co., Ltd.
- Zhejiang, China
- Ms Lily Lee
PRODUCT DETAIL
| the inside diameter of: | 3.3mm-11.3mm | brand: | Gundam |
| Package preview: | Origin: | Zhejiang, China | |
| raw material: | white kraft paper | strength: | 6 kW |
| Dimensions (L*W*H): | 4000*1200*1600mm | Health status: | new |
| Core component warranty: | 1 year | Supply capacity: | 45 sets per month If you need urgently, we can try our best |
| port: | Ningbo Port | shape: | U-shaped |
| Packaging Details: | wooden pallet and plastic film | payment terms: | Western Union, L/C, T/T |
| Marketing Type: | 2020 New Products | weight: | 1350 |
| Mechanical test report: | if | Showroom location: | not any |
| Warranty: | 1 year | Applicable industries: | Food and Beverage Factory,Food Store,Food and Beverage Store,Advertising Agency |
| Paper straw outer diameter: | 4-13 mm | Video outbound inspection: | if |
| Core components: | PLC, motor, pump | Voltage: | 380V (can be customized) |
Product Description

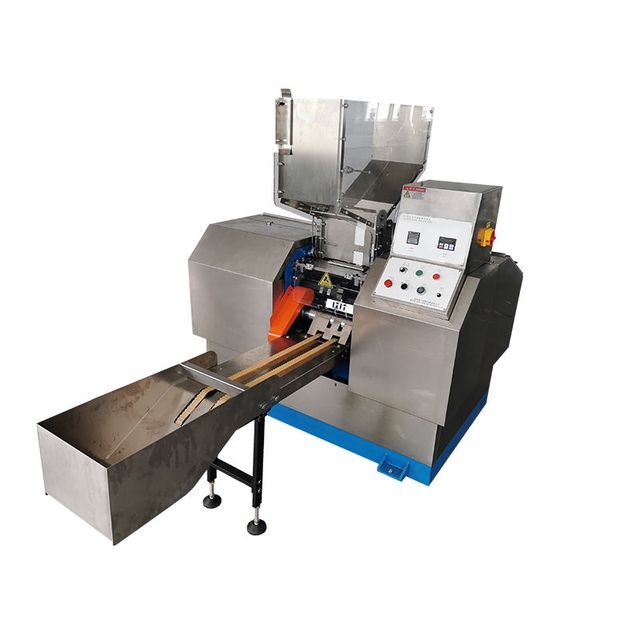

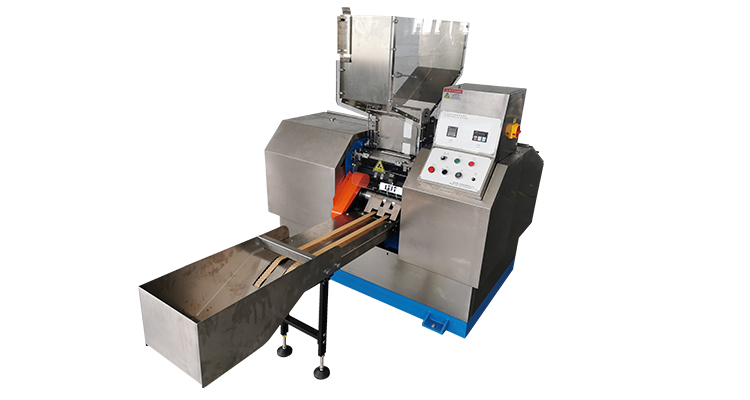

GD-Bend300
Paper Straw Bending Machine
What it does is turn a straight straw into a bendable flexible straw. (Flexible Paper Straw Making Machine)
work process:
1) The operator only needs to put the straight paper straws into the hopper, then start the machine, the flexible straws will come out automatically and fall on the conveyor belt. 2) There are wheels and die sticks for making indentations on the paper straw body. 3) Before pressing, there will be a needle inserted into the hole of the paper straw to protect the paper straw from being over-pressed. 4) Finally, the flexible paper straws will come out on the conveyor belt. There are 2 types of indentation. One machine, 2 choose 1.
feature
1) The whole process is carried out automatically;
2) High production efficiency, 1 operator, 150-250 pieces/minute;
3) Automatically count how many paper straws have been used up;
4) Touch screen, man-machine interface, easy to operate;
5) The production process is automatically counted and displayed on the touch screen. 6) Automatic shutdown in case of failure.
Specification
birthplace | China |
zhejiang | |
brand | Gundam |
Health status | new |
Video outbound inspection | if |
Mechanical Test Report | if |
marketing type | 2020 New Products |
machine speed | 0-250pcs/min |
Inner diameter of straw | 3.8mm |
Straw outer diameter | 4.5mm |
straw length | 150-240 mm |
engine | 1.5 kW |
Watage | 380V/three-phase/50Hz |
Machine size (length*width*height) | 1900*1400*1600mm |
machine weight | 1000 kg |
